Fein Dustex 35 L / 92036223240 Spare Parts

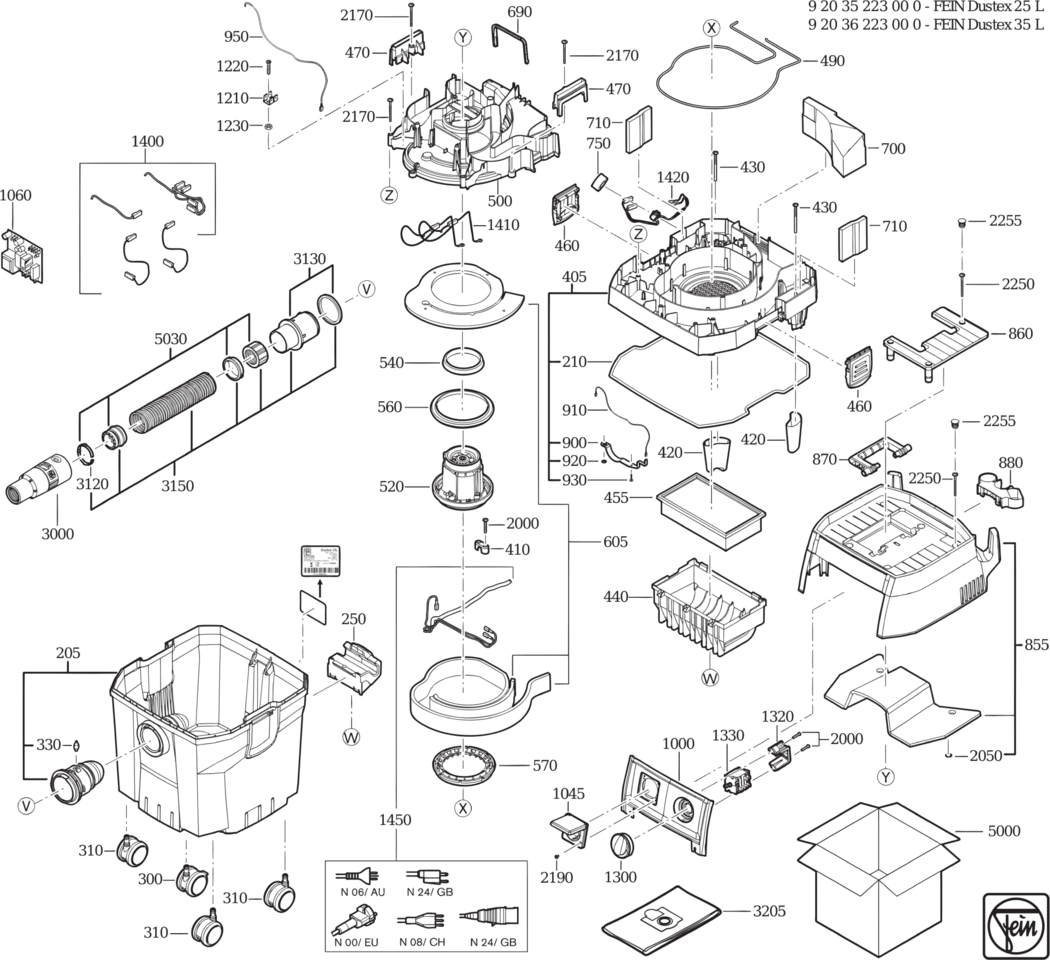

An exploded diagram and spare parts listing for the Fein Dustex 35 L / 92036223240

	Ex VAT	Inc VAT
205 - CONTAINER 35L/TURBOII FEI-31345282010.A3 31345282010	-
210 - SEAL FEI-31345006000.A10 31345006000	£24.46	£29.35
250 - HOLDER FEI-31345003000.A2 31345003000	£24.39	£29.27
300 - ROLLER FEI-31345004000.A10 31345004000	£25.88	£31.05
310 - ROLLER FEI-31345005000.A2 31345005000	£23.78	£28.53
330 - BOLT FEI-31345147000.A6 31345147000	£2.98	£3.58
405 - BASE PLATE FEI-31345283010.A0 31345283010	-
410 - CABLE CLAMPING PIECE FEI-31345008000.A12 31345008000	-
420 - HOLDER FEI-31345009000.A0 31345009000	-
430 - SONDE FEI-31345010000.A12 31345010000	-
440 - HOUSING FEI-31345011000.A0 31345011000	£37.91	£45.49
455 - FLAT-FOLD FILTER FEI-31345012010.A11 31345012010	£48.33	£58.00
460 - LUG FEI-31345013000.A0 31345013000	£6.45	£7.74
470 - PRESSURE PIECE FEI-31345014000.A12 31345014000	£9.66	£11.59
490 - SEAL FEI-31345015000.A0 31345015000	-
500 - HOUSING FEI-31345298000.A2 31345298000	-
520 - MOTOR 220-230V FEI-31345018000.A1 31345018000	£174.83	£209.80
540 - SEAL FEI-31345020000.A7 31345020000	£12.84	£15.41
560 - SEAL FEI-31345021000.A5 31345021000	£7.87	£9.44
570 - MOTOR BEARING RING FEI-31345022000.A7 31345022000	£24.05	£28.86
605 - INSERT SET FEI-31345024010.A4 31345024010	£42.93	£51.52
690 - SEAL FEI-31345093000.A2 31345093000	£10.19	£12.23
700 - FILTER FEI-31345025000.A8 31345025000	£22.50	£27.00
710 - FILTER FEI-31345113000.A1 31345113000	£6.41	£7.69
750 - FERRITE SLEEVE FEI-31345026000.A9 31345026000	-
855 - HOOD FEI-31345027010.A8 31345027010	£80.22	£96.26
860 - COVER FEI-31345028000.A4 31345028000	£21.48	£25.77
870 - HANDLE FEI-31345029000.A8 31345029000	£30.95	£37.14
880 - HOLDER FEI-31345030000.A4 31345030000	£8.42	£10.11
900 - CONTACT SPRING FEI-31345167000.A11 31345167000	-
910 - CABLE FEI-31345289000.A3 31345289000	-
920 - TERMINAL FEI-31345170000.A10 31345170000	-
930 - FILLISTER HEAD SCREW FEI-31345171000.A7 31345171000	-
950 - CABLE FEI-31345287000.A1 31345287000	-
1000 - OPERATING ELEMENT FEI-31345031000.A5 31345031000	-
1045 - SOCKET GB 230V FEI-31345110010.A1 31345110010	£87.94	£105.53
1060 - ELECTRONICS 220-230V FEI-31345036000.A5 31345036000	£83.02	£99.63
1210 - DISTRIBUTOR FEI-31345184000.A8 31345184000	-
1220 - SCREW FEI-31345284000.A4 31345284000	-
1230 - NUT FEI-31345236000.A4 31345236000	-
1300 - ROTARY KNOB FEI-31345038000.A14 31345038000	£16.18	£19.42
1320 - HOLDER FEI-31345040000.A9 31345040000	-
1330 - SWITCH FEI-31345041000.A14 31345041000	£33.88	£40.66
1400 - CABLE HARNESS FEI-31345042010.A3 31345042010	£21.99	£26.39
1410 - CABLE FEI-31345044000.A7 31345044000	£3.15	£3.78
1420 - CABLE FEI-31345046000.A11 31345046000	£3.15	£3.78
1450 - CABLE WITH PLUG FEI-31345295010.A1 31345295010	-
2000 - SCREW FEI-31345049000.A12 31345049000	-
2050 - CIRCLIP FEI-31345050000.A4 31345050000	-
2170 - SCREW FEI-31345051000.A10 31345051000	£1.60	£1.92
2190 - SCREW FEI-31345052000.A10 31345052000	-
2250 - SCREW FEI-31345053000.A7 31345053000	£1.60	£1.92
2255 - PLUG FEI-31345262000.A1 31345262000	£1.60	£1.92
3000 - ANTISTATIC TOOL COLLAR FEI-31345300010.A11 31345300010	£41.38	£49.65
3120 - CLAMPING RING FEI-31345094000.A16 31345094000	£2.43	£2.92
3130 - HOSE CONNECTION FEI-31345140010.A13 31345140010	£32.92	£39.50
3150 - SUCTION HOSE FEI-31345066010.A19 31345066010	£98.58	£118.29
3205 - FLEECE FILTER BAG FEI-31345062010.A6 31345062010	£50.23	£60.28
5000 - CARDBOARD FEIN DUSTEX35L FEI-31345055010.A3 31345055010	-
5030 - REPAIR SET FEI-31345069010.A0 31345069010	£48.33	£58.00
