Fein Dustex 25 L / 92035211240 Spare Parts

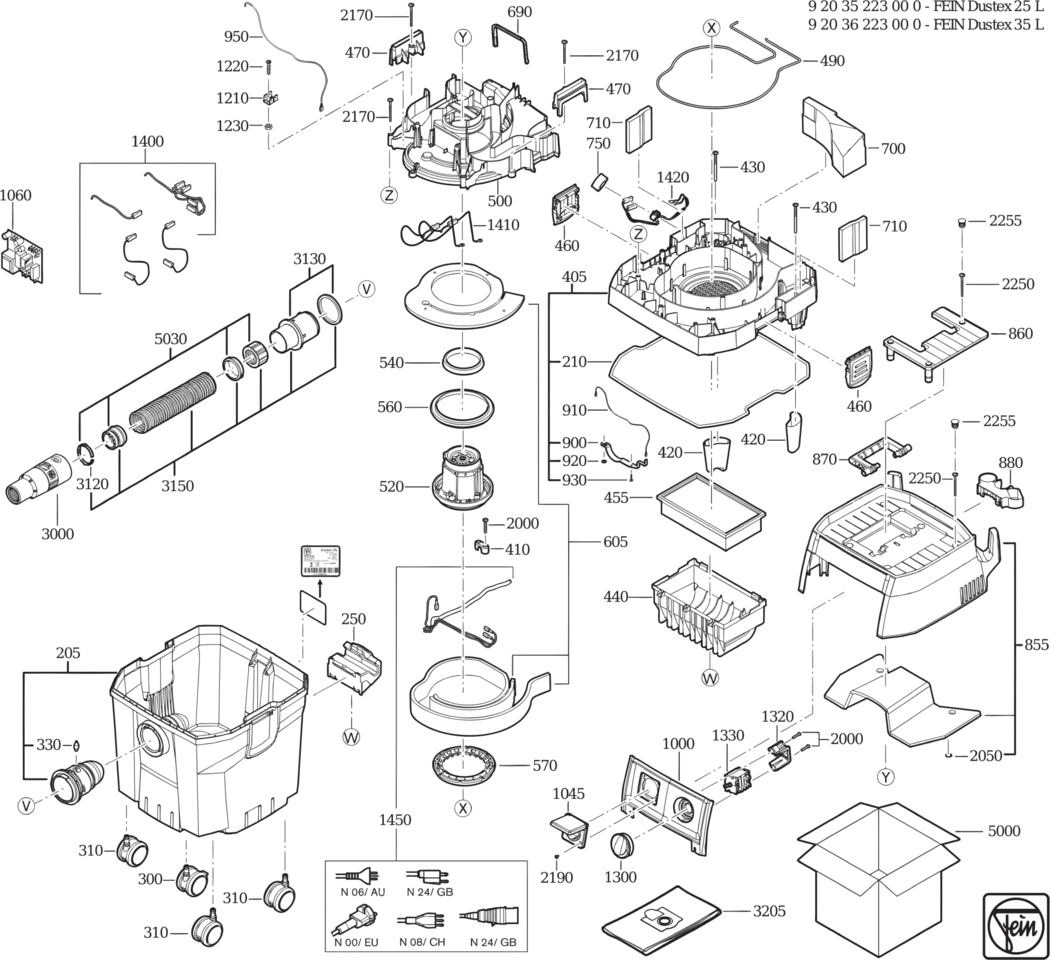

An exploded diagram and spare parts listing for the Fein Dustex 25 L / 92035211240

	Ex VAT	Inc VAT
205 - CONTAINER 25L/TURBOI FEI-31345281010.A0 31345281010	-
210 - SEAL FEI-31345006000.A5 31345006000	£24.46	£29.35
250 - HOLDER FEI-31345003000.A6 31345003000	£24.39	£29.27
300 - ROLLER FEI-31345004000.A6 31345004000	£25.88	£31.05
310 - ROLLER FEI-31345005000.A6 31345005000	£23.78	£28.53
330 - BOLT FEI-31345147000.A10 31345147000	£2.98	£3.58
405 - BASE PLATE FEI-31345283010.A4 31345283010	-
410 - CABLE CLAMPING PIECE FEI-31345008000.A5 31345008000	-
420 - HOLDER FEI-31345009000.A7 31345009000	-
430 - SONDE FEI-31345010000.A5 31345010000	-
440 - HOUSING FEI-31345011000.A7 31345011000	£37.91	£45.49
455 - FLAT-FOLD FILTER FEI-31345012010.A5 31345012010	£48.33	£58.00
460 - LUG FEI-31345013000.A11 31345013000	£6.45	£7.74
470 - PRESSURE PIECE FEI-31345014000.A6 31345014000	£9.66	£11.59
490 - SEAL FEI-31345015000.A6 31345015000	-
500 - HOUSING FEI-31345298000.A1 31345298000	-
520 - MOTOR 110V FEI-31345109000.A0 31345109000	£174.83	£209.80
540 - SEAL FEI-31345020000.A3 31345020000	£12.84	£15.41
560 - SEAL FEI-31345021000.A9 31345021000	£7.87	£9.44
570 - MOTOR BEARING RING FEI-31345022000.A3 31345022000	£24.05	£28.86
605 - INSERT SET FEI-31345024010.A9 31345024010	£42.93	£51.52
690 - SEAL FEI-31345093000.A7 31345093000	£10.19	£12.23
700 - FILTER FEI-31345025000.A3 31345025000	£22.50	£27.00
710 - FILTER FEI-31345113000.A7 31345113000	£6.41	£7.69
750 - FERRITE SLEEVE FEI-31345026000.A13 31345026000	-
855 - HOOD FEI-31345027010.A3 31345027010	£80.22	£96.26
860 - COVER FEI-31345028000.A9 31345028000	£21.48	£25.77
870 - HANDLE FEI-31345029000.A3 31345029000	£30.95	£37.14
880 - HOLDER FEI-31345030000.A9 31345030000	£8.42	£10.11
900 - CONTACT SPRING FEI-31345167000.A4 31345167000	-
910 - CABLE FEI-31345289000.A0 31345289000	-
920 - TERMINAL FEI-31345170000.A3 31345170000	-
930 - FILLISTER HEAD SCREW FEI-31345171000.A14 31345171000	-
950 - CABLE FEI-31345287000.A4 31345287000	-
1000 - OPERATING ELEMENT GB FEI-31345117000.A1 31345117000	£36.72	£44.07
1045 - SOCKET GB FEI-31345104010.A1 31345104010	£151.05	£181.26
1060 - ELECTRONICS 110-120V FEI-31345037000.A3 31345037000	£89.41	£107.29
1210 - DISTRIBUTOR FEI-31345184000.A3 31345184000	-
1220 - SCREW FEI-31345284000.A0 31345284000	-
1230 - NUT FEI-31345236000.A9 31345236000	-
1300 - ROTARY KNOB FEI-31345038000.A3 31345038000	£16.18	£19.42
1320 - HOLDER FEI-31345040000.A20 31345040000	-
1330 - SWITCH FEI-31345041000.A3 31345041000	£33.88	£40.66
1400 - CABLE FEI-31345127010.A1 31345127010	£26.84	£32.21
1410 - CABLE FEI-31345044000.A4 31345044000	£3.15	£3.78
1420 - CABLE FEI-31345046000.A0 31345046000	£3.15	£3.78
1450 - CABLE WITH PLUG GB/110V FEI-31345246010.A2 31345246010	£65.61	£78.73
2000 - SCREW FEI-31345049000.A3 31345049000	-
2050 - CIRCLIP FEI-31345050000.A9 31345050000	-
2170 - SCREW FEI-31345051000.A3 31345051000	£1.60	£1.92
2190 - SCREW FEI-31345114000.A2 31345114000	-
2250 - SCREW FEI-31345053000.A2 31345053000	£1.60	£1.92
2255 - PLUG FEI-31345262000.A5 31345262000	£1.60	£1.92
3000 - ANTISTATIC TOOL COLLAR FEI-31345300010.A3 31345300010	£41.38	£49.65
3120 - CLAMPING RING FEI-31345094000.A13 31345094000	£2.43	£2.92
3130 - HOSE CONNECTION FEI-31345140010.A5 31345140010	£32.92	£39.50
3150 - SUCTION HOSE FEI-31345066010.A12 31345066010	£98.58	£118.29
3205 - FLEECE FILTER BAG FEI-31345061010.A1 31345061010	£38.65	£46.38
5000 - CARDBOARD FEI-31345125010.A1 31345125010	-
5030 - REPAIR SET FEI-31345069010.A10 31345069010	£48.33	£58.00
