Fein KBU 35 PQW / 72707224110 Spare Parts

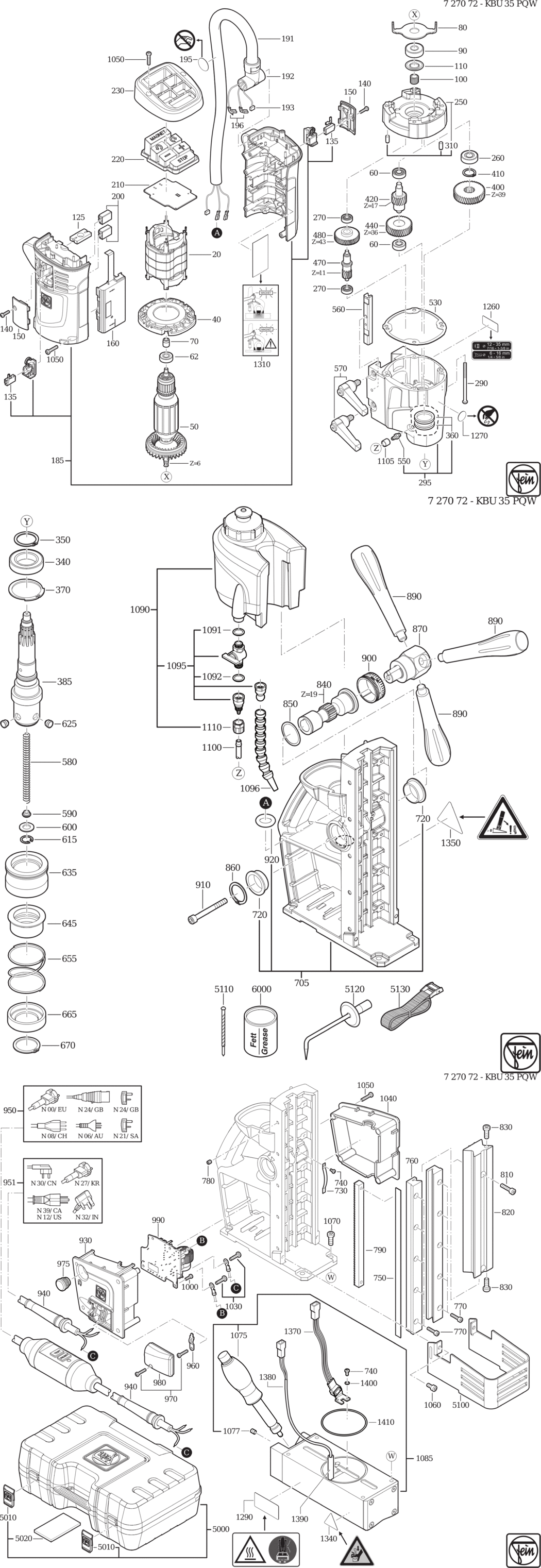

An exploded diagram and spare parts listing for the Fein KBU 35 PQW / 72707224110

	Ex VAT	Inc VAT
20 - STATOR 60HZ/110V FEI-51282002110.A5 51282002110	-
40 - AIR GUIDE RING FEI-31428196000.A1 31428196000	-
50 - ARMATURE 50/60H110/120V FEI-53281007110.A5 53281007110	-
60 - GROOVED BALL BEARING FEI-41701001172.A63 41701001172	£9.63	£11.56
62 - GROOVED BALL BEARING FEI-41701001260.A133 41701001260	£7.11	£8.53
80 - PLATE FEI-32416098005.A77 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701207260.A122 41701207260	£7.41	£8.89
100 - SEALING RING FEI-32612135000.A64 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A4 42639028003	£5.74	£6.89
125 - COVER FEI-32411089000.A9 32411089000	-
140 - SCREW FEI-43072000000.A124 43072000000	£1.60	£1.92
150 - COVER FEI-32427157000.A68 32427157000	£4.97	£5.96
191 - PROTECTIVE HOSE FEI-31414072000.A10 31414072000	-
192 - CONNECTING PIECE FEI-32429146010.A11 32429146010	-
193 - CONNECTING CABLE FEI-30719936010.A10 30719936010	-
195 - STICKER FEI-32217468060.A4 32217468060	-
196 - CABLE HARNESS FEI-30719943010.A17 30719943010	-
200 - TERMINAL FEI-30728445000.A36 30728445000	-
220 - SWITCH INSERT FEI-32816078000.A6 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A47 32429141000	£14.66	£17.59
250 - INTERMEDIATE GEAR BOX FEI-31506412010.A22 31506412010	-
260 - GROOVED BALL BEARING FEI-41701006034.A8 41701006034	£11.83	£14.20
270 - GROOVED BALL BEARING FEI-41701202018.A165 41701202018	£6.92	£8.30
290 - SCREW FEI-43072006001.A27 43072006001	-
295 - GEARBOX HOUSING FEI-31508311020.A5 31508311020	-
310 - PIN FEI-40242058004.A7 40242058004	-
340 - GROOVED BALL BEARING FEI-41701000015.A22 41701000015	-
350 - CIRCLIP FEI-42616014009.A17 42616014009	£1.60	£1.92
360 - SEALING RING FEI-40608000005.A10 40608000005	-
370 - CIRCLIP FEI-42644019001.A20 42644019001	-
385 - SHAFT FEI-33403132000.A0 33403132000	-
400 - GEAR-WHEEL Z=39 FEI-33663174000.A25 33663174000	-
410 - CIRCLIP FEI-42616007001.A48 42616007001	£1.60	£1.92
420 - SHAFT TOOTHED Z=17 FEI-33763064000.A4 33763064000	-
440 - GEAR-WHEEL Z=36 FEI-33661002000.A25 33661002000	-
470 - SHAFT TOOTHED FEI-33761002000.A4 33761002000	-
480 - GEAR-WHEEL FEI-33657190000.A9 33657190000	£38.05	£45.66
530 - SEAL FEI-30610048000.A23 30610048000	-
550 - HOSE SOCKET FEI-41138025006.A56 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A47 33218134000	-
570 - LEVER FEI-32170025000.A47 32170025000	£26.84	£32.21
580 - SPIRAL SPRING FEI-30901341000.A65 30901341000	£5.99	£7.19
590 - SEALING RING FEI-30503145006.A79 30503145006	£3.52	£4.23
600 - DISC FEI-32408389000.A5 32408389000	£1.60	£1.92
615 - CIRCLIP FEI-42616033009.A35 42616033009	£1.60	£1.92
625 - PIN FEI-30240330000.A19 30240330000	-
635 - CLAMPING SLEEVE FEI-30501371000.A5 30501371000	-
645 - BUSH FEI-30501373000.A5 30501373000	£30.84	£37.01
655 - SPRING FEI-30901401000.A17 30901401000	-
665 - SLEEVE FEI-30501372000.A16 30501372000	-
670 - CIRCLIP 28X1 5 FEI-42616076000.A50 42616076000	-
720 - BUSH FEI-31602089009.A58 31602089009	-
730 - LEAF SPRING FEI-30904047000.A10 30904047000	-
740 - SCREW FEI-43076001030.A28 43076001030	-
750 - PRESSURE PIECE FEI-33216047000.A36 33216047000	£5.35	£6.42
760 - GUIDE STRIP FEI-34300000002.A2 34300000002	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A33 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A60 43058008051	-
790 - GEAR RACK FEI-33812007004.A74 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A67 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000003.A27 34300000003	-
830 - FILLISTER HEAD SCREW FEI-43041041053.A24 43041041053	£1.60	£1.92
840 - SHAFT TOOTHED FEI-33713073000.A18 33713073000	-
850 - DISC FEI-42446003009.A23 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A30 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A26 30109201010	-
890 - HANDLE FEI-32119114014.A53 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A16 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A37 43035084062	-
920 - SEALING RING FEI-40612171000.A3 40612171000	-
930 - COVER LEFT FEI-32424040000.A0 32424040000	-
1040 - COVER FEI-32424033000.A22 32424033000	-
1050 - SCREW FEI-43074008000.A107 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A14 43035013058	£1.60	£1.92
1085 - MAGNETIC FOOT FEI-32172032000.A2 32172032000	-
1091 - SEALING RING FEI-40612112007.A27 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A24 40612087004	£1.60	£1.92
1110 - NUT FEI-42015000000.A44 42015000000	£6.83	£8.20
1350 - INFORMATION SIGN FEI-32217552000.A18 32217552000	£1.60	£1.92
1370 - SWITCH FEI-30701317010.A3 30701317010	£37.27	£44.72
1380 - SENSOR FEI-30767143000.A4 30767143000	-
1390 - HOSE FEI-31413264000.A3 31413264000	-
1400 - CIRCLIP M3 FEI-42443001030.A2 42443001030	-
1410 - SEALING RING FEI-40612049000.A18 40612049000	£7.56	£9.07
5010 - WIRE CLAMP FEI-30232050000.A14 30232050000	£10.78	£12.94
5020 - INSERT FEI-33904576000.A24 33904576000	-
5100 - PROTECTIVE GRILLE FEI-31810307000.A3 31810307000	-
5110 - CENTERING PIN FEI-63134998310.A20 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A19 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A69 32174008007	£33.23	£39.88
