Fein KBM 65 U (A) / 72707600230 Spare Parts

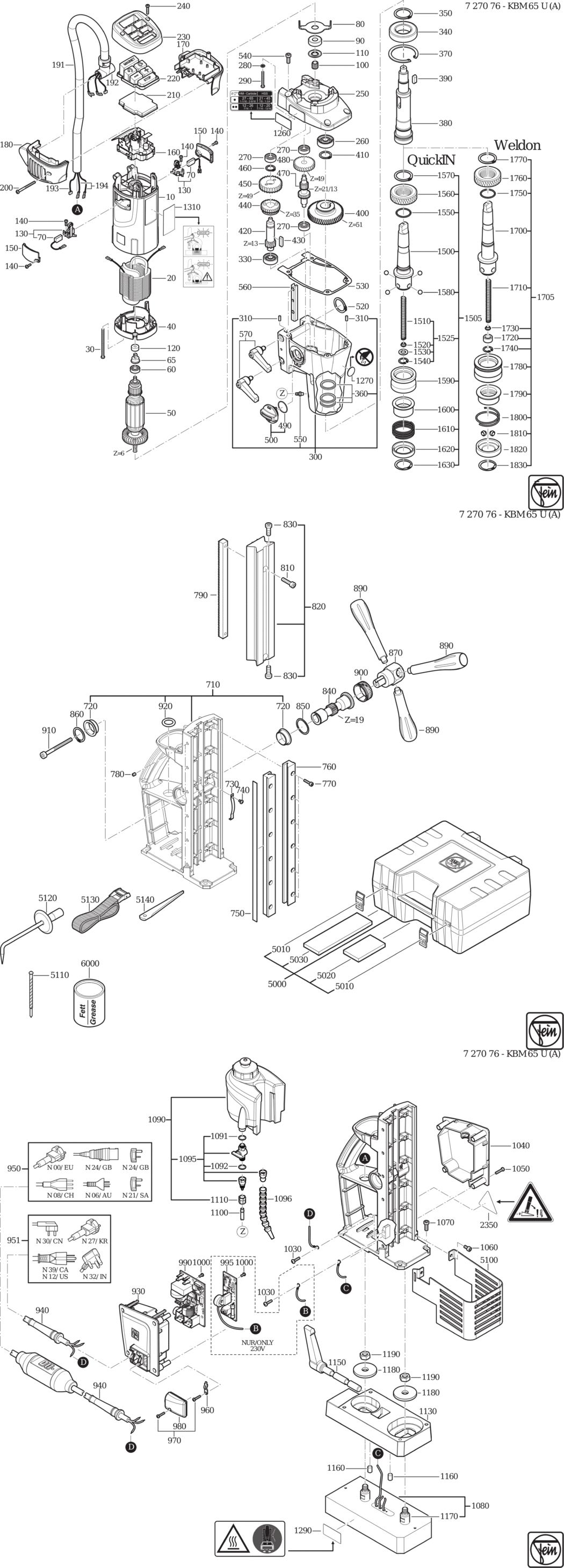

An exploded diagram and spare parts listing for the Fein KBM 65 U (A) / 72707600230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903223000.A0 31903223000	£45.41	£54.49
20 - STATOR 220-230V FEI-51273007230.A6 51273007230	-
30 - SCREW FEI-43072012001.A38 43072012001	-
40 - AIR GUIDE RING FEI-31428168000.A23 31428168000	-
50 - ARMATURE 50HZ230V Z=6 FEI-53273010230.A4 53273010230	£144.01	£172.81
60 - GROOVED BALL BEARING FEI-41701001260.A385 41701001260	£7.11	£8.53
65 - SLEEVE FEI-31406053007.A5 31406053007	£3.42	£4.10
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A24 30711132003	£10.52	£12.63
80 - PLATE FEI-32416098005.A9 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701007050.A31 41701007050	£15.15	£18.18
100 - SEALING RING FEI-32612135000.A29 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A66 42639028003	£5.74	£6.89
120 - RING MAGNET FEI-32172010005.A17 32172010005	£22.34	£26.81
130 - BRUSH HOLDER FEI-30712088013.A22 30712088013	£17.61	£21.13
140 - SCREW FEI-43074013000.A45 43074013000	-
150 - COVER FEI-32424029000.A15 32424029000	-
160 - ELECTRONICS 100-230V 50/60H FEI-30762441990.A13 30762441990	£180.61	£216.73
170 - COVER FEI-32429144000.A11 32429144000	£14.66	£17.59
180 - COVER FEI-32429145000.A8 32429145000	£14.66	£17.59
191 - PROTECTIVE HOSE FEI-31414068000.A14 31414068000	-
192 - CONNECTING PIECE FEI-32429146010.A23 32429146010	-
193 - CONNECTING CABLE FEI-30719861010.A17 30719861010	-
194 - CONNECTING CABLE FEI-30719864010.A2 30719864010	-
200 - SCREW FEI-43072013005.A4 43072013005	£1.60	£1.92
210 - ELECTRONICS 100-230V 50/60HZ FEI-30762443990.A7 30762443990	£52.15	£62.58
220 - SWITCH INSERT FEI-32816078000.A28 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A16 32429141000	£14.66	£17.59
240 - SCREW FEI-43074008000.A69 43074008000	£1.60	£1.92
250 - INTERMEDIATE GEAR BOX FEI-31506393000.A3 31506393000	-
260 - GROOVED BALL BEARING FEI-41701213011.A33 41701213011	£8.92	£10.70
270 - GROOVED BALL BEARING FEI-41701204010.A48 41701204010	£6.37	£7.64
280 - SEALING RING FEI-40611000000.A11 40611000000	-
290 - SCREW FEI-43072010009.A45 43072010009	£1.60	£1.92
300 - GEARBOX HOUSING FEI-31508288020.A2 31508288020	£256.90	£308.28
310 - STRAIGHT PIN FEI-40201035003.A3 40201035003	-
330 - GROOVED BALL BEARING FEI-41701010010.A24 41701010010	£8.58	£10.30
340 - GROOVED BALL BEARING FEI-41701025051.A22 41701025051	£34.83	£41.80
350 - CIRCLIP FEI-42616015003.A12 42616015003	£1.60	£1.92
360 - SEALING RING FEI-40608000000.A12 40608000000	£7.02	£8.43
370 - CIRCLIP FEI-42616074003.A28 42616074003	£1.60	£1.92
380 - SHAFT MK3 FEI-33402055000.A12 33402055000	-
390 - FEATHER KEY FEI-40221061003.A10 40221061003	-
400 - GEAR-WHEEL Z=51 FEI-33665060000.A22 33665060000	-
410 - CIRCLIP FEI-42616009003.A59 42616009003	£1.60	£1.92
420 - SHAFT TOOTHED Z=13 FEI-33765019007.A30 33765019007	£90.30	£108.36
430 - FEATHER KEY FEI-40221067009.A24 40221067009	£5.66	£6.79
440 - GEAR-WHEEL Z=35 FEI-33613128002.A8 33613128002	£81.20	£97.44
450 - GEAR-WHEEL Z=49 FEI-33611001010.A5 33611001010	-
460 - CIRCLIP FEI-42616007001.A52 42616007001	£1.60	£1.92
470 - GEAR-WHEEL Z=21/13 FEI-33811069000.A1 33811069000	-
480 - GEAR-WHEEL Z=49 FEI-33657169005.A26 33657169005	£42.31	£50.77
490 - SEALING RING FEI-40612115003.A3 40612115003	£1.60	£1.92
500 - SWITCH PUSHBUTTON FEI-32805310010.A8 32805310010	£21.60	£25.92
520 - CIRCLIP FEI-42644003001.A22 42644003001	-
530 - SEAL FEI-30610047000.A13 30610047000	£9.92	£11.91
540 - CYLINDER HEAD SCREW FEI-43033064066.A88 43033064066	£1.60	£1.92
550 - HOSE SOCKET FEI-41138025006.A51 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A36 33218134000	-
570 - LEVER FEI-32170025000.A37 32170025000	£26.84	£32.21
710 - HOUSING FEI-31207295010.A28 31207295010	-
720 - BUSH FEI-31602089009.A46 31602089009	-
730 - LEAF SPRING FEI-30904041001.A5 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A49 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A16 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A18 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A20 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A70 43058008051	-
790 - GEAR RACK FEI-33812007004.A41 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A44 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A13 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A13 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A25 33713071000	-
850 - DISC FEI-42446003009.A8 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A55 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A7 30109201010	-
890 - HANDLE FEI-32119114014.A89 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A10 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A54 43035084062	-
920 - SEALING RING FEI-40612171000.A23 40612171000	-
930 - COVER FEI-32429142000.A3 32429142000	-
940 - PROTECTIVE HOSE FEI-31413237000.A23 31413237000	£2.74	£3.29
950 - CABLE PRCD FEI-30707579010.A6 30707579010	£78.74	£94.49
960 - CABLE CLAMPING PIECE FEI-32431043002.A29 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A140 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A46 32424031000	£12.77	£15.32
990 - ELECTRONICS 220-230V 50/60HZ FEI-30762442990.A1 30762442990	£173.58	£208.30
995 - ELECTRONICS 220-230V 50/60HZ FEI-30762474990.A2 30762474990	-
1000 - SCREW FEI-43074013000.A78 43074013000	-
1030 - FILLISTER HEAD SCREW FEI-43064023045.A12 43064023045	£1.60	£1.92
1040 - COVER FEI-32429143000.A10 32429143000	-
1050 - SCREW FEI-43074008000.A135 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A43 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A89 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216057010.A4 33216057010	-
1090 - CONTAINER FEI-32132035010.A9 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A17 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A3 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A35 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A14 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A23 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A51 42015000000	£6.83	£8.20
1130 - INTERMEDIATE GEAR BOX FEI-32432079010.A1 32432079010	-
1150 - LEVER FEI-32170020000.A3 32170020000	-
1160 - ROLLER FEI-41709041004.A1 41709041004	-
1170 - BOLT FEI-30217353000.A4 30217353000	-
1180 - DISC FEI-32408419000.A7 32408419000	-
1190 - HEX NUT FEI-42001010103.A6 42001010103	-
1260 - INFORMATION SIGN FEI-32217469060.A6 32217469060	-
1270 - STICKER FEI-32217406002.A18 32217406002	£1.60	£1.92
1290 - INFORMATION SIGN FEI-32217507060.A8 32217507060	-
1310 - INFORMATION SIGN FEI-32217466060.A10 32217466060	-
1500 - SHAFT FEI-33401093000.A2 33401093000	-
1505 - QUICKIN-ADAPTORS FEI-63901048020.A1 63901048020	£230.31	£276.37
1510 - SPIRAL SPRING FEI-30901341000.A70 30901341000	£5.99	£7.19
1520 - SEALING RING FEI-30503145006.A65 30503145006	£3.52	£4.23
1525 - SPIRAL SPRING FEI-30901341019.A3 30901341019	£14.90	£17.88
1530 - DISC FEI-32408389000.A12 32408389000	£1.60	£1.92
1540 - CIRCLIP FEI-42616075007.A6 42616075007	-
1550 - SEALING RING FEI-40612038007.A28 40612038007	£10.08	£12.10
1560 - NUT FEI-42015000010.A4 42015000010	-
1570 - CIRCLIP FEI-42643016008.A22 42643016008	£2.59	£3.11
1580 - BALL FEI-41708025004.A41 41708025004	£1.60	£1.92
1590 - CLAMPING SLEEVE FEI-30503163000.A8 30503163000	-
1600 - BUSH FEI-30510089000.A7 30510089000	-
1610 - SPRING FEI-30901391000.A1 30901391000	-
1620 - SLEEVE FEI-30503164000.A7 30503164000	-
1630 - CIRCLIP 28X1 5 FEI-42616076000.A42 42616076000	-
2350 - INFORMATION SIGN FEI-32217552000.A27 32217552000	£1.60	£1.92
5000 - CASE FEI-33901142140.A5 33901142140	£127.98	£153.57
5100 - PROTECTIVE GRILLE FEI-31810186000.A0 31810186000	-
5110 - CENTERING PIN FEI-63134998310.A41 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A26 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A57 32174008007	£33.23	£39.88
5140 - DRIFT KEYS FEI-63305003003.A24 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A47 32132041000	-
