Fein KBM 50 U / 72704000230 Spare Parts

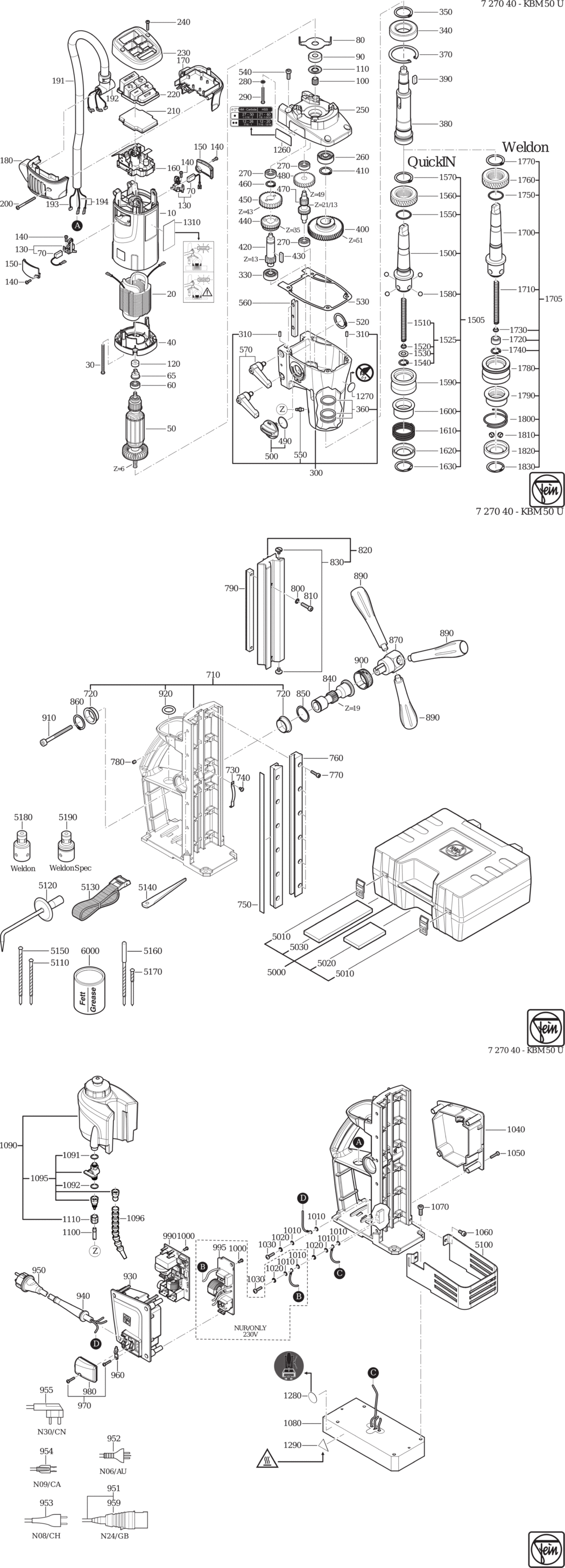

An exploded diagram and spare parts listing for the Fein KBM 50 U / 72704000230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903223000.A9 31903223000	£45.41	£54.49
20 - STATOR 220-230V FEI-51273007230.A3 51273007230	-
30 - SCREW FEI-43072012001.A5 43072012001	-
40 - AIR GUIDE RING FEI-31428168000.A7 31428168000	-
50 - ARMATURE 50HZ230V Z=6 FEI-53273010230.A10 53273010230	£144.01	£172.81
60 - GROOVED BALL BEARING FEI-41701001260.A123 41701001260	£7.11	£8.53
65 - SLEEVE FEI-31406053007.A31 31406053007	£3.42	£4.10
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A0 30711132003	£10.52	£12.63
80 - PLATE FEI-32416098005.A84 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701007050.A53 41701007050	£15.15	£18.18
100 - SEALING RING FEI-32612135000.A69 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A11 42639028003	£5.74	£6.89
120 - RING MAGNET FEI-32172010005.A28 32172010005	£22.34	£26.81
130 - BRUSH HOLDER FEI-30712088013.A11 30712088013	£17.61	£21.13
140 - SCREW FEI-43074013000.A85 43074013000	-
150 - COVER FEI-32424029000.A8 32424029000	-
160 - ELECTRONICS 100-230V 50/60H FEI-30762441990.A2 30762441990	£180.61	£216.73
170 - COVER FEI-32429144000.A3 32429144000	£14.66	£17.59
180 - COVER FEI-32429145000.A16 32429145000	£14.66	£17.59
191 - PROTECTIVE HOSE FEI-31414068000.A4 31414068000	-
192 - CONNECTING PIECE FEI-32429146010.A5 32429146010	-
193 - CONNECTING CABLE FEI-30719861010.A6 30719861010	-
194 - CONNECTING CABLE FEI-30719864010.A13 30719864010	-
200 - SCREW FEI-43072013005.A64 43072013005	£1.60	£1.92
210 - ELECTRONICS 100-230V 50/60HZ FEI-30762443990.A13 30762443990	£52.15	£62.58
220 - SWITCH INSERT FEI-32816078000.A10 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A39 32429141000	£14.66	£17.59
240 - SCREW FEI-43074008000.A142 43074008000	£1.60	£1.92
250 - INTERMEDIATE GEAR BOX FEI-31506393000.A14 31506393000	-
260 - GROOVED BALL BEARING FEI-41701213011.A6 41701213011	£8.92	£10.70
270 - GROOVED BALL BEARING FEI-41701204010.A3 41701204010	£6.37	£7.64
280 - SEALING RING FEI-40611000000.A26 40611000000	-
290 - SCREW FEI-43072010009.A14 43072010009	£1.60	£1.92
300 - GEARBOX HOUSING FEI-31508288020.A15 31508288020	£256.90	£308.28
310 - STRAIGHT PIN FEI-40201035003.A28 40201035003	-
330 - GROOVED BALL BEARING FEI-41701010010.A50 41701010010	£8.58	£10.30
340 - GROOVED BALL BEARING FEI-41701025051.A17 41701025051	£34.83	£41.80
350 - CIRCLIP FEI-42616015003.A25 42616015003	£1.60	£1.92
360 - SEALING RING FEI-40608000000.A14 40608000000	£7.02	£8.43
370 - CIRCLIP FEI-42616074003.A31 42616074003	£1.60	£1.92
380 - SHAFT MK3 FEI-33402055000.A15 33402055000	-
390 - FEATHER KEY FEI-40221061003.A8 40221061003	-
400 - GEAR-WHEEL Z=51 FEI-33665060000.A25 33665060000	-
410 - CIRCLIP FEI-42616009003.A53 42616009003	£1.60	£1.92
420 - SHAFT TOOTHED Z=13 FEI-33765019007.A34 33765019007	£90.30	£108.36
430 - FEATHER KEY FEI-40221067009.A27 40221067009	£5.66	£6.79
440 - GEAR-WHEEL Z=35 FEI-33613128002.A5 33613128002	£81.20	£97.44
450 - GEAR-WHEEL Z=43 FEI-33613127004.A26 33613127004	£68.43	£82.12
460 - CIRCLIP FEI-42616007001.A55 42616007001	£1.60	£1.92
470 - SHAFT TOOTHED Z=21/13 FEI-33811068002.A18 33811068002	£99.99	£119.99
480 - GEAR-WHEEL Z=49 FEI-33657169005.A23 33657169005	£42.31	£50.77
490 - SEALING RING FEI-40612115003.A4 40612115003	£1.60	£1.92
500 - SWITCH PUSHBUTTON FEI-32805310010.A10 32805310010	£21.60	£25.92
520 - CIRCLIP FEI-42644003001.A19 42644003001	-
530 - SEAL FEI-30610047000.A10 30610047000	£9.92	£11.91
540 - CYLINDER HEAD SCREW FEI-43033064066.A94 43033064066	£1.60	£1.92
550 - HOSE SOCKET FEI-41138025006.A45 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A31 33218134000	-
570 - LEVER FEI-32170025000.A42 32170025000	£26.84	£32.21
710 - HOUSING FEI-31207295010.A26 31207295010	-
720 - BUSH FEI-31602089009.A42 31602089009	-
730 - LEAF SPRING FEI-30904041001.A7 30904041001	£5.78	£6.94
740 - FILLISTER HEAD SCREW FEI-43041026994.A45 43041026994	-
750 - PRESSURE PIECE FEI-33216054000.A18 33216054000	-
760 - GUIDE STRIP FEI-33218126000.A23 33218126000	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A17 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A72 43058008051	-
790 - GEAR RACK FEI-33812007004.A45 33812007004	£101.03	£121.24
800 - CIRCLIP M5 FEI-42443004057.A7 42443004057	£1.60	£1.92
810 - CYLINDER HEAD SCREW FEI-43035017057.A47 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000047.A15 34300000047	-
830 - FLAT HEADED SCREW FEI-33218118010.A10 33218118010	£1.60	£1.92
840 - SHAFT TOOTHED Z=19 FEI-33713071000.A22 33713071000	-
850 - DISC FEI-42446003009.A10 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A52 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A4 30109201010	-
890 - HANDLE FEI-32119114014.A83 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A8 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A57 43035084062	-
920 - SEALING RING FEI-40612171000.A27 40612171000	-
930 - COVER FEI-32429142000.A4 32429142000	-
940 - PROTECTIVE HOSE FEI-31413237000.A24 31413237000	£2.74	£3.29
950 - CABLE WITH PLUG N00 FEI-30707502010.A2 30707502010	-
960 - CABLE CLAMPING PIECE FEI-32431043002.A25 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A136 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A49 32424031000	£12.77	£15.32
990 - ELECTRONICS 220-230V 50/60HZ FEI-30762442990.A2 30762442990	£173.58	£208.30
995 - ELECTRONICS 220-230V 50/60HZ FEI-30762474990.A4 30762474990	-
1000 - SCREW FEI-43074013000.A83 43074013000	-
1010 - DISC FEI-42404005048.A3 42404005048	£1.60	£1.92
1020 - LOCK WASHER FEI-42439013046.A147 42439013046	£1.60	£1.92
1030 - FILLISTER HEAD SCREW FEI-43064024043.A226 43064024043	-
1040 - COVER FEI-32429143000.A9 32429143000	-
1050 - SCREW FEI-43074008000.A141 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A39 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A95 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-33216056000.A8 33216056000	£420.00	£504.00
1090 - CONTAINER FEI-32132035010.A6 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A16 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A4 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A39 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A18 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414069000.A20 31414069000	£2.65	£3.18
1110 - NUT FEI-42015000000.A54 42015000000	£6.83	£8.20
1260 - INFORMATION SIGN FEI-32217470060.A1 32217470060	-
1270 - STICKER FEI-32217406002.A14 32217406002	£1.60	£1.92
1290 - INFORMATION SIGN FEI-32217507060.A6 32217507060	-
1310 - INFORMATION SIGN FEI-32217466060.A12 32217466060	-
1500 - SHAFT FEI-33401093000.A3 33401093000	-
1505 - QUICKIN-ADAPTORS FEI-63901048020.A0 63901048020	£230.31	£276.37
1510 - SPIRAL SPRING FEI-30901341000.A71 30901341000	£5.99	£7.19
1520 - SEALING RING FEI-30503145006.A66 30503145006	£3.52	£4.23
1525 - SPIRAL SPRING FEI-30901341019.A2 30901341019	£14.90	£17.88
1530 - DISC FEI-32408389000.A14 32408389000	£1.60	£1.92
1540 - CIRCLIP FEI-42616075007.A3 42616075007	-
1550 - SEALING RING FEI-40612038007.A26 40612038007	£10.08	£12.10
1560 - NUT FEI-42015000010.A2 42015000010	-
1570 - CIRCLIP FEI-42643016008.A23 42643016008	£2.59	£3.11
1580 - BALL FEI-41708025004.A39 41708025004	£1.60	£1.92
1590 - CLAMPING SLEEVE FEI-30503163000.A7 30503163000	-
1600 - BUSH FEI-30510089000.A8 30510089000	-
1610 - SPRING FEI-30901391000.A2 30901391000	-
1620 - SLEEVE FEI-30503164000.A8 30503164000	-
1630 - CIRCLIP 28X1 5 FEI-42616076000.A46 42616076000	-
5000 - CASE FEI-33901142140.A2 33901142140	£127.98	£153.57
5010 - WIRE CLAMP FEI-30232050000.A73 30232050000	£10.78	£12.94
5020 - PLATE FEI-33904486000.A19 33904486000	-
5030 - PLATE FEI-33904487000.A13 33904487000	-
5100 - PROTECTIVE GRILLE FEI-31810286000.A24 31810286000	-
5110 - CENTERING PIN FEI-63134998310.A38 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A28 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A61 32174008007	£33.23	£39.88
5140 - DRIFT KEYS FEI-63305003003.A22 63305003003	£10.56	£12.67
6000 - LUBRICANT CAN 0.850KG FEI-32132007189.A15 32132007189	-
