Fein KBM 50 Q (50/60Hz 110/120V) / 72703024110 Spare Parts

Fein KBM 50 Q ⡐/60Hz 110/120V) / 72703024110 Spare Parts

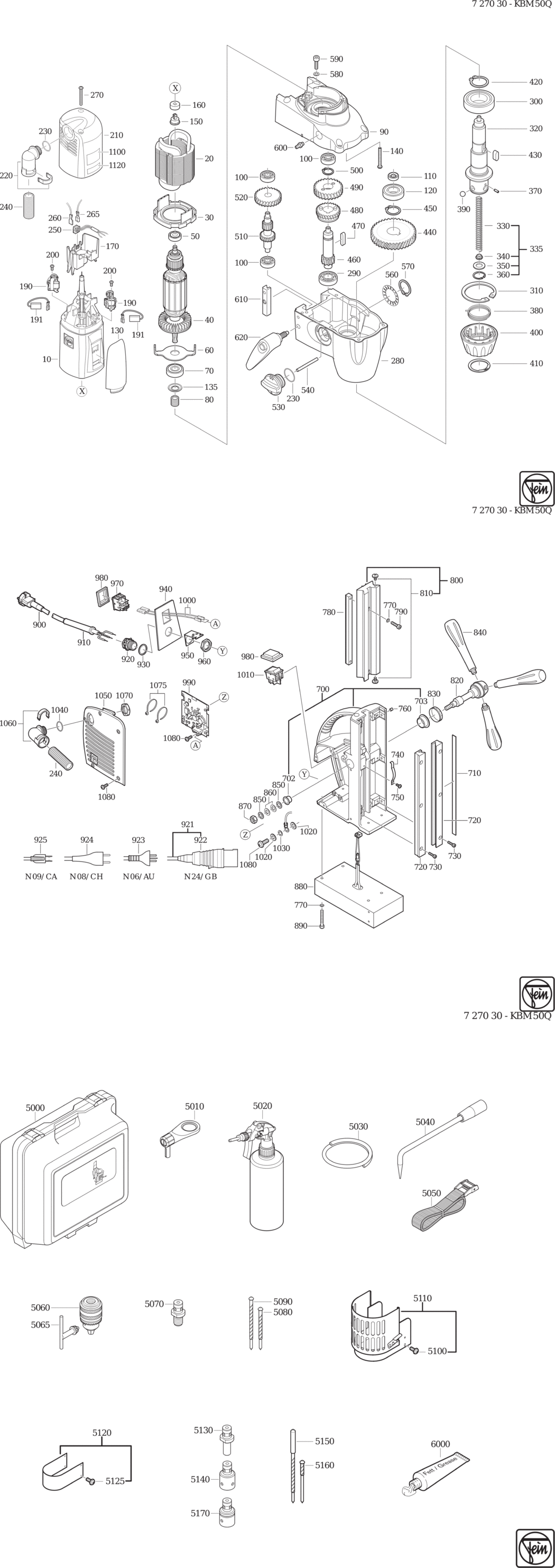

An exploded diagram and spare parts listing for the Fein KBM 50 Q (50/60Hz 110/120V) / 72703024110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901136019.A3 31901136019	£49.82	£59.79
20 - PLUG CEE 16A/110V FEI-30728288004.A19 30728288004	£14.25	£17.10
20 - STATOR FEI-51273003112.A0 51273003112	-
30 - AIR GUIDE RING FEI-31428118007.A17 31428118007	£3.52	£4.22
40 - ARMATURE 50/60HZ110-120V Z=6 FEI-53273007113.A3 53273007113	£195.19	£234.23
50 - GROOVED BALL BEARING FEI-41701001172.A75 41701001172	£9.63	£11.56
60 - PLATE FEI-32416098005.A85 32416098005	£1.60	£1.92
70 - GROOVED BALL BEARING FEI-41701007050.A54 41701007050	£15.15	£18.18
80 - SEALING RING FEI-32612135000.A70 32612135000	£9.45	£11.34
90 - INTERMEDIATE GEAR BOX FEI-31506365008.A1 31506365008	-
100 - GROOVED BALL BEARING FEI-41701204010.A5 41701204010	£6.37	£7.64
110 - SEALING RING FEI-40608066005.A9 40608066005	-
120 - GROOVED BALL BEARING FEI-41701012056.A14 41701012056	-
130 - CAP FEI-32805187009.A3 32805187009	-
135 - SEALING RING FEI-42639028003.A10 42639028003	£5.74	£6.89
140 - SCREW FEI-43070005005.A7 43070005005	-
150 - SLEEVE FEI-31406053007.A30 31406053007	£3.42	£4.10
160 - RING MAGNET FEI-32172010005.A29 32172010005	£22.34	£26.81
170 - ELECTRONICS FEI-30762259017.A7 30762259017	£38.98	£46.77
190 - BRUSH HOLDER FEI-30712088029.A31 30712088029	£17.88	£21.45
191 - CARBON BRUSH (SOLD SINGLY) FEI-30711136002.A42 30711136002	£13.10	£15.72
200 - SCREW FEI-43070018009.A35 43070018009	£1.60	£1.92
210 - COVER FEI-31201121006.A0 31201121006	£14.10	£16.92
220 - SCREW CONNECTION FEI-30723054002.A15 30723054002	£36.50	£43.80
230 - SEALING RING FEI-40612115003.A6 40612115003	£1.60	£1.92
240 - PROTECTIVE HOSE FEI-31414061002.A0 31414061002	£16.03	£19.24
250 - CONNECTING CABLE FEI-30719609014.A4 30719609014	£21.10	£25.32
260 - CONNECTING CABLE FEI-30719611015.A1 30719611015	-
265 - CONNECTING CABLE FEI-30719612018.A0 30719612018	-
270 - SCREW FEI-43072013005.A65 43072013005	£1.60	£1.92
280 - GEARBOX HOUSING FEI-31508248007.A1 31508248007	£169.52	£203.43
290 - GROOVED BALL BEARING FEI-41701010010.A47 41701010010	£8.58	£10.30
300 - GROOVED BALL BEARING FEI-41701017059.A3 41701017059	£35.10	£42.12
310 - CIRCLIP FEI-42616004000.A12 42616004000	£2.37	£2.84
320 - SHAFT FEI-33403108007.A0 33403108007	£154.28	£185.14
330 - SPIRAL SPRING FEI-30901341000.A73 30901341000	£5.99	£7.19
335 - SPIRAL SPRING FEI-30901341019.A0 30901341019	£14.90	£17.88
340 - SEALING RING FEI-30503145006.A68 30503145006	£3.52	£4.23
350 - DISC FEI-32408389000.A15 32408389000	£1.60	£1.92
360 - CIRCLIP FEI-42616075007.A5 42616075007	-
370 - CLAMPING SLEEVE FEI-40238065002.A10 40238065002	£1.60	£1.92
380 - SPIRAL SPRING FEI-30907063003.A9 30907063003	£6.76	£8.11
390 - BALL FEI-41708025004.A38 41708025004	£1.60	£1.92
400 - CLAMPING SLEEVE FEI-30232045005.A13 30232045005	£37.81	£45.37
410 - CIRCLIP FEI-42643009005.A11 42643009005	£3.40	£4.08
420 - CIRCLIP FEI-42616014009.A22 42616014009	£1.60	£1.92
430 - FEATHER KEY FEI-40221040006.A9 40221040006	£1.60	£1.92
440 - GEAR-WHEEL Z=51 FEI-33665055005.A0 33665055005	-
450 - CIRCLIP FEI-42616009003.A56 42616009003	£1.60	£1.92
460 - SHAFT TOOTHED Z=13 FEI-33765019007.A32 33765019007	£90.30	£108.36
470 - FEATHER KEY FEI-40221067009.A29 40221067009	£5.66	£6.79
480 - GEAR-WHEEL Z=35 FEI-33613128002.A6 33613128002	£81.20	£97.44
490 - GEAR-WHEEL Z=43 FEI-33613127004.A12 33613127004	£68.43	£82.12
500 - CIRCLIP FEI-42616007001.A10 42616007001	£1.60	£1.92
510 - SHAFT TOOTHED Z=21/13 FEI-33811068002.A2 33811068002	£99.99	£119.99
520 - GEAR-WHEEL Z=49 FEI-33657169005.A16 33657169005	£42.31	£50.77
530 - SWITCH PUSHBUTTON FEI-32805188007.A0 32805188007	£8.52	£10.23
540 - STRAIGHT PIN FEI-40242062002.A0 40242062002	£1.60	£1.92
560 - CUP SPRING FEI-30905059009.A5 30905059009	£1.60	£1.92
570 - CIRCLIP FEI-42616016006.A8 42616016006	£1.60	£1.92
580 - CIRCLIP M5 FEI-42443004057.A336 42443004057	£1.60	£1.92
590 - CYLINDER HEAD SCREW FEI-43035073052.A28 43035073052	£1.60	£1.92
600 - HOSE SOCKET FEI-41138025006.A2 41138025006	£8.40	£10.08
610 - PRESSURE PIECE FEI-30240240007.A5 30240240007	£17.11	£20.53
620 - LEVER FEI-32170017007.A3 32170017007	£27.20	£32.64
700 - HOUSING FEI-31207254012.A0 31207254012	-
702 - BUSH FEI-31602081001.A6 31602081001	-
703 - BUSH FEI-31602092003.A5 31602092003	-
710 - PRESSURE PIECE FEI-33216047000.A3 33216047000	£5.35	£6.42
720 - GUIDE STRIP FEI-33218117000.A13 33218117000	£43.78	£52.53
730 - CYLINDER HEAD SCREW FEI-43035076041.A68 43035076041	£1.60	£1.92
740 - LEAF SPRING FEI-30904041001.A57 30904041001	£5.78	£6.94
750 - FILLISTER HEAD SCREW FEI-43041026994.A3 43041026994	-
760 - SET SCREW FEI-43058008051.A7 43058008051	-
770 - CIRCLIP M5 FEI-42443004057.A335 42443004057	£1.60	£1.92
780 - GEAR RACK FEI-33812007004.A4 33812007004	£101.03	£121.24
790 - CYLINDER HEAD SCREW FEI-43035017057.A19 43035017057	£1.60	£1.92
810 - FILLISTER HEAD SCREW FEI-43041041053.A2 43041041053	£1.60	£1.92
820 - SHAFT FEI-33713068008.A6 33713068008	-
830 - SCALE FEI-33213008009.A6 33213008009	£8.34	£10.01
840 - HANDLE FEI-32119114014.A28 32119114014	£19.35	£23.22
850 - DISC FEI-42401019085.A19 42401019085	£1.60	£1.92
860 - CUP SPRING FEI-30905055000.A13 30905055000	-
870 - NUT FEI-42019006080.A24 42019006080	£1.60	£1.92
880 - MAGNETIC FOOT FEI-33216049002.A0 33216049002	£479.52	£575.42
890 - CYLINDER HEAD SCREW FEI-43035097059.A17 43035097059	£1.60	£1.92
910 - CABLE GROMMET FEI-31413007007.A94 31413007007	£1.60	£1.92
920 - SCREW CONNECTION FEI-30723044003.A1 30723044003	£28.66	£34.39
921 - CABLE WITH PLUG FEI-30707458010.A3 30707458010	-
922 - PLUG CEE 16A/110V FEI-30728288004.A70 30728288004	£14.25	£17.10
930 - SEAL FEI-30610034008.A37 30610034008	£1.60	£1.92
940 - PLATE FEI-32422317010.A3 32422317010	£12.07	£14.48
950 - PLATE FEI-31408086007.A5 31408086007	£6.68	£8.01
960 - NUT FEI-30723043005.A20 30723043005	£2.73	£3.28
970 - SWITCH FEI-30701217005.A2 30701217005	-
980 - CAP FEI-32816059009.A6 32816059009	£3.11	£3.73
990 - ELECTRONICS FEI-30762257996.A1 30762257996	-
1000 - CONNECTING CABLE FEI-30719610016.A1 30719610016	-
1010 - SWITCH FEI-30701242009.A6 30701242009	£20.86	£25.03
1020 - DISC FEI-42404005048.A110 42404005048	£1.60	£1.92
1030 - LOCK WASHER FEI-42439013046.A14 42439013046	£1.60	£1.92
1040 - SEALING RING FEI-40612115003.A26 40612115003	£1.60	£1.92
1050 - COVER FEI-32429136000.A3 32429136000	-
1060 - SCREW CONNECTION FEI-30723054002.A1 30723054002	£36.50	£43.80
1070 - NUT FEI-30723055006.A12 30723055006	-
1075 - CABLE TIE FEI-30234026008.A10 30234026008	£1.60	£1.92
1080 - FILLISTER HEAD SCREW FEI-43064023045.A71 43064023045	£1.60	£1.92
1120 - STICKER FEI-32217406002.A67 32217406002	£1.60	£1.92
5000 - TOOL BOX ASS. FEI-33901127020.A4 33901127020	£138.53	£166.24
5010 - BOTTLE HOLDER FEI-30240247002.A7 30240247002	£31.07	£37.28
5020 - PUMP FEI-32132022007.A11 32132022007	£19.91	£23.89
5030 - REPLACEMENT HOSE FEI-31414054008.A7 31414054008	£6.47	£7.76
5040 - HOOK F. CHIP REMOVAL FEI-64201001000.A52 64201001000	£61.87	£74.24
5050 - STRAP SAFETY FEI-32174008007.A40 32174008007	£33.23	£39.88
5060 - KEY-TYPE DRILL CHUCKS FEI-63203050014.A2 63203050014	£78.38	£94.05
5065 - CHUCK KEY FEI-62914002005.A20 62914002005	£4.30	£5.16
5070 - QUICKIN-ADAPTOR FEI-63901020006.A9 63901020006	£36.00	£43.20
5080 - CENTERING PIN FEI-63134998310.A64 63134998310	£25.18	£30.21
5090 - CENTERING PIN FEI-63134998330.A19 63134998330	£25.68	£30.81
5100 - FILLISTER HEAD SCREW FEI-43041008045.A2 43041008045	£1.60	£1.92
5210 - WIRE CLAMP FEI-30232050000.A205 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 080KG FEI-32160003182.A10 32160003182	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A587 34130054061	-

Attribute Name	Value
Brand	Fein
