Fein ASse 636 (50Hz 110V) / 72107100117 Spare Parts

Fein ASse 636 ⡐Hz 110V) / 72107100117 Spare Parts

Home Details Reviews Delivery

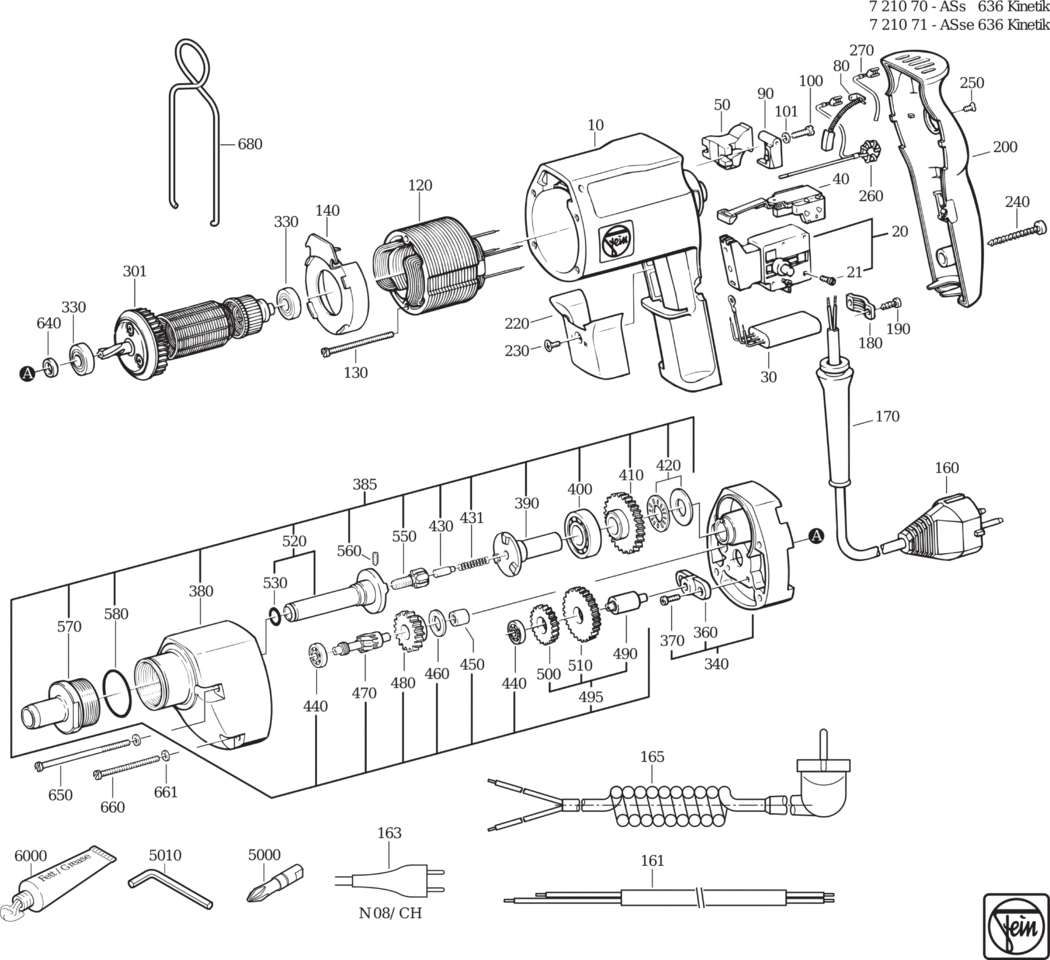

An exploded diagram and spare parts listing for the Fein ASse 636 (50Hz 110V) / 72107100117

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A13 31901117021	-
20 - SPEED SETTING SWITCH FEI-30701234002.A4 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A59 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A7 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A8 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A33 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A30 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A18 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A40 43002014998	-
101 - CIRCLIP FEI-42443002992.A66 42443002992	£1.60	£1.92
120 - STATOR 50HZ110V FEI-51203003117.A5 51203003117	£74.00	£88.80
130 - CYLINDER HEAD SCREW FEI-43002025991.A35 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A0 31428004000	£3.67	£4.40
161 - CABLE FEI-30706322014.A0 30706322014	-
170 - CABLE GROMMET FEI-31413142009.A49 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A206 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A46 43046002005	-
200 - COVER FEI-31201066005.A10 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A27 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A9 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A0 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A5 43066002992	£1.60	£1.92
260 - CONNECTING CABLE FEI-30719117014.A9 30719117014	£3.78	£4.54
270 - CONNECTING CABLE FEI-30719118012.A6 30719118012	£3.78	£4.54
301 - ARMATURE 50HZ110V FEI-53203009110.A5 53203009110	£185.49	£222.59
330 - GROOVED BALL BEARING FEI-41701001172.A176 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506142011.A3 31506142011	£96.56	£115.87
360 - BEARING PLATE FEI-31604003004.A5 31604003004	-
370 - FILLISTER HEAD SCREW FEI-43064014997.A5 43064014997	-
380 - GEARBOX HOUSING FEI-31508102004.A1 31508102004	£72.06	£86.47
385 - GEARBOX HOUSING FEI-31508102013.A2 31508102013	-
390 - DOG CLUTCH SHAFT FEI-33408017000.A0 33408017000	£58.99	£70.79
400 - GROOVED BALL BEARING FEI-41701010010.A2 41701010010	£8.58	£10.30
410 - GEAR-WHEEL FEI-33657016005.A2 33657016005	£57.02	£68.43
420 - NEEDLE BEARING FEI-41725001006.A1 41725001006	-
430 - BOLT FEI-30220028005.A4 30220028005	£4.22	£5.06
431 - SPIRAL SPRING FEI-30901152000.A0 30901152000	£1.60	£1.92
440 - GROOVED BALL BEARING FEI-41701202018.A7 41701202018	£6.92	£8.30
450 - BUSH FEI-41705005003.A6 41705005003	£5.62	£6.74
460 - DISC FEI-32408153000.A3 32408153000	£3.87	£4.64
470 - GEAR-WHEEL FEI-33757016004.A3 33757016004	-
480 - GEAR-WHEEL FEI-33657013000.A1 33657013000	£29.57	£35.48
490 - SHAFT FEI-33416004001.A4 33416004001	£27.79	£33.35
495 - SHAFT FEI-33416004010.A2 33416004010	£85.15	£102.18
500 - GEAR-WHEEL FEI-33657015002.A1 33657015002	£29.22	£35.06
510 - GEAR-WHEEL FEI-33657014008.A4 33657014008	£35.28	£42.34
520 - TOOL HOLDER FEI-30104100012.A0 30104100012	-
530 - SEALING RING FEI-40612112007.A72 40612112007	£1.60	£1.92
550 - SCREW FEI-33022034001.A2 33022034001	£4.24	£5.09
560 - SET SCREW FEI-43058002044.A1 43058002044	-
570 - BUSH FEI-31603014004.A11 31603014004	£51.46	£61.75
580 - SEALING RING FEI-40612093004.A49 40612093004	£1.60	£1.92
640 - SEALING RING FEI-32612047006.A5 32612047006	£1.60	£1.92
650 - CYLINDER HEAD SCREW FEI-43002029990.A7 43002029990	-
660 - CYLINDER HEAD SCREW FEI-43002024997.A6 43002024997	£1.60	£1.92
661 - CIRCLIP FEI-42443002992.A68 42443002992	£1.60	£1.92
5000 - TOOLS Ã˜ 7 MM WITH EXTERNAL FLAT FEI-60104102017.A2 60104102017	-
5010 - ALLEN KEY SW2 FEI-62907029006.A5 62907029006	£3.29	£3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A11 32160003061	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A712 34130054061	-
