Dewalt DCS397 Type 1 Universal Saw Spare Parts

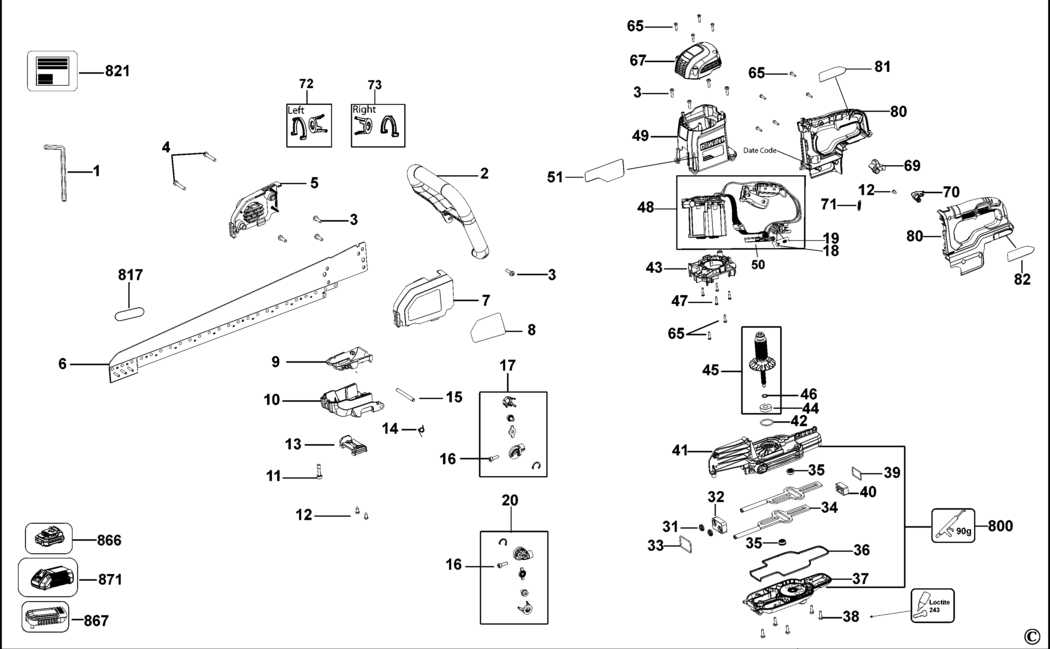

An exploded drawing and spare parts listing for the Dewalt DCS397 Type 1 Universal Saw

	Ex VAT	Inc VAT
1 - HEX KEY BDE-322929.A77 322929	-
2 - LOOP HANDLE BDE-N097478.A1 N097478	£30.08	£36.10
3 - SCREW TORX BDE-324007-11.A87 324007-11	£1.50	£1.80
4 - SCREW.TEMP BDE-330019-21.A2 330019-21	£1.50	£1.80
5 - COVER RH BDE-N077126.A1 N077126	£3.80	£4.56
6 - BAR BDE-N233859.A0 N233859	£108.20	£129.84
7 - COVER LH BDE-N096981.A5 N096981	£3.80	£4.56
8 - LABEL BDE-N217152.A1 N217152	£1.50	£1.80
9 - FUNNEL BDE-N201132.A5 N201132	£2.78	£3.34
10 - CAP BDE-N455836.A0 N455836	£18.91	£22.69
11 - SCREW BDE-N125628.A5 N125628	£1.50	£1.80
13 - GRIP BDE-N127049.A1 N127049	£1.50	£1.80
14 - SPRING TORSION BDE-N119853.A5 N119853	£1.82	£2.19
15 - PIN BDE-N095820.A1 N095820	£4.69	£5.63
16 - SCREW BDE-N141827.A1 N141827	£1.50	£1.80
17 - CLAMP SA RH BDE-N915019.A0 N915019	£18.91	£22.69
18 - BLOCK BDE-N122099.A30 N122099	£1.50	£1.80
19 - SPRING BDE-N119679.A10 N119679	£1.50	£1.80
20 - CLAMP SA LH BDE-N915018.A6 N915018	£24.39	£29.27
31 - SEAL BDE-N093430.A6 N093430	£4.69	£5.63
32 - BEARING Front BDE-N077123.A1 N077123	£12.17	£14.60
33 - O RING BDE-323711-41.A3 323711-41	£1.50	£1.80
34 - SHAFT BDE-N233863.A0 N233863	£74.15	£88.98
35 - BEARING SA BDE-N233864.A6 N233864	£12.17	£14.60
36 - SEAL BDE-N093431.A0 N093431	£3.80	£4.56
37 - GEARCASE BDE-N570074.A0 N570074	£87.82	£105.39
38 - SCREW TORX BDE-324007-11.A85 324007-11	£1.50	£1.80
39 - O RING BDE-577744-00.A25 577744-00	£1.82	£2.19
40 - BEARING Rear BDE-N077124.A5 N077124	£7.18	£8.62
41 - GEARCASE SA Incl Item 42 BDE-N558736.A0 N558736	£108.20	£129.84
42 - O RING BDE-N165967.A0 N165967	£1.50	£1.80
43 - BAFFLE FAN BDE-N483231.A0 N483231	£7.85	£9.42
44 - BEARING BDE-330003-64.A45 330003-64	£4.69	£5.63
45 - ARMATURE SA BDE-N483240.A2 N483240	£110.62	£132.74
46 - CIRCLIP BDE-N138859.A1 N138859	£1.50	£1.80
47 - SCREW BDE-90611830.A122 90611830	£1.50	£1.80
48 - STATOR SA BDE-N483264.A2 N483264	£258.10	£309.72
49 - MOTOR HOUSING SA BDE-N483241.A0 N483241	£19.90	£23.88
50 - MODULE BDE-N390703.A2 N390703	£174.63	£209.56
51 - LABEL BDE-N467271.A0 N467271	£3.30	£3.96
65 - SCREW BDE-330065-08.A89 330065-08	£1.50	£1.80
67 - END CAP SA BDE-N483242.A2 N483242	£9.41	£11.29
69 - SWITCH LOCK OFF BDE-N092849.A5 N092849	£2.78	£3.34
70 - CABLE GUIDE BDE-N113779.A0 N113779	£3.80	£4.56
71 - SPRING TORSION BDE-N097616.A5 N097616	£1.50	£1.80
72 - BLADE CLAMP BDE-N515547.A1 N515547	£7.18	£8.62
73 - BLADE CLAMP BDE-N515548.A1 N515548	£7.18	£8.62
80 - HANDLE SA BDE-N483243.A0 N483243	£41.24	£49.49
81 - LABEL BDE-N459249.A5 N459249	£1.82	£2.19
82 - LABEL BDE-N459248.A6 N459248	£1.82	£2.19
800 - GREASE 90 GMS BDE-870889-02.A164 870889-02	£7.85	£9.42
817 - LABEL BDE-N217152.A2 N217152	£1.50	£1.80
821 - RATING LABEL GB BDE-N467270 N467270	£1.50	£1.80
866 - BATTERY 3 X18V-6.0AH-108WH GB BDE-N473851.A0 N473851	£232.38	£278.85
867 - SAFETY CAP GB BDE-N462141.A22 N462141	£9.41	£11.29
871 - CHARGER GB GB BDE-N473855.A27 N473855	£183.42	£220.10
