CST Berger ALC40 Orange / F034091602 / --- Spare Parts

CST Berger ALC40 Orange / F034091602 / --- Spare Parts

Home Details Reviews Delivery

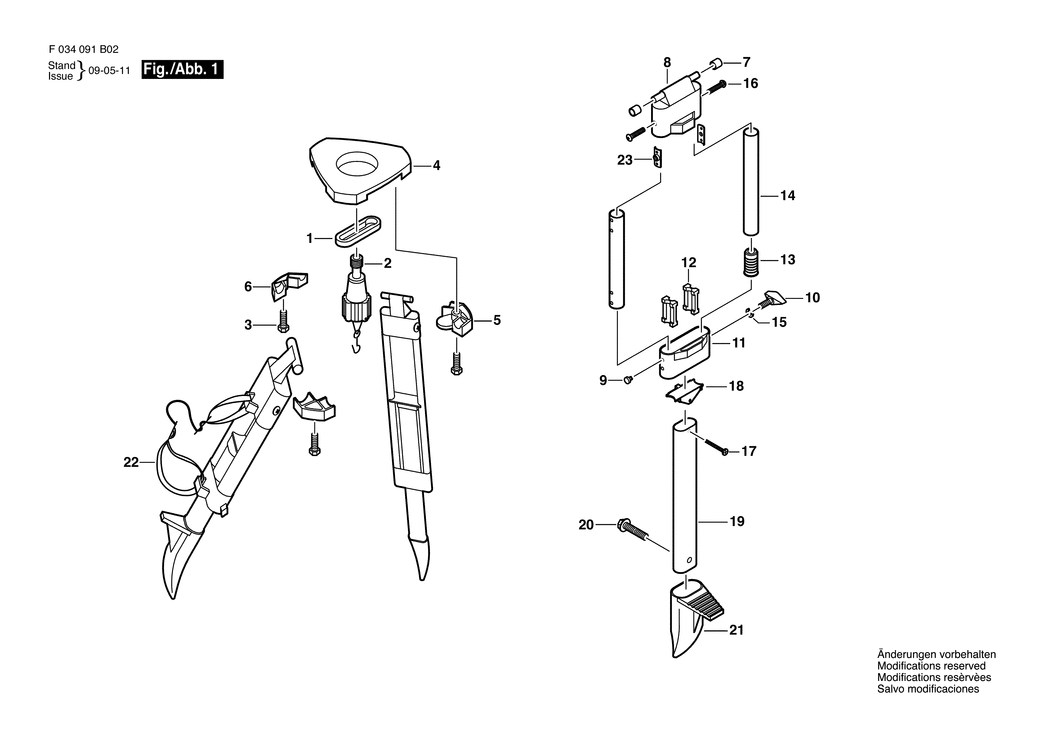

An exploded drawing and listing for the CST Berger ALC40 Orange / F034091602 / ---

	Ex VAT	Inc VAT
1 - SWING-PLATE BSD-2610A09339.A0 2610A09339	-
2 - CLAMP HANDLE BSD-2610A09130.A0 2610A09130	-
3 - BOLT BSD-2610A09285.A0 2610A09285	£2.61	£3.13
4 - HEAD BSD-2610A09300.A0 2610A09300	-
5 - SWING CLAMP BSD-2610A09249.A0 2610A09249	£5.30	£6.36
6 - CLAMP BSD-2610A09254.A0 2610A09254	-
7 - BUSHING BSD-2610A09286.A0 2610A09286	£2.16	£2.59
8 - HINGE BSD-2610A09260.A0 2610A09260	-
9 - RIVET BSD-2610A09100.A0 2610A09100	-
10 - WING SCREW BSD-2610A09284.A0 2610A09284	-
11 - CLAMPING BAND BSD-2610A09265.A0 2610A09265	-
12 - GUIDE SUPPORT BSD-2610A09277.A0 2610A09277	-
13 - DOWEL PLUG BSD-2610A09287.A0 2610A09287	-
14 - STRUT BSD-2610A09291.A0 2610A09291	-
15 - RETAINING RING BSD-2610A09334.A0 2610A09334	-
16 - SCREW BSD-2610A09527.A0 2610A09527	-
17 - SCREW BSD-2610A09290.A0 2610A09290	-
18 - STOP BRACKET BSD-2610A09281.A0 2610A09281	-
19 - TUBE BSD-2610A09236.A0 2610A09236	-
20 - BOLT BSD-2610A09288.A0 2610A09288	-
21 - PROTECTIVE SHOE BSD-2610A09272.A0 2610A09272	-
22 - CARRYING STRAP BSD-2610A09293.A0 2610A09293	£11.30	£13.56
23 - PLATE NUT BSD-2610A09035.A0 2610A09035	£1.75	£2.10

Attribute Name	Value
Brand	CST Berger
