Fein ASge 648 (50Hz 230V) / 72091600223 Spare Parts

Fein ASge 648 ⡐Hz 230V) / 72091600223 Spare Parts

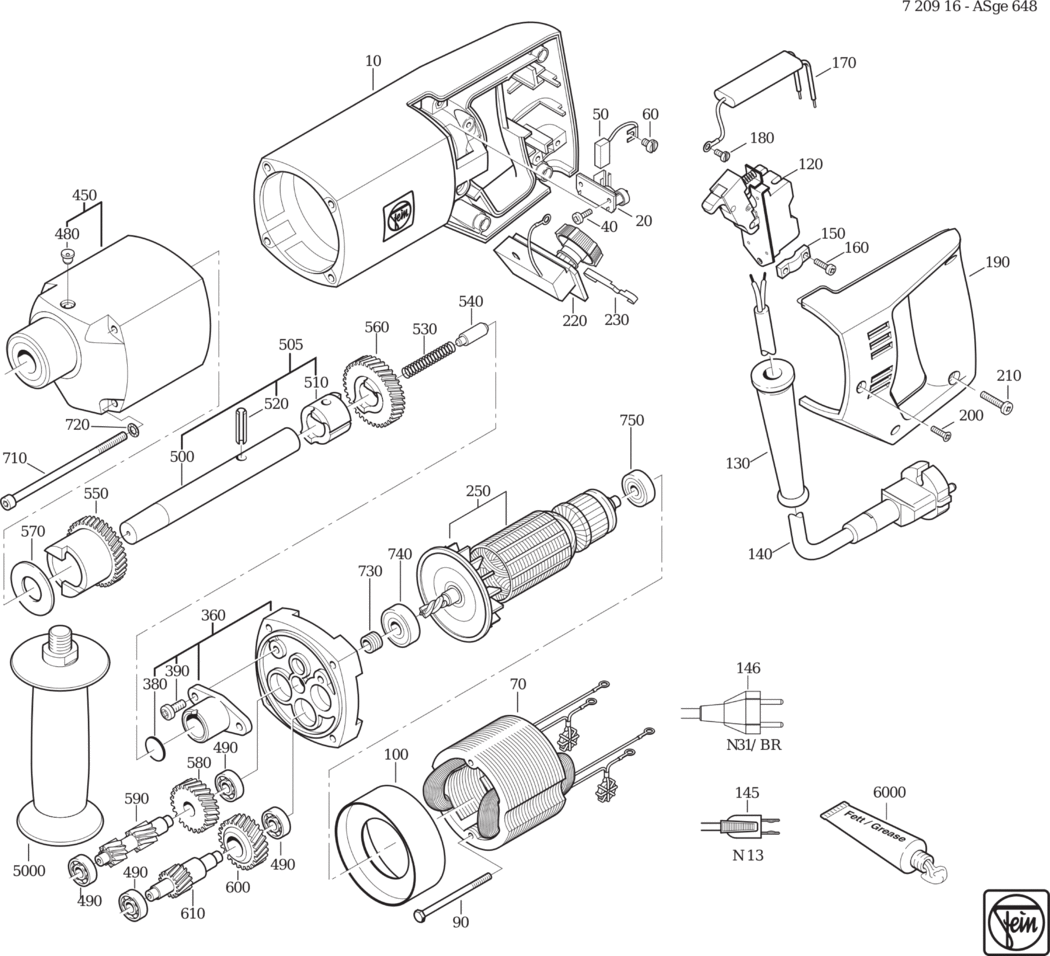

An exploded diagram and spare parts listing for the Fein ASge 648 (50Hz 230V) / 72091600223

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31902024009.A7 31902024009	£143.10	£171.72
20 - BRUSH HOLDER FEI-30712067017.A48 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A44 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A24 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A33 43003029048	-
70 - STATOR 50HZ220V FEI-51213001229.A2 51213001229	£129.47	£155.36
90 - HEXAGON SOCKET SCREW FEI-43001004042.A57 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A20 31428010005	£7.53	£9.04
120 - SWITCH FEI-30701073005.A31 30701073005	£36.31	£43.57
130 - CABLE GROMMET FEI-31413090003.A13 31413090003	£3.40	£4.08
140 - CABLE WITH PLUG FEI-30707133016.A7 30707133016	£15.55	£18.66
150 - CABLE CLAMPING PIECE FEI-32431021007.A144 32431021007	£1.60	£1.92
160 - FILLISTER HEAD SCREW FEI-43041011993.A8 43041011993	-
170 - CAPACITOR FEI-30722057002.A9 30722057002	£14.66	£17.59
180 - FLAT HEADED SCREW FEI-43003013991.A6 43003013991	£1.60	£1.92
190 - COVER FEI-32428052009.A6 32428052009	£37.76	£45.31
200 - COUNTERSUNK SCREW FEI-43066003996.A12 43066003996	-
210 - FILLISTER HEAD SCREW FEI-43041013047.A16 43041013047	£1.60	£1.92
220 - SPEED SETTING SWITCH FEI-30762005018.A1 30762005018	£180.42	£216.51
230 - LEAF SPRING FEI-30904038006.A5 30904038006	£2.69	£3.23
250 - ARMATURE 50HZ220V FEI-53213002224.A0 53213002224	£212.82	£255.39
360 - INTERMEDIATE GEAR BOX FEI-31506174010.A0 31506174010	£109.10	£130.92
380 - DISC FEI-32407013008.A1 32407013008	£5.21	£6.25
390 - FILLISTER HEAD SCREW FEI-43064005055.A0 43064005055	-
450 - GEARBOX HOUSING FEI-31508123006.A0 31508123006	£169.61	£203.53
480 - NIPPLE FEI-32131001002.A1 32131001002	£2.68	£3.21
490 - GROOVED BALL BEARING FEI-41701001010.A29 41701001010	£7.35	£8.82
500 - SHAFT FEI-33401037002.A1 33401037002	£91.57	£109.88
505 - SHAFT FEI-33401037011.A0 33401037011	-
510 - CLUTCH PART FEI-30101014005.A0 30101014005	£132.79	£159.35
520 - CLAMPING SLEEVE FEI-40238023004.A0 40238023004	£1.60	£1.92
530 - SPIRAL SPRING FEI-30901102005.A0 30901102005	£3.04	£3.65
540 - BOLT FEI-30216044008.A1 30216044008	£8.20	£9.84
550 - GEAR-WHEEL FEI-33801038006.A0 33801038006	£181.32	£217.58
560 - GEAR-WHEEL FEI-33801039000.A1 33801039000	£120.54	£144.65
570 - DISC FEI-32408109006.A0 32408109006	£15.46	£18.55
580 - GEAR-WHEEL FEI-33663028005.A10 33663028005	£37.58	£45.09
590 - GEAR-WHEEL FEI-33811011003.A0 33811011003	-
600 - GEAR-WHEEL FEI-33663033007.A0 33663033007	£68.19	£81.83
610 - SHAFT TOOTHED Z=15 FEI-33763016003.A1 33763016003	-
710 - CYLINDER HEAD SCREW FEI-43035106053.A0 43035106053	-
720 - CIRCLIP M5 FEI-42443004057.A405 42443004057	£1.60	£1.92
730 - SEALING RING FEI-32612059007.A0 32612059007	£12.95	£15.54
740 - GROOVED BALL BEARING FEI-41701207096.A18 41701207096	£18.38	£22.06
750 - GROOVED BALL BEARING FEI-41701204131.A24 41701204131	£9.10	£10.92
5000 - SIDE HANDLE FEI-32119032002.A58 32119032002	£12.89	£15.47
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A58 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A478 34130054061	-
