Dewalt DE3471 Type 1 Table Spare Parts

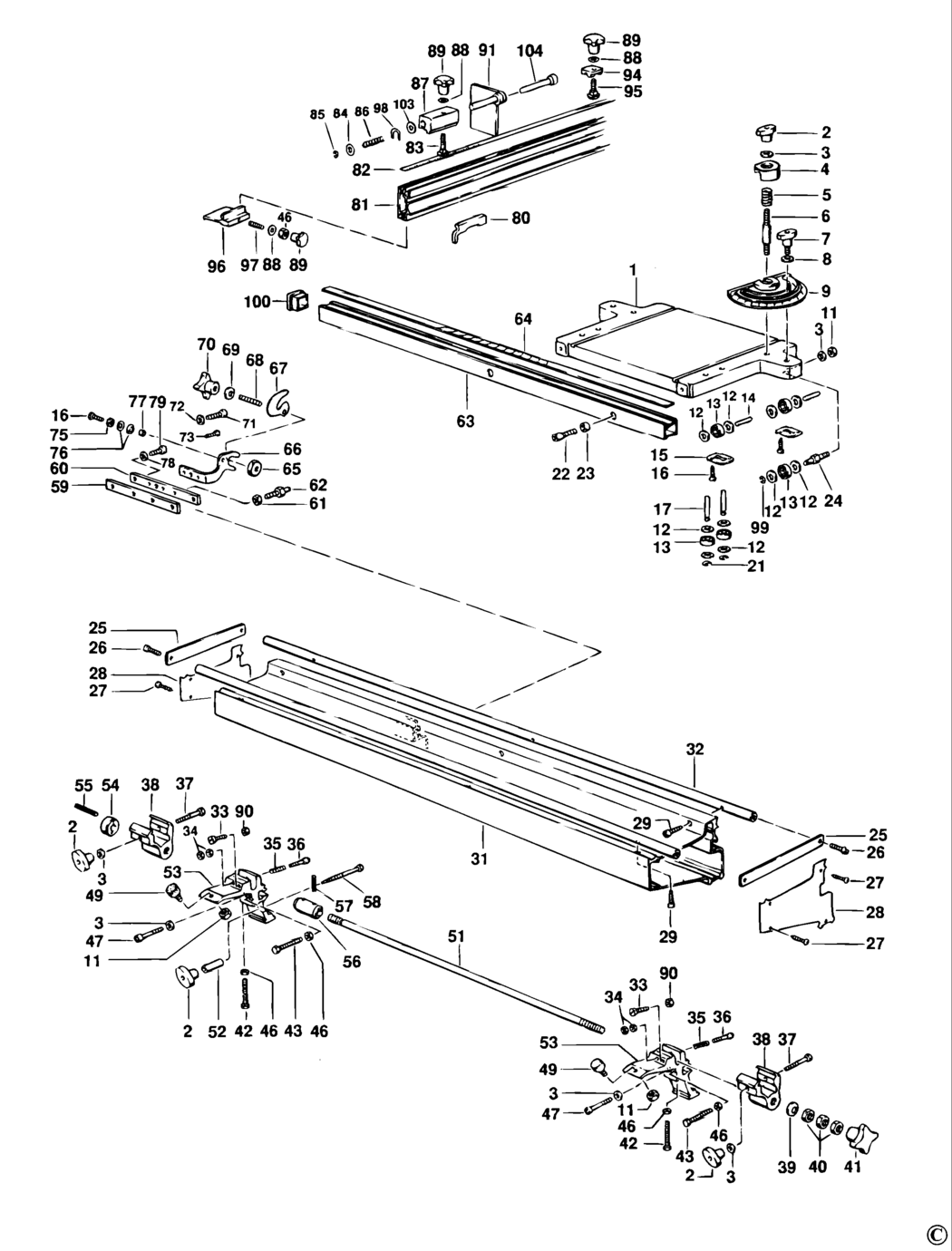

An exploded drawing and spare parts listing for the Dewalt DE3471 Type 1 Table

	Ex VAT	Inc VAT
2 - KNOB BDE-941756-00.A107 941756-00	£1.50	£1.80
3 - WASHER M8 BDE-860073-03.A661 860073-03	£1.50	£1.80
4 - CLAMP BDE-941746-00.A5 941746-00	£14.57	£17.48
5 - SPRING BDE-941759-00.A6 941759-00	£2.78	£3.34
6 - SHAFT BDE-942146-00.A6 942146-00	£12.17	£14.60
7 - SCREW BDE-760243-00.A12 760243-00	£12.17	£14.60
8 - WASHER BDE-941602-00.A113 941602-00	£1.50	£1.80
9 - SCALE BDE-941708-00.A4 941708-00	£14.57	£17.48
11 - NUT BDE-860083-15.A73 860083-15	£1.50	£1.80
12 - WASHER BDE-941859-00.A5 941859-00	£1.50	£1.80
13 - BEARING 608 BDE-N110358.A68 N110358	£3.32	£3.99
14 - DOWEL BDE-941873-00.A2 941873-00	£1.50	£1.80
15 - PLATE BDE-941858-00.A2 941858-00	£1.50	£1.80
16 - SCREW BDE-760998-00.A87 760998-00	£1.50	£1.80
17 - PIN BDE-860649-03.A0 860649-03	£1.50	£1.80
21 - CIRCLIP BDE-860332-02.A3 860332-02	£1.50	£1.80
22 - SCREW BDE-942161-00.A1 942161-00	£9.41	£11.29
23 - WASHER BDE-942171-00.A1 942171-00	£1.50	£1.80
24 - ROLLER BDE-941870-00.A5 941870-00	£7.85	£9.42
25 - STOP BDE-941863-00.A3 941863-00	£3.80	£4.56
26 - SPARE PART BDE-860093-12.A8 860093-12	£1.50	£1.80
27 - SCREW BDE-949896-12.A93 949896-12	£1.50	£1.80
28 - PLATE BDE-942169-00.A2 942169-00	£3.80	£4.56
29 - SCREW BDE-860093-03.A7 860093-03	£1.50	£1.80
31 - BED BDE-942175-00.A1 942175-00	£336.69	£404.03
32 - TUBE BDE-942165-00.A1 942165-00	£37.35	£44.82
33 - SCREW BDE-860089-11.A1 860089-11	£1.50	£1.80
34 - NUT M4 BDE-249232-00.A18 249232-00	£1.42	£1.70
35 - SPRING BDE-942196-00.A2 942196-00	£1.50	£1.80
36 - SCREW BDE-942155-00.A2 942155-00	£2.26	£2.71
37 - SCREW BDE-860085-23.A5 860085-23	£1.50	£1.80
38 - BLOCK BDE-942167-00.A2 942167-00	£16.03	£19.24
39 - WASHER BDE-860074-05.A44 860074-05	£1.50	£1.80
40 - NUT BDE-860083-17.A5 860083-17	£1.50	£1.80
41 - HANDLE BDE-941564-01.A12 941564-01	£5.88	£7.06
42 - BOLT BDE-941959-00.A0 941959-00	£1.50	£1.80
43 - SCREW BDE-11197.A9 11197	-
46 - NUT M6 BDE-860083-12.A143 860083-12	£1.50	£1.80
47 - SCREW BDE-860093-21.A5 860093-21	£1.50	£1.80
49 - FOOT BDE-941614-00.A39 941614-00	£1.50	£1.80
51 - SHAFT SA BDE-942159-00.A2 942159-00	£19.90	£23.88
52 - SLEEVE BDE-942163-00.A1 942163-00	£2.78	£3.34
53 - NO LONGER AVAILABLE BDE-000000-00.A59907 000000-00	-
54 - WASHER BDE-942170-00.A1 942170-00	£12.17	£14.60
55 - SLEEVE BDE-941576-00.A10 941576-00	£1.50	£1.80
56 - SHAFT SA BDE-942159-00.A3 942159-00	£19.90	£23.88
57 - PIN BDE-330036-08.A17 330036-08	£1.50	£1.80
58 - SCREW BDE-860085-22.A1 860085-22	£1.50	£1.80
59 - PLATE BDE-942153-00.A2 942153-00	£12.17	£14.60
60 - PLATE BDE-942154-00.A1 942154-00	£16.03	£19.24
61 - NUT BDE-860083-14.A47 860083-14	£1.50	£1.80
62 - SCREW.SPECIAL BDE-942156-01.A1 942156-01	£4.69	£5.63
63 - RAIL BDE-862042-00.A0 862042-00	£45.14	£54.17
64 - STRIP BDE-942076-00.A3 942076-00	£5.88	£7.06
65 - NUT BDE-942194-00.A2 942194-00	£7.85	£9.42
66 - LINK BDE-942160-00.A2 942160-00	£4.69	£5.63
67 - LEVER BDE-942173-00.A2 942173-00	£4.69	£5.63
68 - DOWEL BDE-760229-00.A1 760229-00	£2.26	£2.71
69 - WASHER BDE-941602-00.A112 941602-00	£1.50	£1.80
70 - KNOB BDE-942195-00.A1 942195-00	£7.85	£9.42
71 - SCREW BDE-860093-02.A42 860093-02	£1.50	£1.80
72 - WASHER BDE-860073-08.A3 860073-08	£1.50	£1.80
73 - SCREW BDE-760219-00.A30 760219-00	£1.50	£1.80
75 - WASHER BDE-860073-01.A9 860073-01	£1.50	£1.80
76 - WASHER BDE-942069-00.A0 942069-00	£1.50	£1.80
77 - SPACER BDE-942158-00.A2 942158-00	£1.50	£1.80
78 - WASHER BDE-860073-08.A2 860073-08	£1.50	£1.80
79 - SCREW BDE-860093-07.A26 860093-07	£1.50	£1.80
80 - LEVER BDE-942152-00.A1 942152-00	£16.03	£19.24
81 - GUIDE BDE-942180-00.A2 942180-00	£65.52	£78.62
82 - SCALE BDE-942079-00.A0 942079-00	£19.90	£23.88
83 - SCREW BDE-942188-00.A1 942188-00	£9.41	£11.29
84 - WASHER BDE-860073-01.A7 860073-01	£1.50	£1.80
85 - CIRCLIP BDE-036820700.A3 036820700	£1.42	£1.70
86 - SPRING BDE-949722-03.A2 949722-03	£1.50	£1.80
87 - BLOCK BDE-942176-00.A1 942176-00	£7.18	£8.62
88 - WASHER BDE-720959-00.A8 720959-00	£1.50	£1.80
89 - KNOB BDE-941536-01.A26 941536-01	-
90 - NUT BDE-860083-02.A15 860083-02	£1.50	£1.80
91 - PLATE BDE-942149-01.A1 942149-01	£16.03	£19.24
94 - PLATE BDE-942168-00.A1 942168-00	£3.80	£4.56
95 - SCREW BDE-862509-90.A1 862509-90	£7.85	£9.42
96 - PLATE BDE-943496-00.A0 943496-00	£7.85	£9.42
97 - PIN BDE-860088-10.A25 860088-10	£1.50	£1.80
98 - CIRCLIP BDE-949728-03.A12 949728-03	-
99 - CIRCLIP BDE-120820700.A11 120820700	£1.50	£1.80
100 - STOP BDE-942144-00.A1 942144-00	£1.50	£1.80
103 - WASHER BDE-860073-01.A8 860073-01	£1.50	£1.80
104 - PIN BDE-36562.A1 36562	-
