Festool RAP 180.03 E 230V / 486678 Spare Parts

Home Details Reviews Delivery

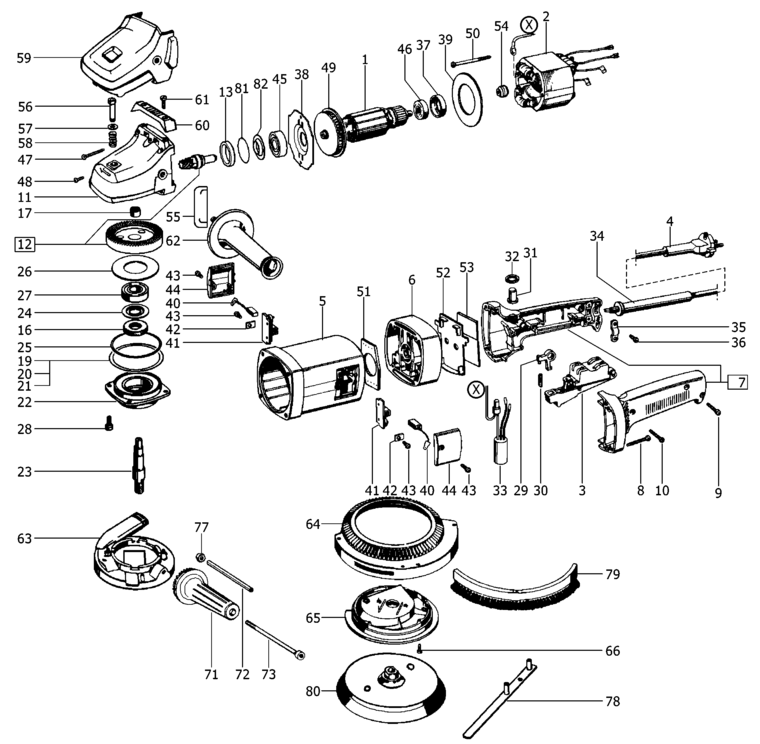

An exploded diagram and spare parts listing for the Festool RAP 180.03 E 230V / 486678

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-440676.A5 440676	£108.57	£130.28
2 - FIELD ASSEMBLY 230 V FSP-447519.A10 447519	£82.04	£98.45
3 - SWITCH 230 V FSP-437616.A0 437616	£56.68	£68.01
4 - CABLE EU FSP-457410.A38 457410	£25.08	£30.09
5 - MOTOR HOUSING FSP-458226.A6 458226	£93.82	£112.58
6 - ELECTRONIC 230 V FSP-486775.A5 486775	£105.95	£127.14
7 - HANDLE FSP-437611.A10 437611	£73.45	£88.14
8 - RAISED-HEAD SCREW 5.0 X 70 MM FSP-228714.A1 228714	£2.00	£2.40
9 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-437613.A0 437613	£2.00	£2.40
10 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-412005.A11 412005	£2.00	£2.40
11 - GEAR HOUSING FSP-459116.A5 459116	£149.27	£179.12
12 - GEAR FSP-493569.A0 493569	£133.49	£160.19
13 - SEALING BRACKET FSP-459115.A0 459115	£26.82	£32.18
16 - SEALING RING FSP-411762.A4 411762	£6.25	£7.50
17 - POROUS BEARING FSP-437615.A10 437615	£15.34	£18.41
19 - SPACER RING 0.25 MM FSP-474442.A1 474442	£6.37	£7.64
20 - SPACER RING 0.2 MM FSP-411846.A6 411846	£5.24	£6.29
21 - SPACER RING 0.3 MM FSP-411847.A4 411847	£5.12	£6.15
22 - BEARING COVER FSP-411758.A6 411758	£58.25	£69.90
23 - GEAR SHAFT FSP-411759.A4 411759	£77.06	£92.47
24 - RING FSP-411742.A4 411742	£8.90	£10.68
25 - O-RING O-RING 68 X 2 FSP-411752.A6 411752	£4.07	£4.88
26 - SPRING WASHER FSP-411761.A7 411761	£17.97	£21.56
27 - BALL BEARING FSP-401612.A8 401612	£39.20	£47.04
28 - CHEESE HEAD SCREW M5 X 16 FSP-200671.A3 200671	£2.00	£2.40
29 - SWITCH LEVER FSP-437617.A10 437617	£8.93	£10.72
30 - PRESSURE SPRING FSP-437618.A0 437618	£2.00	£2.40
31 - BUTTON FSP-437619.A10 437619	£9.43	£11.32
32 - FELT WASHER FSP-437620.A0 437620	£2.00	£2.40
33 - CAPACITOR FSP-440660.A0 440660	£22.48	£26.98
34 - CABLE CONDUIT FSP-411745.A7 411745	£14.22	£17.07
35 - CABLE CLAMP FSP-411747.A3 411747	£4.72	£5.66
36 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A20 219071	£2.00	£2.40
37 - BEARING RING FSP-462385.A3 462385	£3.93	£4.72
38 - BEARING COVER FSP-437622.A6 437622	£23.95	£28.74
39 - AIR DUCT FSP-411756.A3 411756	£14.38	£17.25
40 - BRUSH (PAIR) 230V FSP-485202.A7 485202	£39.30	£47.16
41 - BRUSH HOLDER 230 V FSP-437610.A1 437610	£18.09	£21.71
42 - FLAP FSP-437624.A1 437624	£4.72	£5.66
43 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A23 219071	£2.00	£2.40
44 - BRUSH HOLDER COVER (PAIR) FSP-462218.A6 462218	£10.74	£12.89
45 - BALL BEARING FSP-789575.A7 789575	£5.99	£7.19
46 - BALL BEARING FSP-401518.A7 401518	£8.12	£9.74
47 - RAISED-HEAD SCREW 5.0 X 35 MM FSP-437626.A15 437626	£2.00	£2.40
48 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A35 203806	£2.00	£2.40
49 - WING FSP-437627.A0 437627	£15.67	£18.80
50 - RAISED-HEAD SCREW 4.0 X 55 MM FSP-437628.A13 437628	£2.00	£2.40
51 - NEOPRENE SEAL FSP-437629.A0 437629	£6.64	£7.97
52 - PLATE FSP-440655.A1 440655	£6.64	£7.97
53 - NEOPRENE SEAL FSP-440656.A9 440656	£4.81	£5.77
54 - SOLENOID RING FSP-441386.A10 441386	£23.82	£28.59
55 - AIR DEFLECTOR FSP-442102.A4 442102	£4.72	£5.66
56 - LOCKING BUTTON FSP-486703.A4 486703	£26.14	£31.37
57 - O-RING FSP-443249.A3 443249	£2.00	£2.40
58 - PRESSURE SPRING FSP-443247.A3 443247	£2.00	£2.40
59 - HOOD FSP-444211.A3 444211	£49.88	£59.85
60 - STRIP FSP-486706.A2 486706	£21.60	£25.92
61 - CHEESE HEAD SCREW M4 X 12 FSP-774303.A0 774303	£2.00	£2.40
62 - AUXILIARY HANDLE FSP-487865.A40 487865	£7.94	£9.53
63 - HOUSING FSP-441308.A1 441308	£68.92	£82.71
64 - ANNULAR GEAR FSP-441309.A8 441309	£29.38	£35.26
65 - COVER FSP-441311.A1 441311	£14.60	£17.52
66 - CHEESE-HEAD COUNTERSUNK SCREW M3 X 10 FSP-228697.A5 228697	£2.00	£2.40
67 - LOCKING SLIDE FSP-485169.A2 485169	£43.88	£52.66
70 - LEG SPRING FSP-441325.A1 441325	£4.32	£5.19
71 - GRIP FSP-441282.A14 441282	£15.47	£18.56
72 - PIPE FSP-441278.A14 441278	£19.18	£23.01
73 - CHEESE HEAD SCREW FSP-441279.A1 441279	£13.86	£16.63
74 - NO LONGER AVAILABLE FSP-00000.A123 00000	-
77 - HEXAGON NUT M8 FSP-200602.A0 200602	£2.00	£2.40
78 - SPANNER FSP-441682.A0 441682	£22.03	£26.44
79 - BRUSH INSERT FOR RAS FSP-485274.A6 485274	£48.47	£58.16
80 - SANDING PAD FSP-485253.A3 485253	£40.92	£49.11
80 - SANDING PAD FSP-485296.A3 485296	£40.92	£49.11
81 - O-RING FSP-469941.A5 469941	£3.62	£4.35
82 - PACKING SLEEVE FSP-469942.A3 469942	£16.97	£20.36
