Festool RAP 150-21 FE / 202851 Spare Parts

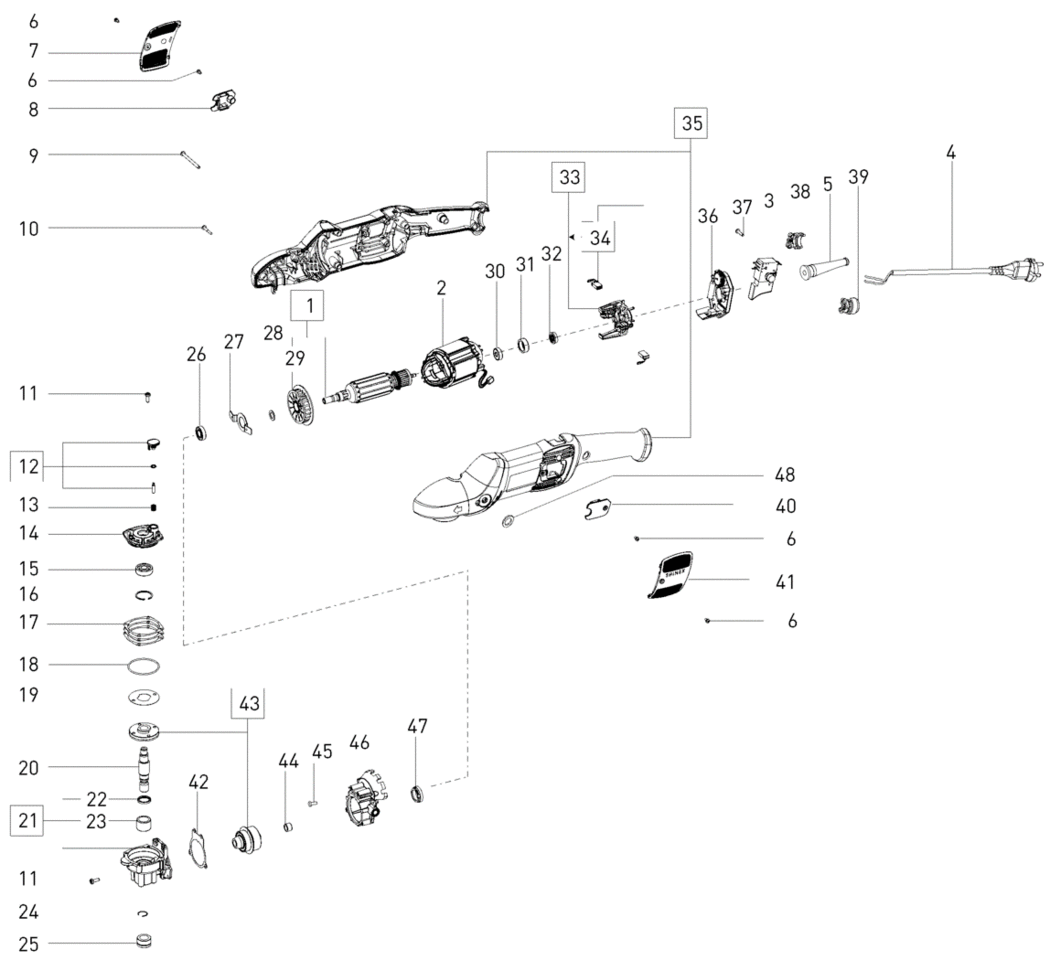

An exploded diagram and spare parts listing for the Festool RAP 150-21 FE / 202851

	Ex VAT	Inc VAT
3 - SWITCH FSP-473090.A7 473090	£24.83	£29.80
4 - CABLE WITH PLUG GB 240V FSP-477706.A6 477706	£41.54	£49.85
5 - CABLE GROMMET FSP-445738.A26 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW M 3 X 6 PZ SW DIN 7985 FSP-401026.A1 401026	£2.00	£2.40
7 - FILTER FSP-472999.A1 472999	£2.94	£3.53
8 - BRUSH CAP FSP-473001.A1 473001	£2.00	£2.40
9 - SLOTTED PAN HEAD SCREW FSP-401082.A7 401082	£2.00	£2.40
10 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A71 400174	£2.00	£2.40
11 - RAISED-HEAD SCREW FSP-400955.A3 400955	£2.00	£2.40
12 - SPINDLE STOP FSP-495143.A2 495143	£37.68	£45.21
13 - PRESSURE SPRING FSP-444754.A15 444754	£2.00	£2.40
14 - BEARING COVER FSP-496481.A4 496481	£48.12	£57.74
15 - BALL BEARING FSP-228798.A1 228798	£5.38	£6.45
16 - CIRCLIP FSP-400977.A4 400977	£2.00	£2.40
17 - SHIM RING FSP-200357.A4 200357	£11.48	£13.78
18 - O-RING FSP-400905.A16 400905	£2.00	£2.40
19 - STRIKE PLATE FSP-472982.A3 472982	£2.00	£2.40
20 - SPINDLE FSP-472987.A4 472987	£30.22	£36.26
21 - ANGLE HOUSING FSP-200358.A1 200358	£53.78	£64.54
22 - SEALING RING FSP-400886.A0 400886	£3.62	£4.35
23 - NEEDLE SLEEVE FSP-400980.A3 400980	£12.76	£15.31
24 - CIRCLIP FSP-400976.A3 400976	£2.00	£2.40
25 - LIMIT STOP WASHER FSP-472991.A3 472991	£18.63	£22.36
26 - BALL BEARING FSP-401018.A5 401018	£12.09	£14.51
27 - LOCKING PLATE FSP-472980.A6 472980	£5.58	£6.70
28 - SHIM RING FSP-782510.A20 782510	£2.00	£2.40
29 - FAN FSP-10017471.A0 10017471	£6.68	£8.01
30 - BALL BEARING FSP-228672.A84 228672	£4.41	£5.29
31 - BEARING SLEEVE FSP-628201.A1 628201	£2.00	£2.40
32 - SOLENOID RING FSP-444018.A32 444018	£2.00	£2.40
35 - HOUSING FSP-10021094.A0 10021094	£32.57	£39.08
37 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A112 400584	£2.00	£2.40
38 - CLAMPING FSP-477964.A17 477964	£2.00	£2.40
39 - CLAMPING FSP-477962.A8 477962	£2.00	£2.40
40 - BRUSH CAP FSP-473000.A6 473000	£2.00	£2.40
41 - FILTER FSP-472998.A6 472998	£6.25	£7.50
42 - GASKET FSP-473584.A0 473584	£2.00	£2.40
43 - RING GEAR FSP-200364.A6 200364	£86.56	£103.87
44 - NEEDLE BUSHING FSP-400969.A6 400969	£5.81	£6.97
45 - RAISED-HEAD SCREW M4 X 10 FSP-228733.A99 228733	£2.00	£2.40
46 - GEAR HOUSING FSP-496484.A6 496484	£48.66	£58.39
47 - BEARING SLEEVE FSP-477394.A1 477394	£6.33	£7.60
48 - SHIM RING FSP-400884.A8 400884	£2.00	£2.40

Attribute Name	Value
Brand	Festool
