Fein WPO 14-25 E (50Hz 110V) / 72214924110 Spare Parts

Fein WPO 14-25 E ⡐Hz 110V) / 72214924110 Spare Parts
Home Details Reviews Delivery

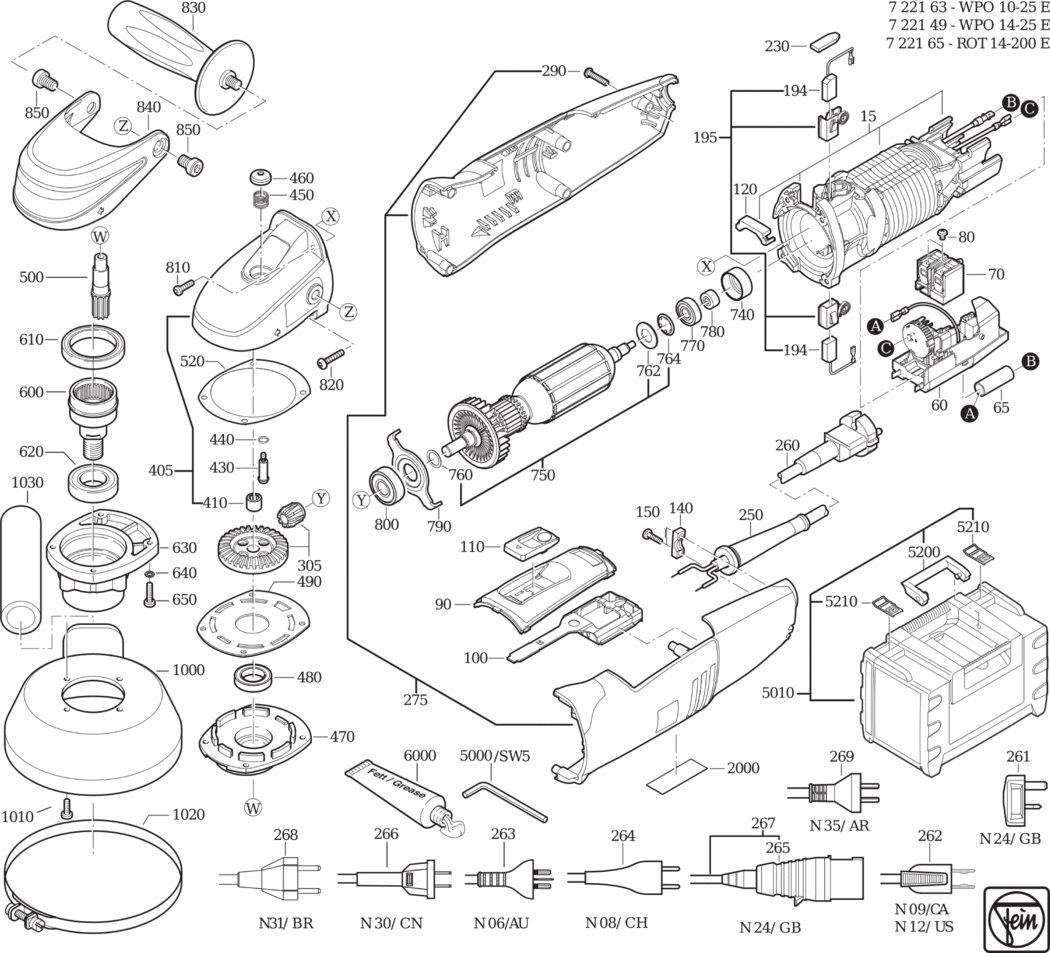

An exploded diagram and spare parts listing for the Fein WPO 14-25 E (50Hz 110V) / 72214924110
Ex VAT Inc VAT
15 - STATOR UNIT 110V-120V 50/60HZ FEI-52276032110.A13 52276032110 £89.98 £107.98
60 - SPEED SETTING SWITCH 110V-120V 50/60HZ FEI-30762393990.A2 30762393990 £122.30 £146.76
65 - INSULATING HOSE FEI-31413232000.A19 31413232000 £1.60 £1.92
70 - SWITCH FEI-30701285000.A63 30701285000 £17.50 £21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A63 43041039999 £1.60 £1.92
90 - HOUSING INSERT FEI-32427134000.A4 32427134000 £5.42 £6.50
100 - CONTROL ROD FEI-32816070000.A17 32816070000 £8.08 £9.69
110 - SLIDE SWITCH FEI-32805223000.A41 32805223000 £2.41 £2.89
120 - COVER FEI-32805224000.A3 32805224000 £4.18 £5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A67 32431026009 £1.60 £1.92
150 - SCREW FEI-43070006008.A42 43070006008 £1.60 £1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A14 30711168000 -
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A10 30712093080 £29.78 £35.73
230 - COVER FEI-31420124000.A20 31420124000 £1.60 £1.92
250 - PROTECTIVE HOSE FEI-31413237000.A67 31413237000 £2.74 £3.29
265 - PLUG CEE 16A/110V FEI-30728288004.A67 30728288004 £14.25 £17.10
267 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A7 30707491010 £30.05 £36.06
275 - MOTOR HOUSING FEI-31912083010.A11 31912083010 £35.94 £43.13
290 - SCREW FEI-43074008000.A54 43074008000 £1.60 £1.92
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A45 33809229012 £57.88 £69.46
405 - GEARBOX HOUSING FEI-31206142020.A31 31206142020 £87.63 £105.16
410 - NEEDLE SLEEVE FEI-41705019001.A81 41705019001 £9.49 £11.39
430 - BOLT FEI-30217335005.A183 30217335005 £7.39 £8.87
440 - SEALING RING FEI-40612137008.A152 40612137008 £1.60 £1.92
450 - SPIRAL SPRING FEI-30901365007.A3 30901365007 £1.60 £1.92
460 - PUSHBUTTON FEI-32805200008.A10 32805200008 £2.58 £3.09
470 - BEARING PLATE FEI-32419116009.A18 32419116009 £55.68 £66.82
480 - GROOVED BALL BEARING FEI-41701010054.A26 41701010054 £8.25 £9.90
490 - PLATE FEI-32416101009.A3 32416101009 £3.11 £3.73
500 - SHAFT TOOTHED FEI-33713065003.A0 33713065003 £48.38 £58.06
520 - DISC FEI-32624117009.A46 32624117009 £1.60 £1.92
600 - SHAFT TOOTHED FEI-33804023002.A15 33804023002 £125.44 £150.53
610 - GROOVED BALL BEARING FEI-41701110228.A9 41701110228 £36.28 £43.53
620 - GROOVED BALL BEARING FEI-41701109051.A19 41701109051 £23.72 £28.46
630 - GEARBOX HOUSING FEI-31508241003.A2 31508241003 £61.73 £74.08
640 - CIRCLIP M4 FEI-42443003043.A53 42443003043 £1.60 £1.92
650 - FILLISTER HEAD SCREW FEI-43064025040.A16 43064025040 £1.60 £1.92
740 - BEARING BUSH FEI-30507236000.A201 30507236000 £3.19 £3.83
750 - ARMATURE 110V 50/60HZ FEI-53276003110.A4 53276003110 £108.05 £129.66
760 - CIRCLIP FEI-42615081002.A57 42615081002 £1.60 £1.92
762 - DISC FEI-32408434000.A4 32408434000 £1.60 £1.92
764 - CIRCLIP FEI-42632003000.A4 42632003000 £1.60 £1.92
770 - GROOVED BALL BEARING FEI-41701001260.A425 41701001260 £7.11 £8.53
780 - RING MAGNET FEI-32172011004.A58 32172011004 £10.15 £12.18
790 - PLATE FEI-32416108003.A85 32416108003 £2.82 £3.38
800 - GROOVED BALL BEARING FEI-41701007266.A106 41701007266 £10.67 £12.80
810 - SCREW FEI-43074007000.A34 43074007000 £1.60 £1.92
820 - SCREW FEI-43074009000.A46 43074009000 £1.60 £1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A84 32119124010 £17.68 £21.22
840 - HOOD FEI-31428162000.A2 31428162000 £28.20 £33.84
850 - CYLINDER HEAD SCREW FEI-43033046087.A21 43033046087 £1.60 £1.92
5000 - ALLEN KEY SW5 FEI-62907011009.A16 62907011009 £3.29 £3.95
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A32 32160003014 -
9000 - OPERATING INSTRUCTIONS FEI-34101113060.A0 34101113060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A404 34130054061 -
