Festool RS 100 Q / 490036 Spare Parts

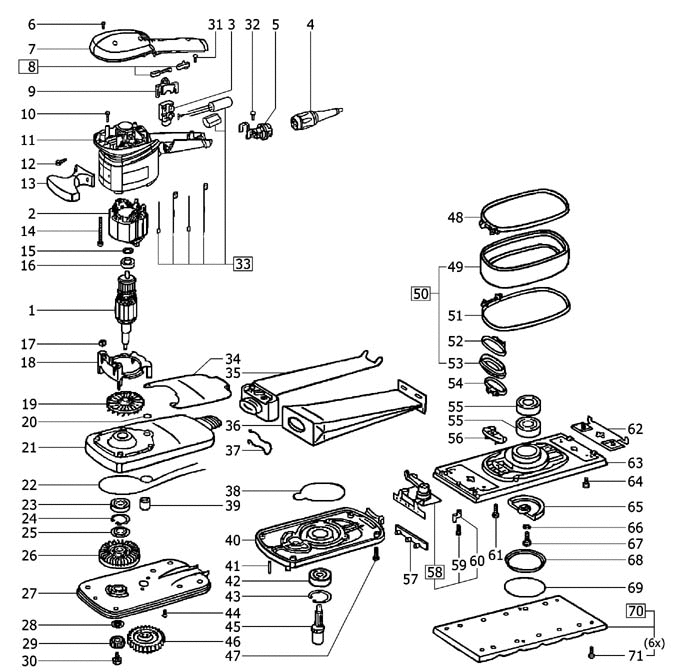

An exploded diagram and spare parts listing for the Festool RS 100 Q / 490036

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493133.A1 493133	£73.68	£88.42
2 - FIELD ASSEMBLY 230 V FSP-493134.A0 493134	£55.39	£66.47
3 - SWITCH ATTACHMENT FSP-486317.A99 486317	£15.47	£18.56
4 - PLUG IT-CABLE FSP-203924.A32 203924	£25.82	£30.99
4 - PLUG IT-CABLE FSP-203914.A42 203914	-
5 - SOCKET HOUSING 230 V FSP-489925.A16 489925	£8.42	£10.11
6 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A18 400584	£2.00	£2.40
7 - HOUSING COVER FSP-463094.A2 463094	£7.76	£9.31
8 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A17 488915	£19.04	£22.85
9 - BRIDGE FSP-463095.A9 463095	£2.00	£2.40
10 - FLAT HEAD SCREW M4 X 40 FSP-400866.A3 400866	£2.00	£2.40
11 - MOTOR HOUSING FSP-463088.A4 463088	£18.47	£22.16
12 - RAISED-HEAD SCREW M4 X 12 FSP-400050.A19 400050	£2.00	£2.40
13 - GRIP FSP-483783.A6 483783	£9.15	£10.98
14 - RAISED-HEAD SCREW 4.0 X 40 MM FSP-219080.A22 219080	£2.00	£2.40
15 - COMPENSATING WASHER 15 X 21.8 X 0.2 MM FSP-228759.A21 228759	£2.00	£2.40
16 - BALL BEARING FSP-10775821.A76 10775821	£4.82	£5.79
17 - HEXAGON NUT M4 FSP-200715.A91 200715	£2.00	£2.40
18 - AIR GUIDE WASHER FSP-443109.A13 443109	£2.00	£2.40
19 - FAN FSP-436451.A5 436451	£2.00	£2.40
20 - ISOLATING DISC FSP-437102.A3 437102	£2.00	£2.40
21 - BEARING COVER FSP-439839.A6 439839	£62.14	£74.57
22 - PACKING CORD FSP-437499.A3 437499	£3.45	£4.14
23 - BALL BEARING FSP-228659.A29 228659	£7.68	£9.21
24 - SNAP RING FSP-401246.A72 401246	£2.00	£2.40
25 - CENTRIFUGAL WASHER FSP-437086.A4 437086	£2.00	£2.40
26 - FAN FSP-435496.A0 435496	£24.47	£29.36
27 - PLATE FSP-482524.A6 482524	£44.81	£53.77
28 - CENTRIFUGAL WASHER FSP-437064.A6 437064	£2.00	£2.40
29 - PINION FSP-442267.A6 442267	£31.44	£37.73
30 - HEXAGON SCREW M6 X 15 FSP-228517.A3 228517	£2.00	£2.40
31 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A322 219031	£2.00	£2.40
32 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A323 219031	£2.00	£2.40
33 - INTERFERENCE SUPPRESSION MODULE FSP-490575.A1 490575	£59.45	£71.34
34 - HEAT SCHIELD FSP-442232.A0 442232	£6.39	£7.67
35 - FILTER ADAPTER FSP-484542.A0 484542	£44.02	£52.82
36 - TURBO FILTER BAG FSP-483674.A0 483674	-
37 - CLAMP FSP-434696.A2 434696	£10.92	£13.10
38 - PACKING CORD FSP-437292.A0 437292	£2.00	£2.40
39 - NEEDLE BEARING FSP-410226.A6 410226	£17.57	£21.08
40 - GEAR HOUSING FSP-435509.A6 435509	£63.85	£76.62
41 - CYLINDER PIN FSP-773881.A3 773881	£2.00	£2.40
42 - BALL BEARING FSP-228524.A0 228524	£12.38	£14.86
43 - SNAP RING FSP-401251.A0 401251	£2.00	£2.40
44 - RAISED-HEAD SCREW M4 X 10 FSP-228582.A10 228582	£2.00	£2.40
45 - ECCENTRIC SHAFT FSP-441381.A3 441381	£64.02	£76.83
46 - GEAR FSP-485618.A3 485618	£25.08	£30.09
47 - RAISED-HEAD SCREW M5 X 25 FSP-228516.A5 228516	£2.00	£2.40
48 - CLIP FSP-410423.A0 410423	£6.88	£8.25
49 - COLLAR FSP-435475.A3 435475	£13.86	£16.63
50 - COLLAR SET FSP-483787.A0 483787	£31.57	£37.88
51 - TERMINAL FSP-437884.A3 437884	£6.80	£8.16
52 - TERMINAL FSP-436965.A3 436965	£9.78	£11.73
53 - GAITER FSP-435490.A3 435490	£6.81	£8.17
54 - TERMINAL FSP-436966.A0 436966	£5.43	£6.52
55 - BALL BEARING FSP-228523.A9 228523	£9.62	£11.55
56 - EXTRACTOR CONNECTOR FSP-483446.A0 483446	£4.75	£5.70
57 - PLASTIC STRIPS FOR ABRASIVE TENSIONER FSP-483785.A0 483785	£7.78	£9.34
58 - FIXED ROD (PAAR) FSP-483786.A3 483786	£47.64	£57.17
59 - FLAT HEAD SCREW M4 X 20 FSP-228514.A4 228514	£2.00	£2.40
60 - CAM FSP-437278.A3 437278	£2.00	£2.40
61 - RAISED-HEAD SCREW M5 X 20 DIN 7985 FSP-774568.A4 774568	£2.00	£2.40
62 - CLAMPING PLATE FSP-486333.A3 486333	£7.06	£8.47
63 - PLATE FSP-440469.A3 440469	£67.91	£81.49
64 - RAISED-HEAD SCREW M4 X 10 FSP-400663.A6 400663	£2.00	£2.40
65 - WEIGHT FSP-441059.A3 441059	£31.50	£37.80
66 - SPRING DISC FSP-200765.A24 200765	£2.00	£2.40
67 - CHEESE HEAD SCREW M6 X 18 FSP-223541.A4 223541	£2.00	£2.40
68 - CAP FSP-435510.A0 435510	£11.65	£13.98
69 - O-RING FSP-228551.A3 228551	£2.00	£2.40
70 - SANDING PAD FSP-483679.A5 483679	£28.20	£33.84
70 - SANDING PAD FSP-489629.A5 489629	£25.47	£30.56
71 - RAISED-HEAD SCREW M4 X 10 FSP-400750.A10 400750	£2.00	£2.40

Attribute Name	Value
Brand	Festool
