Festool RO 2 E / 487344 Spare Parts

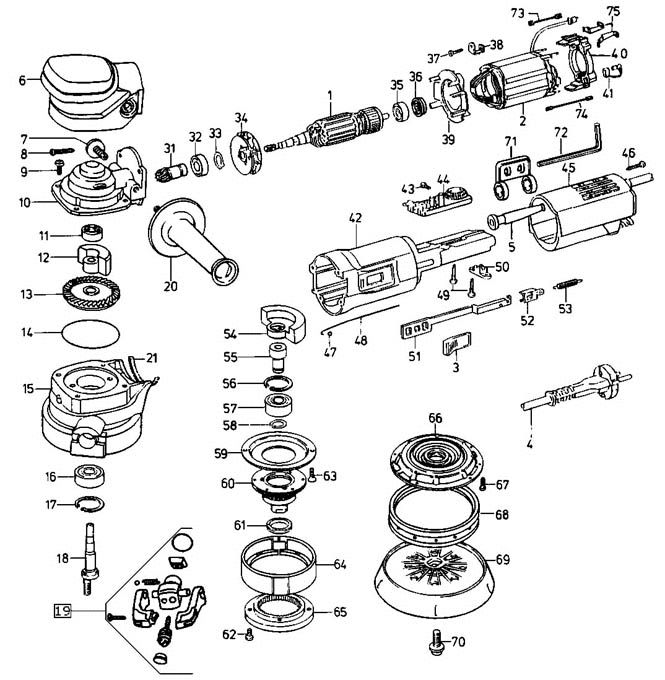

An exploded diagram and spare parts listing for the Festool RO 2 E / 487344

	Ex VAT	Inc VAT
1 - ARMATURE 230V FSP-485715.A1 485715	£93.11	£111.73
2 - NO LONGER AVAILABLE FSP-00000.A1099 00000	-
3 - SLIDE SWITCH FSP-446002.A16 446002	£2.00	£2.40
4 - MAINS CABLE GB 240V FSP-441749.A44 441749	£25.08	£30.09
4 - CABLE EU FSP-457410.A26 457410	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A11 445738	£2.00	£2.40
6 - HOOD FSP-487424.A6 487424	£12.72	£15.27
7 - PLASTIC SCREW FSP-435103.A12 435103	£2.00	£2.40
8 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-400233.A9 400233	£2.00	£2.40
9 - RAISED-HEAD SCREW M4 X 10 FSP-400234.A7 400234	£2.00	£2.40
10 - GEAR HOUSING FSP-446277.A0 446277	£30.79	£36.95
11 - BALL BEARING FSP-228715.A23 228715	£4.72	£5.66
12 - WEIGHT FSP-457184.A7 457184	£19.24	£23.09
13 - RING GEAR FSP-443529.A2 443529	£32.19	£38.63
14 - O-RING 60 X 1.5 MM FSP-233066.A3 233066	£3.19	£3.83
15 - HOUSING FSP-444914.A7 444914	£45.40	£54.48
16 - BALL BEARING FSP-400065.A28 400065	£8.56	£10.27
17 - SNAP RING FSP-401246.A0 401246	£2.00	£2.40
18 - ECCENTRIC SHAFT FSP-445171.A6 445171	£47.28	£56.74
19 - SWITCH FSP-487800.A6 487800	£38.56	£46.27
20 - AUXILIARY HANDLE FSP-487865.A33 487865	£7.94	£9.53
21 - NO LONGER AVAILABLE FSP-00000.A1103 00000	-
22 - SWITCH FSP-487800.A5 487800	£38.56	£46.27
23 - BALL FSP-200863.A2 200863	£2.00	£2.40
24 - RAISED-HEAD SCREW 3.0 X 25 MM FSP-459853.A0 459853	£2.00	£2.40
25 - SWITCH FSP-487800.A4 487800	£38.56	£46.27
26 - O-RING FSP-200131.A1 200131	£2.00	£2.40
27 - SWITCH FSP-487800.A0 487800	£38.56	£46.27
28 - SWITCH FSP-487800.A1 487800	£38.56	£46.27
29 - SWITCH FSP-487800.A2 487800	£38.56	£46.27
30 - SWITCH FSP-487800.A3 487800	£38.56	£46.27
31 - PINION FSP-443530.A0 443530	£47.64	£57.17
32 - BALL BEARING FSP-228746.A6 228746	£7.11	£8.53
33 - SNAP RING FSP-204471.A9 204471	£2.00	£2.40
34 - FAN FSP-485108.A6 485108	£4.37	£5.24
35 - BALL BEARING FSP-228672.A98 228672	£4.41	£5.29
36 - SOLENOID RING FSP-444018.A21 444018	£2.00	£2.40
37 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-228717.A9 228717	£2.00	£2.40
38 - CLAMP LEVER FSP-439918.A6 439918	£2.00	£2.40
39 - AIR GUIDE WASHER FSP-442901.A12 442901	£4.18	£5.02
40 - BRUSH HOLDER (PAIR) 230V FSP-487436.A2 487436	£11.22	£13.47
41 - BRUSH (PAIR) 230V FSP-487530.A1 487530	£28.61	£34.33
42 - MOTOR HOUSING FSP-487146.A4 487146	£16.72	£20.06
43 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A26 228718	£2.00	£2.40
44 - CONTROL ELECTRONICS 230 V FSP-490286.A1 490286	£54.32	£65.19
45 - CAP FSP-487648.A2 487648	£11.05	£13.26
46 - RAISED-HEAD SCREW 3.5 X 20 MM FSP-445743.A10 445743	£2.00	£2.40
47 - RUBBER CORD FSP-441324.A2 441324	£2.00	£2.40
48 - CONTACT BRACKET FSP-440732.A2 440732	£2.00	£2.40
49 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A132 228663	£2.00	£2.40
50 - CABLE CLAMP FSP-439662.A2 439662	£2.00	£2.40
51 - SWITCH LINKAGE FSP-487794.A30 487794	£14.72	£17.67
52 - SWITCH LINKAGE FSP-487794.A31 487794	£14.72	£17.67
53 - SWITCH LINKAGE FSP-487794.A32 487794	£14.72	£17.67
54 - NO LONGER AVAILABLE FSP-00000.A1106 00000	-
55 - NO LONGER AVAILABLE FSP-00000.A1107 00000	-
56 - SNAP RING FSP-401244.A31 401244	£2.00	£2.40
57 - ANGULAR CONTACT BALL BEARING FSP-401125.A0 401125	£31.82	£38.19
58 - SNAP RING FSP-200619.A51 200619	£2.00	£2.40
59 - NO LONGER AVAILABLE FSP-00000.A1105 00000	-
60 - GEAR FSP-489161.A3 489161	£108.90	£130.68
61 - SEALING RING FSP-443785.A0 443785	£12.60	£15.12
62 - CHEESE HEAD SCREW M4 X 6 FSP-453584.A4 453584	£2.00	£2.40
63 - FLAT HEAD SCREW M3.5 X 8 FSP-228673.A0 228673	£2.00	£2.40
64 - SWITCHING RING FSP-492208.A1 492208	£65.69	£78.83
65 - GEAR FSP-489161.A4 489161	£108.90	£130.68
66 - RUBBER COLLAR FSP-484561.A7 484561	-
67 - RAISED-HEAD SCREW M3 X 8 FSP-400235.A1 400235	£2.00	£2.40
68 - SEALING LIP FSP-444257.A0 444257	-
69 - SANDING PAD FSP-202458.A21 202458	£33.56	£40.27
70 - SCREW FSP-401165.A32 401165	£2.00	£2.40
71 - KEY FASTENING FSP-446275.A11 446275	£2.00	£2.40
72 - SCREWDRIVER FSP-202752.A26 202752	£2.00	£2.40
73 - FLEXIBLE LEAD FSP-446668.A2 446668	£2.00	£2.40
74 - FLEXIBLE LEAD FSP-446674.A0 446674	£1.63	£1.96
75 - NO LONGER AVAILABLE FSP-00000.A1104 00000	-
79 - GEAR FSP-489161.A5 489161	£108.90	£130.68
