Festool RO 150 FEQ MX 127V / 202855 Spare Parts

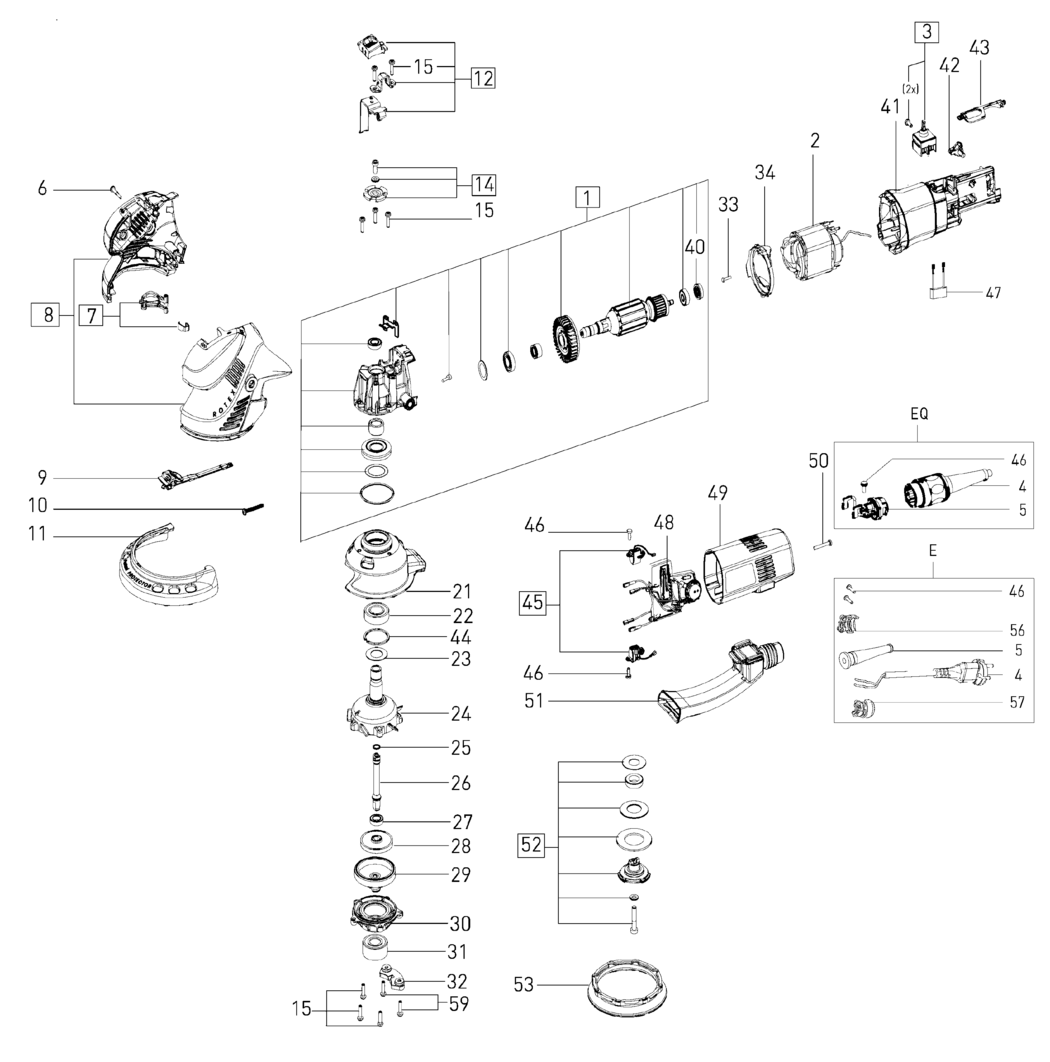

An exploded diagram and spare parts listing for the Festool RO 150 FEQ MX 127V / 202855

	Ex VAT	Inc VAT
1 - ARMATURE FSP-497771.A0 497771	£110.46	£132.55
2 - FIELD ASSEMBLY 110-120V FSP-494076.A2 494076	£42.88	£51.45
3 - SWITCH FSP-494387.A3 494387	£24.46	£29.35
4 - DESCRIPTION UNAVAILABLE FSP-000000.A367 000000	-
5 - SOCKET HOUSING 110V FSP-493977.A2 493977	£8.08	£9.69
6 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A26 400174	£2.00	£2.40
7 - PUSHER FSP-494064.A0 494064	£12.85	£15.42
8 - HOUSING FSP-494089.A2 494089	£26.82	£32.19
9 - KNOB FSP-465465.A5 465465	£2.00	£2.40
10 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A44 400528	£2.00	£2.40
11 - PROTECTOR FSP-493913.A5 493913	£13.24	£15.89
12 - CATCH FSP-494066.A5 494066	£21.46	£25.75
13 - PLATE SPRING FSP-465559.A0 465559	£2.00	£2.40
14 - TOOTH DISC FSP-494067.A0 494067	£13.86	£16.63
15 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A95 219075	£2.00	£2.40
21 - GEAR COVER FSP-465174.A5 465174	£30.68	£36.81
22 - BALL BEARING FSP-400743.A10 400743	£10.06	£12.07
23 - COVER DISC FSP-472770.A0 472770	£2.00	£2.40
24 - ECCENTRIC DISK FSP-465175.A0 465175	£41.16	£49.39
25 - O-RING FSP-200920.A2 200920	£2.00	£2.40
26 - SHAFT FSP-465171.A0 465171	£24.77	£29.72
27 - BALL BEARING FSP-400748.A8 400748	£13.15	£15.78
28 - GEAR FSP-465112.A3 465112	£8.97	£10.76
29 - RING GEAR FSP-465113.A2 465113	£17.68	£21.22
30 - BEARING HOUSING FSP-465176.A5 465176	£31.09	£37.31
31 - BALL BEARING FSP-479745.A3 479745	£32.47	£38.96
32 - COUNTER BALANCE FSP-701217.A0 701217	£5.17	£6.20
33 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A35 219069	£2.00	£2.40
34 - AIR GUIDE WASHER FSP-465360.A0 465360	£2.00	£2.40
40 - SOLENOID RING FSP-444018.A8 444018	£2.00	£2.40
41 - MOTOR HOUSING FSP-465469.A0 465469	£10.54	£12.65
42 - LEVER FSP-465565.A0 465565	£2.00	£2.40
43 - SWITCH LINKAGE FSP-465561.A5 465561	£2.46	£2.95
44 - SNAP RING FSP-400827.A5 400827	£2.00	£2.40
46 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A127 219031	£2.00	£2.40
49 - CAP FSP-465470.A5 465470	£11.01	£13.21
50 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A6 219068	£2.00	£2.40
51 - EXTRACTOR TUBE CLEANTEC FSP-10025000.A0 10025000	£13.26	£15.91
52 - BAYONET NUT CONNECTOR FSP-494063.A5 494063	£34.32	£41.18
53 - COLLAR FSP-479703.A2 479703	£6.75	£8.10
54 - SANDING PAD FSP-202461.A1 202461	£34.44	£41.33
55 - AUXILIARY HANDLE FSP-487865.A34 487865	£7.94	£9.53
59 - RAISED-HEAD SCREW M4 X 18 FSP-400904.A6 400904	£2.00	£2.40
60 - NAMEPLATE FSP-466250.A1 466250	£2.00	£2.40

Attribute Name	Value
Brand	Festool
