Festool RAS 180.03 E-HR / BMS 180 E / 495351 Spare Parts

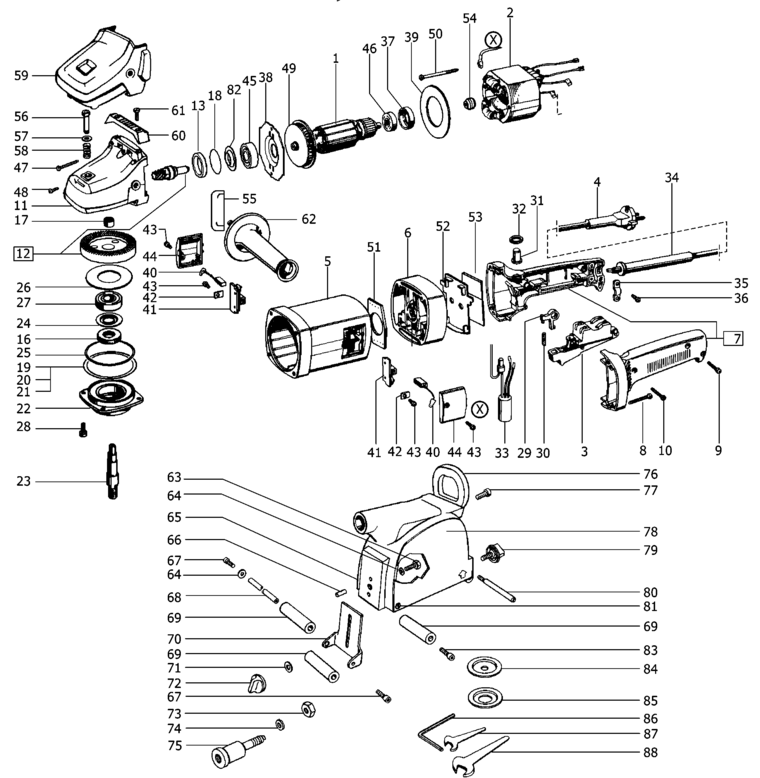

An exploded diagram and spare parts listing for the Festool RAS 180.03 E-HR / BMS 180 E / 495351

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-440676.A10 440676	£108.57	£130.28
2 - FIELD ASSEMBLY 230 V FSP-447519.A0 447519	£82.04	£98.45
3 - SWITCH 230 V FSP-437616.A8 437616	£56.68	£68.01
4 - MAINS CABLE GB 240V FSP-462505.A15 462505	£25.08	£30.09
4 - CABLE EU FSP-457410.A19 457410	£25.08	£30.09
5 - MOTOR HOUSING FSP-458226.A8 458226	£93.82	£112.58
6 - ELECTRONIC 230 V FSP-486775.A6 486775	£105.95	£127.14
7 - HANDLE FSP-437611.A2 437611	£73.45	£88.14
8 - RAISED-HEAD SCREW 5.0 X 70 MM FSP-228714.A10 228714	£2.00	£2.40
9 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-437613.A7 437613	£2.00	£2.40
10 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-412005.A3 412005	£2.00	£2.40
11 - GEAR HOUSING FSP-459116.A6 459116	£149.27	£179.12
12 - GEAR FSP-493710.A0 493710	£174.25	£209.10
13 - SEALING RING FSP-469943.A1 469943	£41.30	£49.56
16 - SEALING RING FSP-411762.A10 411762	£6.25	£7.50
17 - POROUS BEARING FSP-437615.A2 437615	£15.34	£18.41
18 - O-RING FSP-469941.A2 469941	£3.62	£4.35
19 - SPACER RING 0.25 MM FSP-474442.A6 474442	£6.37	£7.64
20 - SPACER RING 0.2 MM FSP-411846.A0 411846	£5.24	£6.29
21 - SPACER RING 0.3 MM FSP-411847.A10 411847	£5.12	£6.15
22 - BEARING COVER FSP-411758.A0 411758	£58.25	£69.90
23 - GEAR SHAFT FSP-411759.A10 411759	£77.06	£92.47
24 - RING FSP-411742.A10 411742	£8.90	£10.68
25 - O-RING O-RING 68 X 2 FSP-411752.A0 411752	£4.07	£4.88
26 - SPRING WASHER FSP-411761.A0 411761	£17.97	£21.56
27 - BALL BEARING FSP-401612.A1 401612	£39.20	£47.04
28 - CHEESE HEAD SCREW M5 X 16 FSP-200671.A15 200671	£2.00	£2.40
29 - SWITCH LEVER FSP-437617.A3 437617	£8.93	£10.72
30 - PRESSURE SPRING FSP-437618.A7 437618	£2.00	£2.40
31 - BUTTON FSP-437619.A2 437619	£9.43	£11.32
32 - FELT WASHER FSP-437620.A8 437620	£2.00	£2.40
33 - CAPACITOR FSP-440660.A6 440660	£22.48	£26.98
34 - CABLE CONDUIT FSP-411745.A0 411745	£14.22	£17.07
35 - CABLE CLAMP FSP-411747.A10 411747	£4.72	£5.66
36 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A75 219071	£2.00	£2.40
37 - BEARING RING FSP-462385.A10 462385	£3.93	£4.72
38 - BEARING COVER FSP-462208.A2 462208	£17.68	£21.22
39 - AIR DUCT FSP-411756.A11 411756	£14.38	£17.25
40 - BRUSH (PAIR) 230V FSP-485202.A4 485202	£39.30	£47.16
41 - BRUSH HOLDER 230 V FSP-437610.A9 437610	£18.09	£21.71
42 - FLAP FSP-437624.A8 437624	£4.72	£5.66
43 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A74 219071	£2.00	£2.40
44 - BRUSH HOLDER COVER (PAIR) FSP-462218.A10 462218	£10.74	£12.89
45 - BALL BEARING FSP-469944.A3 469944	£27.45	£32.94
46 - BALL BEARING FSP-401518.A18 401518	£8.12	£9.74
47 - RAISED-HEAD SCREW 5.0 X 35 MM FSP-437626.A4 437626	£2.00	£2.40
48 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A5 203806	£2.00	£2.40
49 - WING FSP-437627.A9 437627	£15.67	£18.80
50 - RAISED-HEAD SCREW 4.0 X 55 MM FSP-437628.A4 437628	£2.00	£2.40
51 - NEOPRENE SEAL FSP-437629.A7 437629	£6.64	£7.97
52 - PLATE FSP-440655.A6 440655	£6.64	£7.97
53 - NEOPRENE SEAL FSP-440656.A4 440656	£4.81	£5.77
54 - SOLENOID RING FSP-441386.A2 441386	£23.82	£28.59
55 - AIR DEFLECTOR FSP-442102.A7 442102	£4.72	£5.66
56 - LOCKING BUTTON FSP-486703.A5 486703	£26.14	£31.37
57 - O-RING FSP-443249.A1 443249	£2.00	£2.40
58 - PRESSURE SPRING FSP-443247.A6 443247	£2.00	£2.40
59 - HOOD FSP-444211.A6 444211	£49.88	£59.85
60 - STRIP FSP-486706.A1 486706	£21.60	£25.92
61 - CHEESE HEAD SCREW M4 X 12 FSP-774303.A8 774303	£2.00	£2.40
62 - AUXILIARY HANDLE FSP-487865.A6 487865	£7.94	£9.53
63 - HEXAGON SCREW M6 X 22 FSP-219107.A1 219107	£2.00	£2.40
64 - WASHER 6.4 MM FSP-200578.A110 200578	£2.00	£2.40
65 - PROTECTIVE COVER FSP-200500.A0 200500	£202.63	£243.16
66 - COUNTERSUNK GROOVED PIN 6X10 FSP-773459.A1 773459	£2.00	£2.40
67 - CHEESE HEAD SCREW M6 X 12 FSP-774326.A0 774326	£2.00	£2.40
68 - AXLE FSP-440976.A0 440976	£11.90	£14.28
69 - ROLLER FSP-440974.A0 440974	£11.01	£13.21
70 - HOLDER FSP-440973.A1 440973	£22.78	£27.34
71 - WASHER 6.4 MM FSP-228546.A132 228546	£2.00	£2.40
72 - ROTARY KNOB M6 FSP-483350.A16 483350	£6.30	£7.56
73 - HEXAGON NUT M16 FSP-200268.A1 200268	£2.00	£2.40
74 - WASHER FSP-200582.A1 200582	£2.00	£2.40
75 - TOOL ARBOUR FSP-714302.A1 714302	£31.22	£37.47
76 - HANDLE FSP-200856.A0 200856	£65.45	£78.54
77 - CHEESE HEAD SCREW M6 X 20 FSP-228612.A6 228612	£2.00	£2.40
78 - COVER FSP-200542.A1 200542	£44.71	£53.65
79 - ROTARY KNOB FSP-482098.A15 482098	£2.00	£2.40
80 - AXLE FSP-440975.A1 440975	£9.91	£11.89
81 - FLAT HEAD SCREW M5 X 10 FSP-772531.A2 772531	£4.28	£5.13
82 - PACKING SLEEVE FSP-469942.A7 469942	£16.97	£20.36
83 - CHEESE HEAD SCREW M5 X 25 FSP-200048.A0 200048	£2.00	£2.40
84 - COVER FSP-411530.A0 411530	£11.01	£13.21
85 - COVER FSP-411531.A1 411531	£9.62	£11.54
86 - SCREWDRIVER SW 4 FSP-202751.A0 202751	£2.00	£2.40
87 - OPEN ENDED SPANNER SW 11 FSP-772044.A1 772044	£4.81	£5.77
88 - OPEN ENDED SPANNER SW 24 (->2008) FSP-772051.A4 772051	£11.98	£14.38
