Festool ETS 150/5 E 230V / 497025 Spare Parts

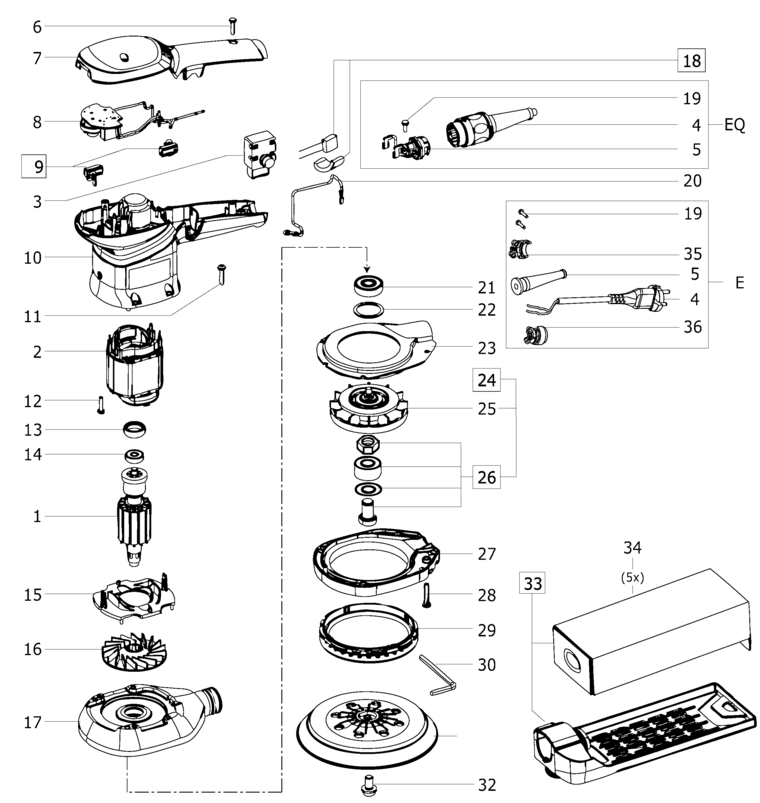

An exploded diagram and spare parts listing for the Festool ETS 150/5 E 230V / 497025

	Ex VAT	Inc VAT
1 - ARMATURE CONVERSION KIT INCL. ELECTRONICS FSP-500045.A22 500045	£74.99	£89.99
2 - FIELD ASSEMBLY 230 V FSP-493131.A1 493131	£44.99	£53.99
3 - SWITCH ATTACHMENT FSP-486317.A43 486317	£15.47	£18.56
4 - CABLE WITH PLUG FSP-479246.A0 479246	£25.08	£30.09
4 - CABLE WITH PLUG FSP-479244.A2 479244	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A13 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-342088.A17 342088	£2.00	£2.40
7 - HOUSING COVER 0150-05-01 FSP-492606.A6 492606	£32.31	£38.77
8 - ELECTRONIC FSP-500044.A3 500044	£47.80	£57.36
9 - BRUSH HOLDER PAIR. 230 V/MACHINE PRODUCTION AFTER 2000 FSP-490714.A15 490714	£17.85	£21.42
10 - MOTOR HOUSING FSP-463567.A11 463567	£16.05	£19.26
11 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A132 219075	£2.00	£2.40
12 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-342088.A16 342088	£2.00	£2.40
13 - RUBBER RING FSP-450508.A21 450508	£2.00	£2.40
14 - BALL BEARING FSP-228672.A106 228672	£4.41	£5.29
15 - AIR GUIDE WASHER FSP-453315.A23 453315	£2.00	£2.40
16 - FAN 230-240V FSP-453316.A11 453316	£2.00	£2.40
17 - BEARING COVER CLEANTEC FSP-10027511.A29 10027511	£38.28	£45.94
18 - CAPACITOR FSP-491312.A20 491312	£19.71	£23.65
19 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A88 400584	£2.00	£2.40
20 - FLEXIBLE LEAD FSP-455961.A27 455961	£2.00	£2.40
21 - BALL BEARING FSP-401601.A17 401601	£7.62	£9.14
22 - SNAP RING FSP-400564.A28 400564	£2.00	£2.40
23 - COVER FSP-453374.A8 453374	£3.68	£4.42
24 - ASPIRATOR FSP-498963.A0 498963	£72.55	£87.06
25 - ASPIRATOR 0150-05-01 FSP-496380.A1 496380	£47.64	£57.17
26 - BEARING BOLT FSP-498964.A8 498964	£52.08	£62.50
27 - COVER FSP-453373.A27 453373	£6.39	£7.67
28 - RAISED-HEAD SCREW M4 X 25 FSP-400257.A17 400257	£2.00	£2.40
29 - COLLAR FSP-701156.A19 701156	£6.62	£7.95
30 - SCREWDRIVER FSP-202752.A24 202752	£2.00	£2.40
32 - SCREW FSP-401165.A68 401165	£2.00	£2.40
33 - TURBO FILTER BAG SET TFS - ES 150 FSP-489631.A26 489631	£23.84	£28.61
34 - TURBO FILTER BAG FSP-487779.A39 487779	£10.00	£12.00
35 - CLAMPING FSP-477964.A24 477964	£2.00	£2.40
36 - CLAMPING FSP-477962.A1 477962	£2.00	£2.40
