Festool DS 400 / 489133 Spare Parts

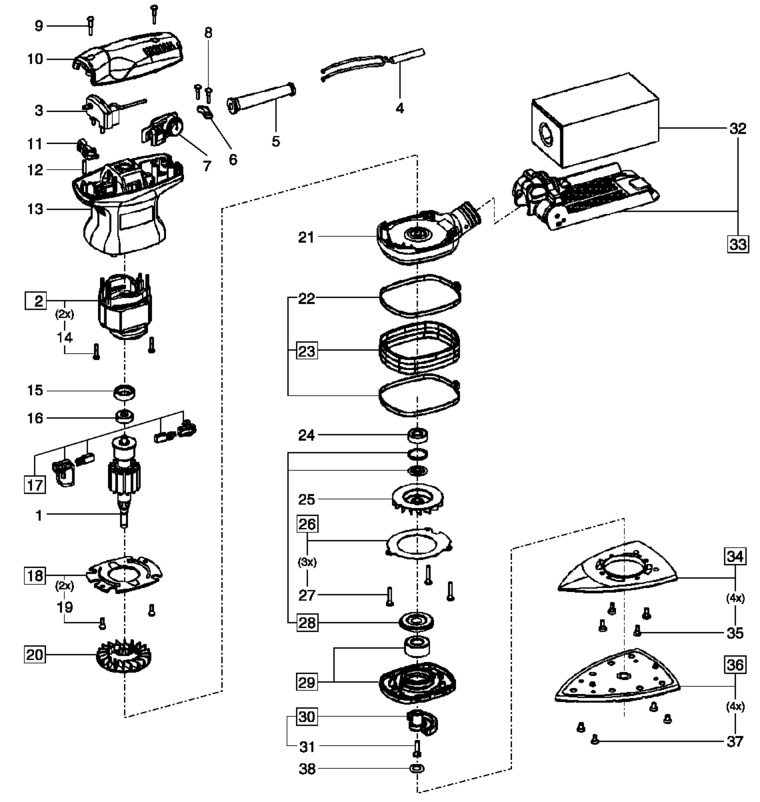

An exploded diagram and spare parts listing for the Festool DS 400 / 489133

	Ex VAT	Inc VAT
1 - ARMATURE 230 V FSP-493162.A11 493162	£60.66	£72.79
2 - FIELD ASSEMBLY 230 V FSP-489211.A15 489211	£43.33	£52.00
3 - SWITCH MODUL FSP-488631.A22 488631	£16.84	£20.21
4 - CABLE EU FSP-457599.A9 457599	£28.95	£34.74
5 - CABLE CONDUIT FSP-451265.A4 451265	£1.63	£1.96
6 - CABLE CLAMP FSP-439288.A30 439288	£2.00	£2.40
8 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A109 228584	£2.00	£2.40
9 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-228725.A9 228725	£2.00	£2.40
10 - NO LONGER AVAILABLE FSP-00000.A4609 00000	-
11 - SWITCHING JACK FSP-450967.A29 450967	£2.00	£2.40
12 - CYLINDER PIN FSP-223518.A9 223518	£2.00	£2.40
13 - NO LONGER AVAILABLE FSP-00000.A4611 00000	-
14 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-228584.A107 228584	£2.00	£2.40
15 - RUBBER RING FSP-450508.A73 450508	£2.00	£2.40
16 - BALL BEARING FSP-228672.A70 228672	£4.41	£5.29
17 - BRUSH HOLDER PAIR. 230 V/MACHINE PRODUCTION BEFORE 2000 FSP-489632.A20 489632	£11.02	£13.22
18 - AIR GUIDE WASHER FSP-489213.A15 489213	£18.09	£21.71
19 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A303 219031	£2.00	£2.40
20 - FAN FSP-450138.A16 450138	£2.00	£2.40
21 - BEARING COVER FSP-450115.A15 450115	£26.58	£31.89
22 - CLAMPING STRAP FSP-453707.A18 453707	£9.98	£11.98
23 - COLLAR FSP-489184.A14 489184	£26.45	£31.74
24 - BALL BEARING FSP-401525.A3 401525	£4.72	£5.66
25 - FAN FSP-450129.A4 450129	-
26 - PLATE FSP-489185.A8 489185	£25.96	£31.15
27 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A26 400528	£2.00	£2.40
28 - CENTRIFUGAL WASHER FSP-489186.A17 489186	£16.10	£19.32
29 - PLATE FSP-489187.A2 489187	£55.82	£66.99
30 - CAM FSP-489214.A13 489214	£38.18	£45.81
31 - RAISED-HEAD SCREW M4 X 12 FSP-400290.A24 400290	£2.00	£2.40
32 - TURBO FILTER BAG FSP-489128.A7 489128	£9.09	£10.91
33 - TURBO FILTER BAG SET TFS - RS 400 FSP-489129.A23 489129	£20.92	£25.10
34 - PLATE FSP-489125.A0 489125	£24.71	£29.65
35 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A44 228738	£2.00	£2.40
36 - DESCRIPTION UNAVAILABLE FSP-000000.A137 000000	-
37 - RAISED-HEAD SCREW M4 X 10 FSP-400663.A15 400663	£2.00	£2.40
38 - WASHER FSP-400585.A17 400585	£1.63	£1.96

Attribute Name	Value
Brand	Festool
