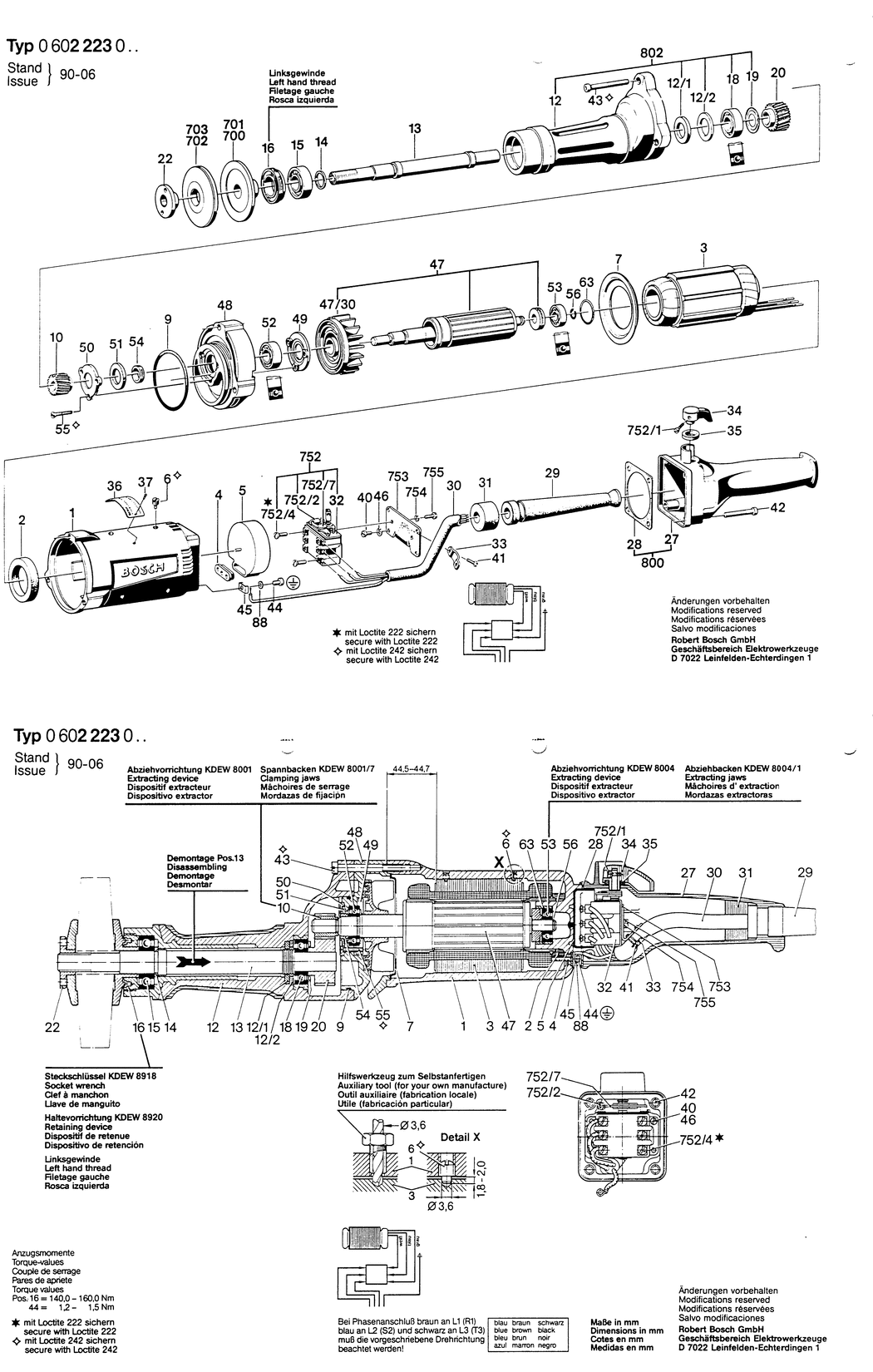

1 - MOTOR HOUSING
BSD-1605102106.A55
1605102106
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209009.A48
1600209009
|
£6.85
|
£8.22
|
|
|
3 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229162.A12
1604229162
|
-
|
|
|
|
4 - GROMMET
BSD-1600306000.A112
1600306000
|
£2.05
|
£2.46
|
|
|
5 - PROTECTIVE COVER
BSD-1600502004.A97
1600502004
|
£4.26
|
£5.11
|
|
|
6 - SET SCREW
BSD-1603402004.A246
1603402004
|
£2.61
|
£3.13
|
|
|
7 - GUIDE PULLEY
BSD-1600500014.A7
1600500014
|
-
|
|
|
|
9 - O-RING 74.0x3.0 MM
BSD-1600210006.A263
1600210006
|
£1.84
|
£2.21
|
|
|
10 - CYLINDRICAL GEAR Z=26
BSD-1606320056.A6
1606320056
|
-
|
|
|
|
12 - SPINDLE BEARING
BSD-1605806118.A12
1605806118
|
-
|
|
|
|
12/1 - SEAL RING
BSD-1600108043.A57
1600108043
|
-
|
|
|
|
12/2 - SEALING DISK 6203 ZAV NILOS-RI
BSD-3600290004.A94
3600290004
|
-
|
|
|
|
13 - GRINDING SPINDLE M16x1.5
BSD-1603052007.A41
1603052007
|
-
|
|
|
|
14 - SHIM WASHER
BSD-1600114035.A10
1600114035
|
-
|
|
|
|
15 - GROOVE BALL BEARING 6204-Y DIN 625
BSD-1900900306.A4
1900900306
|
-
|
|
|
|
16 - THREADED RING
BSD-1603344005.A70
1603344005
|
£27.23
|
£32.68
|
|
|
18 - GROOVE BALL BEARING 6203 RSY DIN 625
BSD-1900905253.A4
1900905253
|
-
|
|
|
|
19 - SEALING DISK 6203 ZAV NILOS-RI
BSD-3600290004.A93
3600290004
|
-
|
|
|
|
20 - CYLINDRICAL GEAR
BSD-1606320057.A6
1606320057
|
-
|
|
|
|
22 - ROUND NUT
BSD-1603345027.A40
1603345027
|
-
|
|
|
|
27 - HANDLE
BSD-3605132035.A117
3605132035
|
£42.84
|
£51.41
|
|
|
28 - SEAL
BSD-1601015011.A111
1601015011
|
£3.80
|
£4.56
|
|
|
29 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A61
1600703009
|
£5.87
|
£7.04
|
|
|
30 - ELEC. CABLE W/CONNECTION
BSD-3604462043.A73
3604462043
|
£54.42
|
£65.30
|
|
|
31 - SEALING PLATE
BSD-1600113003.A414
1600113003
|
£2.80
|
£3.36
|
|
|
33 - FASTENING CLAMP
BSD-1601303003.A56
1601303003
|
£2.27
|
£2.72
|
|
|
34 - CONTROL LEVER
BSD-1602026038.A57
1602026038
|
£5.30
|
£6.36
|
|
|
35 - SEALING DISK dia18xdia10x4 MM
BSD-1600108024.A94
1600108024
|
£1.84
|
£2.21
|
|
|
36 - NAMEPLATE
BSD-3601106053.A784
3601106053
|
£5.57
|
£6.68
|
|
|
37 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A79
3603133001
|
£2.61
|
£3.13
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A467
2910021118
|
£1.84
|
£2.21
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A468
2910021118
|
£1.84
|
£2.21
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8
BSD-2910141209.A95
2910141209
|
£2.74
|
£3.29
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8
BSD-2910141215.A23
2910141215
|
£3.91
|
£4.69
|
|
|
44 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A62
2910110122
|
£1.84
|
£2.21
|
|
|
45 - CLAMPING SADDLE
BSD-3601321001.A332
3601321001
|
£3.72
|
£4.47
|
|
|
46 - SPRING WASHER DIN 137-A4
BSD-1600150006.A807
1600150006
|
-
|
|
|
|
47 - ROTOR WITHOUT WINDING
BSD-1604080076.A36
1604080076
|
-
|
|
|
|
48 - BEARING HOUSING
BSD-1605820147.A11
1605820147
|
-
|
|
|
|
49 - BEARING COVER
BSD-1600501019.A189
1600501019
|
£25.05
|
£30.06
|
|
|
50 - COVER DISC
BSD-1600501024.A256
1600501024
|
£17.22
|
£20.67
|
|
|
51 - FELT DISC
BSD-1600108018.A225
1600108018
|
£2.61
|
£3.13
|
|
|
52 - GROOVE BALL BEARING 6003 Y DIN 625
BSD-1900900273.A68
1900900273
|
£21.68
|
£26.01
|
|
|
53 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A25
1900905121
|
£18.96
|
£22.75
|
|
|
54 - THREADED RING
BSD-1603344042.A40
1603344042
|
-
|
|
|
|
55 - TORX FLAT-HEAD SCREW M4x20
BSD-3603435051.A160
3603435051
|
£1.84
|
£2.21
|
|
|
56 - RETAINING RING 12 DIN 9045
BSD-2916600007.A62
2916600007
|
£2.80
|
£3.36
|
|
|
63 - O-RING
BSD-1120210000.A94
1120210000
|
-
|
|
|
|
88 - SPRING WASHER dia4.2 MM
BSD-3600150006.A299
3600150006
|
£2.74
|
£3.29
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A725
3601119236
|
£3.91
|
£4.69
|
|
|
652 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A447
2607950004
|
£1.84
|
£2.21
|
|
|
653 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A380
1907950007
|
£5.57
|
£6.68
|
|
|
700 - CLAMPING-FLANGE dia 75 MM
BSD-1605703007.A22
1605703007
|
-
|
|
|
|
701 - CLAMPING-FLANGE dia 85 MM
BSD-1605703008.A3
1605703008
|
-
|
|
|
|
702 - CONICAL SPRING WASHER dia 75 MM
BSD-1600114032.A21
1600114032
|
-
|
|
|
|
703 - CONICAL SPRING WASHER dia 85 MM
BSD-1600114033.A6
1600114033
|
-
|
|
|
|
752 - ON-OFF SWITCH
BSD-1607200006.A7
1607200006
|
£81.81
|
£98.17
|
|
|
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A114
2910001052
|
£2.27
|
£2.72
|
|
|
752/2 - EXTENSION SPRING
BSD-1604650009.A89
1604650009
|
£1.75
|
£2.10
|
|
|
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A24
2910091118
|
£1.84
|
£2.21
|
|
|
752/7 - DETENT ROLLER
BSD-1603200007.A132
1603200007
|
-
|
|
|
|
753 - FIXING PLATE
BSD-3601023015.A110
3601023015
|
£21.68
|
£26.01
|
|
|
754 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A891
2916690003
|
£1.75
|
£2.10
|
|
|
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A466
2910021118
|
£1.84
|
£2.21
|
|
|
800 - HANDLE
BSD-1605132067.A14
1605132067
|
-
|
|
|
|
802 - SPINDLE BEARING
BSD-1607000056.A50
1607000056
|
-
|
|
|
