Bostitch TU-216-80ALM-E Type REV 0 Stapler Spare Parts

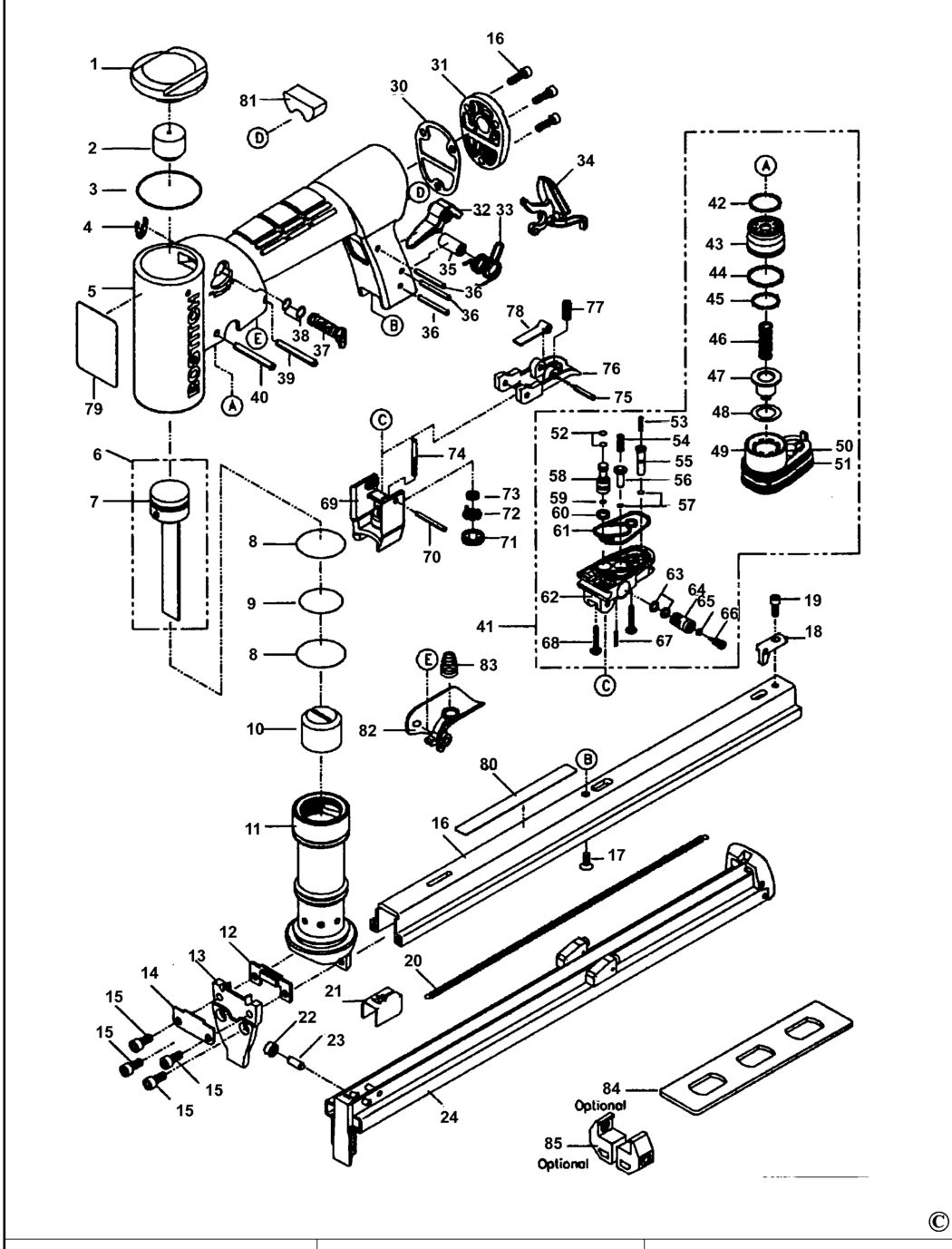

An exploded drawing and spare parts listing for the Bostitch TU-216-80ALM-E Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A97341 000000-00	-
2 - BUMPER BDE-174289.A19 174289	£1.66	£1.99
3 - O RING BDE-100353.A6 100353	£1.66	£1.99
4 - RETAINER BDE-174290.A5 174290	£1.66	£1.99
5 - NO LONGER AVAILABLE BDE-000000-00.A97342 000000-00	-
7 - O RING BDE-1FP0018.A6 1FP0018	£1.66	£1.99
8 - O RING BDE-174309.A12 174309	£1.66	£1.99
9 - O RING BDE-174310.A21 174310	£1.66	£1.99
10 - KIT BDE-P2140001200-MP.A12 P2140001200-MP	£3.80	£4.56
11 - NO LONGER AVAILABLE BDE-000000-00.A97343 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A97344 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A97345 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A97346 000000-00	-
15 - BOLT BDE-174306.A30 174306	£1.66	£1.99
16 - NO LONGER AVAILABLE BDE-000000-00.A97347 000000-00	-
17 - SCREW ` BDE-174307.A1 174307	£1.66	£1.99
18 - STOP BDE-174355.A0 174355	£3.80	£4.56
19 - BOLT BDE-S0110408100.A5 S0110408100	£1.66	£1.99
20 - SPRING BDE-174356.A4 174356	£1.66	£1.99
21 - PUSHER BDE-177723.A6 177723	£1.66	£1.99
22 - ROLLER BDE-174293.A21 174293	£1.66	£1.99
23 - PIN BDE-177740.A10 177740	£1.66	£1.99
24 - NO LONGER AVAILABLE BDE-000000-00.A97348 000000-00	-
30 - GASKET BDE-174295.A26 174295	£1.66	£1.99
31 - END CAP BDE-174296.A5 174296	£3.30	£3.96
32 - LATCH BDE-174297.A23 174297	£1.66	£1.99
33 - SPRING TORSION BDE-174301.A1 174301	£1.66	£1.99
34 - LATCH BDE-174357.A1 174357	£10.85	£13.02
35 - SPRING BDE-174302.A26 174302	£1.66	£1.99
36 - PIN BDE-174303.A1 174303	£1.66	£1.99
37 - NO LONGER AVAILABLE BDE-000000-00.A97349 000000-00	-
38 - O RING BDE-174311.A9 174311	£1.66	£1.99
39 - PIN BDE-174304.A26 174304	£1.66	£1.99
40 - PIN BDE-174305.A2 174305	£1.66	£1.99
41 - TRIGGER BDE-TVA13AF.A6 TVA13AF	£19.90	£23.88
42 - O RING BDE-S06A001600.A7 S06A001600	-
43 - VALVE BDE-174278.A14 174278	£5.88	£7.06
44 - O RING BDE-174312.A22 174312	£1.66	£1.99
45 - O RING BDE-102163.A23 102163	£12.17	£14.60
46 - SPRING COMPRESSION BDE-174280.A18 174280	£1.66	£1.99
47 - SPRING COMPRESSION BDE-174280.A19 174280	£1.66	£1.99
48 - WASHER BDE-174281.A13 174281	£7.85	£9.42
49 - HOUSING BDE-174331.A0 174331	£10.85	£13.02
50 - O RING BDE-108467.A6 108467	£7.85	£9.42
51 - O RING BDE-100817.A32 100817	£1.66	£1.99
52 - O RING BDE-174332.A7 174332	£1.66	£1.99
53 - O RING BDE-174332.A8 174332	£1.66	£1.99
54 - SPRING COMPRESSION BDE-174334.A7 174334	£1.66	£1.99
55 - SHAFT BDE-174335.A0 174335	£1.66	£1.99
56 - SHAFT BDE-174283.A16 174283	£1.66	£1.99
57 - O RING BDE-174313.A10 174313	£1.66	£1.99
58 - SLIDER BDE-174336.A6 174336	£1.66	£1.99
59 - O RING BDE-174337.A0 174337	£1.66	£1.99
60 - O RING BDE-174338.A6 174338	£1.66	£1.99
61 - SEAL BDE-174284.A12 174284	£1.66	£1.99
62 - HOUSING BDE-174341.A1 174341	£1.66	£1.99
63 - O RING BDE-174339.A1 174339	£1.66	£1.99
64 - HOUSING BDE-174315.A3 174315	£1.66	£1.99
65 - O RING BDE-174340.A6 174340	£1.66	£1.99
66 - VALVE BDE-174314.A3 174314	£1.66	£1.99
68 - SCREW BDE-174285.A17 174285	£1.66	£1.99
69 - HOUSING BDE-174344.A6 174344	£7.18	£8.62
70 - PIN BDE-174345.A1 174345	£1.66	£1.99
71 - WHEEL BDE-174346.A5 174346	£1.66	£1.99
72 - RING BDE-174347.A1 174347	£1.66	£1.99
73 - SPRING COMPRESSION BDE-174348.A5 174348	£1.66	£1.99
74 - ROD BDE-174349.A1 174349	£1.66	£1.99
75 - TRIGGER BDE-174269.A31 174269	£2.26	£2.71
76 - TRIGGER BDE-174269.A32 174269	£2.26	£2.71
77 - SPRING COMPRESSION BDE-174350.A6 174350	£1.66	£1.99
79 - NO LONGER AVAILABLE BDE-000000-00.A97350 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A97351 000000-00	-
81 - MUFFLER BDE-174266.A12 174266	£1.82	£2.19
82 - WRENCH SPECIAL BDE-174322.A4 174322	£7.85	£9.42
83 - GAUGE BDE-174267.A17 174267	£5.88	£7.06
84 - CAP BDE-174323.A18 174323	£10.85	£13.02
