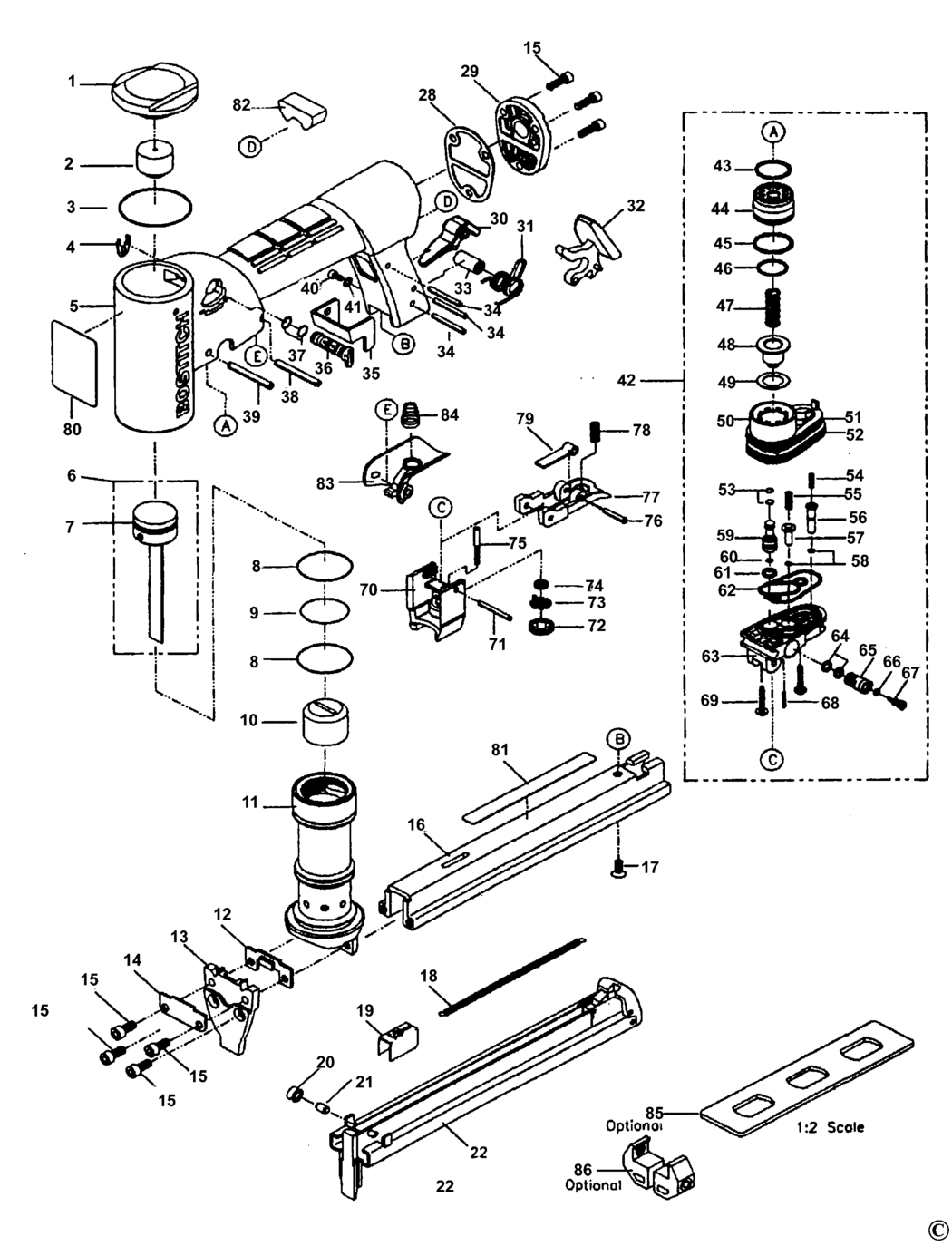

An exploded drawing and spare parts listing for the Bostitch TU-216-71A Type REV 0 Stapler
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A130214 000000-00 -
3 - O RING BDE-100353.A28 100353 £1.50 £1.80
4 - RETAINER BDE-174290.A17 174290 £1.50 £1.80
5 - NO LONGER AVAILABLE BDE-000000-00.A130215 000000-00 -
7 - O RING BDE-1FP0018.A1 1FP0018 £1.50 £1.80
8 - O RING BDE-174309.A22 174309 £1.50 £1.80
9 - O RING BDE-174310.A12 174310 £1.50 £1.80
10 - KIT BDE-P2140001200-MP.A7 P2140001200-MP £3.80 £4.56
11 - NO LONGER AVAILABLE BDE-000000-00.A130216 000000-00 -
12 - NO LONGER AVAILABLE BDE-000000-00.A130217 000000-00 -
13 - NO LONGER AVAILABLE BDE-000000-00.A130218 000000-00 -
14 - NO LONGER AVAILABLE BDE-000000-00.A130219 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A130220 000000-00 -
16 - NO LONGER AVAILABLE BDE-000000-00.A130221 000000-00 -
17 - SCREW BDE-174307.A18 174307 £1.50 £1.80
18 - SPRING BDE-174291.A7 174291 £1.50 £1.80
19 - PUSHER BDE-174292.A4 174292 £1.50 £1.80
20 - ROLLER BDE-174293.A10 174293 £1.50 £1.80
21 - PIN BDE-174294.A4 174294 £1.50 £1.80
22 - NO LONGER AVAILABLE BDE-000000-00.A130222 000000-00 -
28 - GASKET BDE-174295.A15 174295 £1.50 £1.80
29 - END CAP BDE-174296.A16 174296 £3.30 £3.96
30 - LATCH BDE-174297.A12 174297 £1.50 £1.80
31 - SPRING TORSION BDE-174301.A15 174301 £1.50 £1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A130223 000000-00 -
33 - SPRING BDE-174302.A11 174302 £1.50 £1.80
34 - PIN BDE-174303.A17 174303 £1.50 £1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A130224 000000-00 -
36 - NO LONGER AVAILABLE BDE-000000-00.A130225 000000-00 -
37 - O RING BDE-174311.A14 174311 £1.50 £1.80
38 - PIN BDE-174304.A10 174304 £1.50 £1.80
39 - PIN BDE-174305.A17 174305 £1.50 £1.80
40 - SCREW BDE-MSC4070-10.A24 MSC4070-10 £1.50 £1.80
41 - WASHER SPRING BDE-1D104.A3 1D104 £1.50 £1.80
42 - TRIGGER BDE-TVA13AF.A2 TVA13AF £19.90 £23.88
43 - O RING BDE-S06A001600.A2 S06A001600 -
44 - VALVE BDE-174278.A2 174278 £5.88 £7.06
45 - O RING BDE-174312.A17 174312 £1.50 £1.80
46 - O RING BDE-102163.A37 102163 £12.17 £14.60
47 - SPRING COMPRESSION BDE-174280.A13 174280 £1.50 £1.80
48 - SEAL BDE-174279.A16 174279 £1.50 £1.80
49 - WASHER BDE-174281.A18 174281 £7.85 £9.42
50 - HOUSING BDE-174331.A2 174331 £10.85 £13.02
51 - O RING BDE-108467.A3 108467 £7.85 £9.42
52 - O RING BDE-100817.A29 100817 £1.50 £1.80
53 - O RING BDE-174332.A5 174332 £1.50 £1.80
54 - SPRING COMPRESSION BDE-174333.A1 174333 £1.50 £1.80
55 - SPRING COMPRESSION BDE-174334.A5 174334 £1.50 £1.80
56 - SHAFT BDE-174335.A2 174335 £1.50 £1.80
57 - SHAFT BDE-174283.A18 174283 £1.50 £1.80
58 - O RING BDE-174313.A6 174313 £1.50 £1.80
59 - SLIDER BDE-174336.A4 174336 £1.50 £1.80
60 - O RING BDE-174337.A1 174337 £1.50 £1.80
61 - O RING BDE-174338.A5 174338 £1.50 £1.80
62 - SEAL BDE-174284.A11 174284 £1.50 £1.80
63 - HOUSING BDE-174341.A2 174341 £1.50 £1.80
64 - O RING BDE-174339.A2 174339 £1.50 £1.80
65 - HOUSING BDE-174315.A1 174315 £1.50 £1.80
66 - O RING BDE-174340.A5 174340 £1.50 £1.80
67 - VALVE BDE-174314.A5 174314 £1.50 £1.80
69 - SCREW BDE-174285.A18 174285 £1.50 £1.80
70 - HOUSING BDE-174344.A5 174344 £7.18 £8.62
71 - PIN BDE-174345.A2 174345 £1.50 £1.80
72 - WHEEL BDE-174346.A4 174346 £1.50 £1.80
73 - RING BDE-174347.A2 174347 £1.50 £1.80
74 - SPRING COMPRESSION BDE-174348.A4 174348 £1.50 £1.80
75 - ROD BDE-174349.A2 174349 £1.50 £1.80
76 - TRIGGER BDE-174269.A41 174269 £2.26 £2.71
77 - TRIGGER BDE-174269.A42 174269 £2.26 £2.71
78 - SPRING COMPRESSION BDE-174350.A5 174350 £1.50 £1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A97284 000000-00 -
81 - NO LONGER AVAILABLE BDE-000000-00.A97285 000000-00 -
82 - MUFFLER BDE-174266.A16 174266 £1.82 £2.19
83 - WRENCH SPECIAL BDE-174322.A9 174322 £7.85 £9.42
84 - GAUGE BDE-174267.A12 174267 £5.88 £7.06
85 - CAP BDE-174323.A14 174323 £10.85 £13.02
87 - NO LONGER AVAILABLE BDE-000000-00.A97286 000000-00 -
