Bostitch TU-216-63A-E Type REV 0 Stapler Spare Parts

Home Details Reviews Delivery

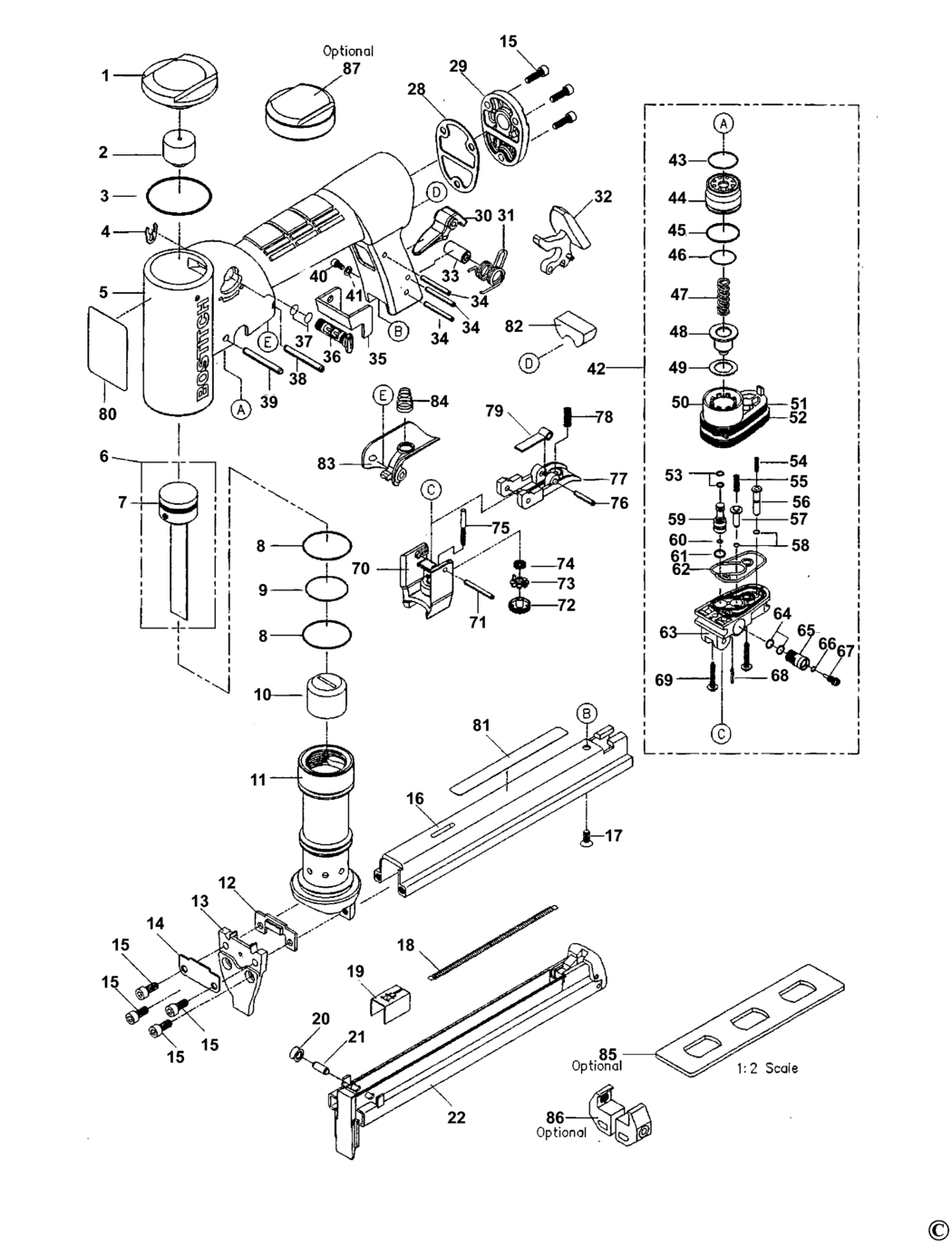

An exploded drawing and spare parts listing for the Bostitch TU-216-63A-E Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A130201 000000-00	-
2 - BUMPER BDE-174289.A10 174289	£1.66	£1.99
3 - O RING BDE-100353.A29 100353	£1.66	£1.99
4 - RETAINER BDE-174290.A16 174290	£1.66	£1.99
5 - NO LONGER AVAILABLE BDE-000000-00.A130203 000000-00	-
7 - O RING BDE-1FP0018.A2 1FP0018	£1.66	£1.99
8 - O RING BDE-174309.A23 174309	£1.66	£1.99
9 - O RING BDE-174310.A11 174310	£1.66	£1.99
10 - KIT BDE-P2140001200-MP.A8 P2140001200-MP	£3.92	£4.70
11 - NO LONGER AVAILABLE BDE-000000-00.A130204 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A130205 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A130206 000000-00	-
15 - BOLT BDE-174306.A11 174306	£1.66	£1.99
16 - NO LONGER AVAILABLE BDE-000000-00.A130207 000000-00	-
17 - SCREW BDE-174307.A17 174307	£1.66	£1.99
18 - SPRING BDE-174291.A8 174291	£1.66	£1.99
20 - ROLLER BDE-174293.A11 174293	£1.66	£1.99
21 - PIN BDE-177740.A4 177740	£1.66	£1.99
22 - NO LONGER AVAILABLE BDE-000000-00.A130208 000000-00	-
28 - GASKET BDE-174295.A16 174295	£1.66	£1.99
29 - END CAP BDE-174296.A15 174296	£3.39	£4.07
30 - LATCH BDE-174297.A13 174297	£1.66	£1.99
31 - SPRING TORSION BDE-174301.A12 174301	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A130211 000000-00	-
33 - SPRING BDE-174302.A14 174302	£1.66	£1.99
34 - PIN BDE-174303.A14 174303	£1.66	£1.99
35 - NO LONGER AVAILABLE BDE-000000-00.A130209 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A130210 000000-00	-
37 - O RING BDE-174311.A19 174311	£1.66	£1.99
38 - PIN BDE-177685.A8 177685	£1.66	£1.99
39 - PIN BDE-174305.A18 174305	£1.66	£1.99
40 - SCREW BDE-MSC4070-10.A23 MSC4070-10	£1.66	£1.99
41 - WASHER SPRING BDE-1D104.A2 1D104	£1.66	£1.99
42 - TRIGGER BDE-TVA13AF.A3 TVA13AF	£20.50	£24.60
43 - O RING BDE-S06A001600.A3 S06A001600	-
44 - VALVE BDE-174278.A3 174278	£6.06	£7.27
45 - O RING BDE-174312.A12 174312	£1.66	£1.99
46 - O RING BDE-102163.A41 102163	£12.53	£15.04
47 - SPRING COMPRESSION BDE-174280.A5 174280	£1.66	£1.99
48 - SEAL BDE-174279.A24 174279	£1.66	£1.99
49 - WASHER BDE-174281.A26 174281	£8.08	£9.70
50 - HOUSING BDE-174331.A5 174331	£11.18	£13.41
51 - O RING BDE-108467.A15 108467	£8.08	£9.70
52 - O RING BDE-100817.A16 100817	£1.66	£1.99
53 - O RING BDE-174332.A2 174332	£1.66	£1.99
54 - SPRING COMPRESSION BDE-174333.A3 174333	£1.66	£1.99
55 - SPRING COMPRESSION BDE-174334.A2 174334	£1.66	£1.99
56 - SHAFT BDE-174335.A5 174335	£1.66	£1.99
57 - SHAFT BDE-174283.A26 174283	£1.66	£1.99
58 - O RING BDE-174313.A19 174313	£1.66	£1.99
59 - SLIDER BDE-174336.A2 174336	£1.66	£1.99
60 - O RING BDE-174337.A3 174337	£1.66	£1.99
61 - O RING BDE-174338.A3 174338	£1.66	£1.99
62 - SEAL BDE-174284.A2 174284	£1.66	£1.99
63 - HOUSING BDE-174341.A4 174341	£1.66	£1.99
64 - O RING BDE-174339.A4 174339	£1.66	£1.99
65 - HOUSING BDE-174315.A5 174315	£1.66	£1.99
66 - O RING BDE-174340.A2 174340	£1.66	£1.99
67 - VALVE BDE-174314.A1 174314	£1.66	£1.99
69 - SCREW BDE-174285.A26 174285	£1.66	£1.99
70 - HOUSING BDE-174344.A2 174344	£7.40	£8.88
71 - PIN BDE-174345.A8 174345	£1.66	£1.99
72 - WHEEL BDE-174346.A2 174346	£1.66	£1.99
73 - RING BDE-174347.A4 174347	£1.66	£1.99
74 - SPRING COMPRESSION BDE-174348.A2 174348	£1.66	£1.99
75 - ROD BDE-174349.A4 174349	£1.66	£1.99
76 - TRIGGER BDE-174269.A62 174269	£2.32	£2.78
77 - TRIGGER BDE-174269.A63 174269	£2.32	£2.78
78 - SPRING COMPRESSION BDE-174350.A2 174350	£1.66	£1.99
80 - NO LONGER AVAILABLE BDE-000000-00.A130212 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A130213 000000-00	-
82 - MUFFLER BDE-174266.A4 174266	£1.88	£2.26
83 - TRIGGER BDE-9R209571.A8 9R209571	£1.66	£1.99
84 - SPRING COMPRESSION BDE-174300.A7 174300	£1.66	£1.99
85 - WRENCH SPECIAL BDE-174322.A14 174322	£8.08	£9.70
86 - GAUGE BDE-174267.A25 174267	£6.06	£7.27
87 - CAP BDE-174323.A11 174323	£11.18	£13.41

Attribute Name	Value
Brand	Bostitch
