Bostitch T40S4 Type REV 0 Stapler Spare Parts

Home Details Reviews Delivery

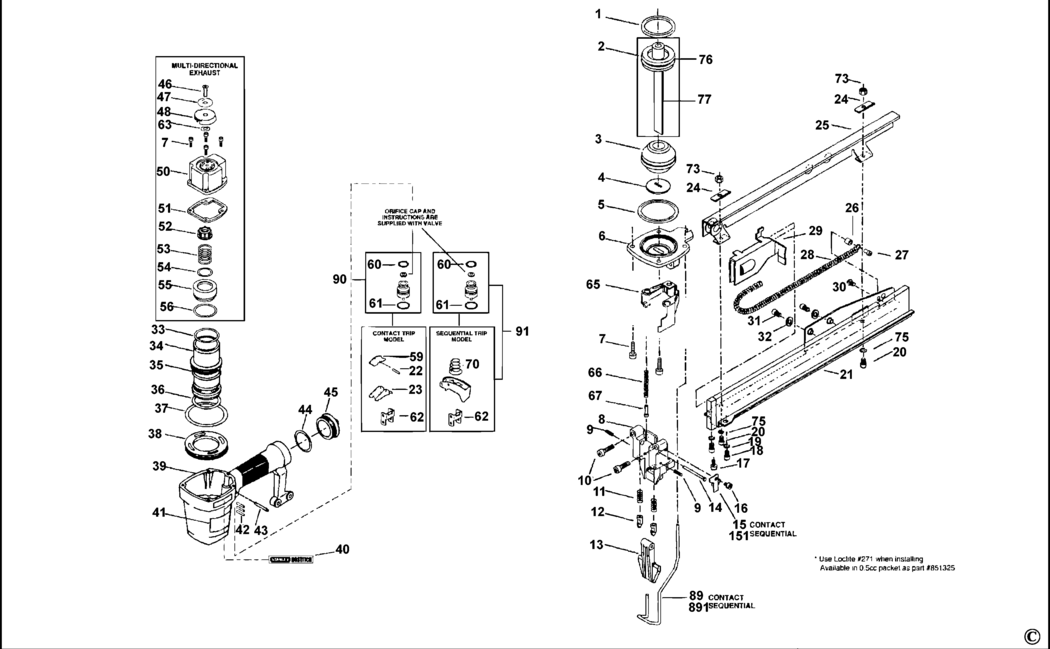

An exploded drawing and spare parts listing for the Bostitch T40S4 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - O RING BDE-851547.A4 851547	-
2 - NO LONGER AVAILABLE BDE-000000-00.A31362 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A31363 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A31364 000000-00	-
5 - O RING BDE-851483-S.A13 851483-S	£1.66	£1.99
6 - NO LONGER AVAILABLE BDE-000000-00.A64606 000000-00	-
7 - SCREW BDE-MSC5080-20.A24 MSC5080-20	£1.66	£1.99
8 - NO LONGER AVAILABLE BDE-000000-00.A64620 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A64621 000000-00	-
10 - SCREW BDE-MSC5080-25.A15 MSC5080-25	£1.66	£1.99
11 - NO LONGER AVAILABLE BDE-000000-00.A64607 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A64608 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A64609 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A64610 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A64611 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A64612 000000-00	-
17 - SCREW BDE-MSC4070-10.A40 MSC4070-10	£1.66	£1.99
18 - NO LONGER AVAILABLE BDE-000000-00.A64622 000000-00	-
19 - WASHER BDE-MLW5.A15 MLW5	£1.66	£1.99
20 - SCREW BDE-MSC4070-6.A10 MSC4070-6	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A64623 000000-00	-
22 - PIN BDE-MPD016012.A2 MPD016012	£2.87	£3.44
23 - TRIGGER BDE-100607.A4 100607	-
24 - NO LONGER AVAILABLE BDE-000000-00.A64613 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A64614 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A64615 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A64616 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A64617 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A64618 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A64619 000000-00	-
31 - SCREW BDE-9R199720.A13 9R199720	£1.66	£1.99
32 - WASHER BDE-T50118.A2 T50118	£1.66	£1.99
33 - SEAL BDE-N70151.A9 N70151	-
34 - NO LONGER AVAILABLE BDE-000000-00.A64624 000000-00	-
35 - SEAL BDE-N50034.A4 N50034	£7.01	£8.41
36 - O RING BDE-850605.A12 850605	£1.66	£1.99
37 - O RING BDE-850683.A9 850683	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A64625 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A64626 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A64627 000000-00	-
41 - WARNING LABEL BDE-159912.A3 159912	£1.66	£1.99
42 - PIN BDE-102549.A27 102549	£1.66	£1.99
43 - PIN BDE-MPP030020.A52 MPP030020	£1.66	£1.99
44 - O RING BDE-850235.A15 850235	£1.66	£1.99
45 - END CAP BDE-11346-0954302.A12 11346-0954302	£15.01	£18.01
46 - SCREW BDE-MSF6100-20.A7 MSF6100-20	-
47 - WASHER BDE-T50104.A4 T50104	-
48 - NO LONGER AVAILABLE BDE-000000-00.A64628 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A64629 000000-00	-
51 - SEAL BDE-N50013.A4 N50013	£1.66	£1.99
52 - STOP BDE-T50002.A3 T50002	-
53 - NO LONGER AVAILABLE BDE-000000-00.A64630 000000-00	-
54 - O RING BDE-MRG039231.A4 MRG039231	£18.00	£21.60
55 - VALVE BDE-T50003.A6 T50003	-
56 - O RING BDE-RG183109.A6 RG183109	£18.42	£22.10
59 - TRIGGER BDE-T55092.A16 T55092	£1.66	£1.99
60 - O RING BDE-86459.A16 86459	£1.66	£1.99
61 - O RING BDE-851554.A7 851554	£4.69	£5.63
62 - NO LONGER AVAILABLE BDE-000000-00.A64631 000000-00	-
63 - WASHER BDE-MPW6.A3 MPW6	£2.78	£3.34
65 - NO LONGER AVAILABLE BDE-000000-00.A64632 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A64633 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A64634 000000-00	-
70 - SPRING BDE-100387.A12 100387	£1.66	£1.99
73 - NUT M4 BDE-MHE4070-100.A49 MHE4070-100	£1.66	£1.99
75 - WASHER SPECIAL BDE-LW8.A11 LW8	-
76 - NO LONGER AVAILABLE BDE-000000-00.A64635 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A64636 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A64637 000000-00	-
90 - KIT BDE-STV2.A4 STV2	£110.21	£132.25
91 - NO LONGER AVAILABLE BDE-000000-00.A64638 000000-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A64639 000000-00	-
891 - NO LONGER AVAILABLE BDE-000000-00.A64640 000000-00	-
