Bostitch T40S2 Type REV 0 Stapler Spare Parts

Home Details Reviews Delivery

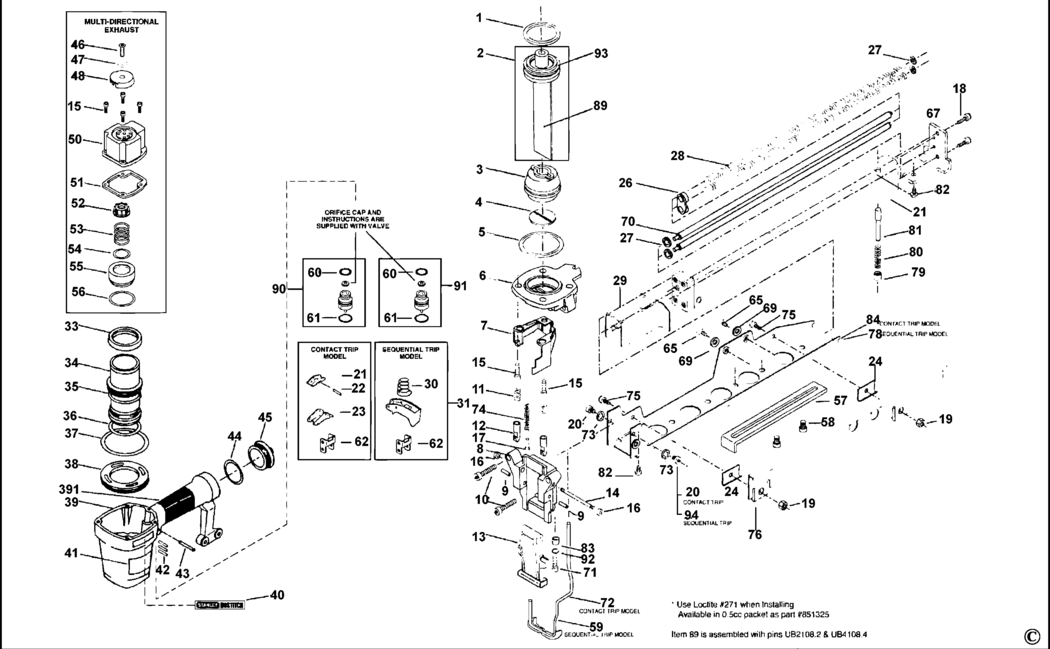

An exploded drawing and spare parts listing for the Bostitch T40S2 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - O RING BDE-851547.A3 851547	-
2 - NO LONGER AVAILABLE BDE-000000-00.A31318 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A31319 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A31320 000000-00	-
5 - O RING BDE-851483-S.A23 851483-S	£1.66	£1.99
6 - NO LONGER AVAILABLE BDE-000000-00.A31321 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A31322 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A31323 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A31324 000000-00	-
10 - SCREW BDE-MSC5080-25.A12 MSC5080-25	£1.66	£1.99
11 - NO LONGER AVAILABLE BDE-000000-00.A31325 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A31326 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A31327 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A31328 000000-00	-
15 - SCREW BDE-MSC5080-20.A44 MSC5080-20	£1.66	£1.99
16 - WASHER BDE-854004.A12 854004	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A31331 000000-00	-
18 - SCREW BDE-MSC4070-12.A6 MSC4070-12	£1.66	£1.99
19 - NO LONGER AVAILABLE BDE-000000-00.A31332 000000-00	-
20 - BOLT BDE-MSC5080-8.A0 MSC5080-8	£1.66	£1.99
21 - TRIGGER BDE-T55092.A8 T55092	£1.66	£1.99
22 - PIN BDE-MPD016012.A9 MPD016012	£2.87	£3.44
23 - TRIGGER BDE-100607.A2 100607	-
24 - NO LONGER AVAILABLE BDE-000000-00.A31333 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A31334 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A31335 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A31336 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A31337 000000-00	-
30 - SPRING BDE-100387.A30 100387	£1.66	£1.99
31 - NO LONGER AVAILABLE BDE-000000-00.A31338 000000-00	-
33 - SEAL BDE-N70151.A4 N70151	-
34 - NO LONGER AVAILABLE BDE-000000-00.A31339 000000-00	-
35 - SEAL BDE-N50034.A7 N50034	£7.01	£8.41
36 - O RING BDE-850605.A7 850605	£1.66	£1.99
37 - O RING BDE-850683.A15 850683	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A31340 000000-00	-
39 - NO LONGER AVAILABLE BDE-000000-00.A31341 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A31342 000000-00	-
41 - WARNING LABEL BDE-159912.A10 159912	£1.66	£1.99
42 - PIN BDE-102549.A12 102549	£1.66	£1.99
43 - PIN BDE-MPP030020.A70 MPP030020	£1.66	£1.99
44 - O RING BDE-850235.A5 850235	£1.66	£1.99
45 - END CAP BDE-11346-0954302.A18 11346-0954302	£15.01	£18.01
46 - SCREW BDE-MSF6100-20.A3 MSF6100-20	-
47 - WASHER BDE-T50104.A5 T50104	-
48 - NO LONGER AVAILABLE BDE-000000-00.A31343 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A31344 000000-00	-
51 - SEAL BDE-N50013.A2 N50013	£1.66	£1.99
52 - STOP BDE-T50002.A5 T50002	-
54 - O RING BDE-MRG039231.A8 MRG039231	£18.00	£21.60
55 - VALVE BDE-T50003.A4 T50003	-
56 - O RING BDE-RG183109.A4 RG183109	£18.42	£22.10
57 - NO LONGER AVAILABLE BDE-000000-00.A31345 000000-00	-
58 - SCREW BDE-9R199720.A32 9R199720	£1.66	£1.99
59 - NO LONGER AVAILABLE BDE-000000-00.A31346 000000-00	-
60 - O RING BDE-86459.A36 86459	£1.66	£1.99
61 - O RING BDE-851554.A13 851554	£4.69	£5.63
62 - NO LONGER AVAILABLE BDE-000000-00.A31347 000000-00	-
63 - WASHER BDE-MPW6.A6 MPW6	£2.78	£3.34
65 - SCREW BDE-9R199720.A31 9R199720	£1.66	£1.99
67 - NO LONGER AVAILABLE BDE-000000-00.A31348 000000-00	-
69 - WASHER BDE-T50118.A16 T50118	£1.66	£1.99
70 - NO LONGER AVAILABLE BDE-000000-00.A31358 000000-00	-
71 - SCREW BDE-MSC5080-16.A7 MSC5080-16	£1.66	£1.99
73 - WASHER BDE-MLW5.A5 MLW5	£1.66	£1.99
74 - NO LONGER AVAILABLE BDE-000000-00.A31359 000000-00	-
75 - SCREW BDE-MSC4070-6.A2 MSC4070-6	£1.66	£1.99
78 - NO LONGER AVAILABLE BDE-000000-00.A31349 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A31350 000000-00	-
80 - NO LONGER AVAILABLE BDE-000000-00.A31351 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A31352 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A31353 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A31354 000000-00	-
84 - NO LONGER AVAILABLE BDE-000000-00.A31355 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A31356 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A31357 000000-00	-
90 - KIT BDE-STV2.A6 STV2	£110.21	£132.25
91 - NO LONGER AVAILABLE BDE-000000-00.A31360 000000-00	-
92 - WASHER BDE-MLW5.A6 MLW5	£1.66	£1.99
93 - NO LONGER AVAILABLE BDE-000000-00.A31361 000000-00	-
94 - SCREW BDE-MSC5080-6.A3 MSC5080-6	£1.66	£1.99
391 - GRIP BDE-107490.A16 107490	£4.83	£5.80

Attribute Name	Value
Brand	Bostitch
