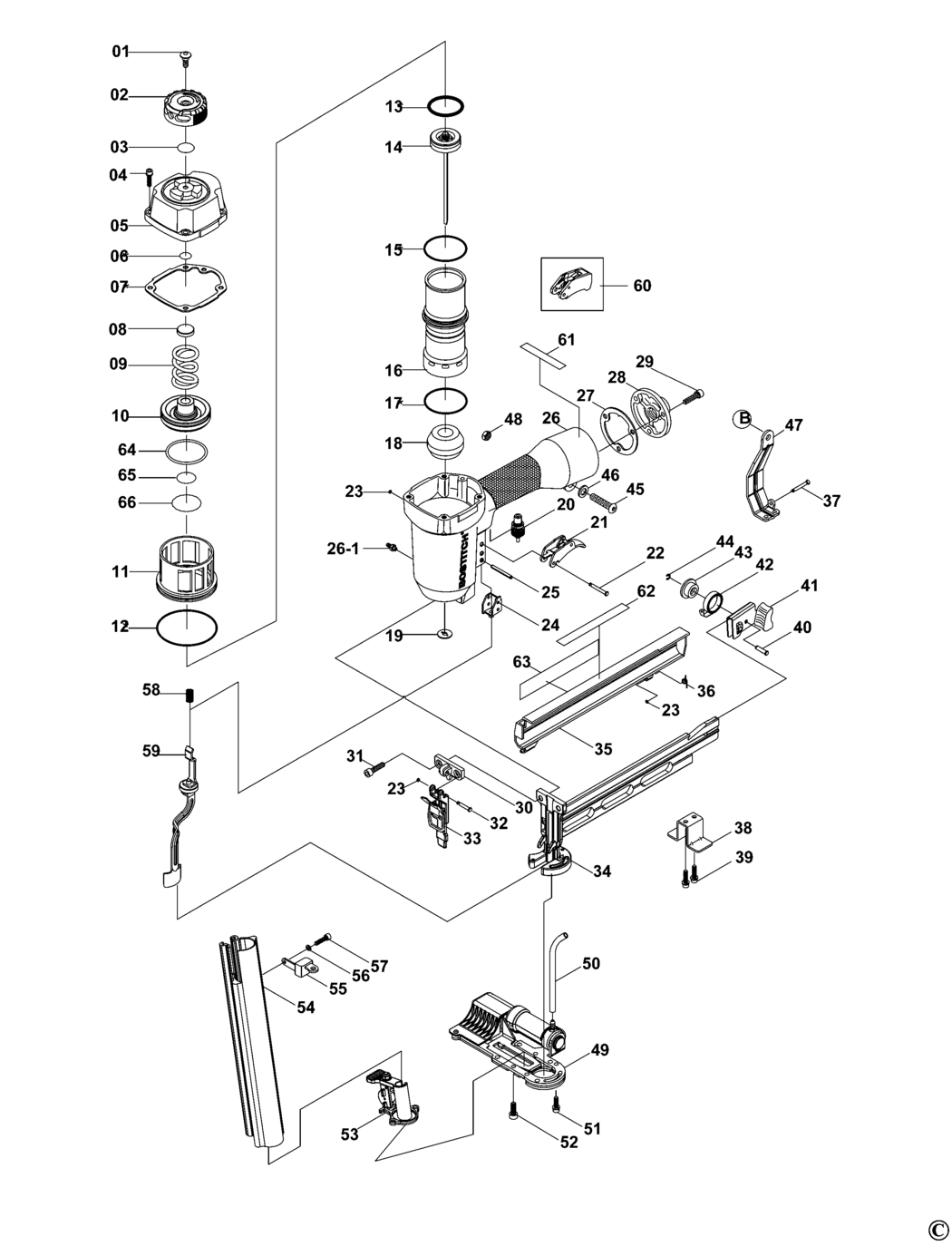

An exploded drawing and spare parts listing for the Bostitch SB-150SLBC Type REV 0 Stapler
Ex VAT Inc VAT
1 - SCREW BDE-OA5131I1.A1 OA5131I1 £1.50 £1.80
2 - EXHAUST BDE-OA1162E1.A0 OA1162E1 £1.50 £1.80
3 - O RING BDE-S06P000900.A11 S06P000900 £1.50 £1.80
4 - SCREW BDE-174047.A6 174047 £1.50 £1.80
5 - DEFLECTOR BDE-P1630000340.A0 P1630000340 £10.85 £13.02
6 - O RING BDE-1FP0018.A3 1FP0018 £1.50 £1.80
7 - SEAL BDE-PA1151I1.A1 PA1151I1 £1.50 £1.80
8 - SEAL BDE-PB1021W1.A4 PB1021W1 £1.42 £1.70
9 - SPRING BDE-180532.A0 180532 £1.50 £1.80
10 - PISTON BDE-PA1051W1.A4 PA1051W1 £9.41 £11.29
11 - COLLAR BDE-PA1091E1.A1 PA1091E1 £2.26 £2.71
12 - O RING BDE-1FA0142.A1 1FA0142 -
13 - O RING BDE-1FP0032.A4 1FP0032 £1.50 £1.80
14 - DRIVER BDE-G0212500 G0212500 £29.32 £35.18
15 - O RING BDE-1FA0130.A4 1FA0130 £1.50 £1.80
16 - CYLINDER BDE-P1632000700.A4 P1632000700 £10.85 £13.02
17 - O RING BDE-1FP0042.A1 1FP0042 £1.50 £1.80
18 - BUMPER BDE-PA1111O1.A4 PA1111O1 £2.78 £3.34
19 - NO LONGER AVAILABLE BDE-000000-00.A97125 000000-00 -
20 - TRIGGER BDE-G1200200 G1200200 £11.87 £14.24
21 - NO LONGER AVAILABLE BDE-000000-00.A97126 000000-00 -
22 - PIN BDE-JA2071W1.A3 JA2071W1 £1.50 £1.80
23 - O RING BDE-174073.A2 174073 £1.50 £1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A97127 000000-00 -
25 - PIN BDE-174070.A9 174070 £1.50 £1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A97128 000000-00 -
27 - SEAL BDE-OA3651I1.A1 OA3651I1 £1.50 £1.80
28 - END CAP BDE-9R207530.A4 9R207530 £4.69 £5.63
29 - BOLT BDE-S2710520100.A0 S2710520100 -
30 - NO LONGER AVAILABLE BDE-000000-00.A97129 000000-00 -
31 - SCREW BDE-174047.A5 174047 £1.50 £1.80
32 - PIN BDE-188628.A1 188628 £1.50 £1.80
33 - GUIDE BDE-G3701400 G3701400 £14.19 £17.03
34 - NO LONGER AVAILABLE BDE-000000-00.A97130 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A97131 000000-00 -
36 - NO LONGER AVAILABLE BDE-000000-00.A97132 000000-00 -
37 - NO LONGER AVAILABLE BDE-000000-00.A97133 000000-00 -
38 - NO LONGER AVAILABLE BDE-000000-00.A97134 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A97135 000000-00 -
40 - PIN BDE-P1775200462 P1775200462 £1.42 £1.70
41 - PUSHER BDE-G8900100 G8900100 -
42 - SPRING COMPRESSION BDE-188632.A0 188632 £1.50 £1.80
43 - NO LONGER AVAILABLE BDE-000000-00.A97138 000000-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A97139 000000-00 -
45 - SCREW BDE-1L106201.A4 1L106201 £1.50 £1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A97136 000000-00 -
47 - NO LONGER AVAILABLE BDE-000000-00.A97137 000000-00 -
48 - LOCK NUT BDE-1G106.A6 1G106 £1.50 £1.80
49 - CYLINDER BDE-G7800200 G7800200 £36.42 £43.70
50 - TUBE BDE-188642.A1 188642 £1.50 £1.80
51 - BOLT BDE-S2710412100 S2710412100 -
52 - NO LONGER AVAILABLE BDE-000000-00.A97140 000000-00 -
53 - SEAT BDE-G3101000 G3101000 £10.57 £12.68
54 - NO LONGER AVAILABLE BDE-000000-00.A97141 000000-00 -
56 - WASHER BDE-S31104075.A1 S31104075 £1.42 £1.70
57 - BOLT BDE-S0110408100.A4 S0110408100 £1.50 £1.80
58 - SPRING BDE-P1715203262 P1715203262 -
59 - SAFETY KEY BDE-G4005300 G4005300 £7.64 £9.17
60 - NO LONGER AVAILABLE BDE-000000-00.A97142 000000-00 -
61 - NO LONGER AVAILABLE BDE-000000-00.A97143 000000-00 -
62 - NO LONGER AVAILABLE BDE-000000-00.A97144 000000-00 -
63 - NO LONGER AVAILABLE BDE-000000-00.A97145 000000-00 -
64 - O RING BDE-1FZ0006.A4 1FZ0006 £1.50 £1.80
65 - O RING BDE-1FP2025.A5 1FP2025 £1.50 £1.80
66 - O RING BDE-1FP2038.A1 1FP2038 £1.50 £1.80
261 - COUPLING BDE-188636.A2 188636 £1.50 £1.80
