Bostitch S32SX-BHF-2 Type REV 0 Stapler Spare Parts

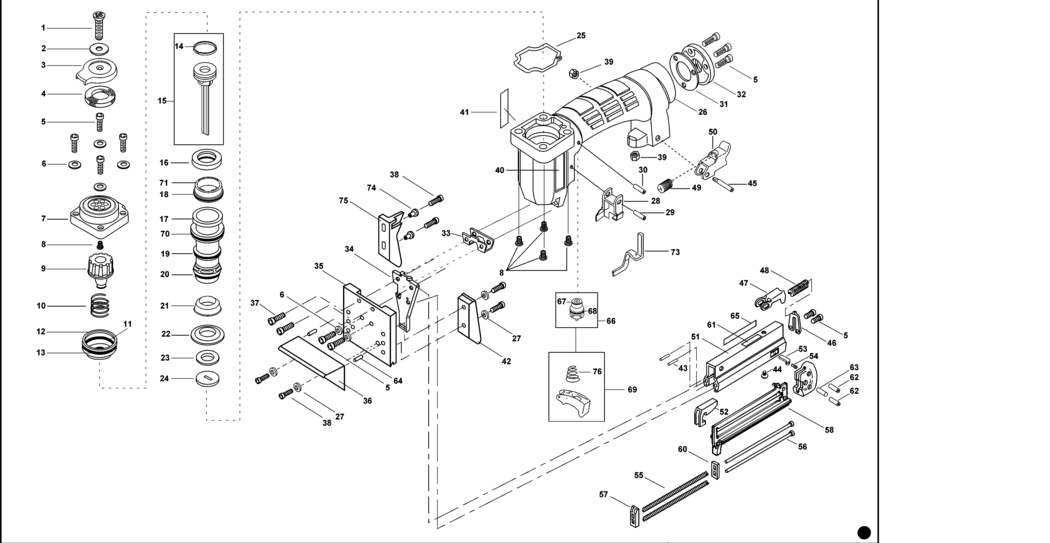

An exploded drawing and spare parts listing for the Bostitch S32SX-BHF-2 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-100297.A2 100297	£1.50	£1.80
2 - WASHER SPECIAL BDE-S32030.A4 S32030	£1.50	£1.80
3 - COVER BDE-S32032.A6 S32032	£10.85	£13.02
4 - MUFFLER BDE-S32045.A4 S32045	£2.26	£2.71
5 - SCREW BDE-100260.A1 100260	£1.50	£1.80
6 - WASHER SPECIAL BDE-S32186.A1 S32186	£1.50	£1.80
7 - CAP BDE-T32010.A4 T32010	£24.39	£29.27
8 - INSERT BDE-S32011.A0 S32011	£1.50	£1.80
9 - BUMPER BDE-T32007.A4 T32007	£3.30	£3.96
10 - VALVE SPRING BDE-9R198719.A7 9R198719	£2.26	£2.71
11 - O RING BDE-108572.A6 108572	£7.85	£9.42
12 - KIT BDE-9R198720.A4 9R198720	£34.00	£40.80
13 - O RING BDE-MRG035020.A4 MRG035020	£16.03	£19.24
14 - PISTON RING BDE-S32109.A10 S32109	£12.17	£14.60
15 - DRIVER SA BDE-105541.A1 105541	£57.22	£68.66
16 - SEAL BDE-T32031.A7 T32031	£1.50	£1.80
17 - CYLINDER BDE-S32208.A2 S32208	£24.39	£29.27
18 - O RING BDE-RG161210.A3 RG161210	£1.50	£1.80
19 - SEAL BDE-T32080.A4 T32080	£1.42	£1.70
20 - O RING BDE-100353.A2 100353	£1.50	£1.80
21 - BUMPER BDE-102882.A2 102882	£10.85	£13.02
22 - PLATE BDE-S32187.A8 S32187	£17.48	£20.97
23 - WASHER SPECIAL BDE-S32001.A0 S32001	£1.50	£1.80
24 - GUIDE BDE-S32018.A0 S32018	£7.01	£8.41
25 - GASKET BDE-T32046.A3 T32046	£1.50	£1.80
26 - FRAME BDE-T32008A.A7 T32008A	£74.15	£88.98
27 - NO LONGER AVAILABLE BDE-000000-00.A97110 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A97111 000000-00	-
29 - PIN BDE-100298.A49 100298	£1.50	£1.80
30 - PIN BDE-102549.A47 102549	£1.50	£1.80
31 - GASKET BDE-S32141.A7 S32141	£12.17	£14.60
32 - END CAP BDE-S32140.A3 S32140	£14.57	£17.48
33 - PLATE BDE-S32017A.A10 S32017A	£9.41	£11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A97112 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A97113 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A97114 000000-00	-
37 - SCREW BDE-100261.A6 100261	£1.50	£1.80
38 - SCREW BDE-MSC4070-16.A0 MSC4070-16	£1.50	£1.80
39 - NUT M4 BDE-MHE4070-100.A28 MHE4070-100	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A97115 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A97116 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A97117 000000-00	-
43 - PIN BDE-110071.A1 110071	£1.50	£1.80
44 - SCREW BDE-100364.A1 100364	£1.50	£1.80
45 - PIN BDE-S32066.A6 S32066	£17.48	£20.97
46 - PLATE BDE-S32072.A0 S32072	£2.71	£3.25
47 - LATCH BDE-S32009.A6 S32009	£25.70	£30.84
48 - SPRING COMPRESSION BDE-T27160.A7 T27160	£3.80	£4.56
49 - SPRING COMPRESSION BDE-S32024.A5 S32024	£1.50	£1.80
50 - HANDLE BDE-S32025.A1 S32025	£10.57	£12.68
51 - MAGAZINE BDE-103292.A0 103292	£53.92	£64.70
52 - PUSHER BDE-S32059.A0 S32059	£18.42	£22.10
53 - STOP BDE-S32177.A2 S32177	£1.50	£1.80
54 - SCREW BDE-MSC4070-8.A8 MSC4070-8	£1.50	£1.80
55 - SPRING BDE-S32065.A0 S32065	£1.42	£1.70
57 - SUPPORT BDE-S32064.A2 S32064	£3.22	£3.86
58 - NO LONGER AVAILABLE BDE-000000-00.A97118 000000-00	-
59 - END CAP BDE-S32063.A1 S32063	£16.03	£19.24
60 - WASHER BDE-S32178.A3 S32178	£4.69	£5.63
61 - LABEL BDE-100299.A0 100299	£1.42	£1.70
62 - SPIROL PIN BDE-100263.A0 100263	£1.42	£1.70
63 - SPIROL PIN BDE-100264.A3 100264	£1.42	£1.70
64 - SPIROL PIN BDE-MPP030016.A15 MPP030016	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A97119 000000-00	-
66 - VALVE KIT BDE-TVA5.A4 TVA5	£65.52	£78.62
67 - O RING BDE-86459.A52 86459	£1.50	£1.80
68 - O RING BDE-851554.A26 851554	£4.69	£5.63
69 - KIT BDE-SEQ6.A17 SEQ6	£10.85	£13.02
70 - O RING BDE-100817.A25 100817	£1.50	£1.80
71 - CYLINDER BDE-S32211.A1 S32211	£5.72	£6.87
72 - NO LONGER AVAILABLE BDE-000000-00.A97120 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A97121 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A97122 000000-00	-
75 - NO LONGER AVAILABLE BDE-000000-00.A97123 000000-00	-
76 - SPRING BDE-100387.A55 100387	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
