Bostitch S3297-LHF-2 Type REV 0 Stapler Spare Parts

Home Details Reviews Delivery

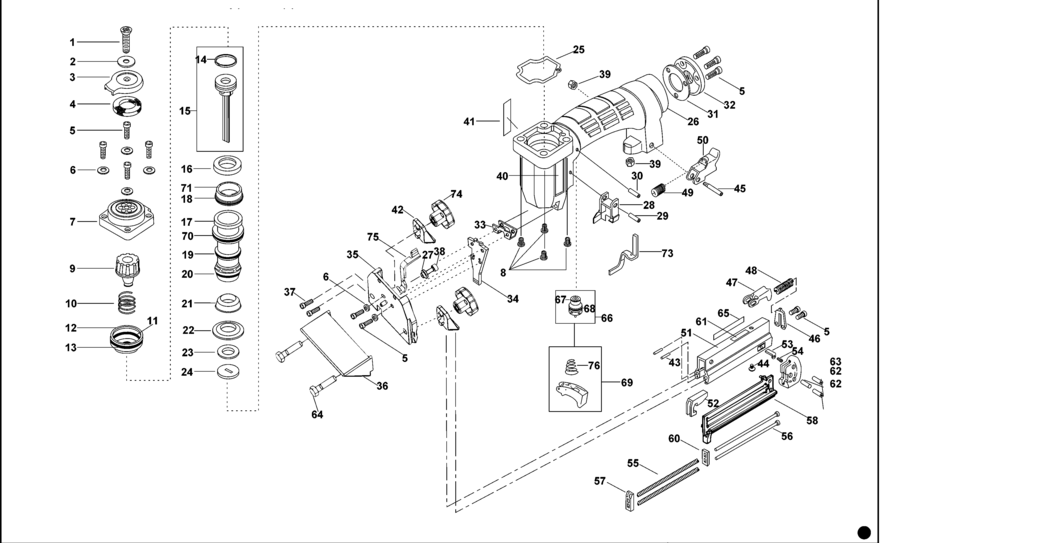

An exploded drawing and spare parts listing for the Bostitch S3297-LHF-2 Type REV 0 Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-100297.A6 100297	£1.66	£1.99
2 - WASHER SPECIAL BDE-S32030.A8 S32030	£1.66	£1.99
3 - COVER BDE-S32032.A2 S32032	£10.85	£13.02
4 - MUFFLER BDE-S32045.A8 S32045	£2.32	£2.78
5 - SCREW BDE-100260.A4 100260	£1.66	£1.99
6 - WASHER SPECIAL BDE-S32186.A4 S32186	£1.66	£1.99
7 - CAP BDE-T32010.A3 T32010	£24.39	£29.27
8 - INSERT BDE-S32011.A4 S32011	£1.66	£1.99
9 - BUMPER BDE-T32007.A3 T32007	£3.30	£3.96
10 - VALVE SPRING BDE-9R198719.A8 9R198719	£2.26	£2.71
11 - O RING BDE-108572.A5 108572	£7.85	£9.42
12 - KIT BDE-9R198720.A2 9R198720	£34.00	£40.80
13 - O RING BDE-MRG035020.A3 MRG035020	£16.52	£19.82
14 - PISTON RING BDE-S32109.A13 S32109	£12.53	£15.04
15 - NO LONGER AVAILABLE BDE-000000-00.A97038 000000-00	-
16 - SEAL BDE-T32031.A8 T32031	£1.66	£1.99
17 - CYLINDER BDE-S32208.A4 S32208	£25.12	£30.15
18 - O RING BDE-RG161210.A2 RG161210	£1.66	£1.99
19 - SEAL BDE-T32080.A5 T32080	£1.66	£1.99
20 - O RING BDE-100353.A5 100353	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A97039 000000-00	-
22 - PLATE BDE-S32187.A7 S32187	£17.48	£20.97
23 - WASHER SPECIAL BDE-S32001.A3 S32001	£1.66	£1.99
24 - NO LONGER AVAILABLE BDE-000000-00.A97040 000000-00	-
25 - GASKET BDE-T32046.A2 T32046	£1.66	£1.99
26 - FRAME BDE-T32008A.A8 T32008A	£74.15	£88.98
27 - NO LONGER AVAILABLE BDE-000000-00.A97041 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A97042 000000-00	-
29 - PIN BDE-100298.A42 100298	£1.66	£1.99
30 - PIN BDE-102549.A49 102549	£1.66	£1.99
31 - GASKET BDE-S32141.A5 S32141	£12.17	£14.60
32 - END CAP BDE-S32140.A5 S32140	£14.57	£17.48
33 - PLATE BDE-S32017A.A7 S32017A	£9.41	£11.29
34 - NO LONGER AVAILABLE BDE-000000-00.A97043 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A97044 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A97045 000000-00	-
37 - SCREW BDE-100261.A2 100261	£1.66	£1.99
38 - SCREW BDE-MSC4070-10.A0 MSC4070-10	£1.66	£1.99
39 - NUT M4 BDE-MHE4070-100.A26 MHE4070-100	£1.66	£1.99
40 - NO LONGER AVAILABLE BDE-000000-00.A97046 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A97047 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A97048 000000-00	-
43 - PIN BDE-110071.A0 110071	£1.66	£1.99
44 - SCREW BDE-100364.A0 100364	£1.66	£1.99
45 - PIN BDE-S32066.A5 S32066	£17.48	£20.97
46 - PLATE BDE-S32072.A1 S32072	£2.71	£3.25
47 - LATCH BDE-S32009.A5 S32009	£25.70	£30.84
48 - SPRING COMPRESSION BDE-T27160.A8 T27160	£3.80	£4.56
49 - SPRING COMPRESSION BDE-S32024.A6 S32024	£1.66	£1.99
50 - HANDLE BDE-S32025.A0 S32025	£10.57	£12.68
51 - NO LONGER AVAILABLE BDE-000000-00.A97049 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A97050 000000-00	-
53 - STOP BDE-S32177.A3 S32177	£1.66	£1.99
54 - SCREW BDE-MSC4070-8.A9 MSC4070-8	£1.66	£1.99
55 - SPRING BDE-S32065.A1 S32065	£1.66	£1.99
56 - ROD BDE-S32061A.A4 S32061A	£78.12	£93.74
57 - NO LONGER AVAILABLE BDE-000000-00.A97051 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A97052 000000-00	-
59 - END CAP BDE-S32063.A0 S32063	£16.03	£19.24
60 - WASHER BDE-S32178.A2 S32178	£4.69	£5.63
61 - NO LONGER AVAILABLE BDE-000000-00.A97053 000000-00	-
62 - SPIROL PIN BDE-100263.A1 100263	£1.66	£1.99
63 - SPIROL PIN BDE-100264.A2 100264	£1.66	£1.99
64 - NO LONGER AVAILABLE BDE-000000-00.A97054 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A97055 000000-00	-
66 - VALVE KIT BDE-TVA5.A2 TVA5	£67.48	£80.98
67 - O RING BDE-86459.A49 86459	£1.66	£1.99
68 - O RING BDE-851554.A28 851554	£4.69	£5.63
70 - O RING BDE-100817.A26 100817	£1.66	£1.99
71 - NO LONGER AVAILABLE BDE-000000-00.A97056 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A97057 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A97058 000000-00	-
74 - KNOB BDE-117397.A1 117397	£9.17	£11.00
75 - NO LONGER AVAILABLE BDE-000000-00.A97059 000000-00	-
76 - SPRING BDE-100387.A57 100387	£1.66	£1.99

Attribute Name	Value
Brand	Bostitch
