Bostitch HP118K Type REV A Stapler Spare Parts

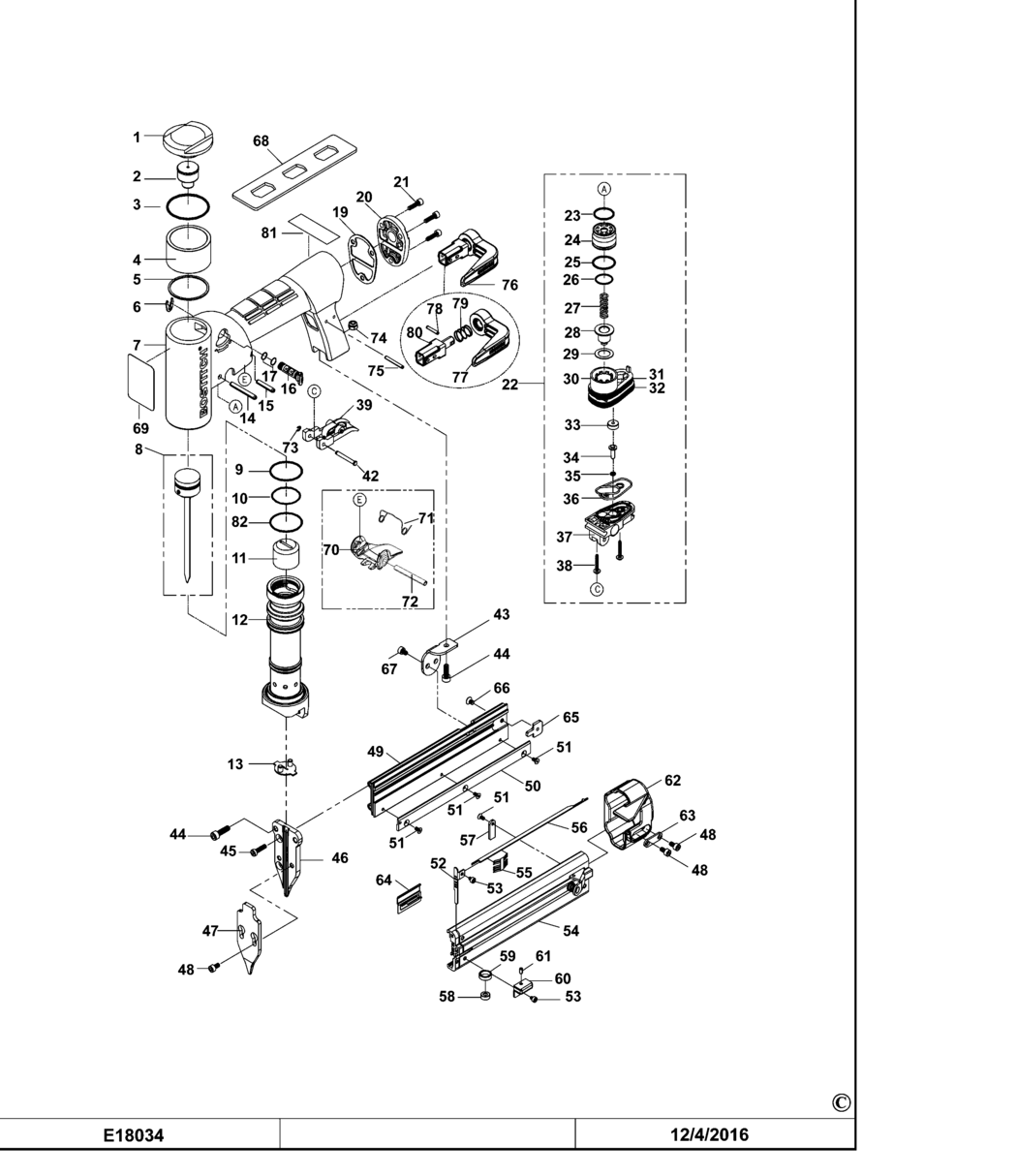

An exploded drawing and spare parts listing for the Bostitch HP118K Type REV A Stapler

	Ex VAT	Inc VAT
1 - CAP BDE-174288.A0 174288	£9.41	£11.29
2 - BUMPER BDE-P2860000600.A3 P2860000600	£9.41	£11.29
3 - O RING BDE-100353.A1 100353	£1.50	£1.80
4 - SPACER BDE-174329.A7 174329	£4.69	£5.63
5 - GASKET BDE-174328.A1 174328	-
6 - RETAINER BDE-174290.A8 174290	£1.50	£1.80
7 - FRAME BDE-G4227800.A0 G4227800	£38.80	£46.56
8 - DRIVER SA BDE-G0313700.A0 G0313700	£9.41	£11.29
9 - O RING BDE-174309.A14 174309	£1.50	£1.80
10 - O RING BDE-174310.A19 174310	£1.50	£1.80
11 - BUMPER BDE-P3240000200.A0 P3240000200	£2.26	£2.71
12 - CYLINDER BDE-G0505800.A3 G0505800	£45.14	£54.17
13 - GUIDE BDE-P2865200862.A0 P2865200862	£1.50	£1.80
14 - PIN BDE-174305.A1 174305	£1.50	£1.80
15 - PIN BDE-174304.A27 174304	£1.50	£1.80
16 - VALVE BDE-174287.A13 174287	£1.50	£1.80
17 - O RING BDE-174311.A11 174311	£1.50	£1.80
19 - GASKET BDE-174295.A30 174295	£1.50	£1.80
20 - END CAP BDE-174296.A1 174296	£3.30	£3.96
21 - BOLT BDE-174306.A31 174306	£1.50	£1.80
22 - VALVE BDE-TVA13.A3 TVA13	£14.57	£17.48
23 - O RING BDE-86459.A44 86459	£1.50	£1.80
24 - VALVE BDE-174278.A10 174278	£5.88	£7.06
25 - O RING BDE-174312.A20 174312	£1.50	£1.80
26 - O RING BDE-102163.A19 102163	£12.17	£14.60
27 - SPRING COMPRESSION BDE-174280.A12 174280	£1.50	£1.80
28 - SEAL BDE-174279.A17 174279	£1.50	£1.80
29 - WASHER BDE-174281.A19 174281	£7.85	£9.42
30 - HOUSING BDE-174277.A16 174277	£3.80	£4.56
31 - HOUSING BDE-P2140008200.A1 P2140008200	£1.50	£1.80
32 - O RING BDE-100817.A34 100817	£1.50	£1.80
33 - SEAL BDE-174282.A7 174282	£1.50	£1.80
34 - SHAFT BDE-174283.A20 174283	£1.50	£1.80
35 - O RING BDE-174313.A11 174313	£1.50	£1.80
36 - SEAL BDE-174284.A9 174284	£1.50	£1.80
37 - HOUSING BDE-174276.A8 174276	£1.50	£1.80
38 - SCREW BDE-174285.A20 174285	£1.50	£1.80
39 - TRIGGER BDE-174269.A46 174269	£2.26	£2.71
42 - ROLL PIN BDE-174268.A11 174268	£1.50	£1.80
43 - BRACKET BDE-P2866300565.A4 P2866300565	£1.50	£1.80
44 - SCREW BDE-MSC4070-12.A20 MSC4070-12	£1.50	£1.80
45 - BOLT BDE-S0110416300.A4 S0110416300	£1.50	£1.80
46 - GUIDE BDE-P2865200262.A3 P2865200262	£14.57	£17.48
47 - GUIDE BDE-P1245201162.A2 P1245201162	£3.30	£3.96
48 - BOLT BDE-S0110408100.A2 S0110408100	£1.50	£1.80
49 - MAGAZINE BDE-P1240000163.A1 P1240000163	£18.91	£22.69
50 - GUIDE BDE-P1245200362.A2 P1245200362	£5.88	£7.06
51 - SCREW BDE-S0310306100.A2 S0310306100	£1.50	£1.80
52 - STOP PLATE BDE-P1245200662.A2 P1245200662	£1.50	£1.80
53 - BOLT BDE-S0110304100.A1 S0110304100	£1.50	£1.80
54 - MAGAZINE BDE-P2860000700.A0 P2860000700	£24.39	£29.27
55 - SPRING BDE-P1240000800.A2 P1240000800	£1.50	£1.80
56 - CLAMPING BAR BDE-P1245200562.A1 P1245200562	£1.50	£1.80
57 - STOP PLATE BDE-P1245200762.A2 P1245200762	£1.50	£1.80
58 - BUSHING BDE-P1245201762.A1 P1245201762	£1.50	£1.80
59 - SPRING BDE-P1240001600.A2 P1240001600	£1.50	£1.80
60 - SPRING BDE-P1246301465.A1 P1246301465	£1.50	£1.80
61 - SPIROL PIN BDE-S0803006000.A3 S0803006000	£1.50	£1.80
62 - END CAP BDE-P2860000100.A0 P2860000100	£1.50	£1.80
63 - COVER BDE-JA4501I1.A7 JA4501I1	£1.50	£1.80
64 - PUSHER BDE-P1246100457.A2 P1246100457	£1.50	£1.80
65 - PLATE BDE-P0645201462.A2 P0645201462	£1.50	£1.80
66 - SCREW BDE-9R199443.A3 9R199443	£1.50	£1.80
67 - BOLT BDE-1A104061.A6 1A104061	£1.50	£1.80
68 - WRENCH SPECIAL BDE-174322.A12 174322	£7.85	£9.42
70 - TRIGGER BDE-9R209571.A16 9R209571	£1.50	£1.80
71 - SPRING COMPRESSION BDE-174300.A15 174300	£1.50	£1.80
72 - ROLL PIN BDE-189985.A0 189985	£1.50	£1.80
73 - RETAINER BDE-174298.A1 174298	£1.50	£1.80
74 - NUT M4 BDE-MHE4070-100.A31 MHE4070-100	£1.50	£1.80
75 - PIN BDE-174070.A10 174070	£1.50	£1.80
76 - HOOK BDE-188570 188570	-
77 - BELT BDE-185927 185927	-
78 - PIN BDE-181920.A4 181920	£1.50	£1.80
79 - SPRING BDE-100387.A62 100387	£1.50	£1.80
80 - MOUNT BDE-185936 185936	-
82 - O RING BDE-851349.A4 851349	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
