Bostitch 650S5-1 Type Rev G Pneumatic Stapler Spare Parts

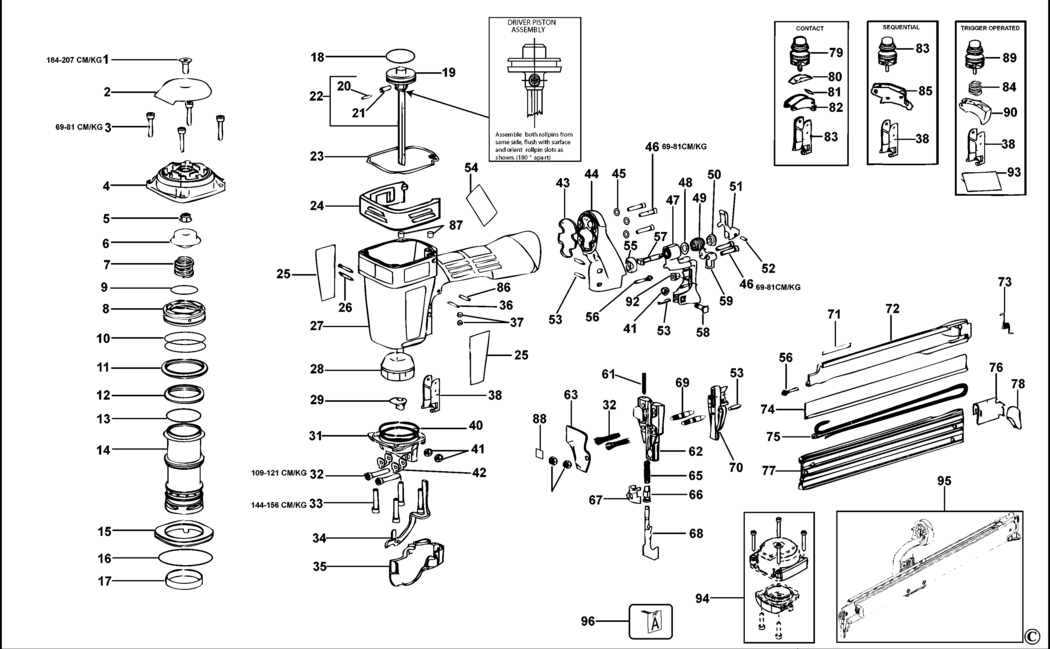

An exploded drawing and spare parts listing for the Bostitch 650S5-1 Type Rev G Pneumatic Stapler

	Ex VAT	Inc VAT
1 - SCREW BDE-105749.A8 105749	£1.66	£1.99
2 - DEFLECTOR BDE-104585.A0 104585	£24.39	£29.27
3 - SCREW BDE-102755.A2 102755	£1.66	£1.99
4 - CAP BDE-105787.A0 105787	£55.30	£66.36
5 - NUT BDE-103859.A10 103859	£1.66	£1.99
6 - BUMPER BDE-105812.A0 105812	£10.85	£13.02
7 - SPRING BDE-103767.A7 103767	£1.66	£1.99
8 - VALVE BDE-104569.A1 104569	£12.17	£14.60
9 - O RING BDE-MRG039231.A9 MRG039231	£17.48	£20.97
10 - O RING BDE-105814.A1 105814	£10.85	£13.02
11 - RETAINER BDE-112729.A0 112729	£15.63	£18.76
12 - SEAL BDE-104594.A0 104594	£3.30	£3.96
13 - O RING BDE-105816.A1 105816	£1.66	£1.99
14 - CYLINDER BDE-105796.A0 105796	£41.24	£49.49
15 - O RING BDE-105815.A0 105815	£1.66	£1.99
16 - RING BDE-104580.A1 104580	£4.69	£5.63
17 - SEAL BDE-104588.A1 104588	£3.70	£4.44
18 - O RING BDE-105817.A0 105817	£7.18	£8.62
19 - PISTON BDE-103881.A0 103881	£18.91	£22.69
20 - SPIROL PIN BDE-UB2111.2.A6 UB2111.2	£1.66	£1.99
21 - SPIROL PIN BDE-UB4809.1.A1 UB4809.1	£1.66	£1.99
22 - SERVICE KIT BDE-106079 106079	£165.92	£199.11
23 - SEAL BDE-104620.A0 104620	£1.66	£1.99
24 - PROTECTOR BDE-107148.A0 107148	£19.90	£23.88
26 - SCREW BDE-105811.A7 105811	£1.66	£1.99
28 - BUMPER BDE-104574.A0 104574	£24.39	£29.27
29 - GUIDE BDE-103803.A2 103803	£12.17	£14.60
31 - FRAME BDE-104609.A0 104609	£44.14	£52.97
32 - SCREW BDE-MSC6100-35.A26 MSC6100-35	£1.66	£1.99
33 - SCREW BDE-MSC6100-30.A19 MSC6100-30	£1.66	£1.99
34 - ARM BDE-105775.A1 105775	£51.90	£62.28
35 - COVER BDE-105818.A1 105818	£5.88	£7.06
36 - PIN BDE-100298.A54 100298	£1.66	£1.99
37 - NUT BDE-MHE3050-100.A31 MHE3050-100	£1.66	£1.99
38 - GUIDE SA BDE-106954.A1 106954	£12.17	£14.60
40 - O RING BDE-851483-S.A7 851483-S	£1.66	£1.99
41 - NUT BDE-MHE6100-100.A27 MHE6100-100	£1.66	£1.99
42 - BRACE BDE-105782.A7 105782	£1.66	£1.99
43 - SEAL BDE-104619.A1 104619	£1.66	£1.99
44 - END CAP BDE-105789.A1 105789	£50.60	£60.72
45 - WASHER BDE-T50118.A33 T50118	£1.66	£1.99
46 - SCREW BDE-MSC5080-25.A17 MSC5080-25	£1.66	£1.99
47 - CAP BDE-103786.A8 103786	£45.14	£54.17
48 - WASHER BDE-104612.A1 104612	£2.26	£2.71
49 - SPRING BDE-105786.A4 105786	£1.66	£1.99
50 - BUSHING BDE-103806.A8 103806	£3.30	£3.96
51 - LEVER BDE-103447.A0 103447	£11.87	£14.24
52 - PIN BDE-MPG030012.A34 MPG030012	£1.66	£1.99
53 - PIN BDE-103858.A13 103858	£1.66	£1.99
54 - WARNING LABEL BDE-159918.A3 159918	£1.66	£1.99
55 - STOP BDE-103795.A5 103795	£2.78	£3.34
56 - PIN BDE-103768.A1 103768	£7.85	£9.42
57 - PIN BDE-105780.A5 105780	£7.18	£8.62
58 - BOLT BDE-103851.A5 103851	£7.18	£8.62
59 - STOP BDE-103776.A7 103776	£14.57	£17.48
61 - SPRING BDE-107310.A5 107310	£1.66	£1.99
62 - NOSE SA BDE-107219 107219	£80.98	£97.18
63 - COVER BDE-103871.A4 103871	£19.90	£23.88
65 - SPRING BDE-105784.A1 105784	£1.66	£1.99
66 - NUT BDE-103865.A2 103865	£16.03	£19.24
67 - ADAPTOR BDE-103864.A6 103864	£14.57	£17.48
68 - CONTACT PLATE BDE-103793.A1 103793	£25.70	£30.84
69 - PIN BDE-103838.A6 103838	£7.18	£8.62
70 - TIP BDE-103873 103873	£78.12	£93.74
72 - COVER BDE-104600.A1 104600	£9.41	£11.29
73 - SPRING BDE-103839.A2 103839	£1.66	£1.99
74 - COVER BDE-103812.A1 103812	£24.39	£29.27
75 - SPRING BDE-104613.A1 104613	£24.39	£29.27
76 - PUSHER BDE-103846.A1 103846	£25.70	£30.84
77 - CORE BDE-105793.A1 105793	£55.30	£66.36
78 - HANDLE BDE-103791.A15 103791	£2.78	£3.34
79 - KIT BDE-STV2.A1 STV2	£110.21	£132.25
80 - TRIGGER BDE-T55092.A12 T55092	£1.66	£1.99
81 - PIN BDE-MPD016012.A0 MPD016012	£2.78	£3.34
82 - TRIGGER BDE-100607.A8 100607	-
83 - VALVE BDE-TVA6.A36 TVA6	£16.03	£19.24
84 - SPRING BDE-100387.A9 100387	£1.66	£1.99
85 - KIT BDE-SEQ6.A34 SEQ6	£10.85	£13.02
86 - PIN BDE-MPP030020.A38 MPP030020	£1.66	£1.99
87 - SLEEVE BDE-105778.A0 105778	£1.66	£1.99
89 - KIT BDE-106869.A0 106869	£115.77	£138.92
90 - TRIGGER BDE-107191.A3 107191	£7.18	£8.62
92 - BEARING BDE-106961.A8 106961	£3.80	£4.56
93 - WARNING LABEL BDE-159927.A3 159927	£1.66	£1.99
94 - WEIGHT BDE-107306.A0 107306	£50.60	£60.72
95 - MAGAZINE SA BDE-108073 108073	£1136.96	£1364.35
96 - NO LONGER AVAILABLE BDE-000000-00.A63996 000000-00	-

Attribute Name	Value
Brand	Bostitch
