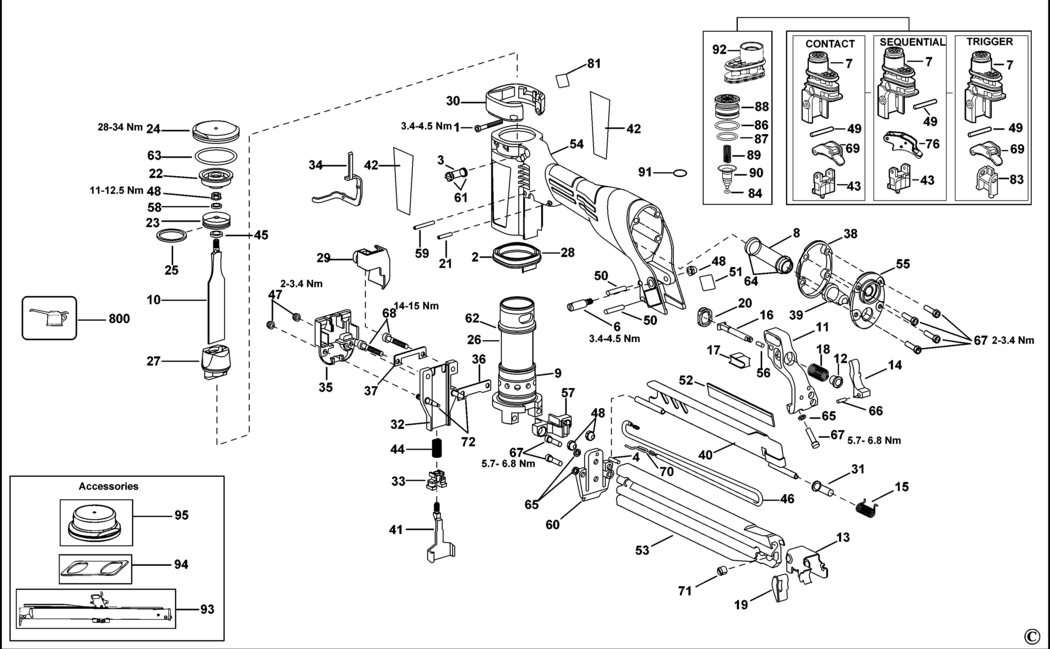

1 - SCREW
BDE-100258.A2
100258
|
£1.50
|
£1.80
|
|
|
2 - O RING
BDE-100279.A5
100279
|
£1.50
|
£1.80
|
|
|
3 - VALVE
BDE-101525.A1
101525
|
£9.41
|
£11.29
|
|
|
4 - SPIROL PIN
BDE-102044.A0
102044
|
£1.50
|
£1.80
|
|
|
6 - SCREW.SPECIAL
BDE-102168.A8
102168
|
£11.87
|
£14.24
|
|
|
7 - KIT
BDE-TVA12.A8
TVA12
|
-
|
|
|
|
8 - TUBE.EXHAUST
BDE-103208.A7
103208
|
£14.57
|
£17.48
|
|
|
9 - SEAL
BDE-103211.A1
103211
|
£7.85
|
£9.42
|
|
|
10 - DRIVER
BDE-103214.A3
103214
|
£135.36
|
£162.43
|
|
|
11 - BRACKET
BDE-103217.A6
103217
|
£44.14
|
£52.97
|
|
|
12 - BUSHING
BDE-103218.A2
103218
|
£18.91
|
£22.69
|
|
|
13 - PUSHER
BDE-103222.A3
103222
|
£34.00
|
£40.80
|
|
|
14 - LEVER
BDE-103447.A2
103447
|
£11.87
|
£14.24
|
|
|
15 - SPRING
BDE-103549.A8
103549
|
£3.30
|
£3.96
|
|
|
16 - LATCH
BDE-103558.A0
103558
|
£7.18
|
£8.62
|
|
|
17 - SLEEVE
BDE-103601.A8
103601
|
£1.42
|
£1.70
|
|
|
18 - SPRING COMPRESSION
BDE-103770.A5
103770
|
£2.78
|
£3.34
|
|
|
19 - HANDLE
BDE-103791.A1
103791
|
£2.78
|
£3.34
|
|
|
20 - STOP
BDE-103795.A6
103795
|
£2.78
|
£3.34
|
|
|
21 - PIN
BDE-103858.A14
103858
|
£1.50
|
£1.80
|
|
|
22 - BUMPER
BDE-103993.A0
103993
|
£5.72
|
£6.87
|
|
|
23 - PISTON
BDE-103994.A5
103994
|
£7.85
|
£9.42
|
|
|
24 - CAP
BDE-103995.A0
103995
|
£25.70
|
£30.84
|
|
|
25 - PISTON RING
BDE-166045.A5
166045
|
£24.39
|
£29.27
|
|
|
26 - CYLINDER
BDE-103997.A5
103997
|
£112.86
|
£135.43
|
|
|
27 - BUMPER
BDE-103998.A0
103998
|
£24.39
|
£29.27
|
|
|
28 - SLEEVE
BDE-103999.A4
103999
|
£3.30
|
£3.96
|
|
|
29 - COVER
BDE-104027.A2
104027
|
£3.30
|
£3.96
|
|
|
30 - PROTECTOR
BDE-104064.A5
104064
|
£19.90
|
£23.88
|
|
|
31 - BUSHING
BDE-104067.A2
104067
|
£7.85
|
£9.42
|
|
|
32 - NOSE
BDE-160198.A3
160198
|
£59.41
|
£71.29
|
|
|
33 - ADJUSTER
BDE-104339.A8
104339
|
£17.03
|
£20.44
|
|
|
34 - ACTUATION ARM
BDE-104623.A0
104623
|
£60.94
|
£73.13
|
|
|
35 - CASTING
BDE-104931.A1
104931
|
£36.42
|
£43.70
|
|
|
36 - PLATE
BDE-104974.A1
104974
|
£65.52
|
£78.62
|
|
|
37 - PLATE
BDE-104975.A5
104975
|
£2.78
|
£3.34
|
|
|
38 - GASKET
BDE-105057.A0
105057
|
£4.69
|
£5.63
|
|
|
39 - EXHAUST
BDE-105070.A5
105070
|
£1.50
|
£1.80
|
|
|
40 - COVER
BDE-105073.A1
105073
|
£44.14
|
£52.97
|
|
|
41 - ARM
BDE-105163.A1
105163
|
£25.70
|
£30.84
|
|
|
42 - LABEL
BDE-115423.A5
115423
|
£1.50
|
£1.80
|
|
|
43 - GUIDE
BDE-105932.A3
105932
|
-
|
|
|
|
44 - SPRING COMPRESSION
BDE-105934.A5
105934
|
£1.50
|
£1.80
|
|
|
45 - WASHER
BDE-105959.A3
105959
|
£14.57
|
£17.48
|
|
|
46 - SPRING
BDE-106051.A3
106051
|
£9.41
|
£11.29
|
|
|
47 - LOCK-NUT
BDE-MHE5080-100.A16
MHE5080-100
|
£1.50
|
£1.80
|
|
|
48 - NUT
BDE-MHE6100-100.A44
MHE6100-100
|
£1.50
|
£1.80
|
|
|
49 - PIN
BDE-106058.A5
106058
|
£1.50
|
£1.80
|
|
|
50 - PIN
BDE-106059.A3
106059
|
£1.50
|
£1.80
|
|
|
51 - LABEL
BDE-106097.A3
106097
|
£1.42
|
£1.70
|
|
|
52 - WARNING LABEL
BDE-158612.A9
158612
|
£1.50
|
£1.80
|
|
|
54 - FRAME
BDE-166984.A0
166984
|
£126.63
|
£151.96
|
|
|
55 - END CAP
BDE-106292.A0
106292
|
£12.17
|
£14.60
|
|
|
56 - SPIROL PIN
BDE-106334.A0
106334
|
£1.50
|
£1.80
|
|
|
57 - GUIDE
BDE-106474.A0
106474
|
£17.48
|
£20.97
|
|
|
58 - WASHER
BDE-106691.A8
106691
|
£1.50
|
£1.80
|
|
|
59 - SPIROL PIN
BDE-106871.A8
106871
|
£1.50
|
£1.80
|
|
|
60 - TIP
BDE-107071.A0
107071
|
£74.15
|
£88.98
|
|
|
61 - O RING
BDE-107129.A5
107129
|
£3.30
|
£3.96
|
|
|
62 - O RING
BDE-850607.A10
850607
|
£1.50
|
£1.80
|
|
|
63 - O RING
BDE-850628.A2
850628
|
£24.39
|
£29.27
|
|
|
64 - O RING
BDE-851554.A0
851554
|
£4.69
|
£5.63
|
|
|
65 - WASHER
BDE-MLW5.A7
MLW5
|
£1.50
|
£1.80
|
|
|
66 - PIN
BDE-MPG030012.A21
MPG030012
|
£1.50
|
£1.80
|
|
|
67 - SCREW
BDE-MSC5080-20.A39
MSC5080-20
|
£1.50
|
£1.80
|
|
|
68 - SCREW
BDE-MSC6100-35.A5
MSC6100-35
|
£1.50
|
£1.80
|
|
|
69 - KIT
BDE-CNTK2.A26
CNTK2
|
£5.88
|
£7.06
|
|
|
70 - RETAINER
BDE-T50078.A2
T50078
|
£1.50
|
£1.80
|
|
|
71 - PIN
BDE-T60024.A8
T60024
|
£14.57
|
£17.48
|
|
|
72 - PIN
BDE-104069.A3
104069
|
£7.18
|
£8.62
|
|
|
76 - KIT
BDE-SEQ6.A38
SEQ6
|
£10.85
|
£13.02
|
|
|
81 - LABEL
BDE-110009.A0
110009
|
£2.26
|
£2.71
|
|
|
83 - STOP
BDE-106173.A5
106173
|
£2.26
|
£2.71
|
|
|
84 - O RING
BDE-105996.A6
105996
|
£1.50
|
£1.80
|
|
|
86 - O RING
BDE-102164.A5
102164
|
£10.85
|
£13.02
|
|
|
87 - O RING
BDE-102163.A3
102163
|
£12.17
|
£14.60
|
|
|
88 - VALVE
BDE-167205.A5
167205
|
£18.42
|
£22.10
|
|
|
89 - SPRING COMPRESSION
BDE-101540.A3
101540
|
£1.42
|
£1.70
|
|
|
90 - SEAL
BDE-101533.A5
101533
|
£2.26
|
£2.71
|
|
|
91 - SEAL
BDE-101532-S.A0
101532-S
|
£1.42
|
£1.70
|
|
|
92 - O RING
BDE-108467.A26
108467
|
£7.85
|
£9.42
|
|
|
93 - NO LONGER AVAILABLE 400/500 Series S2 LM
BDE-000000-00.A63992
000000-00
|
-
|
|
|
|
94 - WRENCH SPECIAL
BDE-106427.A8
106427
|
£24.39
|
£29.27
|
|
|
95 - CAP
BDE-112604.A0
112604
|
£41.24
|
£49.49
|
|
|
800 - GREASE
BDE-100653.A3
100653
|
£2.26
|
£2.71
|
|
|
800 - GREASE
BDE-100679.A9
100679
|
£78.12
|
£93.74
|
|
