Stanley SSS310 Type 1 Sander Spare Parts

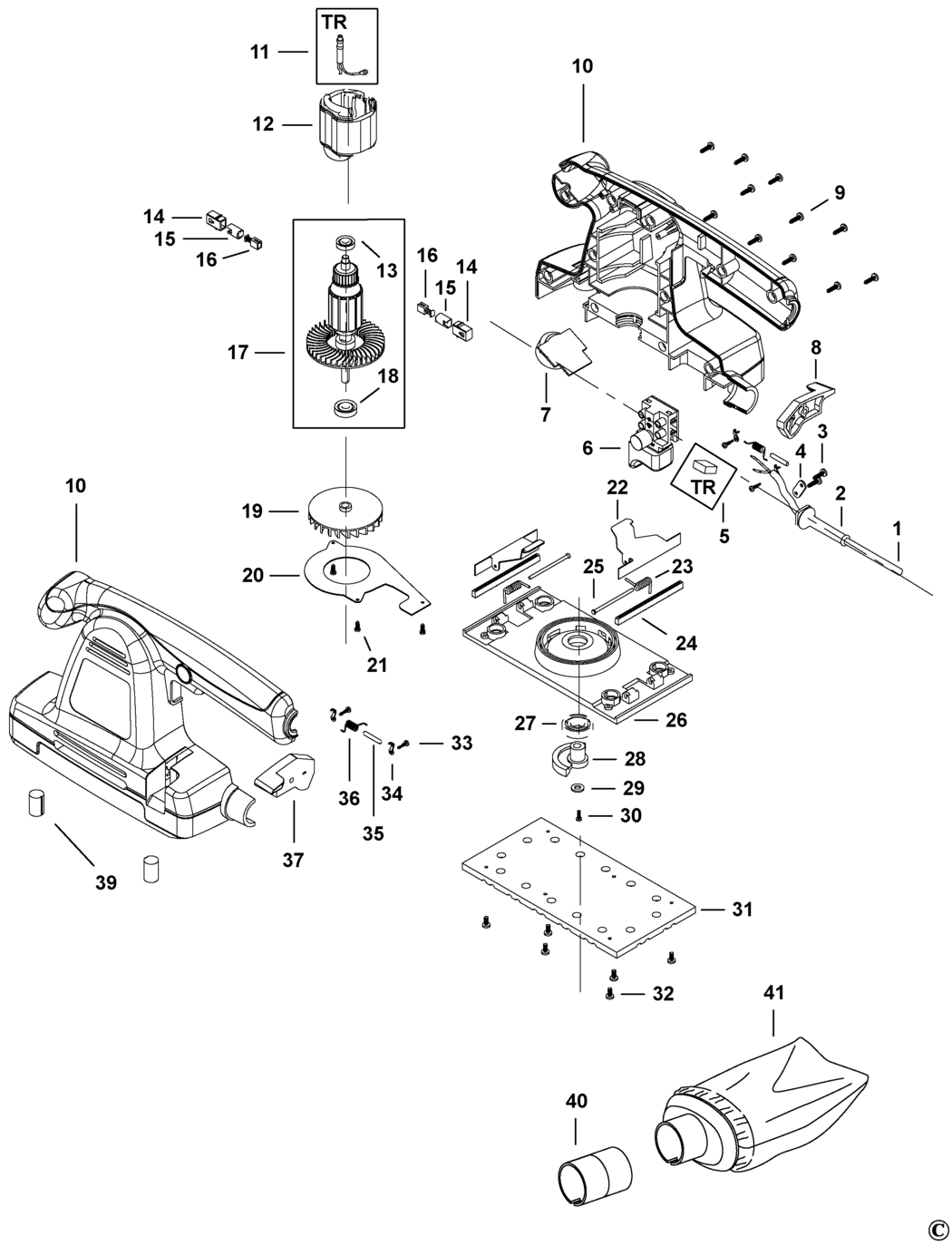

An exploded drawing and spare parts listing for the Stanley SSS310 Type 1 Sander

	Ex VAT	Inc VAT
2 - CORD PROTECTOR BDE-6010393-09 6010393-09	£1.66	£1.99
3 - SCREW BDE-6010393-10 6010393-10	£1.66	£1.99
4 - CORD CLAMP BDE-6010393-11 6010393-11	£1.66	£1.99
6 - SWITCH BDE-6010393-12 6010393-12	£12.17	£14.60
7 - PCB BDE-6010393-13 6010393-13	£9.41	£11.29
8 - CLAMP RH BDE-6010393-14 6010393-14	£1.66	£1.99
9 - SCREW BDE-6010393-15 6010393-15	£1.66	£1.99
10 - HOUSING SA BDE-6010393-16 6010393-16	£12.17	£14.60
12 - FIELD SA BDE-6010393-17 6010393-17	£17.48	£20.97
13 - BEARING BDE-6010393-18 6010393-18	£2.78	£3.34
14 - BRUSHBOX BDE-6010393-45 6010393-45	£1.66	£1.99
14 - BRUSHBOX BDE-5170019-31 5170019-31	-
15 - BRUSH HOLDER BDE-5170019-32 5170019-32	-
15 - BRUSH HOLDER BDE-6010393-44 6010393-44	£1.66	£1.99
16 - BRUSH PAIR BDE-6010393-43 6010393-43	£3.80	£4.56
17 - ARMATURE SA BDE-6010393-20 6010393-20	£37.35	£44.82
18 - BEARING BDE-6010393-21 6010393-21	£3.30	£3.96
19 - FAN BDE-6010393-22 6010393-22	£1.66	£1.99
20 - COVERPLATE BDE-6010393-23 6010393-23	£1.66	£1.99
21 - SCREW BDE-6010393-24 6010393-24	£1.66	£1.99
22 - CLAMP BDE-6010393-25 6010393-25	-
23 - SPRING BDE-6010393-26 6010393-26	£1.66	£1.99
24 - COVERPLATE BDE-6010393-27 6010393-27	£1.66	£1.99
25 - PIN BDE-6010393-28 6010393-28	£1.66	£1.99
26 - BASE PLATE BDE-6010393-29 6010393-29	-
27 - BEARING BDE-6010393-30 6010393-30	£4.69	£5.63
28 - COUNTER BALANCE BDE-6010393-31 6010393-31	£3.30	£3.96
29 - WASHER BDE-6010393-32 6010393-32	£1.66	£1.99
30 - SCREW BDE-6010393-33 6010393-33	£1.66	£1.99
31 - PAD BDE-6010393-34 6010393-34	£12.17	£14.60
32 - SCREW BDE-6010393-35 6010393-35	£1.66	£1.99
33 - SCREW BDE-6010393-36 6010393-36	£1.66	£1.99
34 - PLATE BDE-6010393-37 6010393-37	£1.66	£1.99
35 - PIN BDE-6010393-38 6010393-38	£1.66	£1.99
36 - SPRING BDE-6010393-39 6010393-39	£1.66	£1.99
37 - CLAMP LH BDE-6010393-40 6010393-40	£1.66	£1.99
39 - SUPPORT BDE-6010393-42 6010393-42	£2.78	£3.34
40 - ADAPTOR BDE-6010393-46 6010393-46	£1.66	£1.99
41 - DUSTBAG BDE-6010393-47 6010393-47	£2.26	£2.71

Attribute Name	Value
Brand	Stanley
