Stanley STRR1200 Type 1 Router Spare Parts

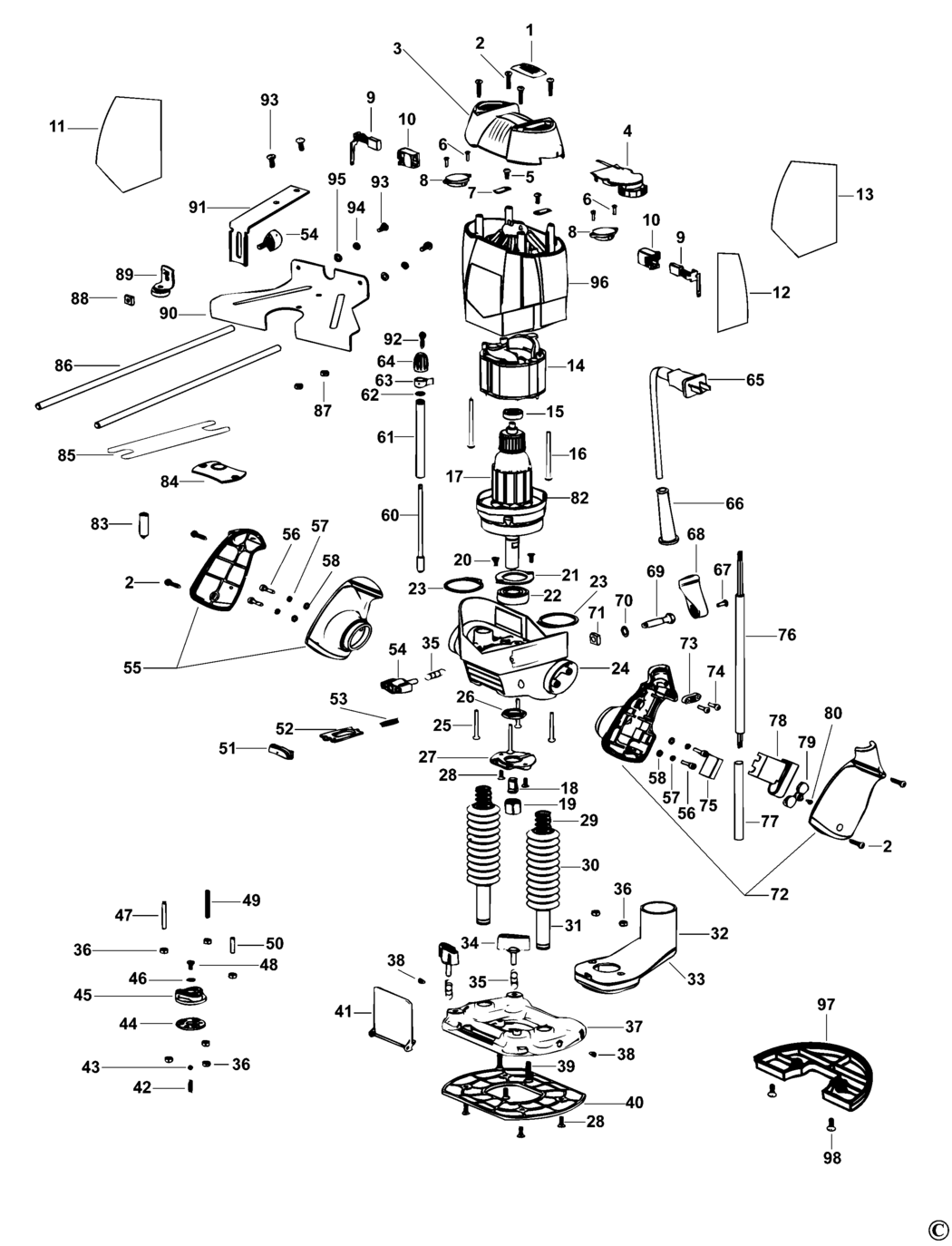

An exploded drawing and spare parts listing for the Stanley STRR1200 Type 1 Router

	Ex VAT	Inc VAT
1 - IDENTITY LABEL BDE-5140160-06.A0 5140160-06	£3.22	£3.86
1 - IDENTITY LABEL BDE-5140160-06.A1 5140160-06	£3.22	£3.86
2 - SCREW BDE-597740-00.A1 597740-00	£1.42	£1.70
2 - SCREW BDE-597740-00.A2 597740-00	£1.42	£1.70
3 - END CAP BDE-597741-00.A1 597741-00	£7.01	£8.41
3 - END CAP BDE-597741-00.A2 597741-00	£7.01	£8.41
4 - SPEED REGULATOR BDE-597742-00.A1 597742-00	£17.03	£20.44
4 - SPEED REGULATOR BDE-597742-00.A2 597742-00	£17.03	£20.44
5 - SCREW BDE-597743-00.A3 597743-00	£1.42	£1.70
5 - SCREW BDE-597743-00.A4 597743-00	£1.42	£1.70
6 - SCREW BDE-597744-00.A2 597744-00	£1.42	£1.70
6 - SCREW BDE-597744-00.A3 597744-00	£1.42	£1.70
7 - CLAMP BDE-597745-00.A1 597745-00	£1.42	£1.70
7 - CLAMP BDE-597745-00.A2 597745-00	£1.42	£1.70
8 - COVER BDE-597746-00.A1 597746-00	£1.42	£1.70
8 - COVER BDE-597746-00.A2 597746-00	£1.42	£1.70
9 - BRUSH BDE-597747-00.A1 597747-00	£3.30	£3.96
9 - BRUSH BDE-597747-00.A2 597747-00	£3.30	£3.96
10 - BRUSH HOLDER BDE-597748-00.A1 597748-00	£1.50	£1.80
10 - BRUSH HOLDER BDE-597748-00.A2 597748-00	£1.50	£1.80
11 - BRAND LABEL BDE-5140160-07.A0 5140160-07	£1.50	£1.80
11 - BRAND LABEL BDE-5140160-07.A1 5140160-07	£1.50	£1.80
12 - LABEL BDE-6010358-78.A0 6010358-78	£1.42	£1.70
12 - LABEL BDE-6010358-78.A1 6010358-78	£1.42	£1.70
14 - FIELD SA 230V BDE-597752-00.A2 597752-00	£45.88	£55.06
14 - FIELD SA 230V BDE-597752-00.A3 597752-00	£45.88	£55.06
15 - BEARING BDE-597753-00.A0 597753-00	£4.69	£5.63
15 - BEARING BDE-597753-00.A1 597753-00	£4.69	£5.63
16 - SCREW BDE-597754-00.A2 597754-00	£1.42	£1.70
16 - SCREW BDE-597754-00.A3 597754-00	£1.42	£1.70
17 - ARMATURE SA BDE-597755-00.A0 597755-00	£58.69	£70.43
17 - ARMATURE SA BDE-597755-00.A1 597755-00	£58.69	£70.43
18 - COLLET 6.35MM BDE-597756-00.A2 597756-00	£4.69	£5.63
18 - COLLET 6.35MM BDE-597756-00.A3 597756-00	£4.69	£5.63
18 - COLLET 8MM BDE-597757-00.A0 597757-00	-
19 - NUT BDE-597758-00.A2 597758-00	-
19 - NUT BDE-597758-00.A3 597758-00	-
20 - SCREW BDE-597759-00.A0 597759-00	£1.42	£1.70
20 - SCREW BDE-597759-00.A1 597759-00	£1.42	£1.70
21 - BEARING PLATE BDE-597760-00.A2 597760-00	£1.42	£1.70
21 - BEARING PLATE BDE-597760-00.A3 597760-00	£1.42	£1.70
22 - BEARING BDE-597761-00.A0 597761-00	£7.18	£8.62
22 - BEARING BDE-597761-00.A1 597761-00	£7.18	£8.62
23 - CIRCLIP BDE-597762-00.A2 597762-00	£1.42	£1.70
23 - CIRCLIP BDE-597762-00.A3 597762-00	£1.42	£1.70
24 - CASTING BDE-597763-00.A0 597763-00	£37.82	£45.38
24 - CASTING BDE-597763-00.A1 597763-00	£37.82	£45.38
25 - SCREW BDE-597764-00.A7 597764-00	£1.42	£1.70
25 - SCREW BDE-597764-00.A8 597764-00	£1.42	£1.70
26 - NUT BDE-597765-00.A0 597765-00	£1.42	£1.70
26 - NUT BDE-597765-00.A1 597765-00	£1.42	£1.70
27 - COVER BDE-597766-00.A2 597766-00	-
27 - COVER BDE-597766-00.A3 597766-00	-
28 - SCREW BDE-597767-00.A0 597767-00	£1.42	£1.70
28 - SCREW BDE-597767-00.A1 597767-00	£1.42	£1.70
29 - SPRING BDE-597768-00.A2 597768-00	-
29 - SPRING BDE-597768-00.A3 597768-00	-
30 - PIPE BDE-597769-00.A0 597769-00	£3.22	£3.86
30 - PIPE BDE-597769-00.A1 597769-00	£3.22	£3.86
31 - TUBE GUIDE BDE-597770-00.A2 597770-00	£7.85	£9.42
31 - TUBE GUIDE BDE-597770-00.A3 597770-00	£7.85	£9.42
32 - DUST PORT BDE-597771-00.A0 597771-00	£3.30	£3.96
32 - DUST PORT BDE-597771-00.A1 597771-00	£3.30	£3.96
33 - DUST PORT BDE-597772-00.A2 597772-00	£3.30	£3.96
33 - DUST PORT BDE-597772-00.A3 597772-00	£3.30	£3.96
34 - LOCKING SCREW BDE-597773-00.A0 597773-00	£1.50	£1.80
34 - LOCKING SCREW BDE-597773-00.A1 597773-00	£1.50	£1.80
35 - SPRING BDE-597774-00.A2 597774-00	£1.42	£1.70
35 - SPRING BDE-597774-00.A3 597774-00	£1.42	£1.70
36 - NUT BDE-597775-00.A0 597775-00	£1.42	£1.70
36 - NUT BDE-597775-00.A1 597775-00	£1.42	£1.70
37 - BASE BDE-1004707-59.A0 1004707-59	£36.42	£43.70
37 - BASE BDE-1004707-59.A1 1004707-59	£36.42	£43.70
38 - PIN BDE-1004491-00.A0 1004491-00	£1.42	£1.70
38 - PIN BDE-1004491-00.A1 1004491-00	£1.42	£1.70
39 - SCREW BDE-597778-00.A1 597778-00	£1.42	£1.70
39 - SCREW BDE-597778-00.A2 597778-00	£1.42	£1.70
40 - BASEPLATE BDE-597779-00.A1 597779-00	-
40 - BASEPLATE BDE-597779-00.A2 597779-00	-
41 - SHIELD BDE-597780-00.A1 597780-00	£3.22	£3.86
41 - SHIELD BDE-597780-00.A2 597780-00	£3.22	£3.86
42 - SPRING BDE-597781-00.A1 597781-00	£1.42	£1.70
42 - SPRING BDE-597781-00.A2 597781-00	£1.42	£1.70
43 - BALL STEEL BDE-597782-00.A1 597782-00	£1.42	£1.70
43 - BALL STEEL BDE-597782-00.A2 597782-00	£1.42	£1.70
44 - DEPTH STOP BDE-597783-00.A1 597783-00	£1.42	£1.70
44 - DEPTH STOP BDE-597783-00.A2 597783-00	£1.42	£1.70
45 - KNOB BDE-597784-00.A1 597784-00	£1.42	£1.70
45 - KNOB BDE-597784-00.A2 597784-00	£1.42	£1.70
46 - WASHER BOW BDE-597785-00.A1 597785-00	£1.42	£1.70
46 - WASHER BOW BDE-597785-00.A2 597785-00	£1.42	£1.70
47 - SCREW BDE-597786-00.A1 597786-00	£1.42	£1.70
47 - SCREW BDE-597786-00.A2 597786-00	£1.42	£1.70
48 - SCREW BDE-597787-00.A1 597787-00	£1.42	£1.70
48 - SCREW BDE-597787-00.A2 597787-00	£1.42	£1.70
49 - SCREW BDE-597788-00.A1 597788-00	£1.42	£1.70
49 - SCREW BDE-597788-00.A2 597788-00	£1.42	£1.70
50 - SCREW BDE-597789-00.A1 597789-00	£1.42	£1.70
50 - SCREW BDE-597789-00.A2 597789-00	£1.42	£1.70
51 - SPINDLE LOCK BDE-597790-00.A1 597790-00	-
51 - SPINDLE LOCK BDE-597790-00.A2 597790-00	-
52 - LOCKING DEVICE BDE-597791-00.A1 597791-00	-
52 - LOCKING DEVICE BDE-597791-00.A2 597791-00	-
53 - SPRING BDE-597792-00.A1 597792-00	£1.42	£1.70
53 - SPRING BDE-597792-00.A2 597792-00	£1.42	£1.70
54 - LOCKING SCREW BDE-597793-00.A1 597793-00	£1.42	£1.70
54 - LOCKING SCREW BDE-597793-00.A2 597793-00	£1.42	£1.70
55 - HANDLE LH BDE-1004707-56.A0 1004707-56	£14.19	£17.03
55 - HANDLE LH BDE-1004707-56.A1 1004707-56	£14.19	£17.03
56 - SCREW BDE-597795-00.A2 597795-00	£1.42	£1.70
56 - SCREW BDE-597795-00.A3 597795-00	£1.42	£1.70
57 - WASHER SPRING BDE-597796-00.A0 597796-00	£1.42	£1.70
57 - WASHER SPRING BDE-597796-00.A1 597796-00	£1.42	£1.70
58 - WASHER BDE-597797-00.A2 597797-00	£1.42	£1.70
58 - WASHER BDE-597797-00.A3 597797-00	£1.42	£1.70
60 - POLE PIECE BDE-597798-00.A0 597798-00	£7.18	£8.62
60 - POLE PIECE BDE-597798-00.A1 597798-00	£7.18	£8.62
61 - TUBE METAL BDE-597799-00.A2 597799-00	£7.18	£8.62
61 - TUBE METAL BDE-597799-00.A3 597799-00	£7.18	£8.62
62 - O RING BDE-597800-00.A0 597800-00	-
62 - O RING BDE-597800-00.A1 597800-00	-
63 - POINTER BDE-597801-00.A2 597801-00	£1.42	£1.70
63 - POINTER BDE-597801-00.A3 597801-00	£1.42	£1.70
64 - ADJUSTER BDE-597802-00.A0 597802-00	£1.50	£1.80
64 - ADJUSTER BDE-597802-00.A1 597802-00	£1.50	£1.80
65 - CORDSET BDE-6010358-80 6010358-80	-
66 - CORD PROTECTOR BDE-597805-00.A3 597805-00	£1.42	£1.70
66 - CORD PROTECTOR BDE-597805-00.A4 597805-00	£1.42	£1.70
67 - SCREW BDE-597806-00.A0 597806-00	£1.50	£1.80
67 - SCREW BDE-597806-00.A1 597806-00	£1.50	£1.80
68 - LOCKING DEVICE BDE-597807-00.A2 597807-00	£1.50	£1.80
68 - LOCKING DEVICE BDE-597807-00.A3 597807-00	£1.50	£1.80
69 - BOLT BDE-597808-00.A0 597808-00	£1.50	£1.80
69 - BOLT BDE-597808-00.A1 597808-00	£1.50	£1.80
70 - WASHER BOW BDE-597809-00.A2 597809-00	£1.50	£1.80
70 - WASHER BOW BDE-597809-00.A3 597809-00	£1.50	£1.80
71 - NUT BDE-597810-00.A0 597810-00	£1.42	£1.70
71 - NUT BDE-597810-00.A1 597810-00	£1.42	£1.70
72 - HANDLE SA RH BDE-1004707-57 1004707-57	-
72 - NO LONGER AVAILABLE BDE-000000-00.A30508 000000-00	-
73 - CORD CLAMP BDE-597812-00.A2 597812-00	£1.42	£1.70
73 - CORD CLAMP BDE-597812-00.A3 597812-00	£1.42	£1.70
74 - SCREW BDE-597813-00.A0 597813-00	£1.42	£1.70
74 - SCREW BDE-597813-00.A1 597813-00	£1.42	£1.70
75 - CAPACITOR BDE-597814-00.A2 597814-00	£1.78	£2.13
75 - CAPACITOR BDE-597814-00.A3 597814-00	£1.78	£2.13
76 - LED BDE-597815-00.A0 597815-00	£1.42	£1.70
76 - LED BDE-597815-00.A1 597815-00	£1.42	£1.70
77 - TUBE BDE-597816-00.A2 597816-00	£1.42	£1.70
77 - TUBE BDE-597816-00.A3 597816-00	£1.42	£1.70
78 - SWITCH + 56-57-58-72-79 BDE-5140169-59.A0 5140169-59	£17.03	£20.44
78 - SWITCH + 56-57-58-72-79 BDE-5140169-59.A1 5140169-59	£17.03	£20.44
79 - CAP BDE-597818-00.A0 597818-00	£1.42	£1.70
79 - CAP BDE-597818-00.A1 597818-00	£1.42	£1.70
80 - SCREW BDE-597744-00.A4 597744-00	£1.42	£1.70
80 - SCREW BDE-597744-00.A5 597744-00	£1.42	£1.70
82 - FAN COVER BDE-597820-00.A2 597820-00	£1.42	£1.70
82 - FAN COVER BDE-597820-00.A3 597820-00	£1.42	£1.70
83 - PIN BDE-597821-00.A0 597821-00	£1.78	£2.13
83 - PIN BDE-597821-00.A1 597821-00	£1.78	£2.13
84 - GUIDE BUSH BDE-597822-00.A2 597822-00	£1.78	£2.13
84 - GUIDE BUSH BDE-597822-00.A3 597822-00	£1.78	£2.13
85 - SPANNER BDE-597823-00.A0 597823-00	£4.58	£5.49
85 - SPANNER BDE-597823-00.A1 597823-00	£4.58	£5.49
86 - TUBE SUPPORT BDE-597824-00.A2 597824-00	£4.69	£5.63
86 - TUBE SUPPORT BDE-597824-00.A3 597824-00	£4.69	£5.63
87 - NUT BDE-597825-00.A0 597825-00	£1.42	£1.70
87 - NUT BDE-597825-00.A1 597825-00	£1.42	£1.70
88 - NUT BDE-597826-00.A5 597826-00	£1.42	£1.70
88 - NUT BDE-597826-00.A6 597826-00	£1.42	£1.70
89 - WHEEL SA BDE-597827-00.A0 597827-00	£3.22	£3.86
89 - WHEEL SA BDE-597827-00.A1 597827-00	£3.22	£3.86
90 - GUIDE BDE-597828-00.A2 597828-00	£12.17	£14.60
90 - GUIDE BDE-597828-00.A3 597828-00	£12.17	£14.60
91 - BRACKET BDE-597829-00.A0 597829-00	£3.22	£3.86
91 - BRACKET BDE-597829-00.A1 597829-00	£3.22	£3.86
92 - SCREW BDE-597830-00.A2 597830-00	£1.50	£1.80
92 - SCREW BDE-597830-00.A3 597830-00	£1.50	£1.80
93 - SCREW BDE-597831-00.A0 597831-00	£1.50	£1.80
93 - SCREW BDE-597831-00.A1 597831-00	£1.50	£1.80
94 - WASHER SPRING BDE-597832-00.A2 597832-00	£1.42	£1.70
94 - WASHER SPRING BDE-597832-00.A3 597832-00	£1.42	£1.70
95 - WASHER BDE-597833-00.A0 597833-00	£1.42	£1.70
95 - WASHER BDE-597833-00.A1 597833-00	£1.42	£1.70
96 - HOUSING MOTOR BDE-1004707-58.A0 1004707-58	£29.32	£35.18
96 - HOUSING MOTOR BDE-1004707-58.A1 1004707-58	£29.32	£35.18
97 - FENCE BDE-597835-00.A1 597835-00	£4.69	£5.63
97 - FENCE BDE-597835-00.A2 597835-00	£4.69	£5.63
98 - SCREW BDE-597869-00.A2 597869-00	£1.42	£1.70
98 - SCREW BDE-597869-00.A3 597869-00	£1.42	£1.70
