Stanley STHM5KS Type 1 Chipping Hammer Spare Parts

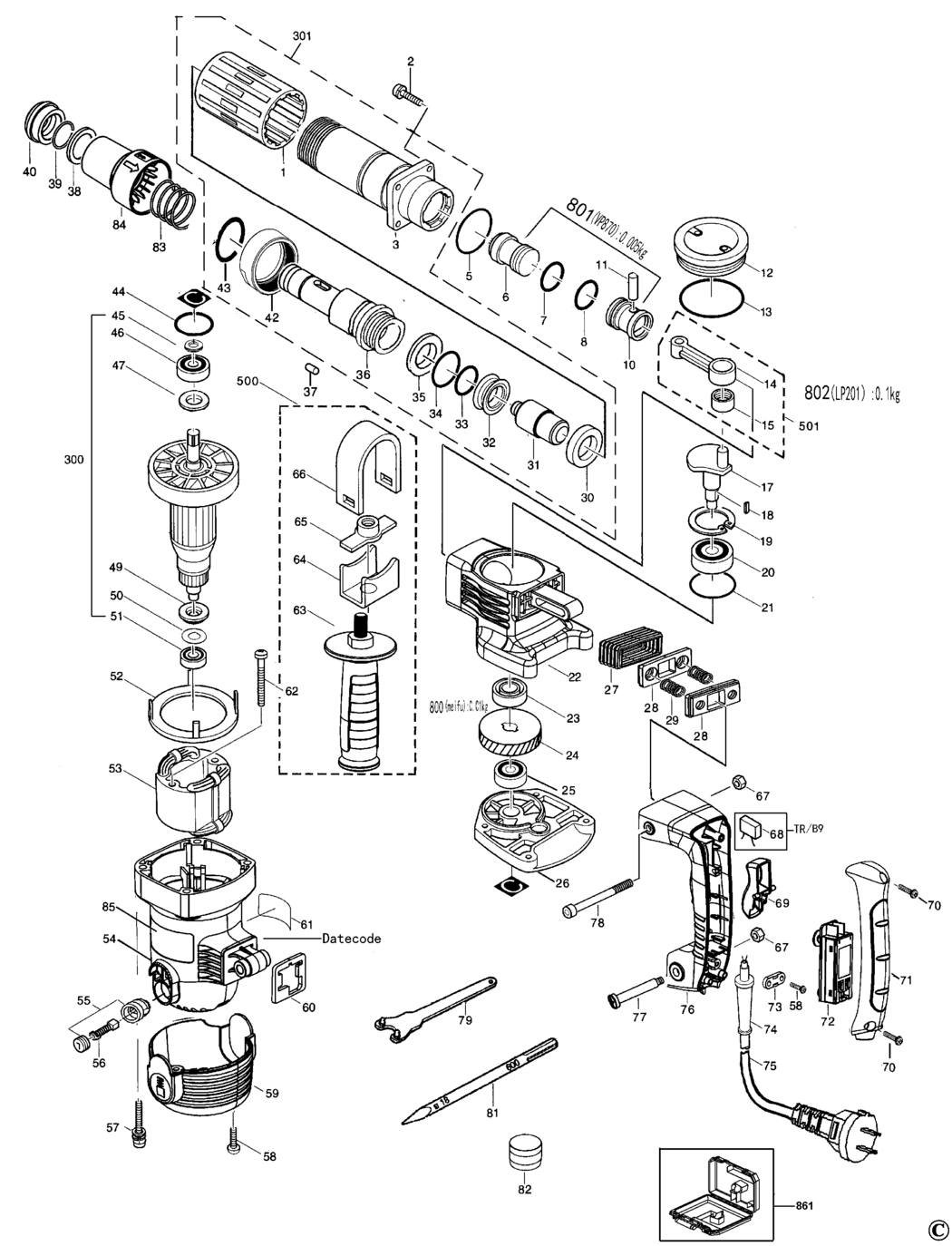

An exploded drawing and spare parts listing for the Stanley STHM5KS Type 1 Chipping Hammer

	Ex VAT	Inc VAT
1 - RUBBER BOOT BDE-4050303007.A0 4050303007	£1.50	£1.80
2 - SCREW BDE-49201042.A0 49201042	£1.50	£1.80
3 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30497 000000-00	-
5 - O RING BDE-4050303010.A2 4050303010	£1.50	£1.80
6 - RAM BDE-4050304017.A2 4050304017	£4.69	£5.63
7 - O RING BDE-4050303017.A0 4050303017	£1.50	£1.80
8 - O RING BDE-4050303017.A1 4050303017	£1.50	£1.80
10 - PISTON BDE-4050304011.A2 4050304011	£4.69	£5.63
11 - PIN BDE-4050304010.A0 4050304010	£1.50	£1.80
12 - CAP BDE-4050301609.A1 4050301609	£1.50	£1.80
13 - O RING BDE-4050303006.A2 4050303006	£1.50	£1.80
17 - CRANKSHAFT BDE-4050304004.A2 4050304004	£9.41	£11.29
18 - LOCK PIN BDE-49208024.A1 49208024	£1.50	£1.80
19 - CIRCLIP BDE-49207052.A0 49207052	£1.50	£1.80
20 - BEARING BDE-49106017.A2 49106017	£5.88	£7.06
21 - O RING BDE-4050303011.A0 4050303011	£1.50	£1.80
22 - GEARCASE BDE-4050302601.A0 4050302601	£17.48	£20.97
23 - SEAL BDE-4050303003.A0 4050303003	£1.50	£1.80
24 - GEAR BDE-4050310001.A0 4050310001	£14.57	£17.48
25 - BEARING BDE-49111003.A4 49111003	£2.78	£3.34
26 - COVER BDE-4050302602.A2 4050302602	£5.88	£7.06
27 - COVER BDE-4050303601.A2 4050303601	£1.50	£1.80
28 - CLAMP BDE-4050301601.A2 4050301601	£1.50	£1.80
29 - SPRING BDE-4050308601.A2 4050308601	£1.50	£1.80
30 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30498 000000-00	-
31 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30499 000000-00	-
32 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30500 000000-00	-
33 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30501 000000-00	-
34 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30502 000000-00	-
35 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30503 000000-00	-
36 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30504 000000-00	-
37 - BALL BDE-4031304025.A0 4031304025	£1.50	£1.80
38 - DEFLECTOR BDE-4051204001.A1 4051204001	£1.50	£1.80
39 - RETAINER BDE-4031404016.A1 4031404016	£1.50	£1.80
40 - CAP BDE-4051203001.A0 4051203001	£1.50	£1.80
42 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30505 000000-00	-
43 - NO LONGER AVAILABLE No. 301 BDE-000000-00.A30506 000000-00	-
43 - TUBE GUIDE BDE-4050350004.A1 4050350004	£84.42	£101.30
44 - O RING BDE-4050303012.A2 4050303012	£1.50	£1.80
45 - RING BDE-4050304023.A2 4050304023	£1.50	£1.80
46 - BEARING BDE-49111017.A10 49111017	£2.78	£3.34
47 - WASHER BDE-4050304031.A1 4050304031	£1.50	£1.80
49 - WASHER INSULATING BDE-4240101005.A0 4240101005	£1.50	£1.80
50 - WASHER BDE-4090104003.A4 4090104003	£1.50	£1.80
51 - BEARING BDE-49111013.A9 49111013	£1.50	£1.80
52 - BAFFLE FAN BDE-4050301007.A0 4050301007	£1.50	£1.80
53 - FIELD SA BDE-Z60305016.A0 Z60305016	£24.39	£29.27
54 - FIELDCASE SA BDE-4050301605.A1 4050301605	£12.17	£14.60
55 - BRUSH HOLDER BDE-4050307001.A1 4050307001	£2.78	£3.34
56 - BRUSH PAIR BDE-4050306001.A0 4050306001	£1.50	£1.80
57 - SCREW BDE-49201045.A1 49201045	£1.50	£1.80
58 - SCREW BDE-49206018.A19 49206018	£1.50	£1.80
59 - END CAP BDE-4050301607.A1 4050301607	£2.26	£2.71
60 - RUBBER SEAL BDE-4050303602.A0 4050303602	£1.50	£1.80
62 - SCREW BDE-49206039.A2 49206039	£1.50	£1.80
63 - SIDE HANDLE BDE-4050301604.A0 4050301604	£3.80	£4.56
64 - BASE BRACKET BDE-4050304018.A0 4050304018	£1.50	£1.80
65 - COLLET NUT BDE-4050304019.A2 4050304019	£2.78	£3.34
66 - HANDLE FRAME KIT BDE-4050304020.A0 4050304020	£1.50	£1.80
67 - NUT BDE-49205005.A13 49205005	£1.50	£1.80
69 - SWITCH COVER BDE-4050301602.A0 4050301602	£1.50	£1.80
70 - SCREW BDE-49206021.A9 49206021	£1.50	£1.80
71 - HANDLE COVER BDE-4050301603.A1 4050301603	£3.80	£4.56
72 - SWITCH BDE-4050305601.A1 4050305601	£12.17	£14.60
73 - CORD CLAMP BDE-4240301011.A1 4240301011	£1.50	£1.80
76 - SWITCH HANDLE BDE-4050301606.A0 4050301606	£5.88	£7.06
77 - PIN BDE-4050304601.A0 4050304601	£1.50	£1.80
78 - SCREW BDE-49201604.A0 49201604	£1.50	£1.80
79 - WRENCH SET BDE-4148004004.A11 4148004004	£2.78	£3.34
81 - BIT BDE-4050304032.A1 4050304032	£12.17	£14.60
82 - OILER BDE-4030301013.A4 4030301013	£1.50	£1.80
83 - SPRING BDE-4051204004.A0 4051204004	£1.50	£1.80
84 - SLEEVE BDE-4051101001.A0 4051101001	£7.18	£8.62
85 - LABEL BDE-4050322601.A0 4050322601	£1.42	£1.70
300 - ARMATURE SA BDE-4050350001.A1 4050350001	£60.94	£73.13
301 - TUBE GUIDE BDE-4050350004.A0 4050350004	£84.42	£101.30
500 - HANDLE SIDE SA BDE-4050331001.A2 4050331001	£12.17	£14.60
501 - CONNECTING ROD BDE-4050331004.A0 4050331004	£9.41	£11.29
801 - GREASE BDE-901188.A0 901188	£437.13	£524.56
861 - KITBOX BDE-4050312602 4050312602	£34.00	£40.80
