Stanley FME1250 Type 1 Rotary Hammer Spare Parts

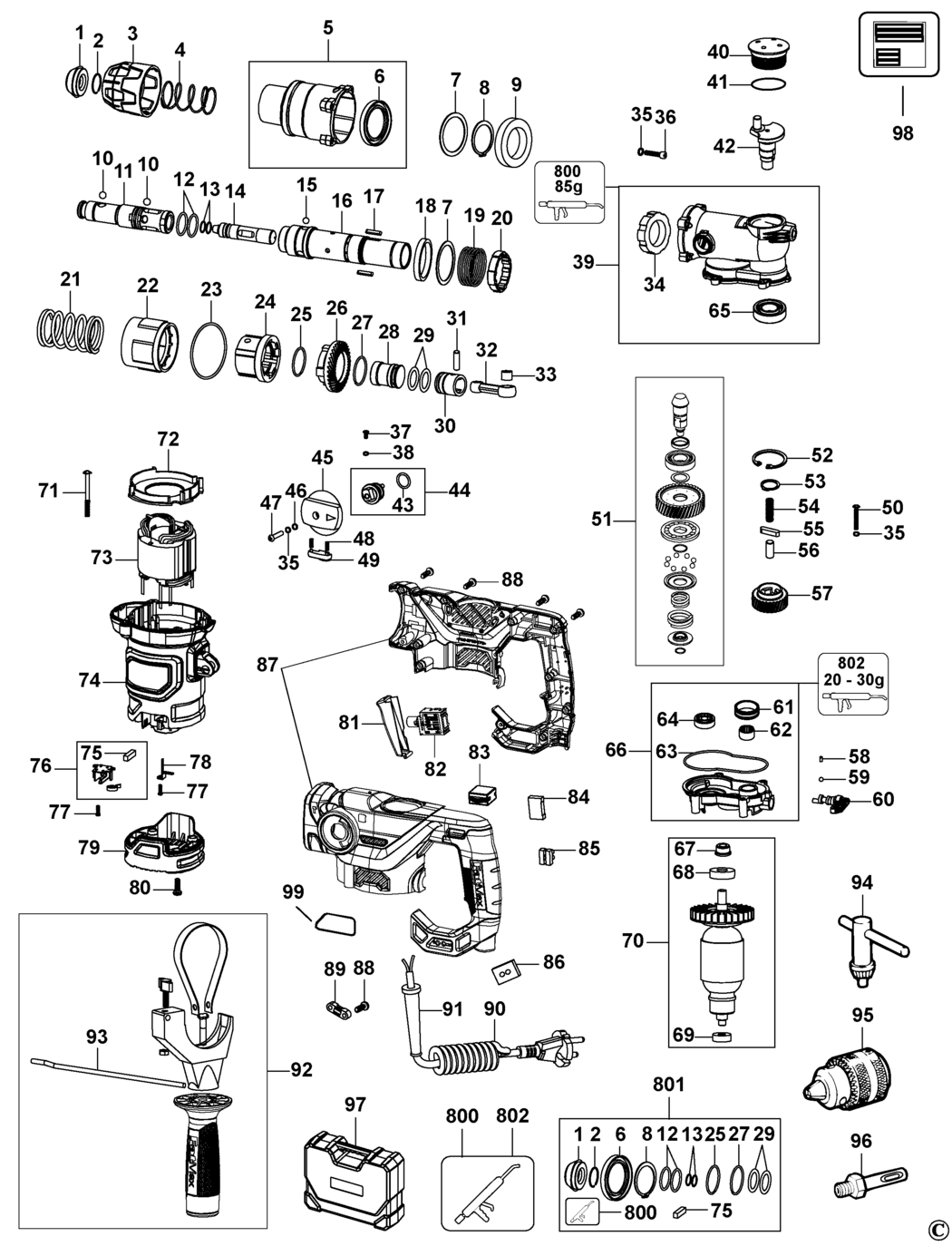

An exploded drawing and spare parts listing for the Stanley FME1250 Type 1 Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP BDE-1004691-27.A2 1004691-27	£1.50	£1.80
2 - RING BDE-1004691-28.A0 1004691-28	£1.50	£1.80
3 - COLLAR BDE-1004692-37 1004692-37	£5.88	£7.06
4 - SPRING BDE-1004691-30.A2 1004691-30	£1.50	£1.80
5 - HOUSING SA BDE-1004692-38 1004692-38	£17.48	£20.97
6 - SEAL BDE-1004691-32.A2 1004691-32	£7.18	£8.62
7 - WASHER BDE-1004691-33.A0 1004691-33	£1.50	£1.80
8 - CIRCLIP BDE-1004691-34.A2 1004691-34	£1.50	£1.80
9 - BEARING BDE-1004691-35.A0 1004691-35	£10.85	£13.02
10 - BALL STEEL BDE-1004691-36.A2 1004691-36	£1.50	£1.80
11 - SPINDLE BDE-1004691-37.A0 1004691-37	£14.57	£17.48
12 - O RING BDE-1004691-38.A2 1004691-38	£1.50	£1.80
13 - O RING BDE-1004691-39.A0 1004691-39	£1.50	£1.80
14 - BEAT PIECE BDE-1004691-40.A2 1004691-40	£7.18	£8.62
15 - BALL STEEL BDE-1004691-41.A0 1004691-41	£1.50	£1.80
16 - CYLINDER BDE-1004691-42.A2 1004691-42	£30.08	£36.10
17 - KEY BDE-1004691-43.A0 1004691-43	£1.50	£1.80
18 - BUSH BDE-1004691-44.A2 1004691-44	£1.50	£1.80
19 - SPRING BDE-1004691-45.A0 1004691-45	£14.57	£17.48
20 - BUSH BDE-1004691-46.A2 1004691-46	£3.30	£3.96
21 - SPRING BDE-1004691-47.A0 1004691-47	£1.50	£1.80
22 - BUSH BDE-1004691-48.A2 1004691-48	£1.50	£1.80
23 - O RING BDE-1004691-49.A0 1004691-49	£1.50	£1.80
24 - CLUTCH BDE-1004691-50.A2 1004691-50	£1.50	£1.80
25 - RING BDE-1004691-51.A0 1004691-51	£1.50	£1.80
26 - GEAR BDE-1004691-52.A2 1004691-52	£19.90	£23.88
27 - RING BDE-1004691-53.A0 1004691-53	£1.50	£1.80
28 - RAM BDE-1004691-54.A2 1004691-54	£4.69	£5.63
29 - O RING BDE-1004691-55.A0 1004691-55	£1.50	£1.80
30 - PISTON BDE-1004691-56.A2 1004691-56	£3.30	£3.96
31 - PIN BDE-1004691-57.A0 1004691-57	£1.50	£1.80
32 - CON ROD BDE-1004691-58.A2 1004691-58	£5.88	£7.06
33 - BEARING BDE-1004691-59.A0 1004691-59	£1.50	£1.80
34 - BUSH BDE-1004691-60.A2 1004691-60	£1.50	£1.80
35 - WASHER SPRING BDE-1004691-61.A0 1004691-61	£1.50	£1.80
36 - SCREW BDE-1004691-62.A2 1004691-62	£1.50	£1.80
37 - SCREW BDE-1004691-63.A0 1004691-63	£1.50	£1.80
38 - WASHER SPRING BDE-1004691-64.A2 1004691-64	£1.50	£1.80
39 - CRANKCASE BDE-1004691-65.A0 1004691-65	£19.90	£23.88
40 - COVER BDE-1004691-66.A2 1004691-66	£1.50	£1.80
41 - O RING BDE-1004691-67.A0 1004691-67	£1.50	£1.80
42 - CRANKSHAFT BDE-1004691-68.A2 1004691-68	£7.85	£9.42
43 - O RING BDE-1004691-69.A0 1004691-69	£1.50	£1.80
44 - LEVER SA BDE-1004691-70.A2 1004691-70	£3.30	£3.96
45 - KNOB BDE-1004691-71.A0 1004691-71	£1.50	£1.80
46 - WASHER 5 MM BDE-1004691-72.A2 1004691-72	£1.50	£1.80
47 - SCREW BDE-1004691-73.A0 1004691-73	£1.50	£1.80
48 - SPRING BDE-1004691-74.A2 1004691-74	£1.50	£1.80
49 - BUTTON BDE-1004691-75.A0 1004691-75	£1.50	£1.80
50 - SCREW BDE-1004691-76.A2 1004691-76	£1.50	£1.80
51 - GEAR & PINION SA BDE-1004691-77.A0 1004691-77	£12.17	£14.60
52 - CIRCLIP BDE-1004691-80.A2 1004691-80	£1.50	£1.80
53 - CIRCLIP BDE-1004691-81.A0 1004691-81	£1.50	£1.80
54 - SPRING BDE-1004691-82.A2 1004691-82	£1.50	£1.80
55 - KEY BDE-1004691-83.A0 1004691-83	£1.50	£1.80
56 - PIN BDE-1004691-86.A2 1004691-86	£1.50	£1.80
57 - GEAR BDE-1004691-84.A2 1004691-84	£7.18	£8.62
58 - STOP RUBBER BDE-1004691-90.A2 1004691-90	£1.50	£1.80
59 - BALL STEEL 4MM BDE-1004691-91.A0 1004691-91	£1.50	£1.80
60 - LEVER BDE-1004692-39 1004692-39	£2.78	£3.34
61 - BUSH BDE-1004691-85.A0 1004691-85	£1.50	£1.80
62 - BEARING NEEDLE BDE-1004691-87.A0 1004691-87	£1.50	£1.80
63 - SEAL BDE-1004691-89.A0 1004691-89	£1.50	£1.80
64 - BEARING BDE-1004691-78.A2 1004691-78	£2.26	£2.71
65 - BEARING BDE-1004691-79.A0 1004691-79	£4.69	£5.63
66 - GEARCASE COVER SA BDE-1004691-92.A2 1004691-92	£12.17	£14.60
67 - CAP BDE-1004691-88.A2 1004691-88	£1.50	£1.80
68 - BEARING BDE-1004691-94.A2 1004691-94	£9.41	£11.29
69 - BEARING BDE-1004691-96.A2 1004691-96	£5.88	£7.06
70 - ARMATURE SA BDE-1004691-95.A0 1004691-95	£74.15	£88.98
71 - SCREW BDE-1004691-97.A0 1004691-97	£1.50	£1.80
72 - FAN COVER BDE-1004692-40 1004692-40	£1.50	£1.80
73 - FIELD BDE-1004692-41 1004692-41	£38.80	£46.56
74 - HOUSING MOTOR BDE-1004692-42 1004692-42	£41.24	£49.49
75 - BRUSH & LEAD BDE-1004692-02.A2 1004692-02	£3.80	£4.56
76 - BRUSH & HOLDER SA BDE-1004692-03.A0 1004692-03	£7.18	£8.62
77 - SCREW BDE-1004692-04.A2 1004692-04	£1.50	£1.80
78 - CONTACT BDE-1004692-05.A0 1004692-05	£1.50	£1.80
79 - MOTOR COVER BDE-1004692-43 1004692-43	£7.18	£8.62
80 - SCREW BDE-1004692-07.A2 1004692-07	£1.50	£1.80
81 - TRIGGER BDE-1004692-09.A2 1004692-09	£1.50	£1.80
82 - SWITCH BDE-1004692-10.A0 1004692-10	£24.39	£29.27
83 - POTENTIOMETER SA BDE-1004692-11.A2 1004692-11	£18.91	£22.69
84 - CAPACITOR BDE-1004692-13.A2 1004692-13	£1.50	£1.80
85 - TERMINAL BLOCK BDE-1004692-12.A0 1004692-12	£1.50	£1.80
86 - LED BDE-1004692-19.A0 1004692-19	£3.80	£4.56
87 - CLAMSHELL SA BDE-1004692-44 1004692-44	£71.44	£85.73
88 - SCREW BDE-1004692-15.A2 1004692-15	£1.50	£1.80
89 - CORD CLAMP BDE-1004692-14.A0 1004692-14	£1.50	£1.80
90 - CORDSET GB BDE-1004692-45 1004692-45	£37.35	£44.82
91 - CORD PROTECTOR BDE-1004692-16.A0 1004692-16	£1.50	£1.80
92 - HANDLE SIDE SA BDE-1004692-47 1004692-47	£17.48	£20.97
93 - DEPTH ROD BDE-1004692-21.A2 1004692-21	£1.50	£1.80
94 - CHUCK KEY BDE-1004692-32.A2 1004692-32	£1.50	£1.80
95 - CHUCK BDE-1004692-33.A0 1004692-33	£14.57	£17.48
96 - ADAPTOR BDE-1004692-34.A2 1004692-34	£2.78	£3.34
97 - KITBOX BDE-1004692-48 1004692-48	£25.70	£30.84
99 - BRAND LABEL BDE-1004782-02 1004782-02	£1.50	£1.80
800 - GREASE BDE-1004692-23.A2 1004692-23	£3.80	£4.56
801 - SERVICE KIT BDE-1004692-25.A2 1004692-25	£14.57	£17.48
802 - GREASE BDE-1004692-24.A1 1004692-24	£1.50	£1.80
