Stanley SPT-196-570 Type 1 Snow Thrower Spare Parts

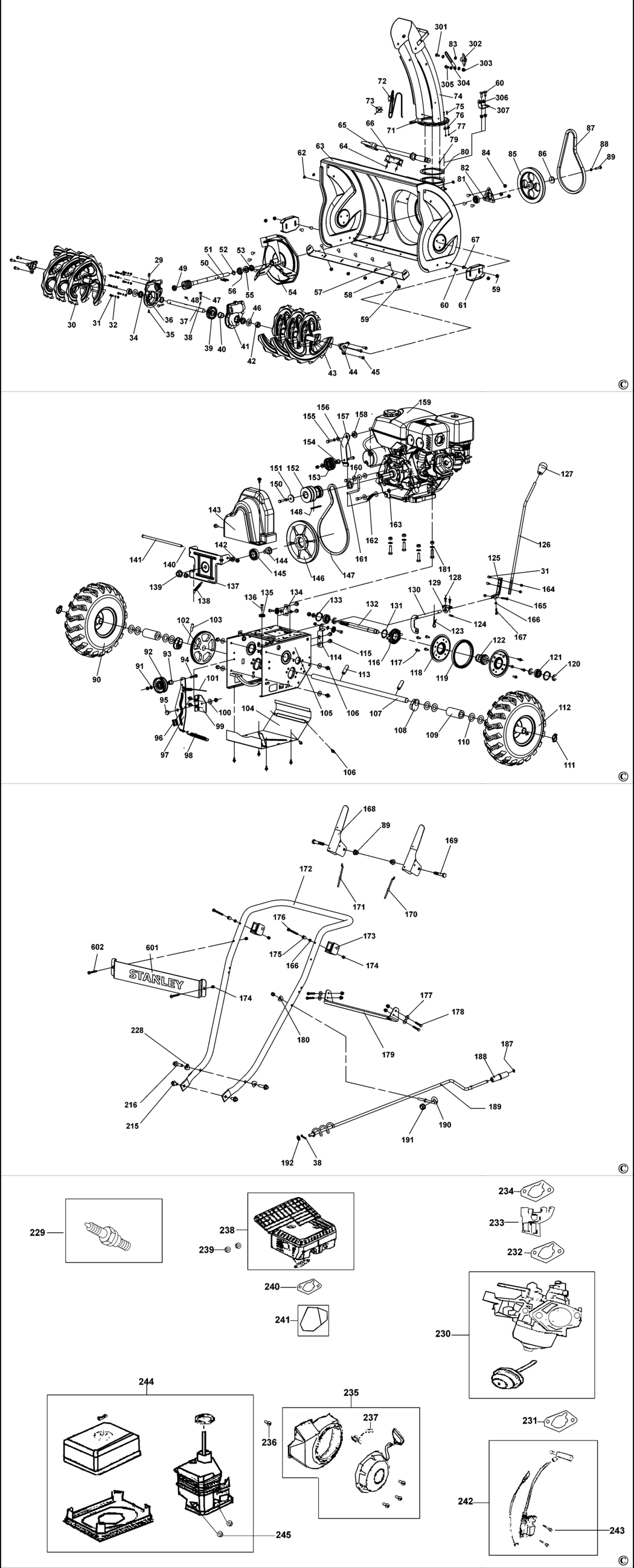

An exploded drawing and spare parts listing for the Stanley SPT-196-570 Type 1 Snow Thrower

	Ex VAT	Inc VAT
29 - SEAL BDE-E604500050-29 E604500050-29	£1.42	£1.70
30 - BLADE SA BDE-E604500050-30 E604500050-30	£24.39	£29.27
31 - BOLT BDE-E604500050-31 E604500050-31	£1.42	£1.70
32 - WASHER SPRING BDE-E604500050-32 E604500050-32	£1.42	£1.70
34 - SEAL BDE-E604500050-34 E604500050-34	£2.71	£3.25
35 - SCREW BDE-E604500050-35 E604500050-35	£1.42	£1.70
36 - GEARCASE COVER RH BDE-E604500050-36 E604500050-36	£7.18	£8.62
37 - SHAFT BDE-E604500050-37 E604500050-37	£4.69	£5.63
38 - PIN BDE-E604500050-38 E604500050-38	£1.50	£1.80
39 - WHEEL BDE-E604500050-39 E604500050-39	£25.70	£30.84
40 - SLEEVE BDE-E604500050-40 E604500050-40	£2.71	£3.25
41 - GEARCASE COVER LH BDE-E604500050-41 E604500050-41	£5.88	£7.06
42 - WASHER BDE-E604500050-42 E604500050-42	£1.42	£1.70
43 - BLADE SA BDE-E604500050-43 E604500050-43	£24.39	£29.27
44 - BEARING BLOCK BDE-E604500050-44 E604500050-44	£3.30	£3.96
45 - SCREW BDE-E604500050-45 E604500050-45	£1.42	£1.70
46 - WASHER BDE-E604500050-46 E604500050-46	£1.42	£1.70
47 - PIN BDE-E604500050-47 E604500050-47	£1.42	£1.70
48 - KEY BDE-E604500050-48 E604500050-48	£1.42	£1.70
49 - BEARING BDE-E604500050-49 E604500050-49	£4.58	£5.49
50 - ROLLPIN BDE-E604500050-50 E604500050-50	£1.42	£1.70
51 - SHAFT BDE-E604500050-51 E604500050-51	£30.08	£36.10
52 - WASHER BDE-E604500050-52 E604500050-52	£1.42	£1.70
53 - SEAL BDE-E604500050-53 E604500050-53	£2.71	£3.25
54 - FAN SA BDE-E604500050-54 E604500050-54	£14.57	£17.48
55 - BEARING THRUST BDE-E604500050-55 E604500050-55	£1.82	£2.19
56 - BEARING BDE-E604500050-56 E604500050-56	£1.82	£2.19
57 - BOLT BDE-E604500050-57 E604500050-57	£1.42	£1.70
58 - PLATE BDE-E604500050-58 E604500050-58	£3.80	£4.56
59 - LOCK NUT BDE-E604500050-59 E604500050-59	£1.50	£1.80
60 - BOLT BDE-E604500050-60 E604500050-60	£1.50	£1.80
61 - PLATE BDE-E604500050-61 E604500050-61	£2.26	£2.71
62 - PLUG BDE-E604500050-62 E604500050-62	£1.42	£1.70
63 - HOUSING SA BDE-E604500050-63 E604500050-63	£65.52	£78.62
64 - SCREW BDE-E604500050-64 E604500050-64	£1.42	£1.70
65 - TOOL BDE-E604500050-65 E604500050-65	£1.50	£1.80
66 - BRACKET BDE-E604500050-66 E604500050-66	£1.42	£1.70
67 - BOLT BDE-E604500050-67 E604500050-67	£1.42	£1.70
71 - RING GASKET BDE-E604500050-71 E604500050-71	£3.80	£4.56
72 - PIN BDE-E604500050-72 E604500050-72	£2.71	£3.25
73 - SPRING TORSION BDE-E604500050-73 E604500050-73	£1.42	£1.70
74 - CHUTE BDE-E604500050-74 E604500050-74	£12.17	£14.60
75 - BOLT BDE-E604500050-75 E604500050-75	£1.42	£1.70
76 - BRACKET BDE-E604500050-76 E604500050-76	£1.42	£1.70
77 - LOCK NUT BDE-E604500050-77 E604500050-77	£1.42	£1.70
79 - SCREW BDE-E604500050-79 E604500050-79	£1.42	£1.70
80 - WASHER BDE-E604500050-80 E604500050-80	£1.42	£1.70
81 - BEARING BDE-E604500050-81 E604500050-81	£1.82	£2.19
82 - BEARING HOLDER BDE-E604500050-82 E604500050-82	£3.70	£4.44
83 - WASHER LOCK BDE-E604500050-83 E604500050-83	£1.42	£1.70
84 - NUT M8 BDE-E604500050-84 E604500050-84	£1.42	£1.70
85 - PULLEY BDE-E604500050-85 E604500050-85	£9.41	£11.29
86 - WASHER BDE-E604500050-86 E604500050-86	£1.42	£1.70
87 - BELT BDE-E604500050-87 E604500050-87	£24.39	£29.27
88 - WASHER SPRING BDE-E604500050-88 E604500050-88	£1.42	£1.70
89 - BOLT BDE-E604500050-89 E604500050-89	£1.42	£1.70
90 - WHEEL BDE-E604500050-90 E604500050-90	£38.80	£46.56
91 - WASHER BDE-E604500050-91 E604500050-91	£1.42	£1.70
92 - PULLEY BDE-E604500050-92 E604500050-92	£2.78	£3.34
93 - SPACER BDE-E604500050-93 E604500050-93	£3.22	£3.86
94 - BOLT BDE-E604500050-94 E604500050-94	£1.42	£1.70
95 - PIVOT BDE-E604500050-95 E604500050-95	£2.71	£3.25
96 - BOLT BDE-E604500050-96 E604500050-96	£1.42	£1.70
97 - BRACKET BDE-E604500050-97 E604500050-97	£2.26	£2.71
98 - SPRING BDE-E604500050-98 E604500050-98	£1.42	£1.70
99 - BRACKET BDE-E604500050-99 E604500050-99	£3.70	£4.44
100 - WASHER BDE-E604500050-100 E604500050-100	£1.42	£1.70
101 - CABLE BDE-E604500050-101 E604500050-101	£2.26	£2.71
102 - GEAR BDE-E604500050-102 E604500050-102	£12.17	£14.60
103 - PIN BDE-E604500050-103 E604500050-103	£1.42	£1.70
104 - COVER BDE-E604500050-104 E604500050-104	£3.80	£4.56
105 - FRAME BDE-E604500050-105 E604500050-105	£24.39	£29.27
106 - SCREW BDE-E604500050-106 E604500050-106	£1.42	£1.70
107 - SHAFT BDE-E604500050-107 E604500050-107	£5.88	£7.06
108 - BUSHING BDE-E604500050-108 E604500050-108	-
109 - SPACER BDE-E604500050-109 E604500050-109	£1.50	£1.80
110 - WASHER BDE-E604500050-110 E604500050-110	£1.50	£1.80
111 - LOCK PIN BDE-E604500050-111 E604500050-111	£1.50	£1.80
112 - WHEEL BDE-E604500050-112 E604500050-112	£38.80	£46.56
113 - PIN BDE-E604500050-113 E604500050-113	£1.42	£1.70
114 - LEAD & HOLDER BDE-E604500050-114 E604500050-114	£2.71	£3.25
115 - SCREW BDE-E604500050-115 E604500050-115	£1.42	£1.70
116 - ACTUATION ARM BDE-E604500050-116 E604500050-116	£7.18	£8.62
117 - BOLT BDE-E604500050-117 E604500050-117	£1.42	£1.70
118 - WHEEL FRICTION BDE-E604500050-118 E604500050-118	£1.42	£1.70
119 - RING BDE-E604500050-119 E604500050-119	£9.41	£11.29
120 - LOCKING RING BDE-E604500050-120 E604500050-120	£1.42	£1.70
121 - BEARING BDE-E604500050-121 E604500050-121	£1.82	£2.19
122 - HUB BDE-E604500050-122 E604500050-122	£7.18	£8.62
123 - PIN BDE-E604500050-123 E604500050-123	£1.42	£1.70
124 - PIN BDE-E604500050-124 E604500050-124	£1.42	£1.70
125 - CLIP BDE-E604500050-125 E604500050-125	£1.50	£1.80
126 - HANDLE BDE-E604500050-126 E604500050-126	£2.78	£3.34
127 - KNOB BDE-E604500050-127 E604500050-127	£1.78	£2.13
128 - SCREW BDE-E604500050-128 E604500050-128	£1.42	£1.70
129 - BRACKET BDE-E604500050-129 E604500050-129	£2.71	£3.25
130 - FORK BDE-E604500050-130 E604500050-130	£2.78	£3.34
131 - CLIP BDE-E604500050-131 E604500050-131	£1.42	£1.70
132 - SHAFT BDE-E604500050-132 E604500050-132	£7.18	£8.62
133 - CIRCLIP BDE-E604500050-133 E604500050-133	£1.42	£1.70
134 - HOLDER BDE-E604500050-134 E604500050-134	£2.21	£2.65
135 - ROLLER BDE-E604500050-135 E604500050-135	£1.42	£1.70
136 - BOLT BDE-E604500050-136 E604500050-136	£1.42	£1.70
137 - BRACKET BDE-E604500050-137 E604500050-137	£5.88	£7.06
138 - SPRING BDE-E604500050-138 E604500050-138	£1.42	£1.70
139 - LOCK NUT BDE-E604500050-139 E604500050-139	£1.42	£1.70
140 - NUT BDE-E604500050-140 E604500050-140	£1.42	£1.70
141 - SHAFT BDE-E604500050-141 E604500050-141	£2.26	£2.71
142 - LOCK NUT BDE-E604500050-142 E604500050-142	£1.42	£1.70
143 - COVER BELT BDE-E604500050-143 E604500050-143	£3.30	£3.96
144 - HUB BDE-E604500050-144 E604500050-144	£2.78	£3.34
145 - BEARING BDE-E604500050-145 E604500050-145	£3.30	£3.96
146 - PULLEY BDE-E604500050-146 E604500050-146	£12.17	£14.60
147 - V-BELT BDE-E604500050-147 E604500050-147	£17.48	£20.97
148 - KEY BDE-E604500050-148 E604500050-148	£1.42	£1.70
150 - WASHER SPRING BDE-E604500050-150 E604500050-150	£1.42	£1.70
151 - WASHER BDE-E604500050-151 E604500050-151	£1.42	£1.70
152 - PULLEY BDE-E604500050-152 E604500050-152	£7.18	£8.62
153 - IDLER GEAR BDE-E604500050-153 E604500050-153	£2.78	£3.34
154 - BUSHING BDE-E604500050-154 E604500050-154	£2.71	£3.25
155 - BOLT BDE-E604500050-155 E604500050-155	£1.42	£1.70
156 - BRACKET BDE-E604500050-156 E604500050-156	£3.22	£3.86
157 - BOLT BDE-E604500050-157 E604500050-157	£1.42	£1.70
158 - SPACER BDE-E604500050-158 E604500050-158	£3.22	£3.86
160 - WASHER BDE-E604500050-160 E604500050-160	£1.42	£1.70
161 - GUARD BDE-E604500050-161 E604500050-161	£3.70	£4.44
162 - SPRING BDE-E604500050-162 E604500050-162	£1.42	£1.70
163 - NUT BDE-E604500050-163 E604500050-163	£1.42	£1.70
164 - LOCK NUT BDE-E604500050-164 E604500050-164	£1.42	£1.70
165 - BOLT BDE-E604500050-165 E604500050-165	£1.42	£1.70
166 - NUT BDE-E604500050-166 E604500050-166	£1.42	£1.70
167 - BOLT BDE-E604500050-167 E604500050-167	£1.42	£1.70
168 - HANDLE BDE-E604500050-168 E604500050-168	£2.26	£2.71
169 - SCREW BDE-E604500050-169 E604500050-169	£1.42	£1.70
170 - TUBE BDE-E604500050-170 E604500050-170	£4.69	£5.63
171 - CABLE BDE-E604500050-171 E604500050-171	£5.88	£7.06
172 - FRAME BDE-E604500050-172 E604500050-172	£14.57	£17.48
173 - BRACKET BDE-E604500050-173 E604500050-173	£1.50	£1.80
174 - LOCK NUT BDE-E604500050-174 E604500050-174	£1.42	£1.70
175 - SPACER BDE-E604500050-175 E604500050-175	£1.42	£1.70
176 - SCREW BDE-E604500050-176 E604500050-176	£1.42	£1.70
177 - WASHER BDE-E604500050-177 E604500050-177	£1.42	£1.70
178 - SCREW BDE-E604500050-178 E604500050-178	£1.42	£1.70
179 - BEZEL BDE-E604500050-179 E604500050-179	£4.69	£5.63
180 - WASHER BDE-E604500050-180 E604500050-180	£1.42	£1.70
181 - WASHER BDE-E604500050-181 E604500050-181	£1.42	£1.70
187 - CIRCLIP BDE-E604500050-187 E604500050-187	£1.42	£1.70
188 - KNOB BDE-E604500050-188 E604500050-188	£1.42	£1.70
189 - HANDLE BDE-E604500050-189 E604500050-189	£7.85	£9.42
190 - BRACKET BDE-E604500050-190 E604500050-190	£1.50	£1.80
191 - SPACER BDE-E604500050-191 E604500050-191	£1.42	£1.70
192 - WASHER BDE-E604500050-192 E604500050-192	£1.42	£1.70
215 - BOLT BDE-E604500050-215 E604500050-215	£1.42	£1.70
216 - BOLT BDE-E604500050-216 E604500050-216	£1.42	£1.70
228 - WASHER BDE-E604500050-228 E604500050-228	£1.42	£1.70
229 - SPARK PLUG BDE-1004738-11 1004738-11	£9.41	£11.29
230 - CARBURETTOR SA BDE-1004738-12 1004738-12	£65.52	£78.62
231 - GASKET BDE-1004738-13 1004738-13	£2.78	£3.34
232 - GASKET BDE-1004738-14 1004738-14	£1.50	£1.80
233 - PAD BDE-1004738-15 1004738-15	£51.90	£62.28
234 - GASKET BDE-1004738-16 1004738-16	£1.50	£1.80
235 - STARTER SA BDE-1004738-17 1004738-17	£34.00	£40.80
236 - BOLT BDE-1004738-18 1004738-18	£1.50	£1.80
237 - SWITCH SA BDE-1004738-19 1004738-19	£4.69	£5.63
238 - MUFFLER BDE-1004738-20 1004738-20	£30.08	£36.10
239 - NUT BDE-1004738-21 1004738-21	£1.50	£1.80
240 - GASKET BDE-1004738-22 1004738-22	£1.50	£1.80
241 - COVER BDE-1004738-23 1004738-23	£7.18	£8.62
242 - COIL SA BDE-1004738-24 1004738-24	£30.08	£36.10
243 - BOLT BDE-1004738-25 1004738-25	£1.50	£1.80
244 - FILTER BDE-1004738-26 1004738-26	£12.17	£14.60
245 - NUT BDE-1004738-27 1004738-27	£1.50	£1.80
301 - BOLT BDE-E604500050-301 E604500050-301	£1.42	£1.70
302 - KNOB BDE-E604500050-302 E604500050-302	£1.42	£1.70
303 - NUT BDE-E604500050-303 E604500050-303	£1.42	£1.70
304 - PLATE BDE-E604500050-304 E604500050-304	£2.21	£2.65
305 - BOLT BDE-E604500050-305 E604500050-305	£1.42	£1.70
306 - BUSHING BDE-E604500050-306 E604500050-306	£1.42	£1.70
307 - BRACKET BDE-E604500050-307 E604500050-307	£4.58	£5.49
601 - NAMEPLATE BDE-E604500050-601 E604500050-601	£5.88	£7.06
602 - SCREW BDE-E604500050-602 E604500050-602	£1.42	£1.70

Attribute Name	Value
Brand	Stanley
