Stanley SPT-182-570 Type 1 Snow Thrower Spare Parts

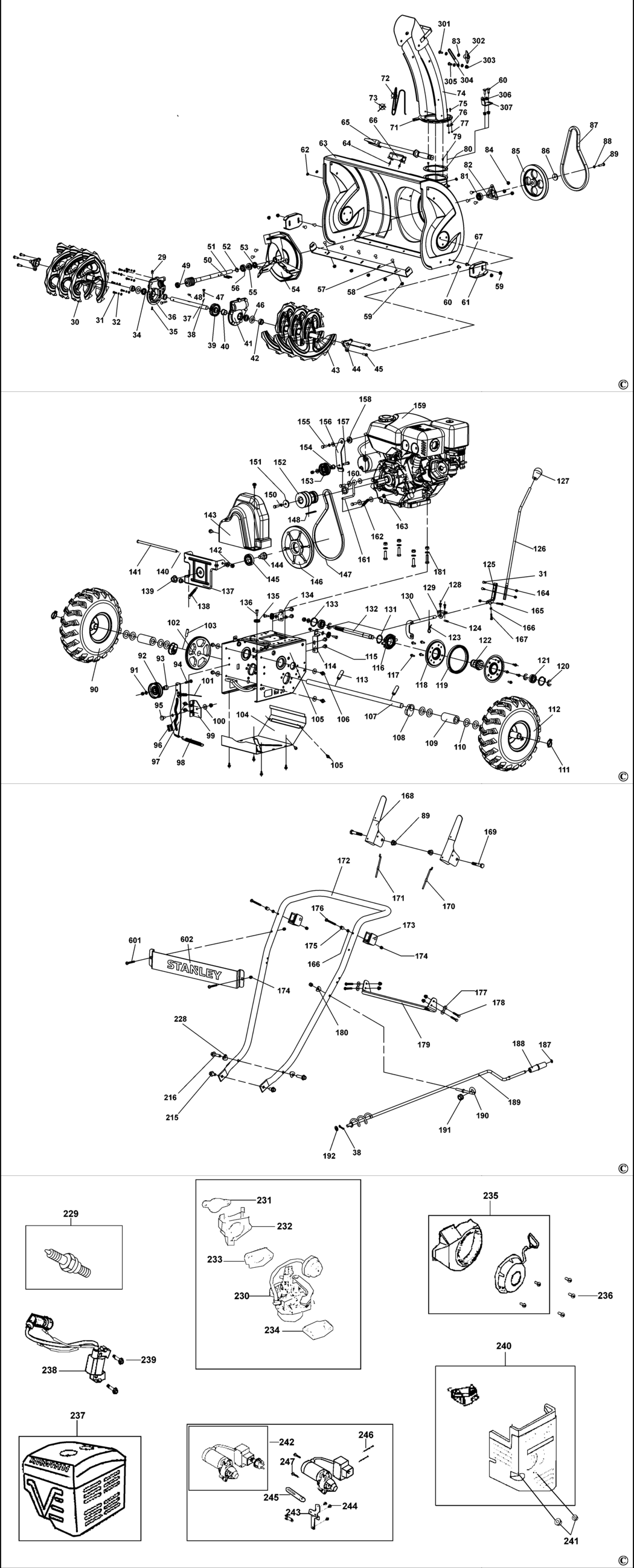

An exploded drawing and spare parts listing for the Stanley SPT-182-570 Type 1 Snow Thrower

	Ex VAT	Inc VAT
29 - SEAL BDE-E604500020-29 E604500020-29	£1.66	£1.99
30 - BLADE SET BDE-E604500020-30 E604500020-30	£25.70	£30.84
31 - BOLT BDE-E604500020-31 E604500020-31	£1.66	£1.99
32 - WASHER SPRING BDE-E604500020-32 E604500020-32	£1.66	£1.99
34 - SEAL BDE-E604500020-34 E604500020-34	£3.22	£3.86
35 - SCREW BDE-E604500020-35 E604500020-35	£1.66	£1.99
36 - GEARCASE COVER RH BDE-E604500020-36 E604500020-36	£12.17	£14.60
37 - SHAFT BDE-E604500020-37 E604500020-37	£7.85	£9.42
38 - PIN BDE-E604500020-38 E604500020-38	£1.66	£1.99
39 - GEAR BDE-E604500020-39 E604500020-39	-
40 - SLEEVE BDE-E604500020-40 E604500020-40	£1.66	£1.99
41 - GEARCASE COVER LH BDE-E604500020-41 E604500020-41	£12.17	£14.60
42 - WASHER BDE-E604500020-42 E604500020-42	£1.66	£1.99
43 - BLADE SET BDE-E604500020-43 E604500020-43	£25.70	£30.84
44 - BEARING HOLDER BDE-E604500020-44 E604500020-44	£3.80	£4.56
45 - SCREW BDE-E604500020-45 E604500020-45	£1.66	£1.99
46 - WASHER BDE-E604500020-46 E604500020-46	£1.66	£1.99
47 - PIN BDE-E604500020-47 E604500020-47	£1.66	£1.99
48 - KEY BDE-E604500020-48 E604500020-48	£1.66	£1.99
49 - BEARING BDE-E604500020-49 E604500020-49	£1.66	£1.99
50 - ROLLPIN BDE-E604500020-50 E604500020-50	£1.66	£1.99
51 - SHAFT BDE-E604500020-51 E604500020-51	£51.90	£62.28
52 - WASHER BDE-E604500020-52 E604500020-52	£1.66	£1.99
53 - SEAL BDE-E604500020-53 E604500020-53	£3.22	£3.86
54 - BLADE BDE-E604500020-54 E604500020-54	£16.03	£19.24
55 - THRUST BEARING BDE-E604500020-55 E604500020-55	£2.26	£2.71
56 - BEARING BALL BDE-E604500020-56 E604500020-56	£2.26	£2.71
57 - BOLT BDE-E604500020-57 E604500020-57	£1.66	£1.99
58 - PLATE BDE-E604500020-58 E604500020-58	£4.69	£5.63
59 - LOCK NUT BDE-E604500020-59 E604500020-59	£1.66	£1.99
60 - BOLT BDE-E604500020-60 E604500020-60	£1.66	£1.99
61 - SHOE BDE-E604500020-61 E604500020-61	£2.26	£2.71
62 - PLUG BDE-E604500020-62 E604500020-62	£1.66	£1.99
63 - HOUSING BDE-E604500020-63 E604500020-63	£78.12	£93.74
64 - SCREW BDE-E604500020-64 E604500020-64	£1.66	£1.99
65 - TOOL BDE-E604500020-65 E604500020-65	£1.66	£1.99
66 - BRACKET BDE-E604500020-66 E604500020-66	£1.66	£1.99
67 - BOLT BDE-E604500020-67 E604500020-67	£1.66	£1.99
71 - MOUNT BDE-E604500020-71 E604500020-71	£2.78	£3.34
72 - PIN BDE-E604500020-72 E604500020-72	£3.70	£4.44
73 - SPRING TORSION BDE-E604500020-73 E604500020-73	£1.66	£1.99
74 - CHUTE BDE-E604500020-74 E604500020-74	£14.57	£17.48
75 - BOLT BDE-E604500020-75 E604500020-75	£1.66	£1.99
76 - SPACER BDE-E604500020-76 E604500020-76	£1.66	£1.99
77 - LOCK NUT BDE-E604500020-77 E604500020-77	£1.66	£1.99
79 - SCREW BDE-E604500020-79 E604500020-79	£1.66	£1.99
80 - WASHER LARGE BDE-E604500020-80 E604500020-80	£1.78	£2.13
81 - BEARING BDE-E604500020-81 E604500020-81	£2.26	£2.71
82 - BEARING HOUSING BDE-E604500020-82 E604500020-82	£4.58	£5.49
83 - WASHER LOCK BDE-E604500020-83 E604500020-83	£1.66	£1.99
84 - NUT M8 BDE-E604500020-84 E604500020-84	£1.66	£1.99
85 - PULLEY BDE-E604500020-85 E604500020-85	£12.17	£14.60
86 - WASHER BDE-E604500020-86 E604500020-86	£1.66	£1.99
87 - BELT BDE-E604500020-87 E604500020-87	£30.08	£36.10
88 - WASHER SPRING BDE-E604500020-88 E604500020-88	£1.66	£1.99
89 - BOLT BDE-E604500020-89 E604500020-89	£1.66	£1.99
90 - WHEEL BDE-E604500020-90 E604500020-90	£47.08	£56.49
91 - WASHER BDE-E604500020-91 E604500020-91	£1.66	£1.99
92 - PULLEY BDE-E604500020-92 E604500020-92	£3.30	£3.96
93 - SPACER BDE-E604500020-93 E604500020-93	£3.70	£4.44
94 - BOLT BDE-E604500020-94 E604500020-94	£1.66	£1.99
95 - BOLT BDE-E604500020-95 E604500020-95	£3.22	£3.86
96 - BOLT BDE-E604500020-96 E604500020-96	£1.66	£1.99
97 - BRACKET BDE-E604500020-97 E604500020-97	£4.69	£5.63
98 - SPRING BDE-E604500020-98 E604500020-98	£2.21	£2.65
99 - BRACKET BDE-E604500020-99 E604500020-99	£4.58	£5.49
100 - WASHER BDE-E604500020-100 E604500020-100	£1.66	£1.99
101 - CABLE BDE-E604500020-101 E604500020-101	£2.78	£3.34
102 - GEAR BDE-E604500020-102 E604500020-102	-
103 - PIN BDE-E604500020-103 E604500020-103	£1.66	£1.99
104 - COVER BDE-E604500020-104 E604500020-104	£4.69	£5.63
105 - FRAME BDE-E604500020-105 E604500020-105	£30.08	£36.10
106 - SCREW BDE-E604500020-106 E604500020-106	£1.66	£1.99
107 - SHAFT BDE-E604500020-107 E604500020-107	£7.18	£8.62
108 - BUSH BDE-E604500020-108 E604500020-108	£2.26	£2.71
109 - SPACER BDE-E604500020-109 E604500020-109	£1.66	£1.99
110 - WASHER BDE-E604500020-110 E604500020-110	£1.66	£1.99
111 - LOCK PIN BDE-E604500020-111 E604500020-111	£1.66	£1.99
112 - WHEEL BDE-E604500020-112 E604500020-112	£47.08	£56.49
113 - PIN BDE-E604500020-113 E604500020-113	£1.66	£1.99
114 - BRACKET BDE-E604500020-114 E604500020-114	£3.70	£4.44
115 - SCREW BDE-E604500020-115 E604500020-115	£1.66	£1.99
116 - ARM BDE-E604500020-116 E604500020-116	£7.85	£9.42
117 - BOLT BDE-E604500020-117 E604500020-117	£1.66	£1.99
118 - WHEEL FRICTION BDE-E604500020-118 E604500020-118	£1.66	£1.99
119 - SEAL BDE-E604500020-119 E604500020-119	£7.18	£8.62
120 - RING BDE-E604500020-120 E604500020-120	£1.66	£1.99
121 - BEARING BDE-E604500020-121 E604500020-121	£2.26	£2.71
122 - HUB BDE-E604500020-122 E604500020-122	£9.41	£11.29
123 - PIN BDE-E604500020-123 E604500020-123	£1.66	£1.99
124 - PIN BDE-E604500020-124 E604500020-124	£1.66	£1.99
125 - CLIP BDE-E604500020-125 E604500020-125	£1.66	£1.99
126 - HANDLE SA BDE-E604500020-126 E604500020-126	£3.30	£3.96
127 - KNOB BDE-E604500020-127 E604500020-127	£2.71	£3.25
128 - SCREW BDE-E604500020-128 E604500020-128	£1.66	£1.99
129 - BRACKET BDE-E604500020-129 E604500020-129	£3.22	£3.86
130 - FORK BDE-E604500020-130 E604500020-130	£3.30	£3.96
131 - CIRCLIP BDE-E604500020-131 E604500020-131	£1.66	£1.99
132 - SHAFT BDE-E604500020-132 E604500020-132	-
133 - CIRCLIP BDE-E604500020-133 E604500020-133	£1.66	£1.99
134 - PLATE BDE-E604500020-134 E604500020-134	£3.22	£3.86
135 - ROLLER BDE-E604500020-135 E604500020-135	£1.66	£1.99
136 - BOLT BDE-E604500020-136 E604500020-136	£1.66	£1.99
137 - BRACKET BDE-E604500020-137 E604500020-137	£5.88	£7.06
138 - SPRING BDE-E604500020-138 E604500020-138	£1.66	£1.99
139 - LOCK-NUT BDE-E604500020-139 E604500020-139	£1.66	£1.99
140 - NUT BDE-E604500020-140 E604500020-140	£1.66	£1.99
141 - SHAFT BDE-E604500020-141 E604500020-141	£2.26	£2.71
142 - LOCK-NUT BDE-E604500020-142 E604500020-142	£1.66	£1.99
143 - BELT COVER BDE-E604500020-143 E604500020-143	£4.69	£5.63
144 - HUB BDE-E604500020-144 E604500020-144	£3.30	£3.96
145 - BEARING BDE-E604500020-145 E604500020-145	£3.80	£4.56
146 - PULLEY BDE-E604500020-146 E604500020-146	£14.57	£17.48
147 - BELT DRIVE BDE-E604500020-147 E604500020-147	£24.39	£29.27
148 - KEY BDE-E604500020-148 E604500020-148	£1.66	£1.99
150 - WASHER SPRING BDE-E604500020-150 E604500020-150	£1.66	£1.99
151 - WASHER BDE-E604500020-151 E604500020-151	£1.66	£1.99
152 - PULLEY BDE-E604500020-152 E604500020-152	£9.41	£11.29
153 - IDLER ASSEMBLY BDE-E604500020-153 E604500020-153	£2.78	£3.34
154 - BUSHING BDE-E604500020-154 E604500020-154	£3.70	£4.44
155 - BOLT BDE-E604500020-155 E604500020-155	£1.66	£1.99
156 - BRACKET BDE-E604500020-156 E604500020-156	£3.70	£4.44
157 - BOLT BDE-E604500020-157 E604500020-157	£1.66	£1.99
158 - SPACER BDE-E604500020-158 E604500020-158	£4.58	£5.49
160 - WASHER BDE-E604500020-160 E604500020-160	£1.66	£1.99
161 - WIRE BDE-E604500020-161 E604500020-161	£4.58	£5.49
162 - SPRING BDE-E604500020-162 E604500020-162	£1.66	£1.99
163 - NUT M8 BDE-E604500020-163 E604500020-163	£1.66	£1.99
164 - LOCK-NUT BDE-E604500020-164 E604500020-164	£1.66	£1.99
165 - BOLT BDE-E604500020-165 E604500020-165	£1.66	£1.99
166 - NUT M6 BDE-E604500020-166 E604500020-166	£1.66	£1.99
167 - BOLT BDE-E604500020-167 E604500020-167	£1.66	£1.99
168 - HANDLE BDE-E604500020-168 E604500020-168	£2.78	£3.34
169 - SCREW BDE-E604500020-169 E604500020-169	£1.66	£1.99
170 - CABLE BDE-E604500020-170 E604500020-170	£5.88	£7.06
171 - CABLE BDE-E604500020-171 E604500020-171	£7.18	£8.62
172 - HANDLE TUBE SA BDE-E604500020-172 E604500020-172	£30.08	£36.10
173 - BRACKET BDE-E604500020-173 E604500020-173	£1.66	£1.99
174 - LOCK-NUT BDE-E604500020-174 E604500020-174	£1.66	£1.99
175 - SPACER BDE-E604500020-175 E604500020-175	£1.66	£1.99
176 - SCREW BDE-E604500020-176 E604500020-176	£1.66	£1.99
177 - WASHER BDE-E604500020-177 E604500020-177	£1.66	£1.99
178 - SCREW BDE-E604500020-178 E604500020-178	£1.66	£1.99
179 - BEZEL BDE-E604500020-179 E604500020-179	£4.69	£5.63
180 - WASHER BDE-E604500020-180 E604500020-180	£1.66	£1.99
187 - CIRCLIP BDE-E604500020-187 E604500020-187	£1.66	£1.99
188 - KNOB BDE-E604500020-188 E604500020-188	£1.66	£1.99
189 - LEVER BDE-E604500020-189 E604500020-189	£5.88	£7.06
190 - BRACKET BDE-E604500020-190 E604500020-190	£1.82	£2.19
191 - SPACER BDE-E604500020-191 E604500020-191	£1.66	£1.99
192 - WASHER BDE-E604500020-192 E604500020-192	£1.66	£1.99
215 - BOLT BDE-E604500020-215 E604500020-215	£1.66	£1.99
216 - BOLT BDE-E604500020-216 E604500020-216	£1.66	£1.99
228 - WASHER BDE-E604500020-228 E604500020-228	£1.66	£1.99
229 - SPARK PLUG BDE-1004737-98 1004737-98	£9.41	£11.29
230 - CARBURETTOR SA BDE-1004737-99 1004737-99	£65.52	£78.62
231 - GASKET BDE-1004738-00 1004738-00	£1.66	£1.99
232 - GASKET BDE-1004738-01 1004738-01	£1.66	£1.99
233 - GASKET BDE-1004738-02 1004738-02	£1.66	£1.99
234 - SPACER BDE-1004738-03 1004738-03	£2.78	£3.34
235 - STARTER SA BDE-1004738-04 1004738-04	£55.30	£66.36
236 - BOLT BDE-1004738-05 1004738-05	£1.66	£1.99
237 - MUFFLER BDE-1004738-06 1004738-06	£58.69	£70.43
238 - COIL SA BDE-1004738-07 1004738-07	£38.80	£46.56
239 - BOLT BDE-1004738-08 1004738-08	£1.66	£1.99
240 - FILTER BDE-1004738-09 1004738-09	£24.39	£29.27
241 - NUT M6 BDE-1004738-10 1004738-10	£1.66	£1.99
242 - STARTER SA BDE-1004738-72 1004738-72	£301.55	£361.86
243 - HOLDER BDE-1004738-73 1004738-73	£4.69	£5.63
244 - BOLT BDE-1004738-74 1004738-74	£1.66	£1.99
245 - CLIP BDE-1004738-75 1004738-75	£1.66	£1.99
246 - SCREW BDE-1004738-76 1004738-76	£1.66	£1.99
247 - BOLT BDE-1004738-77 1004738-77	£1.66	£1.99
301 - BOLT BDE-E604500020-301 E604500020-301	£1.66	£1.99
302 - KNOB BDE-E604500020-302 E604500020-302	£1.66	£1.99
303 - NUT BDE-E604500020-303 E604500020-303	£1.66	£1.99
304 - PLATE BDE-E604500020-304 E604500020-304	£2.71	£3.25
305 - BOLT BDE-E604500020-305 E604500020-305	£1.66	£1.99
306 - BUSH BDE-E604500020-306 E604500020-306	£1.66	£1.99
307 - BRACKET BDE-E604500020-307 E604500020-307	£1.66	£1.99
601 - SCREW BDE-E604500020-601 E604500020-601	£1.66	£1.99
602 - NAMEPLATE BDE-E604500020-602 E604500020-602	£7.18	£8.62
