Stanley STDG5006 Type 1 Die Grinder Spare Parts

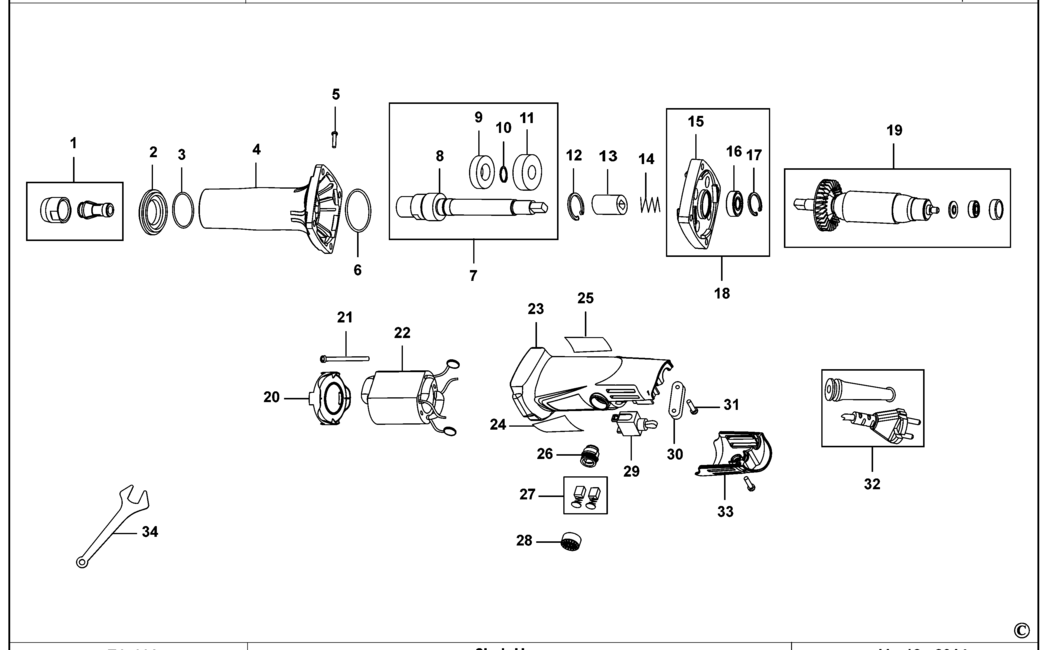

An exploded drawing and spare parts listing for the Stanley STDG5006 Type 1 Die Grinder

	Ex VAT	Inc VAT
1 - CHUCK SA BDE-90593441.A0 90593441	£12.17	£14.60
2 - CLAMP BDE-90593469.A3 90593469	£3.30	£3.96
3 - O RING BDE-90593470.A0 90593470	£1.50	£1.80
4 - HOUSING FRONT BDE-90593471.A3 90593471	£14.57	£17.48
5 - SCREW BDE-90593472.A0 90593472	£1.50	£1.80
6 - O RING BDE-90593473.A3 90593473	£1.50	£1.80
7 - SPINDLE SA BDE-90593474.A0 90593474	£34.00	£40.80
8 - SPINDLE BDE-90593475.A3 90593475	£16.03	£19.24
9 - BEARING BALL BDE-90593476.A0 90593476	£9.41	£11.29
10 - CIRCLIP F12 BDE-90593477.A3 90593477	£1.50	£1.80
11 - BEARING BALL 6000-2Z BDE-90593478.A0 90593478	£9.41	£11.29
12 - CIRCLIP BDE-90593479.A3 90593479	£1.50	£1.80
13 - CONNECTOR BDE-90593480.A0 90593480	£7.85	£9.42
14 - SPRING BDE-90593481.A3 90593481	£1.50	£1.80
15 - COVER BDE-90593482.A0 90593482	£4.69	£5.63
16 - BEARING BALL BDE-90593483.A3 90593483	£4.69	£5.63
17 - CIRCLIP BDE-90593484.A0 90593484	£1.50	£1.80
18 - COVER SA BDE-90593485.A3 90593485	£9.41	£11.29
19 - ARMATURE SA BDE-90593486.A0 90593486	£44.14	£52.97
20 - FAN BDE-90593487.A1 90593487	£2.78	£3.34
21 - SCREW BDE-90593488.A2 90593488	£1.50	£1.80
22 - FIELD SA BDE-90593489.A1 90593489	£37.35	£44.82
23 - HOUSING MOTOR BDE-90593490.A0 90593490	£12.17	£14.60
25 - IDENTITY LABEL BDE-90593492.A1 90593492	£1.50	£1.80
26 - BRUSH HOLDER BDE-90593493.A2 90593493	£3.30	£3.96
27 - BRUSH PAIR BDE-90593494.A0 90593494	£2.78	£3.34
28 - BRUSH COVER BDE-90593495.A1 90593495	£1.50	£1.80
29 - SWITCH HUA JIE BDE-90593496.A2 90593496	£5.88	£7.06
30 - CLAMP BDE-90593497.A1 90593497	£1.50	£1.80
31 - SCREW BDE-90593498.A2 90593498	£1.50	£1.80
33 - COVER REAR BDE-90593500.A0 90593500	£1.50	£1.80
34 - SPANNER BDE-90593501.A1 90593501	£1.82	£2.19

Attribute Name	Value
Brand	Stanley
