Stanley STGS7100 Type 1 Small Angle Grinder Spare Parts

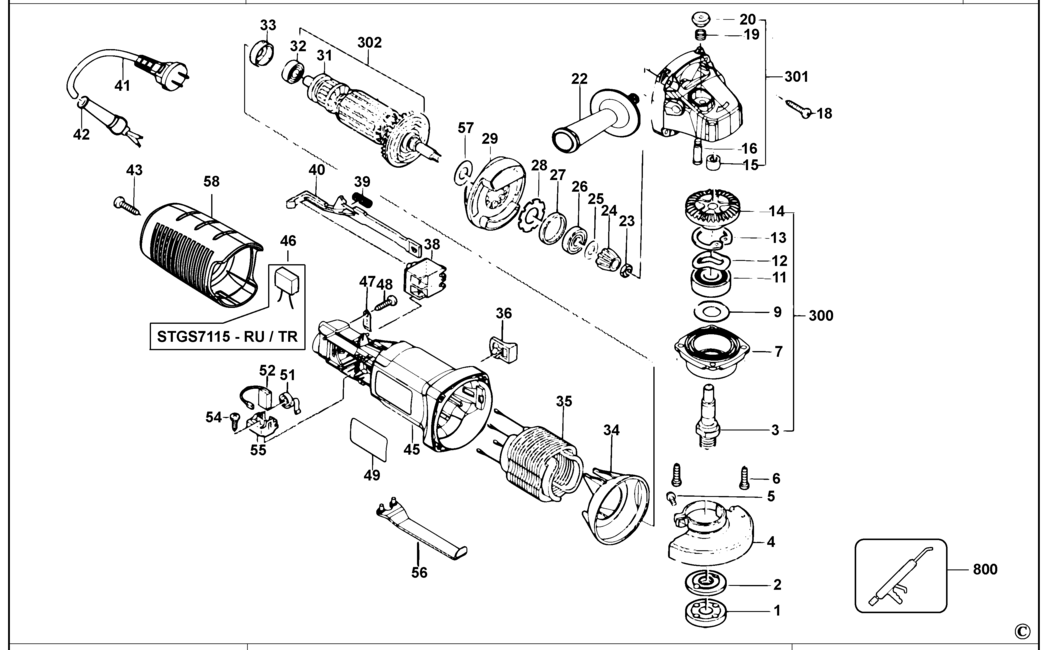

An exploded drawing and spare parts listing for the Stanley STGS7100 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - OUTER FLANGE BDE-4140304011.A4 4140304011	£1.50	£1.80
2 - INNER FLANGE BDE-4140304006.A11 4140304006	£1.50	£1.80
3 - SPINDLE BDE-4140304009.A0 4140304009	£2.78	£3.34
4 - GUARD SA BDE-4140304008.A8 4140304008	£2.26	£2.71
5 - SCREW BDE-49203052.A18 49203052	£1.50	£1.80
6 - SCREW BDE-49209042.A16 49209042	£1.50	£1.80
7 - GEARCASE COVER BDE-4140302602.A8 4140302602	£1.82	£2.19
9 - WASHER BDE-4140704002.A18 4140704002	£1.50	£1.80
11 - BEARING BDE-49111017.A27 49111017	£2.78	£3.34
12 - WASHER BDE-4140304001.A8 4140304001	£1.50	£1.80
13 - CIRCLIP BDE-49207020.A2 49207020	£1.50	£1.80
14 - GEAR BDE-4140310003.A6 4140310003	£4.69	£5.63
15 - BEARING NEEDLE BDE-49101022.A10 49101022	£1.50	£1.80
16 - LOCK PIN BDE-4140304010.A11 4140304010	£1.50	£1.80
18 - SCREW BDE-49206022.A18 49206022	£1.50	£1.80
19 - SPRING BDE-4140308003.A9 4140308003	£1.50	£1.80
20 - LOCK BUTTON BDE-4140301012.A1 4140301012	£1.50	£1.80
22 - HANDLE SIDE SA BDE-4140301001.A3 4140301001	£1.50	£1.80
23 - NUT BDE-49205005.A4 49205005	£1.50	£1.80
24 - PINION BDE-4140310004.A2 4140310004	£3.80	£4.56
25 - WASHER BDE-4140304012.A13 4140304012	£1.50	£1.80
26 - BEARING BDE-49106229.A6 49106229	£1.82	£2.19
27 - RUBBER SEAL BDE-4140303001.A0 4140303001	£1.50	£1.80
28 - WASHER BDE-4140304005.A0 4140304005	£1.50	£1.80
29 - FLANGE BDE-4140301014.A0 4140301014	£1.50	£1.80
31 - WASHER INSULATING BDE-4140301009.A8 4140301009	£1.50	£1.80
32 - BEARING BDE-49111011.A2 49111011	£1.50	£1.80
33 - SLEEVE BEARING BDE-4140303002.A14 4140303002	£1.50	£1.80
34 - BAFFLE BDE-4140301002.A0 4140301002	£1.50	£1.80
36 - BUTTON BDE-4140301011.A9 4140301011	£1.50	£1.80
38 - SWITCH SA BDE-4140305605.A3 4140305605	£4.69	£5.63
39 - SPRING BDE-4140308001.A3 4140308001	£1.50	£1.80
40 - LINK BDE-4140301010.A0 4140301010	£1.50	£1.80
42 - CORD PROTECTOR BDE-49303005.A0 49303005	£1.50	£1.80
43 - SCREW BDE-49206020.A17 49206020	£1.50	£1.80
45 - FIELDCASE BDE-4140301605.A0 4140301605	£7.18	£8.62
47 - CORD CLAMP BDE-4140301013.A6 4140301013	£1.50	£1.80
48 - SCREW BDE-49206016.A4 49206016	£1.50	£1.80
51 - BRUSH SPRING BDE-4140308002.A6 4140308002	£1.50	£1.80
52 - BRUSH PAIR BDE-4140306001.A2 4140306001	£1.50	£1.80
54 - SCREW BDE-49206001.A25 49206001	£1.50	£1.80
55 - BRUSH HOLDER BDE-4141707001.A11 4141707001	£1.50	£1.80
56 - WRENCH SET BDE-4148004004.A7 4148004004	£2.78	£3.34
56 - WRENCH SET BDE-4140304007.A3 4140304007	£1.50	£1.80
57 - WASHER BDE-4090104003.A16 4090104003	£1.50	£1.80
58 - END CAP BDE-4140301603.A4 4140301603	£3.30	£3.96
300 - SPINDLE & GEAR SA BDE-4140350001.A3 4140350001	£14.19	£17.03
301 - GEARCASE SA BDE-4140350002.A2 4140350002	£9.41	£11.29
302 - ARMATURE SA BDE-4140350003.A6 4140350003	£19.90	£23.88
800 - GREASE BDE-901186.A1 901186	£44.14	£52.97
800 - GREASE 20G BDE-901186.A2 901186	£44.14	£52.97

Attribute Name	Value
Brand	Stanley
