Stanley SGT-25-450V Type 1 Tiller Spare Parts

Home Details Reviews Delivery

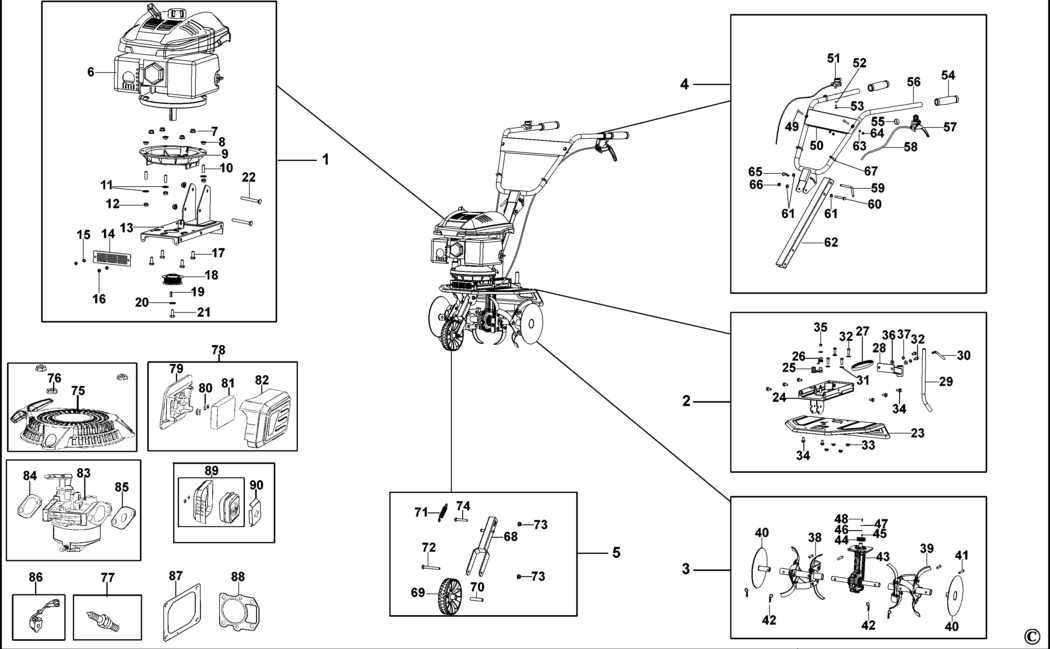

An exploded drawing and spare parts listing for the Stanley SGT-25-450V Type 1 Tiller

	Ex VAT	Inc VAT
2 - BOX BDE-E604400010-B E604400010-B	£58.69	£70.43
3 - GEARBOX SA BDE-E604400010-C E604400010-C	£144.10	£172.92
4 - HANDLE SA BDE-E604400010-D E604400010-D	£44.14	£52.97
5 - WHEEL SA BDE-E604400010-E E604400010-E	£18.91	£22.69
7 - LOCK NUT BDE-E604400010-A2 E604400010-A2	£1.66	£1.99
8 - BUSHING BDE-E604400010-A3 E604400010-A3	£2.71	£3.25
9 - COUPLING BDE-E604400010-A4 E604400010-A4	£9.41	£11.29
10 - BOLT BDE-E604400010-A5 E604400010-A5	£1.66	£1.99
11 - WASHER BDE-E604400010-A6 E604400010-A6	£1.66	£1.99
12 - LOCK NUT BDE-E604400010-A7 E604400010-A7	£1.66	£1.99
13 - COVER BDE-E604400010-A8 E604400010-A8	£9.41	£11.29
14 - COVER BDE-E604400010-A9 E604400010-A9	£7.18	£8.62
15 - WASHER BDE-E604400010-A10 E604400010-A10	£1.66	£1.99
16 - SCREW BDE-E604400010-A11 E604400010-A11	£1.66	£1.99
17 - BOLT BDE-E604400010-A12 E604400010-A12	£1.66	£1.99
18 - WHEEL BDE-E604400010-A13 E604400010-A13	£5.88	£7.06
19 - KEY BDE-E604400010-A14 E604400010-A14	£1.66	£1.99
20 - WASHER BDE-E604400010-A15 E604400010-A15	£1.82	£2.19
21 - BOLT BDE-E604400010-A16 E604400010-A16	£3.30	£3.96
22 - BOLT BDE-E604400010-A17 E604400010-A17	£3.30	£3.96
23 - COVER SA BDE-E604400010-B1 E604400010-B1	£14.57	£17.48
24 - BOX BDE-E604400010-B2 E604400010-B2	£17.48	£20.97
25 - TENSIONING PULLEY BDE-E604400010-B3 E604400010-B3	£5.88	£7.06
26 - SPRING BDE-E604400010-B4 E604400010-B4	£1.66	£1.99
27 - BELT BDE-E604400010-B5 E604400010-B5	£7.85	£9.42
28 - SUPPORT BDE-E604400010-B6 E604400010-B6	£7.85	£9.42
29 - STRUT BDE-E604400010-B7 E604400010-B7	£10.85	£13.02
30 - SCREW BDE-E604400010-B8 E604400010-B8	£1.66	£1.99
31 - WASHER BDE-E604400010-B9 E604400010-B9	£1.66	£1.99
32 - BOLT BDE-E604400010-B10 E604400010-B10	£1.66	£1.99
33 - LOCK NUT BDE-E604400010-B11 E604400010-B11	£1.66	£1.99
34 - BOLT BDE-E604400010-B12 E604400010-B12	£1.66	£1.99
35 - LOCK NUT BDE-E604400010-B13 E604400010-B13	£1.66	£1.99
36 - WASHER BDE-E604400010-B14 E604400010-B14	£1.66	£1.99
37 - WASHER SPRING BDE-E604400010-B15 E604400010-B15	£1.66	£1.99
38 - BLADE SA BDE-E604400010-C1 E604400010-C1	£41.24	£49.49
39 - BLADE SA BDE-E604400010-C2 E604400010-C2	£41.24	£49.49
40 - DISC BDE-E604400010-C3 E604400010-C3	£14.57	£17.48
41 - PIN BDE-E604400010-C4 E604400010-C4	£1.66	£1.99
42 - COTTER PIN BDE-E604400010-C5 E604400010-C5	£1.66	£1.99
43 - GEARBOX SA BDE-E604400010-C6 E604400010-C6	£74.15	£88.98
44 - WHEEL BDE-E604400010-C7 E604400010-C7	£2.78	£3.34
45 - KEY BDE-E604400010-C8 E604400010-C8	£1.66	£1.99
46 - WASHER BDE-E604400010-C9 E604400010-C9	£1.66	£1.99
47 - WASHER SPRING BDE-E604400010-C10 E604400010-C10	£1.66	£1.99
48 - BOLT BDE-E604400010-C11 E604400010-C11	£1.66	£1.99
49 - BOLT BDE-E604400010-D1 E604400010-D1	£1.66	£1.99
50 - PLATE BDE-E604400010-D2 E604400010-D2	£5.88	£7.06
51 - SWITCH BDE-E604400010-D3 E604400010-D3	£7.85	£9.42
52 - WASHER BDE-E604400010-D4 E604400010-D4	£1.66	£1.99
53 - SCREW BDE-E604400010-D5 E604400010-D5	£1.66	£1.99
54 - HANDLE COVER BDE-E604400010-D6 E604400010-D6	£1.82	£2.19
55 - TUBE BDE-E604400010-D7 E604400010-D7	£1.66	£1.99
56 - HANDLE SA BDE-E604400010-D8 E604400010-D8	£14.57	£17.48
57 - LEVER BDE-E604400010-D9 E604400010-D9	£5.88	£7.06
58 - CABLE BDE-E604400010-D10 E604400010-D10	£9.41	£11.29
59 - LOCK SCREW BDE-E604400010-D11 E604400010-D11	£3.70	£4.44
60 - BOLT BDE-E604400010-D12 E604400010-D12	£1.66	£1.99
61 - WASHER BDE-E604400010-D13 E604400010-D13	£1.66	£1.99
62 - BEAM BDE-E604400010-D14 E604400010-D14	£9.41	£11.29
63 - WASHER BDE-E604400010-D15 E604400010-D15	£1.66	£1.99
64 - LOCK NUT BDE-E604400010-D16 E604400010-D16	£1.66	£1.99
65 - COTTER PIN BDE-E604400010-D17 E604400010-D17	£1.66	£1.99
66 - LOCK NUT BDE-E604400010-D18 E604400010-D18	£1.66	£1.99
67 - CLIP CABLE BDE-E604400010-D19 E604400010-D19	£1.66	£1.99
68 - SUPPORT BDE-E604400010-E1 E604400010-E1	£9.41	£11.29
69 - WHEEL BDE-E604400010-E2 E604400010-E2	£14.57	£17.48
70 - BUSHING BDE-E604400010-E3 E604400010-E3	£2.21	£2.65
71 - SPRING BDE-E604400010-E4 E604400010-E4	£1.66	£1.99
72 - BOLT BDE-E604400010-E5 E604400010-E5	£1.66	£1.99
73 - LOCK NUT BDE-E604400010-E6 E604400010-E6	£1.66	£1.99
74 - BOLT BDE-E604400010-E7 E604400010-E7	£1.78	£2.13
75 - STARTER SA BDE-E604400010-F1 E604400010-F1	£17.48	£20.97
76 - NUT M6 BDE-E604400010-F1-1 E604400010-F1-1	£1.66	£1.99
77 - SPARK PLUG BDE-E604400010-F2 E604400010-F2	£7.85	£9.42
78 - FILTER SA BDE-E604400010-F3 E604400010-F3	£3.30	£3.96
79 - COVER BDE-E604400010-F3-1 E604400010-F3-1	£2.78	£3.34
80 - NUT M6 BDE-E604400010-F3-2 E604400010-F3-2	£1.66	£1.99
81 - ELEMENT BDE-E604400010-F3-3 E604400010-F3-3	£1.66	£1.99
82 - COVER BDE-E604400010-F3-4 E604400010-F3-4	£4.69	£5.63
83 - CARBURETTOR SA BDE-E604400010-F4 E604400010-F4	£38.80	£46.56
84 - GASKET BDE-E604400010-F4-1 E604400010-F4-1	£1.66	£1.99
85 - GASKET BDE-E604400010-F4-2 E604400010-F4-2	£1.66	£1.99
86 - COIL SA BDE-E604400010-F5 E604400010-F5	£24.39	£29.27
87 - GASKET BDE-E604400010-F6 E604400010-F6	£1.66	£1.99
88 - GASKET BDE-E604400010-F7 E604400010-F7	£3.80	£4.56
89 - MUFFLER BDE-E604400010-F8 E604400010-F8	£14.57	£17.48
90 - PLATE BDE-E604400010-F8-1 E604400010-F8-1	£3.30	£3.96

Attribute Name	Value
Brand	Stanley
