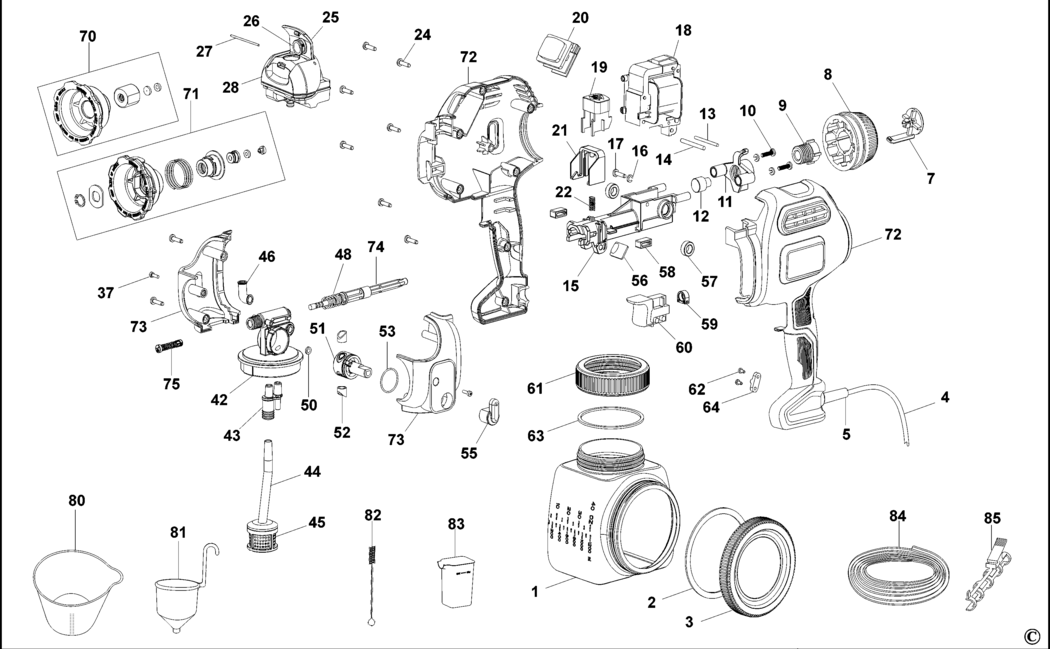

1 - CANISTER
BDE-1004570-00.A0
1004570-00
|
£7.85
|
£9.42
|
|
|
2 - SEAL
BDE-1004570-01.A5
1004570-01
|
£1.50
|
£1.80
|
|
|
3 - COVER
BDE-1004570-02.A0
1004570-02
|
£2.26
|
£2.71
|
|
|
4 - CORDSET GB
BDE-1004594-47.A2
1004594-47
|
£23.75
|
£28.50
|
|
|
5 - SLEEVE
BDE-1004570-03.A5
1004570-03
|
£1.50
|
£1.80
|
|
|
7 - COVER
BDE-1004570-05.A2
1004570-05
|
£1.50
|
£1.80
|
|
|
8 - KNOB
BDE-1004570-06.A0
1004570-06
|
£3.22
|
£3.86
|
|
|
9 - SHAFT
BDE-1004570-07.A2
1004570-07
|
£1.50
|
£1.80
|
|
|
10 - SCREW
BDE-1004570-08.A0
1004570-08
|
£1.50
|
£1.80
|
|
|
11 - SUPPORT. REAR
BDE-1004570-10.A0
1004570-10
|
£1.50
|
£1.80
|
|
|
12 - HEAD
BDE-1004570-28.A0
1004570-28
|
£3.30
|
£3.96
|
|
|
13 - PIN
BDE-1004570-11.A2
1004570-11
|
£1.50
|
£1.80
|
|
|
14 - PIN
BDE-1004570-12.A0
1004570-12
|
£1.50
|
£1.80
|
|
|
15 - BASE
BDE-1004570-27.A3
1004570-27
|
£24.39
|
£29.27
|
|
|
16 - WASHER SPRING
BDE-1004570-09.A2
1004570-09
|
£1.50
|
£1.80
|
|
|
17 - SCREW
BDE-1004570-26.A0
1004570-26
|
£1.50
|
£1.80
|
|
|
18 - SOLENOID ASSEMBLY
BDE-1004570-13.A2
1004570-13
|
£58.69
|
£70.43
|
|
|
19 - BUTTON RELEASE
BDE-1004570-40.A0
1004570-40
|
£1.50
|
£1.80
|
|
|
20 - PCB
BDE-1004570-58
1004570-58
|
-
|
|
|
|
21 - SLIDER
BDE-1004570-15.A2
1004570-15
|
£3.80
|
£4.56
|
|
|
22 - SPRING
BDE-1004570-16.A0
1004570-16
|
£1.50
|
£1.80
|
|
|
24 - SCREW
BDE-1004570-17.A5
1004570-17
|
£1.50
|
£1.80
|
|
|
25 - LID
BDE-1004570-42.A1
1004570-42
|
£1.50
|
£1.80
|
|
|
26 - O RING
BDE-1004570-43.A0
1004570-43
|
£1.50
|
£1.80
|
|
|
27 - PIN
BDE-1004570-44.A1
1004570-44
|
£1.50
|
£1.80
|
|
|
28 - TANK
BDE-1004570-45.A0
1004570-45
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-1004570-18.A0
1004570-18
|
£1.50
|
£1.80
|
|
|
42 - SUPPORT
BDE-1004570-46.A1
1004570-46
|
£17.48
|
£20.97
|
|
|
43 - HOSE SA
BDE-1004570-20.A2
1004570-20
|
£1.50
|
£1.80
|
|
|
44 - TUBE
BDE-1004570-21.A0
1004570-21
|
£1.50
|
£1.80
|
|
|
45 - FILTER
BDE-1004570-23.A2
1004570-23
|
£1.50
|
£1.80
|
|
|
46 - CONNECTOR
BDE-1004570-47.A0
1004570-47
|
£1.50
|
£1.80
|
|
|
48 - SPRING
BDE-1004570-48.A1
1004570-48
|
£2.26
|
£2.71
|
|
|
50 - SEAL
BDE-1004570-49.A0
1004570-49
|
£1.50
|
£1.80
|
|
|
51 - ROD
BDE-1004570-50.A1
1004570-50
|
£1.50
|
£1.80
|
|
|
52 - INLET CAP
BDE-1004570-51.A0
1004570-51
|
£1.50
|
£1.80
|
|
|
53 - SEAL
BDE-1004570-52.A1
1004570-52
|
£1.50
|
£1.80
|
|
|
55 - KNOB
BDE-1004570-53.A0
1004570-53
|
£1.50
|
£1.80
|
|
|
56 - NO LONGER AVAILABLE
BDE-000000-00.A30386
000000-00
|
-
|
|
|
|
57 - RING
BDE-1004570-29.A3
1004570-29
|
£1.50
|
£1.80
|
|
|
58 - RUBBER PAD
BDE-1004570-30.A0
1004570-30
|
£1.50
|
£1.80
|
|
|
59 - RING
BDE-1004570-54.A1
1004570-54
|
£1.50
|
£1.80
|
|
|
60 - SWITCH
BDE-1004570-32.A3
1004570-32
|
£9.41
|
£11.29
|
|
|
61 - LID
BDE-1004570-24.A0
1004570-24
|
£1.50
|
£1.80
|
|
|
62 - SCREW
BDE-1004570-33.A0
1004570-33
|
£1.50
|
£1.80
|
|
|
63 - O RING
BDE-1004570-25.A5
1004570-25
|
£5.88
|
£7.06
|
|
|
64 - CLAMP
BDE-1004570-34.A3
1004570-34
|
£1.50
|
£1.80
|
|
|
70 - NOZZLE
BDE-1004570-36.A3
1004570-36
|
£7.18
|
£8.62
|
|
|
71 - NOZZLE
BDE-1004570-35.A0
1004570-35
|
£24.39
|
£29.27
|
|
|
72 - CLAMSHELL
BDE-1004570-55.A0
1004570-55
|
£25.70
|
£30.84
|
|
|
73 - HOUSING
BDE-1004570-56.A1
1004570-56
|
£1.50
|
£1.80
|
|
|
74 - PISTON
BDE-1004570-39.A2
1004570-39
|
£3.30
|
£3.96
|
|
|
75 - VENTURI
BDE-1004570-57.A0
1004570-57
|
£1.82
|
£2.19
|
|
|
80 - CONTAINER
BDE-1004571-21.A4
1004571-21
|
£4.69
|
£5.63
|
|
|
81 - CUP
BDE-1004571-22.A0
1004571-22
|
£1.50
|
£1.80
|
|
|
82 - BRUSH
BDE-1004571-23.A2
1004571-23
|
£1.50
|
£1.80
|
|
|
83 - CUP
BDE-1004571-24.A0
1004571-24
|
£1.50
|
£1.80
|
|
|
84 - HOSE PLATE
BDE-1004571-25
1004571-25
|
£10.57
|
£12.68
|
|
|
85 - NO LONGER AVAILABLE
BDE-000000-00.A30387
000000-00
|
-
|
|
|
