Black & Decker BDPS200 Type 1 Spray Gun Spare Parts

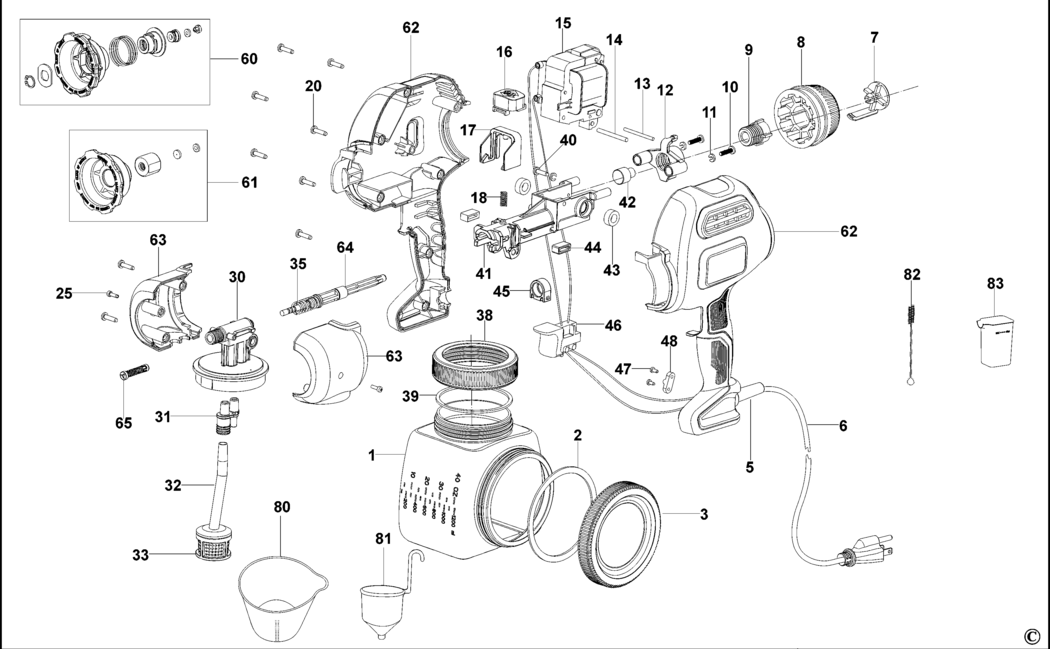

An exploded drawing and spare parts listing for the Black & Decker BDPS200 Type 1 Spray Gun

	Ex VAT	Inc VAT
1 - CANISTER BDE-1004570-00.A1 1004570-00	£7.85	£9.42
2 - SEAL BDE-1004570-01.A4 1004570-01	£1.50	£1.80
3 - COVER BDE-1004570-02.A1 1004570-02	£2.26	£2.71
4 - CLAMSHELL SA BDE-5170001-83 5170001-83	-
5 - SLEEVE BDE-1004570-03.A4 1004570-03	£1.50	£1.80
6 - CORDSET BDE-1004570-04 1004570-04	£19.90	£23.88
6 - CORDSET GB BDE-1004594-47.A1 1004594-47	£23.75	£28.50
7 - COVER BDE-1004570-05.A0 1004570-05	£1.50	£1.80
8 - KNOB BDE-1004570-06.A2 1004570-06	£3.22	£3.86
9 - SHAFT BDE-1004570-07.A0 1004570-07	£1.50	£1.80
10 - SCREW BDE-1004570-08.A2 1004570-08	£1.50	£1.80
11 - WASHER SPRING BDE-1004570-09.A0 1004570-09	£1.50	£1.80
12 - SUPPORT. REAR BDE-1004570-10.A2 1004570-10	£1.50	£1.80
13 - PIN BDE-1004570-11.A0 1004570-11	£1.50	£1.80
14 - PIN BDE-1004570-12.A2 1004570-12	£1.50	£1.80
15 - SOLENOID ASSEMBLY BDE-1004570-13.A0 1004570-13	£58.69	£70.43
16 - BUTTON RELEASE BDE-1004570-14 1004570-14	£1.50	£1.80
17 - SLIDER BDE-1004570-15.A0 1004570-15	£3.80	£4.56
18 - SPRING BDE-1004570-16.A2 1004570-16	£1.50	£1.80
20 - SCREW BDE-1004570-17.A0 1004570-17	£1.50	£1.80
21 - NOZZLE BDE-1004570-36.A2 1004570-36	£7.18	£8.62
25 - SCREW BDE-1004570-18.A2 1004570-18	£1.50	£1.80
26 - BODY BDE-1004570-38.A1 1004570-38	£7.18	£8.62
27 - VENTURI BDE-1004570-57.A3 1004570-57	£1.82	£2.19
30 - SUPPORT BDE-1004570-19 1004570-19	£17.48	£20.97
30 - SUPPORT SA BDE-5170001-79 5170001-79	-
31 - HOSE SA BDE-1004570-20.A1 1004570-20	£1.50	£1.80
32 - TUBE BDE-1004570-21.A1 1004570-21	£1.50	£1.80
33 - FILTER BDE-1004570-23.A0 1004570-23	£1.50	£1.80
35 - SPRING BDE-1004570-22 1004570-22	£2.26	£2.71
38 - LID BDE-1004570-24.A2 1004570-24	£1.50	£1.80
39 - O RING BDE-1004570-25.A3 1004570-25	£5.88	£7.06
40 - SCREW BDE-1004570-26.A2 1004570-26	£1.50	£1.80
40 - LOCK BDE-5170001-84 5170001-84	-
41 - BASE BDE-1004570-27.A1 1004570-27	£24.39	£29.27
41 - PIN BDE-5170001-85 5170001-85	-
42 - SPRING BDE-5170001-86 5170001-86	-
42 - HEAD BDE-1004570-28.A3 1004570-28	£3.30	£3.96
43 - SCREW BDE-1004570-26.A3 1004570-26	£1.50	£1.80
43 - RING BDE-1004570-29.A0 1004570-29	£1.50	£1.80
44 - BASE BDE-1004570-27.A0 1004570-27	£24.39	£29.27
44 - RUBBER PAD BDE-1004570-30.A3 1004570-30	£1.50	£1.80
45 - RING BDE-1004570-31.A0 1004570-31	£1.42	£1.70
45 - HEAD BDE-1004570-28.A2 1004570-28	£3.30	£3.96
46 - SWITCH BDE-1004570-32.A1 1004570-32	£9.41	£11.29
46 - RING BDE-1004570-29.A1 1004570-29	£1.50	£1.80
47 - SCREW BDE-1004570-33.A4 1004570-33	£1.50	£1.80
47 - RUBBER PAD BDE-1004570-30.A2 1004570-30	£1.50	£1.80
48 - CLAMP BDE-1004570-34.A1 1004570-34	£1.50	£1.80
48 - RING BDE-1004570-31.A1 1004570-31	£1.42	£1.70
49 - SWITCH BDE-1004570-32.A0 1004570-32	£9.41	£11.29
50 - SCREW BDE-1004570-33.A3 1004570-33	£1.50	£1.80
51 - CLAMP BDE-1004570-34.A2 1004570-34	£1.50	£1.80
53 - NOZZLE BDE-1004570-35.A1 1004570-35	£24.39	£29.27
60 - NOZZLE BDE-1004570-35.A2 1004570-35	£24.39	£29.27
61 - NOZZLE BDE-1004570-36.A1 1004570-36	£7.18	£8.62
62 - CLAMSHELL BDE-1004570-37 1004570-37	£24.39	£29.27
63 - BODY BDE-1004570-38.A0 1004570-38	£7.18	£8.62
64 - PISTON BDE-1004570-39.A0 1004570-39	£3.30	£3.96
65 - VENTURI BDE-1004570-57.A1 1004570-57	£1.82	£2.19
80 - CONTAINER BDE-1004571-21.A3 1004571-21	£4.69	£5.63
81 - CUP BDE-1004571-22.A1 1004571-22	£1.50	£1.80
82 - BRUSH BDE-1004571-23.A1 1004571-23	£1.50	£1.80
83 - CUP BDE-1004571-24.A1 1004571-24	£1.50	£1.80
