Bosch PSA 900 E / 3603CA6000 / EU 230 Volt Spare Parts

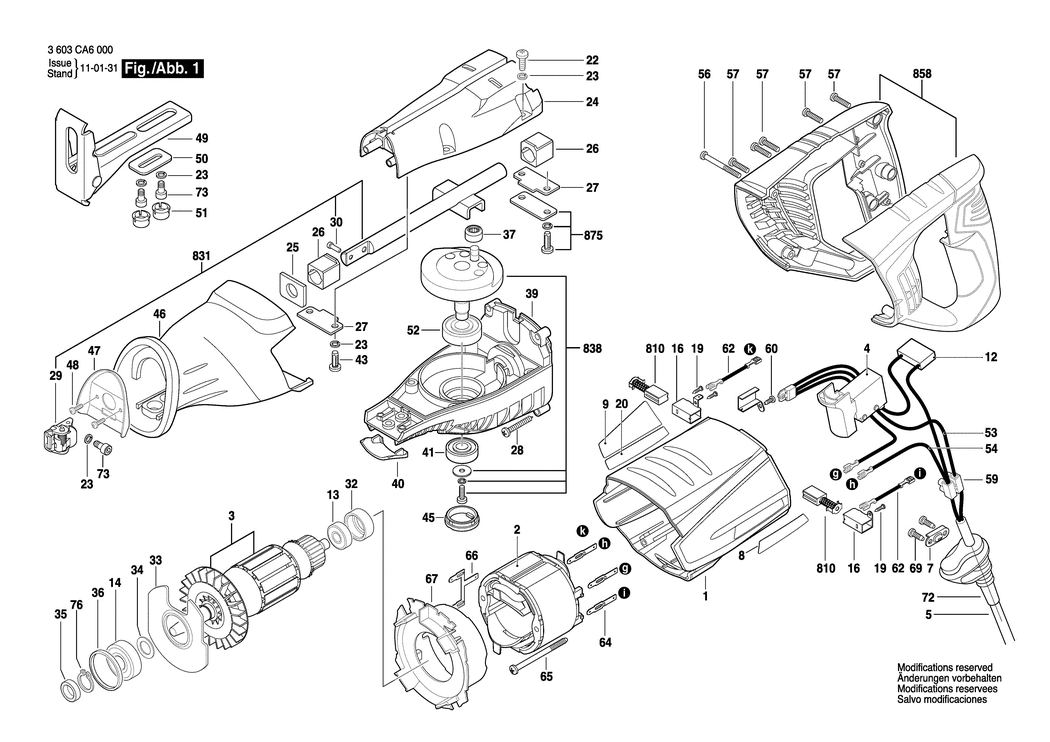

An exploded drawing and listing for the Bosch PSA 900 E / 3603CA6000 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-1619PA1317.A2 1619PA1317	£14.72	£17.67
2 - STATOR BSD-1619PA1321.A2 1619PA1321	£27.23	£32.68
3 - ARMATURE BSD-1619PA1324.A0 1619PA1324	£45.67	£54.80
4 - ON-OFF SWITCH BSD-1619PA1684.A0 1619PA1684	£27.23	£32.68
5 - POWER SUPPLY CORD EU 230V BSD-1619PA1333.A0 1619PA1333	£14.91	£17.89
7 - CABLE CLIP BSD-2610956868.A6 2610956868	£1.75	£2.10
8 - MANUFACTURER'S NAMEPLATE PSA 900 E BSD-1619PA1336.A0 1619PA1336	£2.33	£2.80
9 - MANUFACTURER'S NAMEPLATE BOSCH BSD-1619PA1337.A2 1619PA1337	£2.33	£2.80
12 - SUPPRESSION CAPACITOR BSD-1619PA1318.A0 1619PA1318	£5.30	£6.36
13 - GROOVE BALL BEARING BSD-2610956882.A1 2610956882	£5.58	£6.70
14 - GROOVE BALL BEARING BSD-2610956893.A5 2610956893	£8.67	£10.41
16 - BRUSH HOLDER BSD-2610956874.A9 2610956874	£2.61	£3.13
19 - TAPPING SCREW BSD-1619PA1320.A0 1619PA1320	£1.75	£2.10
20 - NAMEPLATE BSD-1619PA1338.A0 1619PA1338	£2.61	£3.13
22 - THREAD-FORMING SCREW BSD-2610956894.A5 2610956894	£1.75	£2.10
23 - SPRING WASHER BSD-1619P04820.A1 1619P04820	£1.75	£2.10
24 - GEAR COVER BSD-1619PA1332.A2 1619PA1332	£10.10	£12.12
25 - FELT SEAL BSD-1619P04821.A5 1619P04821	£1.75	£2.10
26 - BUSHING BSD-2610956896.A5 2610956896	£6.52	£7.83
27 - SEALING PLATE BSD-2610956895.A5 2610956895	£2.16	£2.59
28 - SELF-CUTTING SCREW BSD-2610956899.A5 2610956899	£1.75	£2.10
29 - BLADE HOLDER BSD-1619PA4168.A5 1619PA4168	£16.41	£19.69
30 - PIN BSD-1619P04839.A9 1619P04839	£1.75	£2.10
32 - BEARING HOLDER BSD-2610956881.A5 2610956881	£1.75	£2.10
33 - SEALING PLATE BSD-2610956887.A1 2610956887	£6.52	£7.83
34 - WASHER BSD-2610956884.A5 2610956884	£1.75	£2.10
35 - BUSHING BSD-2610956886.A5 2610956886	£1.75	£2.10
36 - RUBBER RING BSD-2610956885.A1 2610956885	£1.75	£2.10
37 - NEEDLE-ROLLER BEARING BSD-1619P04823.A1 1619P04823	£10.10	£12.12
39 - GEAR COVER BSD-1619PA1328.A2 1619PA1328	£31.64	£37.97
40 - SUPPORT PLATE BSD-1619P04824.A5 1619P04824	£2.80	£3.36
41 - GROOVE BALL BEARING BSD-2610956889.A1 2610956889	£7.36	£8.83
43 - THREAD-FORMING SCREW BSD-1619P03322.A1 1619P03322	£1.75	£2.10
45 - COVER BSD-2610956888.A5 2610956888	£1.75	£2.10
46 - INSULATING SLEEVE BSD-1619PA1329.A0 1619PA1329	£18.96	£22.75
47 - SEALING PLATE BSD-1619PA1330.A2 1619PA1330	£2.80	£3.36
48 - THREAD-FORMING SCREW BSD-1619P04827.A5 1619P04827	£1.75	£2.10
49 - SUPPORTING FOOT BSD-2610956898.A5 2610956898	£12.04	£14.45
50 - CLAMP BSD-1619P04828.A5 1619P04828	£2.61	£3.13
51 - COVER BSD-2610956900.A5 2610956900	£2.16	£2.59
52 - GROOVE BALL BEARING BSD-1619PA1587.A1 1619PA1587	£5.58	£6.70
53 - CONNECTING CABLE BSD-1619PA1334.A0 1619PA1334	£2.61	£3.13
54 - CONNECTING CABLE BSD-1619PA1335.A2 1619PA1335	£2.61	£3.13
56 - TAPPING SCREW BSD-2610956864.A8 2610956864	£2.16	£2.59
57 - TAPPING SCREW BSD-2610956865.A6 2610956865	£2.16	£2.59
59 - TERMINAL BLOCK BSD-2610956870.A5 2610956870	£2.61	£3.13
60 - SCREW BSD-2610956869.A4 2610956869	£1.75	£2.10
62 - CONNECTING CABLE BSD-1619P04840.A1 1619P04840	£2.80	£3.36
64 - CONNECTING TERMINAL BSD-2610956878.A9 2610956878	£2.16	£2.59
65 - TAPPING SCREW BSD-1619P04833.A5 1619P04833	£2.16	£2.59
66 - BLADE TERMINAL BSD-1619PA1322.A0 1619PA1322	£2.16	£2.59
67 - AIR-DEFLECTOR RING BSD-1619PA1323.A2 1619PA1323	£2.80	£3.36
69 - TAPPING SCREW BSD-2610956867.A8 2610956867	£1.75	£2.10
72 - CORD GUARD BSD-1619PA1319.A6 1619PA1319	£2.16	£2.59
73 - HEX SOCKET HEAD CAP SCREW BSD-1619PA1331.A0 1619PA1331	£2.80	£3.36
76 - CLIP BSD-1619PA1326.A0 1619PA1326	£1.75	£2.10
810 - CARBON-BRUSH SET BSD-2610956917.A5 2610956917	£5.30	£6.36
831 - SPINDLE ASSEMBLY BSD-1619PA0471.A6 1619PA0471	£27.23	£32.68
838 - BEVEL GEAR BSD-1619PA1982.A1 1619PA1982	£33.74	£40.49
858 - SET OF HANDLES BSD-1619PA1340.A0 1619PA1340	£18.96	£22.75
875 - PLATE BSD-1619PA1983.A1 1619PA1983	£5.30	£6.36

Attribute Name	Value
Brand	Bosch
