Bosch PCM 8 ST / 3603M10101 / EU 230 Volt Spare Parts

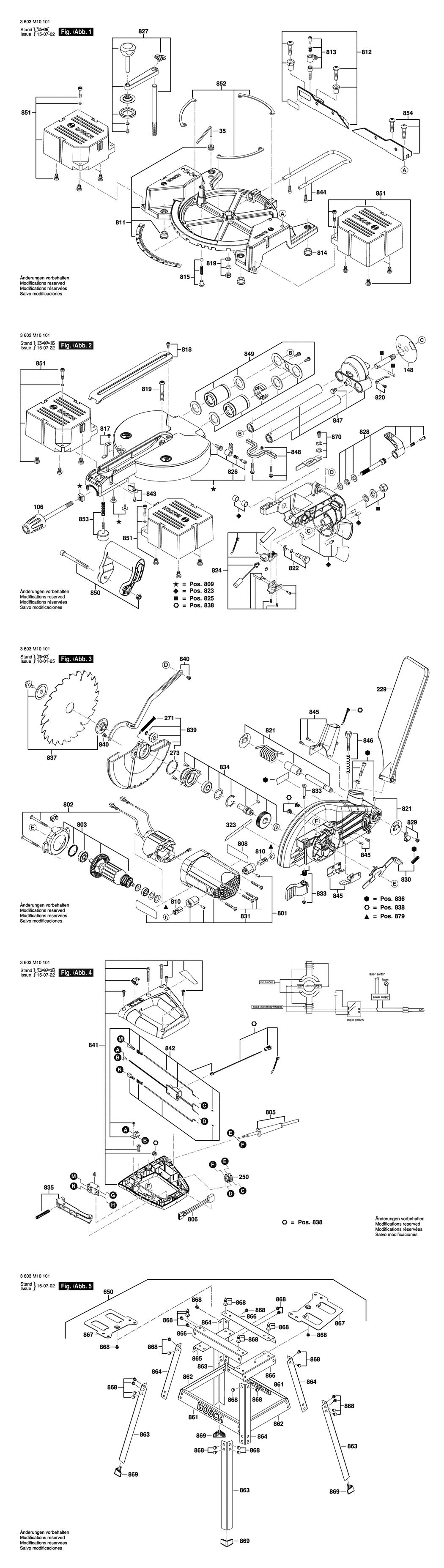

An exploded drawing and listing for the Bosch PCM 8 ST / 3603M10101 / EU 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-2609007299.A4 2609007299	£10.10	£12.12
35 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A10 1609BP7026	£2.80	£3.36
106 - KNOB BSD-1609B01840.A1 1609B01840	£5.58	£6.70
148 - WEAR PLATE BSD-1609BP7351.A4 1609BP7351	£1.75	£2.10
229 - DUST BAG BSD-1609BP7021.A5 1609BP7021	£13.12	£15.75
250 - CONNECTION BLOCK BSD-1609BP7059.A65 1609BP7059	£1.75	£2.10
271 - CONTACT STRAP BSD-1609B02674.A4 1609B02674	£1.75	£2.10
273 - SPRING RETAINING RING BSD-1609BP7049.A2 1609BP7049	£1.75	£2.10
323 - LABEL BSD-1609B02677.A0 1609B02677	£2.61	£3.13
650 - TABLE STAND BSD-1609B02606.A0 1609B02606	£218.41	£262.09
801 - MOTOR HOUSING BSD-1609B02531.A0 1609B02531	£14.91	£17.89
802 - STATOR 230V BSD-1609BP7171.A8 1609BP7171	£40.80	£48.96
803 - ARMATURE BSD-1609B02194.A1 1609B02194	£48.38	£58.06
805 - POWER SUPPLY CORD BSD-1609BP7173.A4 1609BP7173	£18.96	£22.75
806 - SUPPRESSION CAPACITOR BSD-1609B02703.A4 1609B02703	£1.75	£2.10
808 - NAMEPLATE BSD-1609BN0149.A0 1609BN0149	£2.61	£3.13
809 - TABLE BSD-1609B02735.A1 1609B02735	£59.53	£71.44
810 - CARBON-BRUSH SET BSD-1609BP7209.A7 1609BP7209	£11.30	£13.56
811 - BASE UNIT BSD-1609B02734.A2 1609B02734	£54.42	£65.30
812 - MITRE FENCE BSD-1609B02705.A3 1609B02705	£18.96	£22.75
813 - KNOB BSD-1609B02706.A3 1609B02706	£2.61	£3.13
814 - RUBBER BUSHING BSD-1609B02707.A3 1609B02707	£2.16	£2.59
815 - BALL BSD-1609B02708.A3 1609B02708	£1.75	£2.10
817 - POINTER BSD-1609B02737.A4 1609B02737	£1.75	£2.10
818 - INSERT BSD-1609B02764.A3 1609B02764	£2.16	£2.59
819 - FASTENING PARTS KIT BSD-1609B02738.A2 1609B02738	£1.75	£2.10
820 - POINTER BSD-1609B02745.A1 1609B02745	£1.75	£2.10
821 - TORSION SPRING BSD-1609B02714.A4 1609B02714	£12.04	£14.45
822 - KNOB BSD-1609B02715.A5 1609B02715	£1.75	£2.10
823 - SUPPORT ELEMENT BSD-1609B02739.A1 1609B02739	-
824 - LASER MODULE BSD-1609B02251.A2 1609B02251	£14.91	£17.89
825 - SHAFT BSD-1609BP7383.A4 1609BP7383	£2.52	£3.02
826 - KNOB BSD-1609B02618.A3 1609B02618	£2.61	£3.13
827 - CLAMP BSD-1609B02603.A6 1609B02603	£10.10	£12.12
828 - LOCKING LEVER BSD-1609B02661.A2 1609B02661	£6.52	£7.83
829 - CLAMPING PIECE BSD-1609BP7192.A10 1609BP7192	£2.61	£3.13
830 - LOCKING DEVICE BSD-1609BP7193.A2 1609BP7193	£5.58	£6.70
831 - TAPPING SCREW BSD-1609BP7211.A11 1609BP7211	£1.75	£2.10
833 - LOCKING DEVICE BSD-1609BP7194.A10 1609BP7194	£5.58	£6.70
834 - GEAR BSD-1609BP7197.A8 1609BP7197	£21.68	£26.01
835 - TRIGGER BSD-1609BP7200.A10 1609BP7200	£1.75	£2.10
836 - HOUSING BSD-1609B02740.A2 1609B02740	£40.80	£48.96
837 - FLANGE BSD-1609B02726.A4 1609B02726	£7.36	£8.83
838 - CABLE BSD-1609B02727.A2 1609B02727	£4.26	£5.11
839 - PROTECTIVE COVER BSD-1609B02728.A4 1609B02728	£11.30	£13.56
840 - LINKAGE BSD-1609B02763.A0 1609B02763	£5.58	£6.70
841 - SET OF HANDLES BSD-1609B02730.A4 1609B02730	£8.67	£10.41
842 - POWER SUPPLY BSD-1609B02678.A0 1609B02678	£23.86	£28.63
843 - LEAF SPRING BSD-1609B02731.A4 1609B02731	£1.75	£2.10
844 - BAR BSD-1609B02732.A5 1609B02732	£5.30	£6.36
845 - CHUTE BSD-1609B02733.A1 1609B02733	£4.26	£5.11
846 - KNOB BSD-1609B02743.A1 1609B02743	£1.75	£2.10
847 - YOKE BSD-1609B02744.A2 1609B02744	£31.64	£37.97
848 - PLATE BSD-1609B02746.A2 1609B02746	£3.72	£4.47
849 - BEARING BSD-1609B02748.A1 1609B02748	£23.86	£28.63
850 - CARRYING HANDLE BSD-1609B02749.A2 1609B02749	£3.72	£4.47
851 - EXTENSION STAND BSD-1609B02750.A4 1609B02750	£10.10	£12.12
852 - SLIDING PLATE BSD-1609B02736.A2 1609B02736	£3.72	£4.47
853 - SUPPORT BSD-1609BP7393.A5 1609BP7393	£1.75	£2.10
854 - MITRE FENCE BSD-1609B02617.A0 1609B02617	£16.41	£19.69
861 - PROFILE STRUT BSD-1609B02762.A0 1609B02762	£11.30	£13.56
862 - PROFILE STRUT BSD-1609B02761.A0 1609B02761	£11.30	£13.56
863 - PROFILE STRUT BSD-1609B02760.A0 1609B02760	£21.68	£26.01
864 - PROFILE STRUT BSD-1609B02759.A0 1609B02759	£18.96	£22.75
865 - PROFILE STRUT BSD-1609B02758.A0 1609B02758	£11.30	£13.56
866 - PROFILE STRUT BSD-1609B02757.A0 1609B02757	£14.91	£17.89
867 - PROFILE STRUT BSD-1609B02756.A0 1609B02756	£37.27	£44.72
868 - FASTENING PARTS KIT BSD-1609B02755.A0 1609B02755	£16.41	£19.69
869 - SUPPORTING FOOT BSD-1609B01843.A0 1609B01843	£3.72	£4.47
870 - PLATE BSD-1609B02645.A1 1609B02645	£2.16	£2.59
879 - COVER BSD-1609BP7212.A1 1609BP7212	£1.75	£2.10
