Bosch PCM 8 SD / 3603M11030 / CH 230 Volt Spare Parts

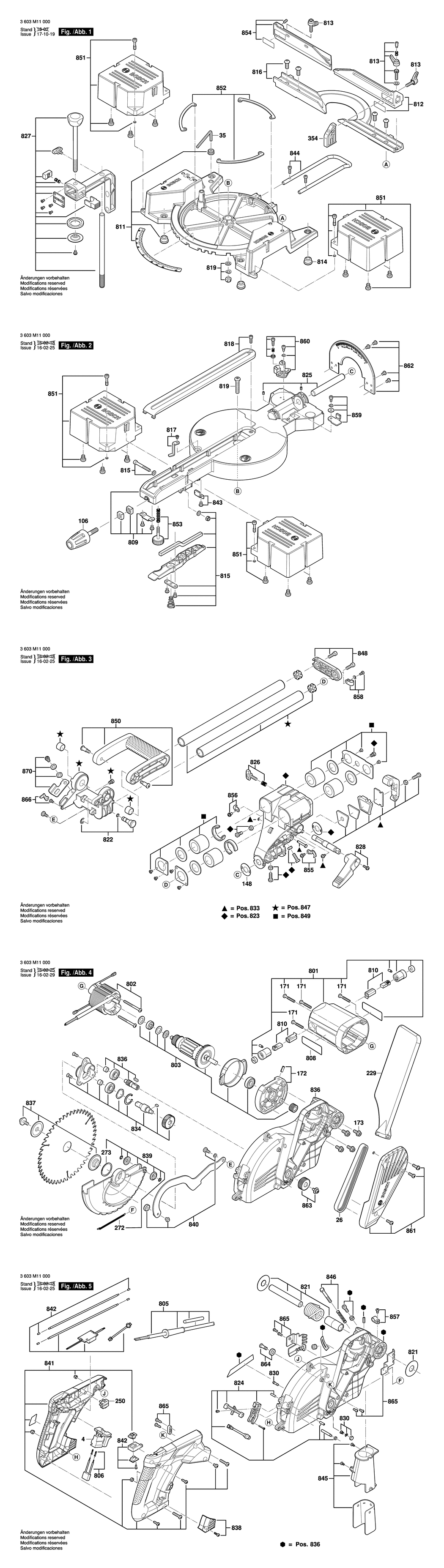

An exploded drawing and listing for the Bosch PCM 8 SD / 3603M11030 / CH 230 Volt

	Ex VAT	Inc VAT
4 - ON-OFF SWITCH BSD-1609B04011.A5 1609B04011	£14.91	£17.89
26 - BELT BSD-1609B01802.A2 1609B01802	£21.52	£25.83
35 - HEXAGON SOCKET SCREW KEY BSD-1609BP7026.A14 1609BP7026	£2.80	£3.36
106 - KNOB BSD-1609B01839.A1 1609B01839	£3.72	£4.47
148 - WEAR PLATE BSD-1609B01457.A20 1609B01457	£1.75	£2.10
171 - TAPPING SCREW BSD-1609BP7087.A1 1609BP7087	-
172 - MOUNTING PLATE BSD-1609B02264.A1 1609B02264	£14.91	£17.89
173 - FLANGE BOLT BSD-1609B00213.A20 1609B00213	£1.75	£2.10
229 - DUST BAG BSD-1609BP7021.A1 1609BP7021	£13.12	£15.75
250 - CONNECTION BLOCK BSD-1609BP7059.A69 1609BP7059	£1.75	£2.10
272 - CONTACT STRAP BSD-1609B02601.A0 1609B02601	£2.61	£3.13
273 - SPRING CLIP BSD-1609B01798.A0 1609B01798	£1.75	£2.10
354 - STOP BSD-1609B01789.A2 1609B01789	£6.52	£7.83
801 - MOTOR HOUSING BSD-1609B02699.A1 1609B02699	£18.96	£22.75
802 - FIELD BSD-1609B02719.A1 1609B02719	£45.67	£54.80
803 - ARMATURE BSD-1609B02720.A1 1609B02720	£68.42	£82.10
805 - POWER SUPPLY CORD CH. 2.68m 2x1mm H05VV-F BSD-1609B02806.A0 1609B02806	£13.12	£15.75
806 - SUPPRESSION CAPACITOR BSD-1609B02700.A1 1609B02700	£1.75	£2.10
808 - NAMEPLATE BSD-1609BN0162.A0 1609BN0162	£2.61	£3.13
809 - TABLE BSD-1609B02701.A1 1609B02701	£81.81	£98.17
810 - CARBON-BRUSH SET BSD-1609BP7209.A14 1609BP7209	£11.30	£13.56
811 - BASE UNIT BSD-1609B02734.A5 1609B02734	£54.42	£65.30
812 - MITRE FENCE BSD-1609B02659.A2 1609B02659	£21.52	£25.83
813 - KNOB BSD-1609B02635.A2 1609B02635	£5.30	£6.36
814 - RUBBER BUSHING BSD-1609B02707.A7 1609B02707	£2.16	£2.59
815 - DETENT BSD-1609B02774.A1 1609B02774	£7.36	£8.83
816 - MITRE FENCE BSD-1609B02773.A0 1609B02773	£33.74	£40.49
817 - POINTER BSD-1609B02737.A1 1609B02737	£1.75	£2.10
818 - INSERT BSD-1609B02776.A2 1609B02776	£3.72	£4.47
819 - FASTENING PARTS KIT BSD-1609B02738.A5 1609B02738	£1.75	£2.10
821 - TORSION SPRING BSD-1609B02777.A0 1609B02777	£16.41	£19.69
822 - KNOB BSD-1609B02715.A2 1609B02715	£1.75	£2.10
823 - SUPPORT ELEMENT BSD-1609B02778.A2 1609B02778	£52.15	£62.58
824 - LASER MODULE BSD-1609B02338.A0 1609B02338	£21.68	£26.01
825 - SHAFT BSD-1609B02779.A0 1609B02779	£5.30	£6.36
826 - KNOB BSD-1609B02687.A1 1609B02687	£2.16	£2.59
827 - CLAMP BSD-1609B01797.A1 1609B01797	£27.23	£32.68
828 - LOCKING LEVER BSD-1609B02780.A2 1609B02780	£6.52	£7.83
830 - LOCKING DEVICE BSD-1609B02783.A2 1609B02783	£1.75	£2.10
833 - LOCKING DEVICE BSD-1609B02784.A0 1609B02784	£33.74	£40.49
834 - GEAR BSD-1609B02785.A2 1609B02785	£27.23	£32.68
836 - HOUSING BSD-1609B02786.A0 1609B02786	£81.81	£98.17
837 - FLANGE BSD-1609B02726.A6 1609B02726	£7.36	£8.83
838 - COVER BSD-1609B02794.A0 1609B02794	£1.75	£2.10
839 - PROTECTIVE COVER BSD-1609B02795.A2 1609B02795	£16.41	£19.69
840 - LINKAGE BSD-1609B01796.A1 1609B01796	£13.12	£15.75
841 - SET OF HANDLES BSD-1609B02793.A2 1609B02793	£21.52	£25.83
842 - POWER SUPPLY BSD-1609B02789.A2 1609B02789	£21.68	£26.01
843 - LEAF SPRING BSD-1609B02731.A3 1609B02731	£1.75	£2.10
844 - BAR BSD-1609B02732.A6 1609B02732	£5.30	£6.36
845 - BAR BSD-1609B02747.A2 1609B02747	£4.26	£5.11
846 - KNOB BSD-1609B02788.A0 1609B02788	£1.75	£2.10
847 - YOKE BSD-1609B02787.A2 1609B02787	£63.50	£76.20
848 - END CAP BSD-1609B02632.A1 1609B02632	£4.26	£5.11
849 - BEARING BSD-1609B02790.A0 1609B02790	£31.64	£37.97
850 - CARRYING HANDLE BSD-1609B02791.A2 1609B02791	£5.30	£6.36
851 - EXTENSION STAND BSD-1609B02750.A2 1609B02750	£10.10	£12.12
852 - SLIDING PLATE BSD-1609B02736.A5 1609B02736	£3.72	£4.47
853 - SUPPORTING FOOT BSD-1609B02775.A0 1609B02775	£1.75	£2.10
854 - MITRE FENCE BSD-1609B02660.A0 1609B02660	£21.52	£25.83
855 - POINTER BSD-1609B01818.A1 1609B01818	£1.75	£2.10
856 - POINTER BSD-1609B02765.A4 1609B02765	£1.75	£2.10
857 - POINTER BSD-1609B02765.A5 1609B02765	£1.75	£2.10
858 - CLAMPING PIECE BSD-1609B02782.A0 1609B02782	£1.75	£2.10
859 - PLATE BSD-1609B02796.A0 1609B02796	£2.80	£3.36
860 - DETENT BSD-1609B02797.A2 1609B02797	£8.67	£10.41
861 - COVER BSD-1609B02798.A0 1609B02798	£6.52	£7.83
862 - SCALE BSD-1609B02799.A2 1609B02799	£16.41	£19.69
863 - PULLEY BSD-1609B02800.A0 1609B02800	£13.12	£15.75
864 - PULLEY BSD-1609B02801.A2 1609B02801	£2.80	£3.36
865 - CLAMP BSD-1609B02803.A1 1609B02803	£3.72	£4.47
865 - CLAMP BSD-1609B02802.A0 1609B02802	£1.75	£2.10
866 - POINTER BSD-1609B02670.A2 1609B02670	£1.75	£2.10
870 - PLATE BSD-1609B02792.A0 1609B02792	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
