Bosch GTS 10 XC / 3601L30430 / CH 230 Volt Spare Parts

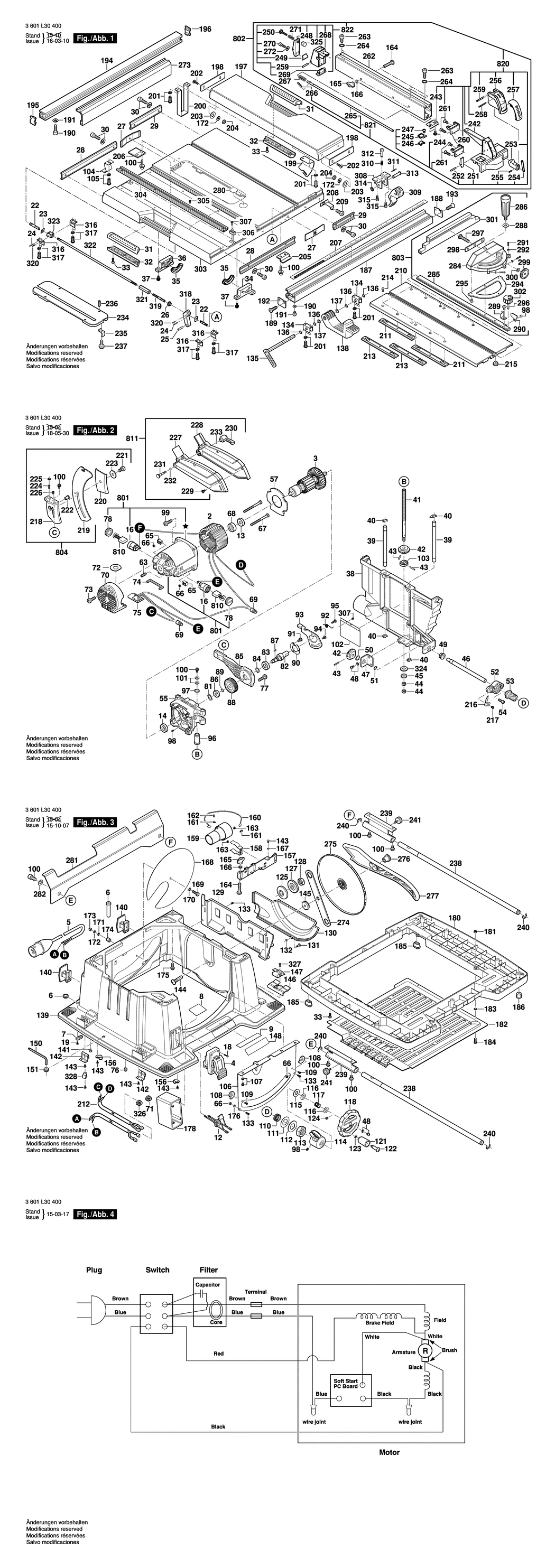

An exploded drawing and listing for the Bosch GTS 10 XC / 3601L30430 / CH 230 Volt

	Ex VAT	Inc VAT
2 - FIELD 230V BSD-2610016834.A6 2610016834	£102.57	£123.08
3 - ARMATURE 230V BSD-2610016833.A1 2610016833	£120.11	£144.13
4 - ON-OFF SWITCH BSD-2610018210.A6 2610018210	£54.42	£65.30
5 - POWER SUPPLY CORD BSD-1619PA4921.A1 1619PA4921	£37.27	£44.72
6 - RUBBER BUSHING BSD-2610915699.A12 2610915699	£7.36	£8.83
7 - CLAMP BSD-1619PA5241.A0 1619PA5241	-
8 - NAMEPLATE BSD-2610018357.A0 2610018357	-
9 - LABEL BSD-2610018213.A8 2610018213	£2.61	£3.13
12 - SUPPRESSION FILTER BSD-2610018216.A1 2610018216	£21.52	£25.83
13 - BALL BEARING BSD-2610004595.A4 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A42 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A15 2610911858	£16.41	£19.69
16 - BRUSH HOLDER BSD-2610013003.A14 2610013003	£7.36	£8.83
18 - SCREW BSD-2610018217.A8 2610018217	-
19 - SCREW BSD-2610358844.A14 2610358844	£1.75	£2.10
22 - COVER BSD-2610996865.A5 2610996865	£14.91	£17.89
23 - PLATE BSD-2610996917.A11 2610996917	£1.75	£2.10
24 - PIN BSD-2610997274.A16 2610997274	£1.75	£2.10
25 - NUT BSD-2610327868.A24 2610327868	£1.75	£2.10
26 - NUT BSD-2610911896.A9 2610911896	-
27 - FIXING PLATE BSD-2610996912.A3 2610996912	£5.58	£6.70
28 - MOUNTING RAIL BSD-1600A00724.A1 1600A00724	£2.16	£2.59
29 - MOUNTING RAIL BSD-2610950075.A6 2610950075	£8.67	£10.41
30 - SCREW BSD-2610303029.A11 2610303029	£1.75	£2.10
31 - HANDLE COVER BSD-2610018218.A1 2610018218	£3.72	£4.47
32 - HANDLE COVER BSD-2610018219.A8 2610018219	£3.72	£4.47
33 - SCREW BSD-2610018580.A4 2610018580	£1.75	£2.10
34 - MOUNTING BRACKET BSD-2610950126.A14 2610950126	£8.67	£10.41
35 - BUSHING BSD-2610950070.A16 2610950070	£1.75	£2.10
36 - MOUNTING BRACKET BSD-2610950127.A4 2610950127	£11.30	£13.56
37 - SCREW BSD-2610998575.A7 2610998575	£1.75	£2.10
38 - HOLDING PLATE BSD-2610018220.A1 2610018220	£2.61	£3.13
39 - GUIDING BOLT BSD-2610950052.A5 2610950052	£7.36	£8.83
40 - SPRING RETAINING RING BSD-2610992380.A3 2610992380	£1.75	£2.10
41 - THREADED ROD BSD-2610018221.A8 2610018221	£14.91	£17.89
42 - TOOTHED GEAR BSD-2610996896.A11 2610996896	£5.58	£6.70
43 - BOLT BSD-2610910796.A4 2610910796	£2.80	£3.36
44 - NUT BSD-2610358149.A14 2610358149	£1.75	£2.10
45 - PLAIN WASHER BSD-2610018223.A0 2610018223	£1.75	£2.10
46 - SHAFT BSD-2610018224.A9 2610018224	£12.04	£14.45
47 - MOUNTING BRACKET BSD-2610997212.A5 2610997212	£2.80	£3.36
48 - SCREW BSD-2615297323.A14 2615297323	£1.75	£2.10
49 - BUSHING BSD-2610997222.A3 2610997222	£1.32	£1.58
50 - SPRING RETAINING RING BSD-2610997277.A8 2610997277	£1.75	£2.10
51 - SPRING RETAINING RING BSD-2610997276.A10 2610997276	£1.75	£2.10
52 - BUSHING BSD-2610996938.A3 2610996938	£8.67	£10.41
53 - THREADED BUSHING BSD-2610996933.A15 2610996933	£14.91	£17.89
54 - SCREW BSD-2610303026.A8 2610303026	£1.75	£2.10
55 - GEAR HOUSING BSD-2610018225.A0 2610018225	£54.42	£65.30
57 - BAFFLE BSD-2610018226.A9 2610018226	£4.26	£5.11
63 - SET SCREW BSD-1609902054.A3 1609902054	£1.75	£2.10
65 - INSERT BSD-2610911569.A36 2610911569	£2.61	£3.13
66 - NUT BSD-2610356706.A9 2610356706	£2.61	£3.13
67 - SCREW BSD-2610911929.A25 2610911929	£1.75	£2.10
68 - RUBBER RING BSD-2610996948.A17 2610996948	£1.75	£2.10
69 - CONNECTOR BSD-2610358932.A10 2610358932	£1.75	£2.10
70 - COVER BSD-2610018227.A0 2610018227	£10.10	£12.12
71 - CABLE CLIP BSD-1609203K96.A3 1609203K96	£1.75	£2.10
72 - WASHER BSD-2610018336.A0 2610018336	£1.95	£2.34
73 - SCREW BSD-2610998571.A9 2610998571	£1.75	£2.10
73 - SCREW BSD-2610018983.A4 2610018983	-
74 - SUPPORT BRACKET BSD-2610018228.A7 2610018228	£1.75	£2.10
75 - SPEED GOVERNOR BSD-2610008062.A1 2610008062	£41.62	£49.95
76 - CABLE STRAP BSD-1609902050.A2 1609902050	£1.75	£2.10
77 - SCREW BSD-2610998587.A0 2610998587	£1.75	£2.10
78 - BRUSH-COVER dia 20mm BSD-2610911859.A8 2610911859	£2.16	£2.59
81 - SPRING WASHER BSD-2610911924.A11 2610911924	£3.72	£4.47
82 - SHAFT BSD-2610018231.A9 2610018231	£21.52	£25.83
83 - BALL BEARING BSD-2610997210.A19 2610997210	£14.91	£17.89
84 - SPRING RETAINING RING BSD-2610997282.A17 2610997282	£1.75	£2.10
85 - GEAR COVER BSD-2610018232.A0 2610018232	£21.52	£25.83
86 - BALL BEARING BSD-2610996949.A9 2610996949	£14.91	£17.89
87 - WOODRUFF KEY BSD-2610993102.A19 2610993102	£2.16	£2.59
88 - TOOTHED GEAR BSD-2610997208.A8 2610997208	£37.27	£44.72
89 - SPRING RETAINING RING BSD-2610997281.A16 2610997281	£1.75	£2.10
90 - BEARING SLEEVE BSD-2610996932.A3 2610996932	£2.61	£3.13
91 - SCREW BSD-2610355923.A4 2610355923	£1.75	£2.10
92 - TORSION SPRING BSD-2610996875.A24 2610996875	£1.75	£2.10
93 - LOCKING LEVER BSD-2610996874.A3 2610996874	£11.30	£13.56
94 - SHOULDER SCREW BSD-2610996876.A3 2610996876	£1.75	£2.10
95 - SCREW BSD-2610998588.A27 2610998588	£1.75	£2.10
96 - BUSHING BSD-2610018233.A9 2610018233	£7.36	£8.83
97 - SPRING RETAINING RING BSD-2610998573.A18 2610998573	£1.75	£2.10
98 - SET SCREW BSD-2610950427.A18 2610950427	£1.75	£2.10
99 - SCREW BSD-2610018230.A0 2610018230	£1.75	£2.10
100 - SCREW BSD-2610328617.A14 2610328617	£1.75	£2.10
101 - PLAIN WASHER BSD-2610303020.A9 2610303020	-
102 - COVER PLATE BSD-2610018234.A0 2610018234	£6.52	£7.83
103 - END STOP BSD-2610018235.A9 2610018235	£2.16	£2.59
104 - HOLDING SPRING BSD-2610018236.A0 2610018236	£3.72	£4.47
105 - SCREW BSD-2610018237.A9 2610018237	£1.75	£2.10
106 - FRONT PANEL BSD-2610018238.A0 2610018238	£31.64	£37.97
107 - PROFILE RAIL BSD-2610950118.A4 2610950118	£1.75	£2.10
108 - END STOP BSD-2610018239.A9 2610018239	£1.75	£2.10
109 - SCREW M5x0.8Px10L BSD-2610018599.A5 2610018599	£1.75	£2.10
110 - SPRING BSD-2610997271.A10 2610997271	£1.75	£2.10
111 - PLAIN WASHER BSD-2610998550.A2 2610998550	£1.75	£2.10
112 - PLAIN WASHER BSD-2610997299.A10 2610997299	£1.75	£2.10
113 - NUT BSD-2610997298.A8 2610997298	£5.30	£6.36
114 - CLAMPING LEVER BSD-2610950056.A9 2610950056	£12.04	£14.45
115 - PLAIN WASHER BSD-2610950129.A4 2610950129	£1.75	£2.10
116 - WASHER BSD-2610341465.A15 2610341465	£2.16	£2.59
117 - SPRING BSD-2610950115.A9 2610950115	£1.75	£2.10
118 - HANDWHEEL BSD-2610950057.A0 2610950057	£14.91	£17.89
121 - HANDLE BSD-2610950059.A18 2610950059	£1.75	£2.10
122 - SHOULDER SCREW BSD-2610997270.A8 2610997270	£2.16	£2.59
123 - SPRING WASHER BSD-2610355325.A6 2610355325	£1.75	£2.10
124 - SET SCREW BSD-1609902669.A10 1609902669	£1.75	£2.10
125 - CLAMPING FLANGE BSD-1609203K93.A9 1609203K93	£12.04	£14.45
127 - WASHER BSD-2610950046.A18 2610950046	£12.04	£14.45
128 - NUT BSD-2610358858.A13 2610358858	£2.61	£3.13
129 - COVER PLATE BSD-2610018241.A0 2610018241	£18.96	£22.75
130 - COVER PLATE BSD-2610018242.A9 2610018242	£13.12	£15.75
131 - SCREW BSD-2610018243.A0 2610018243	£1.75	£2.10
132 - RETAINING SNAP RING BSD-2610358869.A5 2610358869	£1.75	£2.10
133 - SCREW BSD-1609902699.A7 1609902699	£1.75	£2.10
134 - MOUNTING BRACKET BSD-2610937291.A4 2610937291	£2.80	£3.36
135 - LINKAGE BSD-2610018244.A9 2610018244	£13.12	£15.75
136 - RETAINING RING BSD-2610937293.A3 2610937293	£1.75	£2.10
137 - WASHER BSD-1619P03473.A5 1619P03473	£1.75	£2.10
138 - CLAMPING LEVER BSD-2610018245.A0 2610018245	£12.04	£14.45
139 - HOUSING BSD-2610018246.A9 2610018246	£102.57	£123.08
140 - CLAMP BSD-2610018247.A0 2610018247	£2.61	£3.13
141 - SCREW BSD-2610998574.A9 2610998574	£1.75	£2.10
142 - PICKUP CLIP BSD-2610996930.A2 2610996930	£2.52	£3.02
143 - SCREW BSD-2610910047.A12 2610910047	£1.75	£2.10
144 - SCREW BSD-2610018248.A9 2610018248	£2.16	£2.59
145 - NUT BSD-2610018249.A0 2610018249	£2.16	£2.59
146 - HOLDING SPRING BSD-2610018250.A9 2610018250	£2.16	£2.59
147 - HOLDING SPRING BSD-2610018251.A0 2610018251	£3.72	£4.47
148 - COMPANY LOGO BSD-2610018252.A9 2610018252	£6.52	£7.83
150 - HEXAGON SOCKET SCREW KEY BSD-2610018254.A0 2610018254	£4.26	£5.11
151 - RUBBER BUSHING BSD-2610911920.A31 2610911920	£1.32	£1.58
156 - CABLE CLIP BSD-2610990504.A9 2610990504	£1.75	£2.10
157 - MOUNTING BRACKET BSD-2610018255.A9 2610018255	£2.16	£2.59
158 - HOLDING SPRING BSD-2610018256.A0 2610018256	£2.61	£3.13
159 - SUCTION SOCKET BSD-2610018257.A9 2610018257	£6.52	£7.83
160 - CHAIN BSD-2610018258.A0 2610018258	£1.75	£2.10
161 - CLIP BSD-2610018259.A9 2610018259	£1.75	£2.10
162 - STUD BOLT BSD-2610016560.A18 2610016560	£1.75	£2.10
163 - PIN BSD-2610018262.A0 2610018262	£1.75	£2.10
164 - SCREW BSD-1609203L05.A15 1609203L05	£1.75	£2.10
165 - KNOB BSD-1609203L06.A3 1609203L06	£3.72	£4.47
166 - PLAIN WASHER BSD-2610018263.A9 2610018263	£1.75	£2.10
167 - WASHER BSD-2610018264.A0 2610018264	£1.75	£2.10
168 - GUARD PLATE BSD-1609203L09.A15 1609203L09	£10.10	£12.12
169 - SCREW BSD-2610018265.A9 2610018265	£1.75	£2.10
170 - SPRING WASHER BSD-1609902052.A3 1609902052	£1.75	£2.10
171 - PLAIN WASHER BSD-1609902053.A15 1609902053	£1.75	£2.10
172 - PLAIN WASHER BSD-1609203L10.A3 1609203L10	£1.75	£2.10
173 - NUT BSD-1609203L11.A15 1609203L11	£1.75	£2.10
174 - SLEEVE BSD-2610018266.A0 2610018266	£1.75	£2.10
175 - SCREW BSD-2610997297.A10 2610997297	£1.75	£2.10
176 - WASHER BSD-2610355570.A7 2610355570	£3.72	£4.47
178 - SWITCH COVER BSD-2610018267.A9 2610018267	£8.67	£10.41
180 - HOUSING BSD-2610018268.A0 2610018268	£46.37	£55.64
181 - STUD BOLT BSD-1609902584.A2 1609902584	£1.75	£2.10
182 - GUARD PLATE BSD-2610018269.A9 2610018269	£27.23	£32.68
183 - RETAINING RING BSD-2610018270.A0 2610018270	£1.75	£2.10
184 - SCREW BSD-2610018271.A9 2610018271	£2.16	£2.59
185 - RUBBER BUSHING BSD-2610018272.A0 2610018272	£2.61	£3.13
186 - RUBBER BUSHING BSD-2610358846.A5 2610358846	£1.75	£2.10
187 - PROFILE RAIL BSD-2610018275.A9 2610018275	£59.53	£71.44
188 - END STOP BSD-2610018276.A0 2610018276	£1.75	£2.10
189 - SCREW BSD-2610950133.A9 2610950133	£1.75	£2.10
190 - WASHER BSD-2610950135.A18 2610950135	£1.75	£2.10
191 - BOLT BSD-2610950134.A0 2610950134	£1.75	£2.10
192 - STAMPED PART BSD-2610018277.A9 2610018277	£2.16	£2.59
193 - SCREW BSD-2610018278.A0 2610018278	£1.75	£2.10
194 - PROFILE RAIL BSD-2610018279.A9 2610018279	£48.38	£58.06
195 - COVER BSD-2610997218.A2 2610997218	£1.75	£2.10
196 - COVER BSD-2610997216.A9 2610997216	£1.75	£2.10
197 - TABLE TOP BSD-2610018280.A0 2610018280	£120.11	£144.13
198 - FIXING PLATE BSD-2610950086.A0 2610950086	£5.30	£6.36
199 - MOUNTING BRACKET BSD-2610018281.A9 2610018281	£3.72	£4.47
200 - MOUNTING BRACKET BSD-2610018597.A4 2610018597	£5.58	£6.70
201 - SCREW BSD-2610018283.A0 2610018283	£1.75	£2.10
202 - SCREW BSD-2610950087.A9 2610950087	£1.75	£2.10
203 - WASHER BSD-1609902042.A2 1609902042	£1.75	£2.10
204 - NUT BSD-2610304772.A9 2610304772	£1.75	£2.10
205 - END STOP BSD-2610950121.A5 2610950121	£2.80	£3.36
206 - END STOP BSD-2610018284.A9 2610018284	£2.61	£3.13
207 - STICKER BSD-2610018285.A0 2610018285	£2.61	£3.13
208 - POINTER BSD-2610950078.A9 2610950078	£3.72	£4.47
209 - SCREW BSD-2610320339.A13 2610320339	£1.75	£2.10
210 - TABLE TOP BSD-2610018286.A9 2610018286	£120.11	£144.13
211 - SLIDE RAIL BSD-2610018287.A0 2610018287	£10.10	£12.12
212 - CONNECTING CABLE BSD-2610018384.A8 2610018384	£2.16	£2.59
213 - SLIDE RAIL BSD-2610018288.A9 2610018288	£10.10	£12.12
214 - SCREW BSD-2610014697.A13 2610014697	£1.75	£2.10
215 - BUSHING BSD-2610018289.A0 2610018289	£1.75	£2.10
216 - POINTER BSD-2610950062.A4 2610950062	£2.61	£3.13
217 - SCREW BSD-2610355278.A11 2610355278	£5.30	£6.36
218 - MOUNTING BRACKET BSD-2610018337.A9 2610018337	£21.52	£25.83
219 - RIVING KNIFE BSD-2610018338.A0 2610018338	£23.86	£28.63
220 - HOLDING PLATE BSD-2610018339.A9 2610018339	£3.72	£4.47
221 - BOLT BSD-2610018340.A0 2610018340	£1.75	£2.10
222 - DETENT BSD-2610018341.A9 2610018341	£2.16	£2.59
223 - WASHER BSD-2610018342.A0 2610018342	£1.75	£2.10
224 - SCREW BSD-2610998580.A9 2610998580	£1.75	£2.10
225 - NUT BSD-1609902058.A4 1609902058	£1.75	£2.10
226 - BOLT BSD-2610018354.A9 2610018354	£1.75	£2.10
227 - FLAP GUARD BSD-2610018343.A6 2610018343	£10.10	£12.12
228 - FLAP GUARD BSD-2610018344.A0 2610018344	£10.10	£12.12
229 - SCREW BSD-2610018345.A6 2610018345	£1.75	£2.10
230 - CLAMPING LEVER BSD-2610018346.A0 2610018346	£5.58	£6.70
231 - SCREW BSD-2610018347.A6 2610018347	£2.16	£2.59
232 - SPRING BSD-2610018348.A0 2610018348	£1.75	£2.10
233 - RETAINING RING BSD-2610018349.A6 2610018349	£1.75	£2.10
234 - FIXING PLATE BSD-2610018290.A9 2610018290	£27.23	£32.68
235 - HOLDING SPRING BSD-2610011716.A6 2610011716	£1.75	£2.10
236 - STUD BSD-2610997283.A10 2610997283	£1.75	£2.10
237 - SCREW BSD-1609902055.A15 1609902055	£1.75	£2.10
238 - SLIDING RAIL BSD-2610018291.A0 2610018291	£23.86	£28.63
239 - GUIDE BRACKET BSD-2610996944.A1 2610996944	£14.91	£17.89
240 - SPRING RETAINING RING BSD-2610018292.A9 2610018292	£1.75	£2.10
241 - KNOB BSD-2610998585.A9 2610998585	£2.16	£2.59
242 - EDGE GUIDE BSD-2610018293.A0 2610018293	£31.64	£37.97
243 - CLAMPING PLATE BSD-2610018294.A9 2610018294	£2.16	£2.59
244 - SHOULDER SCREW BSD-2610997249.A1 2610997249	£1.75	£2.10
245 - BRACKET BSD-2610950102.A9 2610950102	£4.26	£5.11
246 - LENS BSD-2610950143.A0 2610950143	£2.61	£3.13
247 - SCREW BSD-2610951946.A4 2610951946	£1.75	£2.10
248 - CLAMPING PLATE BSD-2610018295.A0 2610018295	£3.72	£4.47
249 - CLAMPING PIECE BSD-2610997240.A16 2610997240	£2.16	£2.59
250 - ADJUSTING SCREW BSD-2610997245.A9 2610997245	£2.61	£3.13
251 - CLAMPING PLATE BSD-2610950098.A0 2610950098	£2.61	£3.13
252 - PIN BSD-2610997288.A0 2610997288	£5.58	£6.70
253 - CAM BSD-2610996889.A8 2610996889	£12.04	£14.45
254 - LEVER BSD-2610996890.A1 2610996890	£1.75	£2.10
255 - PIN BSD-2610997289.A9 2610997289	£1.75	£2.10
256 - HOUSING BSD-2610950095.A9 2610950095	£21.68	£26.01
257 - HANDLE COVER BSD-2610950094.A0 2610950094	£6.52	£7.83
258 - BOLT BSD-2610950096.A0 2610950096	£1.75	£2.10
259 - BOLT BSD-2610950097.A9 2610950097	£2.16	£2.59
260 - COVER BSD-2610018296.A9 2610018296	£2.16	£2.59
261 - SCREW BSD-2610967422.A6 2610967422	£1.75	£2.10
262 - EDGE GUIDE BSD-2610018297.A0 2610018297	£59.53	£71.44
263 - SCREW BSD-2610303023.A9 2610303023	£1.75	£2.10
264 - WASHER BSD-2610358802.A9 2610358802	£1.75	£2.10
265 - BRACKET BSD-2610018298.A9 2610018298	£6.52	£7.83
266 - RETAINING PIN BSD-2610911577.A19 2610911577	£1.75	£2.10
267 - SPRING BSD-2610996888.A3 2610996888	£1.75	£2.10
268 - EDGE GUIDE BSD-2610950107.A0 2610950107	£16.41	£19.69
269 - COVER BSD-2610018299.A0 2610018299	£1.75	£2.10
270 - SCREW BSD-2610997293.A2 2610997293	£1.75	£2.10
271 - SPRING BSD-2610998593.A0 2610998593	£1.75	£2.10
272 - WASHER BSD-2610018300.A9 2610018300	£1.75	£2.10
273 - END STOP BSD-2610018301.A0 2610018301	£21.68	£26.01
274 - BOX WRENCH BSD-2610996880.A2 2610996880	£5.30	£6.36
275 - INSERT BSD-2610018302.A9 2610018302	£18.96	£22.75
276 - NUT BSD-2610018303.A0 2610018303	£1.75	£2.10
277 - WORKPIECE PUSHER BSD-2610015022.A18 2610015022	£6.52	£7.83
280 - STICKER BSD-1609203L00.A9 1609203L00	£11.30	£13.56
281 - TABLE TOP BSD-2610018304.A9 2610018304	£33.74	£40.49
282 - WASHER BSD-2610029674.A8 2610029674	£1.75	£2.10
284 - END STOP BSD-1609203L38.A8 1609203L38	-
285 - GUIDE BAR BSD-2610018307.A0 2610018307	£18.96	£22.75
286 - CLAMP HANDLE BSD-2610018308.A9 2610018308	£13.12	£15.75
288 - PLAIN WASHER BSD-2610909178.A5 2610909178	£1.75	£2.10
289 - POINTER BSD-2610018309.A0 2610018309	£1.75	£2.10
290 - END STOP BSD-2610997215.A9 2610997215	£1.75	£2.10
291 - SCREW BSD-2610358519.A11 2610358519	£1.75	£2.10
292 - NUT BSD-2610908272.A16 2610908272	£1.75	£2.10
294 - BASE SUPPORT BSD-2610997213.A9 2610997213	£2.80	£3.36
295 - SCREW BSD-2610358832.A5 2610358832	£1.75	£2.10
296 - SCREW BSD-2610015065.A31 2610015065	£1.75	£2.10
297 - BOLT BSD-1609203L08.A3 1609203L08	£1.75	£2.10
298 - CLAMPING PLATE BSD-1609203L04.A3 1609203L04	£2.16	£2.59
299 - ROUND NUT BSD-1609902047.A10 1609902047	£2.61	£3.13
300 - PLAIN WASHER BSD-2610993221.A10 2610993221	£1.75	£2.10
301 - PROFILE RAIL BSD-1609203L07.A15 1609203L07	£21.52	£25.83
302 - KNOB BSD-2610018313.A9 2610018313	£2.61	£3.13
303 - TABLE TOP BSD-2610018315.A0 2610018315	£306.65	£367.98
304 - PROFILE RAIL BSD-2610018316.A9 2610018316	£37.27	£44.72
305 - SCREW BSD-2610018317.A0 2610018317	£1.75	£2.10
306 - END STOP BSD-2610018318.A9 2610018318	£1.75	£2.10
307 - SCREW BSD-2610018319.A0 2610018319	£1.75	£2.10
308 - MOUNTING BRACKET BSD-2610018320.A9 2610018320	£3.72	£4.47
309 - CLAMPING LEVER BSD-2610018321.A0 2610018321	£4.26	£5.11
310 - SPRING BSD-2610018322.A9 2610018322	£1.75	£2.10
311 - PIN BSD-2610018323.A0 2610018323	£1.75	£2.10
312 - LOCKING PIN BSD-2610018324.A9 2610018324	£2.16	£2.59
313 - AXLE BSD-2610018325.A0 2610018325	£1.75	£2.10
314 - SPRING RETAINING RING BSD-2610018326.A9 2610018326	£1.75	£2.10
315 - SCREW BSD-2610018327.A0 2610018327	£1.75	£2.10
316 - HOLDING BRACKET BSD-2610996921.A9 2610996921	£1.75	£2.10
317 - TAPPING SCREW BSD-2610908271.A2 2610908271	£1.75	£2.10
318 - GUSSET BSD-2610996914.A0 2610996914	-
319 - SET SCREW BSD-2610996918.A9 2610996918	£2.16	£2.59
320 - PIN BSD-2610997275.A9 2610997275	£1.75	£2.10
321 - CONNECTING NUT BSD-2610996920.A9 2610996920	£5.01	£6.01
322 - BRACKET BSD-2610018567.A5 2610018567	£5.30	£6.36
323 - CLAMPING PIECE BSD-2610996915.A14 2610996915	£11.30	£13.56
324 - PLAIN WASHER BSD-2610018350.A0 2610018350	£1.75	£2.10
325 - CAP NUT BSD-2610028342.A5 2610028342	£1.75	£2.10
326 - CLAMP BUSHING BSD-2610998567.A1 2610998567	£1.75	£2.10
327 - SCREW BSD-2610015078.A18 2610015078	£1.75	£2.10
328 - GROMMET BSD-2610018579.A4 2610018579	£1.75	£2.10
801 - MOTOR HOUSING BSD-1619PB2532.A5 1619PB2532	-
802 - EDGE GUIDE BSD-2610018329.A0 2610018329	£179.37	£215.24
803 - MITRE FENCE BSD-2610015508.A4 2610015508	£59.53	£71.44
804 - PROTECTIVE COVER BSD-2610018330.A9 2610018330	£57.05	£68.46
810 - CARBON-BRUSH SET BSD-2610018332.A0 2610018332	£21.68	£26.01
811 - PROTECTIVE COVER BSD-2610018328.A14 2610018328	£23.86	£28.63
820 - CLAMP HANDLE BSD-2610018333.A9 2610018333	£63.50	£76.20
821 - ROD BSD-2610018334.A0 2610018334	£10.10	£12.12
822 - LOCKING CLAMPS BSD-2610018335.A9 2610018335	£23.86	£28.63

Attribute Name	Value
Brand	Bosch

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTS 10 XC / 3601L30430 / CH 230 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTS 10 XC / 3601L30430 / CH 230 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
