Bosch GTS 10 J / 3601M30560 / GB 110 Volt Spare Parts

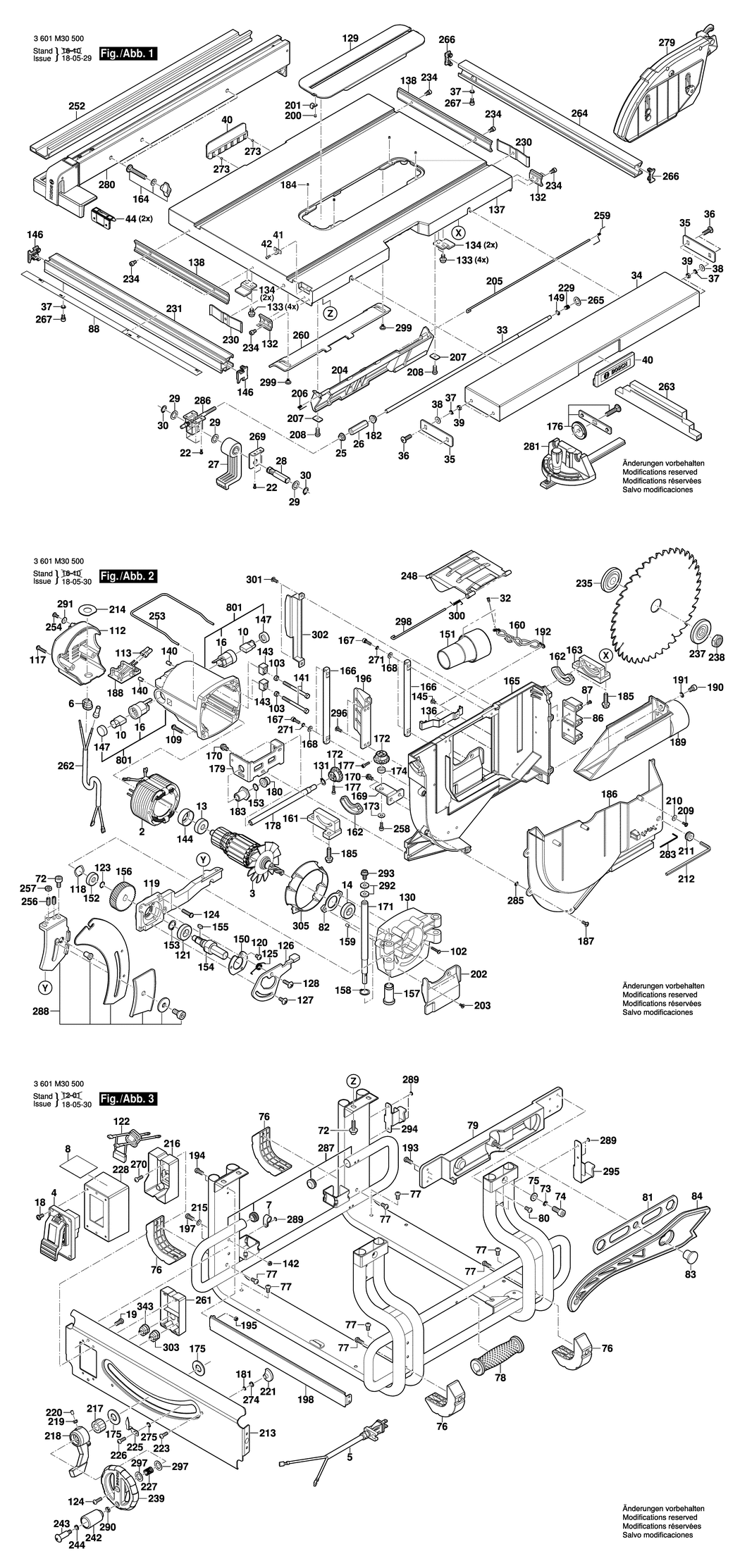

An exploded drawing and listing for the Bosch GTS 10 J / 3601M30560 / GB 110 Volt

	Ex VAT	Inc VAT
2 - FIELD 110V BSD-2610017112.A0 2610017112	£72.18	£86.62
3 - ARMATURE 110V BSD-2610996866.A1 2610996866	-
4 - SWITCH BSD-2610017113.A1 2610017113	£48.38	£58.06
5 - POWER SUPPLY CORD BSD-2610017118.A1 2610017118	£59.53	£71.44
6 - CABLE CLIP BSD-1609203K96.A22 1609203K96	£1.75	£2.10
7 - CABLE CLIP BSD-2610014693.A7 2610014693	£1.75	£2.10
8 - NAMEPLATE BSD-2610016766.A0 2610016766	£2.61	£3.13
10 - CARBON-BRUSH SET BSD-2610018379.A3 2610018379	£13.12	£15.75
13 - BALL BEARING BSD-2610004595.A11 2610004595	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A29 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A12 2610911858	£16.41	£19.69
16 - BRUSH HOLDER BSD-2610013003.A1 2610013003	£7.36	£8.83
18 - SCREW BSD-2610015078.A1 2610015078	£1.75	£2.10
19 - SCREW BSD-2610017002.A4 2610017002	£1.75	£2.10
22 - SCREW BSD-2610014697.A1 2610014697	£1.75	£2.10
25 - NUT BSD-2610014698.A7 2610014698	£1.75	£2.10
26 - CONNECTING NUT BSD-2610996920.A22 2610996920	£5.01	£6.01
27 - HANDLE BSD-2610014699.A1 2610014699	£6.52	£7.83
28 - CAM BSD-2610015000.A7 2610015000	£11.30	£13.56
29 - WASHER BSD-2610015001.A2 2610015001	£1.75	£2.10
30 - SPRING RETAINING RING BSD-2610015002.A7 2610015002	£1.75	£2.10
32 - PIN BSD-2610017003.A4 2610017003	£1.75	£2.10
33 - ROD BSD-2610017004.A4 2610017004	£7.36	£8.83
34 - EXTENSION STAND BSD-2610017005.A4 2610017005	£40.80	£48.96
35 - RETAINING PLATE BSD-2610015006.A1 2610015006	£2.16	£2.59
36 - COLLAR BOLT BSD-2610910015.A3 2610910015	£2.80	£3.36
37 - SPRING WASHER BSD-2610355325.A19 2610355325	£1.75	£2.10
38 - WASHER BSD-2610910013.A5 2610910013	£2.16	£2.59
39 - NUT BSD-2610015008.A7 2610015008	£1.75	£2.10
40 - HANDLE BSD-2610015009.A1 2610015009	£5.58	£6.70
41 - POINTER BSD-2610015010.A7 2610015010	£1.75	£2.10
42 - SCREW BSD-2610950077.A4 2610950077	£1.75	£2.10
44 - PAD BSD-2610023173.A4 2610023173	£2.16	£2.59
72 - SCREW BSD-2610950069.A6 2610950069	£1.75	£2.10
73 - WASHER BSD-2610015011.A1 2610015011	£1.75	£2.10
74 - BOLT BSD-2610015012.A7 2610015012	£1.75	£2.10
75 - WASHER BSD-2610925438.A2 2610925438	£1.75	£2.10
76 - SUPPORTING FOOT BSD-2610015014.A1 2610015014	£5.30	£6.36
77 - SCREW BSD-2610015015.A7 2610015015	£1.75	£2.10
78 - HANDLE BSD-2610015016.A1 2610015016	£12.04	£14.45
79 - HOLDING PLATE BSD-2610015017.A7 2610015017	£13.12	£15.75
80 - SCREW BSD-2610015018.A1 2610015018	£1.66	£1.99
81 - KEY BSD-2610015019.A7 2610015019	£8.67	£10.41
82 - BEARING COVER BSD-2610911566.A18 2610911566	£2.80	£3.36
83 - NUT BSD-2610015021.A1 2610015021	£1.75	£2.10
84 - WORKPIECE PUSHER BSD-2610015022.A11 2610015022	£6.52	£7.83
86 - SUPPORT BRACKET BSD-2610017007.A4 2610017007	£2.61	£3.13
87 - SCREW BSD-2610010404.A5 2610010404	£1.75	£2.10
88 - SCALE BSD-2610017009.A4 2610017009	£2.61	£3.13
102 - SCREW BSD-1609902670.A2 1609902670	£1.75	£2.10
103 - NUT BSD-2610327868.A20 2610327868	£1.75	£2.10
109 - SCREW BSD-2610998587.A18 2610998587	£1.75	£2.10
112 - END CAP BSD-2610017013.A4 2610017013	£8.67	£10.41
113 - CONNECTOR BSD-2610911933.A7 2610911933	£1.75	£2.10
117 - SCREW BSD-2610998571.A21 2610998571	£1.75	£2.10
117 - SCREW BSD-2610018983.A8 2610018983	-
118 - SPRING WASHER BSD-2610950042.A4 2610950042	£1.75	£2.10
119 - COVER BSD-2610017014.A4 2610017014	£16.41	£19.69
120 - SCREW BSD-2610950044.A4 2610950044	£1.75	£2.10
121 - BALL BEARING BSD-2610996949.A20 2610996949	£14.91	£17.89
122 - FILTER BSD-2610017115.A0 2610017115	£21.52	£25.83
123 - SPRING RETAINING RING BSD-2610997281.A27 2610997281	£1.75	£2.10
124 - SCREW BSD-2610998572.A4 2610998572	£1.75	£2.10
125 - TORSION SPRING BSD-2610996875.A17 2610996875	£1.75	£2.10
126 - LOCKING LEVER BSD-2610996874.A10 2610996874	£11.30	£13.56
127 - SHOULDER SCREW BSD-2610996876.A10 2610996876	£1.75	£2.10
128 - SCREW BSD-2610998588.A9 2610998588	£1.75	£2.10
129 - INSERT BSD-2610017111.A2 2610017111	£31.64	£37.97
130 - GEAR HOUSING BSD-2610017017.A7 2610017017	£59.53	£71.44
131 - RETAINING RING BSD-2610937293.A20 2610937293	£1.75	£2.10
132 - SLIDING PLATE BSD-2610015026.A1 2610015026	£3.34	£4.01
133 - SCREW BSD-2610950108.A12 2610950108	£1.75	£2.10
134 - SUPPORT PLATE BSD-2610015027.A6 2610015027	£1.75	£2.10
136 - RETAINING CLIP BSD-2610017008.A3 2610017008	£3.72	£4.47
137 - TABLE BSD-2610017019.A7 2610017019	£306.65	£367.98
138 - MOUNTING RAIL BSD-1600A00724.A11 1600A00724	£2.16	£2.59
140 - SET SCREW BSD-1609902054.A22 1609902054	£1.75	£2.10
141 - SCREW BSD-2610911929.A35 2610911929	£1.75	£2.10
142 - SELF-LOCKING NUT BSD-2610911901.A17 2610911901	£1.75	£2.10
143 - INSERT BSD-2610911569.A25 2610911569	£2.61	£3.13
144 - RUBBER RING BSD-2610996948.A5 2610996948	£1.75	£2.10
145 - SCREW BSD-2610950071.A6 2610950071	£1.75	£2.10
146 - END CAP BSD-2610015030.A2 2610015030	£1.75	£2.10
147 - BRUSH-COVER dia 20mm BSD-2610911859.A15 2610911859	£2.16	£2.59
149 - SPRING RETAINING RING BSD-2610015031.A6 2610015031	£1.75	£2.10
150 - BEARING SLEEVE BSD-2610996932.A22 2610996932	£2.61	£3.13
151 - VACUUM CONNECTION BSD-2610017001.A3 2610017001	£5.58	£6.70
152 - BALL BEARING BSD-2610997210.A7 2610997210	£14.91	£17.89
153 - SPRING RETAINING RING BSD-2610997282.A7 2610997282	£1.75	£2.10
154 - SPINDLE BSD-2610017021.A7 2610017021	£31.64	£37.97
155 - WOODRUFF KEY BSD-2610012984.A6 2610012984	£1.75	£2.10
156 - TOOTHED GEAR BSD-2610997208.A20 2610997208	£37.27	£44.72
157 - BUSHING BSD-2610017018.A1 2610017018	£3.72	£4.47
158 - SPRING RETAINING RING BSD-2610998573.A7 2610998573	£1.75	£2.10
159 - SET SCREW BSD-2610950427.A5 2610950427	£1.75	£2.10
160 - CHAIN BSD-2610017022.A1 2610017022	£1.75	£2.10
161 - MOUNTING BRACKET BSD-2610950126.A7 2610950126	£8.67	£10.41
162 - BUSHING BSD-2610950070.A2 2610950070	£1.75	£2.10
163 - SUPPORT BRACKET BSD-2610015035.A2 2610015035	£8.67	£10.41
164 - FASTENING PARTS KIT BSD-2610017023.A7 2610017023	£14.91	£17.89
165 - HOLDING PLATE BSD-2610017024.A1 2610017024	£68.42	£82.10
166 - ROD BSD-2610017025.A7 2610017025	£13.12	£15.75
167 - BOLT BSD-2610015038.A6 2610015038	£1.75	£2.10
168 - WASHER BSD-2610015039.A2 2610015039	£1.75	£2.10
169 - SUPPORT PLATE BSD-2610015040.A6 2610015040	£4.26	£5.11
170 - SCREW BSD-2610950055.A3 2610950055	£1.75	£2.10
171 - ROD BSD-2610017026.A1 2610017026	£8.67	£10.41
172 - BEVEL GEAR BSD-2610015042.A2 2610015042	£3.23	£3.88
173 - WASHER BSD-2610013162.A6 2610013162	£1.75	£2.10
174 - BUSHING BSD-2610015043.A6 2610015043	£1.75	£2.10
175 - WASHER BSD-2610015044.A2 2610015044	£1.75	£2.10
176 - FASTENING PARTS KIT BSD-2610017020.A1 2610017020	£21.68	£26.01
177 - SCREW BSD-2610015045.A6 2610015045	£1.75	£2.10
178 - SHAFT BSD-2610017027.A7 2610017027	£8.67	£10.41
179 - SUPPORT PLATE BSD-2610015047.A2 2610015047	£5.30	£6.36
180 - BUSHING BSD-2610015048.A6 2610015048	£1.75	£2.10
181 - WASHER BSD-2610016557.A1 2610016557	£1.75	£2.10
182 - NUT BSD-2610016558.A7 2610016558	£1.75	£2.10
183 - BUSHING BSD-2610015049.A2 2610015049	£7.36	£8.83
184 - SET SCREW BSD-2610013053.A6 2610013053	£1.75	£2.10
185 - SCREW BSD-2610016559.A1 2610016559	£1.75	£2.10
186 - COVER BSD-2610015050.A6 2610015050	-
187 - SCREW BSD-2610950049.A10 2610950049	£1.75	£2.10
188 - SPEED GOVERNOR 115-120V BSD-2610997306.A1 2610997306	£63.50	£76.20
189 - DUST-COVER HOLDER BSD-2610015051.A2 2610015051	£10.10	£12.12
190 - SCREW BSD-2610015052.A6 2610015052	£1.75	£2.10
191 - SPRING RETAINING RING BSD-2610015053.A2 2610015053	£1.75	£2.10
192 - RETAINING CLIP BSD-2610017028.A1 2610017028	£1.75	£2.10
193 - STUD BOLT BSD-2610016560.A7 2610016560	£1.75	£2.10
194 - SCREW BSD-2610016561.A1 2610016561	£1.75	£2.10
195 - NUT BSD-2610925187.A6 2610925187	£1.75	£2.10
196 - GUARD PLATE BSD-2610015055.A2 2610015055	£1.75	£2.10
197 - SCREW BSD-2610950132.A6 2610950132	£1.75	£2.10
198 - PLATE BSD-2610015073.A8 2610015073	£8.67	£10.41
200 - SCREW BSD-2610017029.A7 2610017029	£1.75	£2.10
201 - SPRING CLIP BSD-2610017030.A1 2610017030	£1.75	£2.10
202 - SAFETY GUARD BSD-2610017033.A7 2610017033	£3.72	£4.47
203 - SCREW BSD-2610950439.A4 2610950439	£1.75	£2.10
204 - GUARD PLATE BSD-2610015054.A7 2610015054	£8.67	£10.41
205 - ROD BSD-2610016562.A7 2610016562	£1.75	£2.10
206 - CONTACT STRAP BSD-2610016563.A1 2610016563	£1.75	£2.10
207 - PLATE BSD-2610923830.A5 2610923830	£1.75	£2.10
208 - SCREW BSD-2610010404.A7 2610010404	£1.75	£2.10
209 - SCREW BSD-2610017031.A7 2610017031	£1.75	£2.10
210 - WASHER BSD-2610015058.A7 2610015058	£1.75	£2.10
211 - RUBBER BUSHING BSD-2610911920.A14 2610911920	£1.32	£1.58
212 - WRENCH SOCKET BSD-2610015059.A1 2610015059	£1.75	£2.10
213 - HOLDING PLATE BSD-2610017032.A1 2610017032	£40.80	£48.96
214 - WASHER BSD-2610017110.A7 2610017110	£2.16	£2.59
215 - PLAIN WASHER BSD-2610347092.A10 2610347092	£1.75	£2.10
216 - INSULATOR BSD-2610017046.A1 2610017046	£3.72	£4.47
217 - BUSHING BSD-2610015061.A7 2610015061	£2.61	£3.13
218 - HANDLE BSD-2610015062.A1 2610015062	£7.36	£8.83
219 - NUT BSD-2610924961.A3 2610924961	£1.75	£2.10
220 - SCREW BSD-2610015359.A0 2610015359	£1.75	£2.10
221 - CAM BSD-2610015063.A4 2610015063	£5.58	£6.70
223 - SCREW BSD-2610950049.A9 2610950049	£1.75	£2.10
225 - POINTER BSD-2610015064.A0 2610015064	£2.16	£2.59
226 - SCREW BSD-2610015065.A26 2610015065	£1.75	£2.10
227 - CONTACT STRAP BSD-2610013054.A1 2610013054	£1.75	£2.10
228 - SWITCH HOUSING BSD-2610015066.A0 2610015066	£5.58	£6.70
229 - SPRING BSD-2610015067.A8 2610015067	£1.75	£2.10
230 - FIXING PLATE BSD-2610996912.A22 2610996912	£5.58	£6.70
231 - SLIDING RAIL BSD-2610015091.A0 2610015091	£45.67	£54.80
234 - SCREW BSD-2610951945.A4 2610951945	£1.75	£2.10
235 - CLAMPING FLANGE BSD-1609203K93.A16 1609203K93	£12.04	£14.45
237 - WASHER BSD-2610950046.A8 2610950046	£12.04	£14.45
238 - NUT BSD-2610358858.A24 2610358858	£2.61	£3.13
239 - HANDWHEEL BSD-2610015069.A0 2610015069	£10.10	£12.12
242 - HANDLE BSD-2610950059.A9 2610950059	£1.75	£2.10
243 - SCREW BSD-2610950060.A3 2610950060	£1.95	£2.34
244 - WASHER BSD-2610950389.A9 2610950389	£1.75	£2.10
248 - SAFETY COVER BSD-2610017034.A1 2610017034	£3.72	£4.47
252 - MITRE FENCE BSD-2610017035.A7 2610017035	£23.86	£28.63
253 - ROD BSD-2610017036.A1 2610017036	£1.75	£2.10
254 - SCREW BSD-2610017052.A1 2610017052	£1.75	£2.10
256 - SCREW BSD-2610998580.A26 2610998580	£1.75	£2.10
257 - NUT BSD-2610017038.A2 2610017038	£1.75	£2.10
258 - SCREW BSD-2610015070.A8 2610015070	£1.75	£2.10
259 - CONTACT STRAP BSD-2610016565.A7 2610016565	£1.75	£2.10
260 - SAFETY COVER BSD-2610017039.A6 2610017039	£11.30	£13.56
261 - SWITCH HOUSING BSD-2610015071.A0 2610015071	£2.61	£3.13
262 - CONNECTING CABLE BSD-2610017116.A0 2610017116	£10.10	£12.12
263 - MITRE FENCE BSD-2610017041.A7 2610017041	£27.23	£32.68
264 - RAIL BSD-2610015074.A0 2610015074	£40.80	£48.96
265 - WASHER BSD-2610015075.A8 2610015075	£1.75	£2.10
266 - DEVICE CAP BSD-2610015076.A0 2610015076	£1.75	£2.10
267 - BOLT BSD-2610950134.A14 2610950134	£1.75	£2.10
269 - PLATE BSD-2610015077.A8 2610015077	£3.72	£4.47
270 - SCREW BSD-2610950117.A5 2610950117	£1.75	£2.10
271 - SPRING WASHER BSD-2610013365.A1 2610013365	£1.75	£2.10
273 - SCREW BSD-2610015080.A8 2610015080	£1.75	£2.10
274 - WASHER BSD-2610950135.A4 2610950135	£1.75	£2.10
275 - WASHER BSD-2610016566.A1 2610016566	£1.75	£2.10
279 - PROTECTIVE COVER BSD-2610018328.A5 2610018328	£23.86	£28.63
280 - MITRE FENCE BSD-2610017047.A7 2610017047	£102.57	£123.08
281 - MITRE GAUGE BSD-2610015507.A8 2610015507	£27.23	£32.68
283 - HEXAGON SOCKET WRENCH BSD-2610016567.A7 2610016567	£1.75	£2.10
285 - SERRATED LOCK-WASHER BSD-2610023174.A4 2610023174	£1.75	£2.10
286 - LOCK BSD-2610015093.A8 2610015093	£33.74	£40.49
287 - BASE BSD-2610017048.A1 2610017048	£179.37	£215.24
288 - RIVING KNIFE BSD-2610017049.A7 2610017049	£59.53	£71.44
289 - ROD BSD-2610017050.A1 2610017050	£1.75	£2.10
290 - WASHER BSD-2610950389.A8 2610950389	£1.75	£2.10
291 - WASHER BSD-2610017051.A7 2610017051	£1.75	£2.10
292 - WASHER BSD-2610950109.A3 2610950109	£1.75	£2.10
293 - SCREW BSD-2610950108.A10 2610950108	£1.75	£2.10
294 - HOLDER BSD-2610017053.A6 2610017053	£10.10	£12.12
295 - HOLDER BSD-2610017054.A2 2610017054	£10.10	£12.12
296 - SCREW BSD-2610015065.A27 2610015065	£1.75	£2.10
297 - WASHER BSD-2610015001.A5 2610015001	£1.75	£2.10
298 - ROD BSD-2610017056.A6 2610017056	£1.75	£2.10
299 - SCREW BSD-2610017057.A2 2610017057	£1.75	£2.10
300 - TORSION SPRING BSD-2610017058.A6 2610017058	£1.75	£2.10
301 - SCREW BSD-2610015065.A28 2610015065	£1.75	£2.10
302 - SAFETY GUARD BSD-2610017060.A2 2610017060	£2.61	£3.13
303 - CABLE CLIP BSD-2610020856.A4 2610020856	£1.75	£2.10
305 - BAFFLE BSD-2610020858.A5 2610020858	£2.61	£3.13
343 - CABLE CLIP BSD-2610020856.A5 2610020856	£1.75	£2.10
344 - CABLE CLIP BSD-2610020859.A3 2610020859	£1.75	£2.10
801 - MOTOR HOUSING BSD-1619PB2531.A2 1619PB2531	-

Attribute Name	Value
Brand	Bosch

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Bosch GTS 10 J / 3601M30560 / GB 110 Volt Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
