Bosch GTS 10 / 3601L30260 / GB 110 Volt Spare Parts

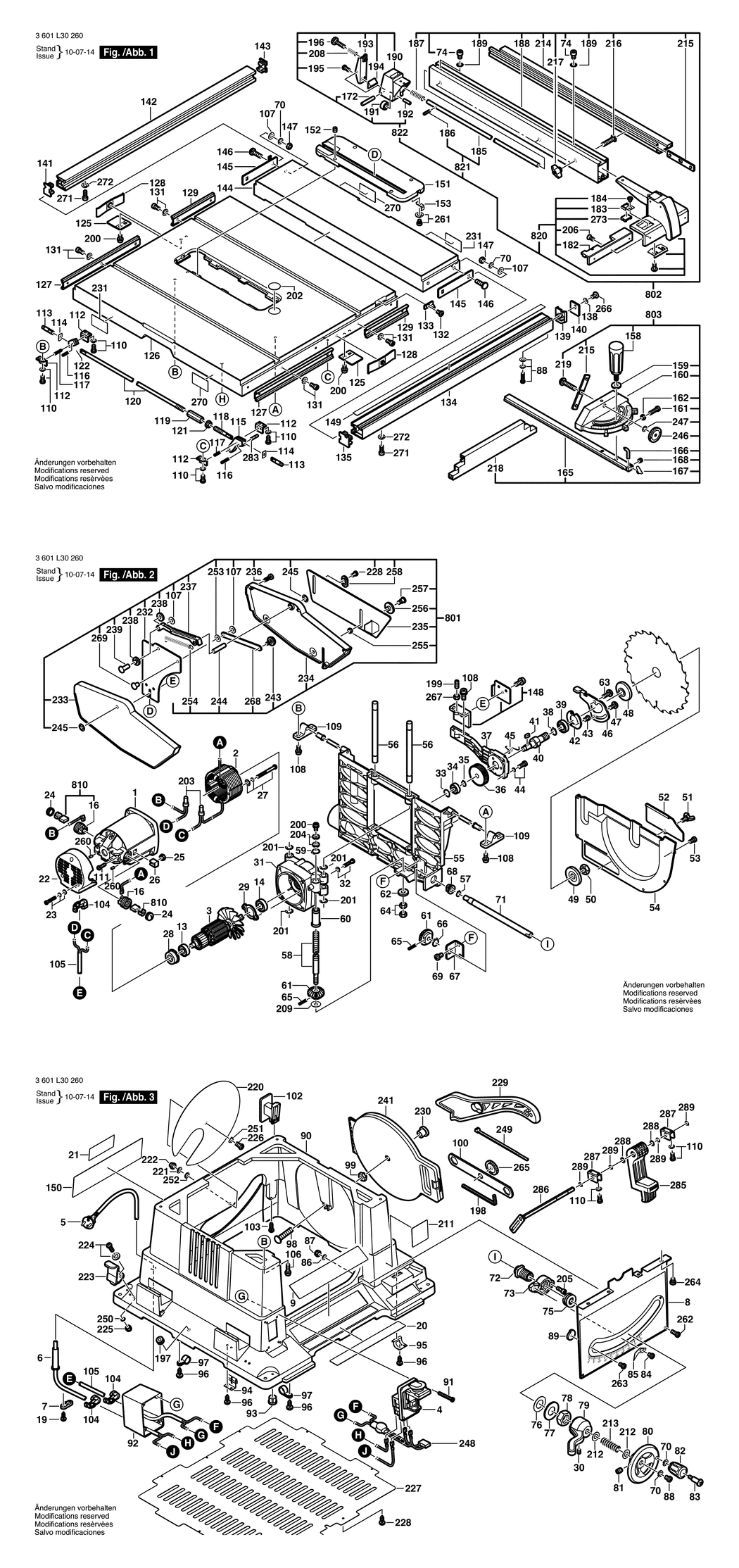

An exploded drawing and listing for the Bosch GTS 10 / 3601L30260 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2610996864.A5 2610996864	£48.38	£58.06
2 - FIELD 110V BSD-1609203L46.A1 1609203L46	£59.53	£71.44
3 - ARMATURE 120V BSD-1619P03279.A1 1619P03279	-
4 - SWITCH BSD-1609902106.A0 1609902106	£59.53	£71.44
5 - POWER SUPPLY CORD BSD-1609203L48.A0 1609203L48	-
6 - CORD GUARD BSD-1609203K90.A8 1609203K90	£1.66	£1.99
7 - CLAMP BSD-2610358842.A5 2610358842	£1.75	£2.10
8 - FRONT PANEL BSD-1609203K91.A0 1609203K91	£45.67	£54.80
9 - STICKER BSD-2610997806.A0 2610997806	£1.95	£2.34
13 - BALL BEARING BSD-2610911928.A1 2610911928	£12.04	£14.45
14 - BALL BEARING BSD-2610911927.A39 2610911927	£23.86	£28.63
16 - BRUSH HOLDER BSD-2610911858.A17 2610911858	£16.41	£19.69
19 - SCREW BSD-2610358844.A12 2610358844	£1.75	£2.10
20 - MANUFACTURER'S NAMEPLATE BSD-1609902557.A5 1609902557	£2.16	£2.59
21 - NAMEPLATE BSD-1619P03461.A0 1619P03461	£2.61	£3.13
22 - COVER BSD-2610996865.A2 2610996865	£14.91	£17.89
23 - SCREW BSD-2610998571.A7 2610998571	£1.75	£2.10
24 - BRUSH-COVER dia 20mm BSD-2610911859.A7 2610911859	£2.16	£2.59
25 - NUT BSD-2610327868.A27 2610327868	£1.75	£2.10
26 - INSERT BSD-2610911569.A35 2610911569	£2.61	£3.13
27 - SCREW BSD-2610911929.A22 2610911929	£1.75	£2.10
28 - RUBBER RING BSD-2610996948.A18 2610996948	£1.75	£2.10
29 - BEARING COVER BSD-2610911566.A11 2610911566	£2.80	£3.36
30 - SCREW BSD-2610355295.A17 2610355295	£2.16	£2.59
31 - GEAR HOUSING BSD-2610996863.A2 2610996863	-
32 - SCREW BSD-1609902670.A11 1609902670	£1.75	£2.10
33 - SPRING WASHER BSD-2610911924.A12 2610911924	£3.72	£4.47
34 - BALL BEARING BSD-2610996949.A8 2610996949	£14.91	£17.89
35 - SPRING RETAINING RING BSD-2610997281.A13 2610997281	£1.75	£2.10
36 - TOOTHED GEAR BSD-2610997208.A5 2610997208	£37.27	£44.72
37 - GEAR COVER BSD-2610996869.A1 2610996869	£23.86	£28.63
38 - SPRING RETAINING RING BSD-2610997282.A20 2610997282	£1.75	£2.10
39 - BALL BEARING BSD-2610997210.A22 2610997210	£14.91	£17.89
40 - OUTPUT SHAFT BSD-2610997211.A5 2610997211	£31.64	£37.97
41 - WOODRUFF KEY BSD-2610993102.A17 2610993102	£2.16	£2.59
42 - BEARING SLEEVE BSD-2610996932.A0 2610996932	£2.61	£3.13
43 - SCREW BSD-2610355293.A5 2610355293	£2.33	£2.80
44 - SCREW BSD-1609902679.A2 1609902679	£1.75	£2.10
45 - TORSION SPRING BSD-2610996875.A26 2610996875	£1.75	£2.10
46 - LOCKING LEVER BSD-2610996874.A1 2610996874	£11.30	£13.56
47 - SHOULDER SCREW BSD-2610996876.A1 2610996876	£1.75	£2.10
48 - CLAMPING FLANGE BSD-1609203K93.A7 1609203K93	£12.04	£14.45
49 - CLAMPING FLANGE BSD-2610996871.A7 2610996871	-
50 - NUT BSD-2610358858.A12 2610358858	£2.61	£3.13
51 - WING SCREW BSD-2610996879.A7 2610996879	£2.33	£2.80
52 - COVER PLATE BSD-2610996878.A1 2610996878	£5.01	£6.01
53 - SCREW BSD-1609902699.A6 1609902699	£1.75	£2.10
54 - COVER PLATE BSD-2610996877.A7 2610996877	-
55 - HOLDING PLATE BSD-2610996861.A2 2610996861	-
56 - GUIDING BOLT BSD-2610996862.A6 2610996862	£6.61	£7.93
57 - SPRING RETAINING RING BSD-2610997276.A7 2610997276	£1.75	£2.10
58 - THREADED ROD BSD-2610996895.A0 2610996895	£8.49	£10.19
59 - SPRING RETAINING RING BSD-2610998573.A20 2610998573	£1.75	£2.10
60 - BUSHING BSD-2610997221.A8 2610997221	£5.30	£6.36
61 - TOOTHED GEAR BSD-2610996896.A9 2610996896	£5.58	£6.70
62 - SPRING WASHER BSD-1609902672.A6 1609902672	£1.75	£2.10
63 - SCREW BSD-2610998588.A24 2610998588	£1.75	£2.10
64 - NUT BSD-2610358149.A11 2610358149	£1.75	£2.10
65 - BOLT BSD-2610910796.A7 2610910796	£2.80	£3.36
66 - SPRING RETAINING RING BSD-2610997277.A11 2610997277	£1.75	£2.10
67 - MOUNTING BRACKET BSD-2610997212.A4 2610997212	£2.80	£3.36
68 - BUSHING BSD-2610997222.A0 2610997222	£1.32	£1.58
69 - SCREW BSD-2615297323.A28 2615297323	£1.75	£2.10
70 - SPRING WASHER BSD-2610355325.A5 2610355325	£1.75	£2.10
71 - SHAFT BSD-2610996897.A0 2610996897	£11.30	£13.56
72 - THREADED BUSHING BSD-2610996933.A18 2610996933	£14.91	£17.89
73 - BUSHING BSD-2610996938.A0 2610996938	£8.67	£10.41
74 - SCREW BSD-2610303023.A7 2610303023	£1.75	£2.10
75 - SPRING BSD-2610997271.A7 2610997271	£1.75	£2.10
76 - PLAIN WASHER BSD-2610998550.A1 2610998550	£1.75	£2.10
77 - PLAIN WASHER BSD-2610997299.A8 2610997299	£1.75	£2.10
78 - NUT BSD-2610997298.A10 2610997298	£5.30	£6.36
79 - CLAMPING LEVER BSD-2610996898.A8 2610996898	-
80 - HANDWHEEL BSD-1609203K94.A1 1609203K94	£10.82	£12.99
81 - SET SCREW BSD-1609902669.A12 1609902669	£1.75	£2.10
82 - KNOB BSD-2610996925.A8 2610996925	£1.32	£1.58
83 - SHOULDER SCREW BSD-2610997270.A11 2610997270	£2.16	£2.59
84 - SCREW BSD-1609902696.A6 1609902696	£1.75	£2.10
85 - POINTER BSD-2610996927.A8 2610996927	£1.75	£2.10
86 - WASHER BSD-2610355570.A8 2610355570	£3.72	£4.47
87 - NUT BSD-2610356706.A12 2610356706	£2.61	£3.13
88 - SCREW BSD-2610997286.A1 2610997286	£1.75	£2.10
89 - END STOP BSD-2610996929.A8 2610996929	£1.75	£2.10
90 - HOUSING BSD-1609203L32.A7 1609203L32	-
91 - SCREW BSD-2610997294.A8 2610997294	£1.75	£2.10
92 - SWITCH HOUSING BSD-1609203K95.A7 1609203K95	£11.30	£13.56
93 - RUBBER BUSHING BSD-2610358846.A6 2610358846	£1.75	£2.10
94 - PICKUP CLIP BSD-2610996930.A0 2610996930	£2.52	£3.02
95 - PICKUP CLIP BSD-2610996931.A8 2610996931	£1.75	£2.10
96 - SCREW BSD-2610910047.A9 2610910047	£1.75	£2.10
97 - CABLE CLIP BSD-2610990504.A7 2610990504	£1.75	£2.10
98 - SCREW BSD-2610997273.A1 2610997273	-
99 - NUT BSD-2610997246.A0 2610997246	£1.75	£2.10
100 - BOX WRENCH BSD-2610996880.A1 2610996880	£5.30	£6.36
102 - HOLDER BSD-2610996922.A8 2610996922	£2.52	£3.02
103 - SCREW BSD-2610998574.A7 2610998574	£1.75	£2.10
104 - CABLE CLIP BSD-1609203K96.A1 1609203K96	£1.75	£2.10
105 - CONNECTING CABLE BSD-1609203L33.A1 1609203L33	£10.10	£12.12
106 - SCREW BSD-2610997297.A8 2610997297	£1.75	£2.10
107 - WASHER BSD-2610910013.A10 2610910013	£2.16	£2.59
108 - SCREW BSD-2610998575.A11 2610998575	£1.75	£2.10
109 - BEARING PEDESTAL BSD-2610996894.A8 2610996894	£5.87	£7.04
110 - TAPPING SCREW BSD-2610908271.A0 2610908271	£1.75	£2.10
111 - SCREW BSD-2610998587.A3 2610998587	£1.75	£2.10
112 - HOLDING BRACKET BSD-2610996921.A10 2610996921	£1.75	£2.10
113 - PIN BSD-2610996913.A10 2610996913	£4.26	£5.11
114 - PLATE BSD-2610996917.A9 2610996917	£1.75	£2.10
115 - CAM BSD-2610937294.A2 2610937294	£10.10	£12.12
116 - PIN BSD-2610997275.A11 2610997275	£1.75	£2.10
117 - PIN BSD-2610997274.A12 2610997274	£1.75	£2.10
118 - SET SCREW BSD-2610996918.A10 2610996918	£2.16	£2.59
119 - CONNECTING NUT BSD-2610996920.A8 2610996920	£5.01	£6.01
120 - ROD BSD-1609203L34.A7 1609203L34	£4.75	£5.70
121 - NUT BSD-1619P03453.A0 1619P03453	£1.75	£2.10
122 - CLAMPING PIECE BSD-2610996915.A15 2610996915	£11.30	£13.56
125 - END STOP BSD-2610997217.A8 2610997217	£2.16	£2.59
126 - TABLE TOP BSD-1619P03470.A1 1619P03470	£251.67	£302.00
127 - MOUNTING RAIL BSD-2610996855.A2 2610996855	£5.01	£6.01
128 - FIXING PLATE BSD-2610996912.A0 2610996912	£5.58	£6.70
129 - MOUNTING RAIL BSD-2610996856.A6 2610996856	£3.34	£4.01
131 - SCREW BSD-2610303029.A7 2610303029	£1.75	£2.10
132 - SCREW BSD-2610320339.A11 2610320339	£1.75	£2.10
133 - POINTER BSD-2610996941.A8 2610996941	£1.75	£2.10
134 - PROFILE RAIL BSD-2610996853.A2 2610996853	£41.62	£49.95
135 - COVER BSD-2610996923.A0 2610996923	£1.75	£2.10
138 - WASHER BSD-2610908270.A13 2610908270	£1.75	£2.10
139 - COVER BSD-2610997244.A0 2610997244	£2.16	£2.59
140 - END STOP BSD-2610996926.A0 2610996926	£1.75	£2.10
141 - COVER BSD-2610997218.A0 2610997218	£1.75	£2.10
142 - PROFILE RAIL BSD-2610996854.A6 2610996854	£30.28	£36.33
143 - COVER BSD-2610997216.A10 2610997216	£1.75	£2.10
144 - TABLE TOP BSD-1609203L36.A6 1609203L36	£80.61	£96.73
145 - RETAINING PLATE BSD-2610996928.A0 2610996928	£1.95	£2.34
146 - TRUNNION BSD-1619P01539.A3 1619P01539	£1.75	£2.10
147 - NUT BSD-2610304772.A11 2610304772	£1.75	£2.10
148 - PROTECTIVE COVER BSD-2610998577.A7 2610998577	£8.49	£10.19
149 - RULE BSD-1609203K97.A7 1609203K97	£7.78	£9.33
150 - STICKER BSD-2610997807.A7 2610997807	£2.16	£2.59
151 - INSERT BSD-1609203L37.A2 1609203L37	-
152 - STUD BSD-2610997283.A7 2610997283	£1.75	£2.10
153 - HOLDING SPRING BSD-2610011716.A8 2610011716	£1.75	£2.10
158 - CLAMP HANDLE BSD-2610998579.A1 2610998579	£6.52	£7.83
159 - PLAIN WASHER BSD-2610909178.A3 2610909178	£1.75	£2.10
160 - END STOP BSD-1609203L38.A6 1609203L38	-
161 - SCREW BSD-1609902697.A2 1609902697	£1.75	£2.10
162 - NUT BSD-2610908272.A18 2610908272	£1.75	£2.10
165 - GUIDE BAR BSD-1609203L39.A2 1609203L39	-
166 - POINTER BSD-2610997214.A0 2610997214	£2.16	£2.59
167 - END STOP BSD-2610997215.A8 2610997215	£1.75	£2.10
168 - SCREW BSD-2610296243.A1 2610296243	-
172 - PIN BSD-2610997291.A0 2610997291	£1.75	£2.10
182 - SLIDE RAIL BSD-2610996891.A0 2610996891	£6.52	£7.83
183 - BRACKET BSD-2610998570.A1 2610998570	-
184 - COVER BSD-2610358892.A5 2610358892	£2.16	£2.59
185 - ROD BSD-1609203K99.A1 1609203K99	£6.52	£7.83
186 - RETAINING PIN BSD-1609902703.A2 1609902703	£1.75	£2.10
187 - SPRING BSD-2610996888.A1 2610996888	£1.75	£2.10
188 - PROFILE RAIL BSD-1609203L40.A6 1609203L40	£51.22	£61.47
189 - WASHER BSD-2610358802.A12 2610358802	£1.75	£2.10
190 - HOUSING BSD-2610996884.A7 2610996884	£16.74	£20.09
191 - ROLLER BSD-2610996886.A7 2610996886	£1.75	£2.10
192 - PIN BSD-2610997292.A8 2610997292	£1.75	£2.10
193 - CLAMPING PLATE BSD-2610996885.A1 2610996885	£5.30	£6.36
194 - CLAMPING PIECE BSD-2610997240.A18 2610997240	£2.16	£2.59
195 - SCREW BSD-2610997293.A0 2610997293	£1.75	£2.10
196 - ADJUSTING SCREW BSD-2610997245.A8 2610997245	£2.61	£3.13
197 - RUBBER BUSHING BSD-2610911920.A30 2610911920	£1.32	£1.58
198 - HEXAGON SOCKET SCREW KEY BSD-2610998551.A7 2610998551	£2.61	£3.13
199 - SCREW BSD-2610998580.A7 2610998580	£1.75	£2.10
200 - SCREW BSD-2610328617.A11 2610328617	£1.75	£2.10
201 - SPRING RETAINING RING BSD-2610992380.A7 2610992380	£1.75	£2.10
202 - STICKER BSD-1609203L00.A7 1609203L00	£11.30	£13.56
203 - CONNECTOR BSD-2610358932.A9 2610358932	£1.75	£2.10
204 - PLAIN WASHER BSD-2610303020.A11 2610303020	-
205 - SCREW BSD-2610303026.A11 2610303026	£1.75	£2.10
206 - SCREW BSD-2610967422.A8 2610967422	£1.75	£2.10
208 - SPRING BSD-2610998593.A3 2610998593	£1.75	£2.10
209 - PLAIN WASHER BSD-2610912588.A8 2610912588	£1.75	£2.10
211 - STICKER BSD-1609203L01.A1 1609203L01	£1.95	£2.34
212 - WASHER BSD-2610341465.A18 2610341465	£2.16	£2.59
213 - COMPRESSION SPRING BSD-2610913192.A5 2610913192	£1.95	£2.34
214 - END STOP BSD-1609203L03.A7 1609203L03	£30.28	£36.33
215 - CLAMPING PLATE BSD-1609203L04.A1 1609203L04	£2.16	£2.59
216 - SCREW BSD-1609203L05.A17 1609203L05	£1.75	£2.10
217 - KNOB BSD-1609203L06.A1 1609203L06	£3.72	£4.47
218 - PROFILE RAIL BSD-1609203L07.A17 1609203L07	£21.52	£25.83
219 - BOLT BSD-1609203L08.A1 1609203L08	£1.75	£2.10
220 - GUARD PLATE BSD-1609203L09.A17 1609203L09	£10.10	£12.12
221 - PLAIN WASHER BSD-1609203L10.A1 1609203L10	£1.75	£2.10
222 - NUT BSD-1609203L11.A17 1609203L11	£1.75	£2.10
223 - HOLDING PLATE BSD-1609203L12.A1 1609203L12	£4.75	£5.70
224 - SCREW BSD-1609203L13.A7 1609203L13	£1.75	£2.10
225 - NUT BSD-1609203L14.A1 1609203L14	£1.75	£2.10
226 - SCREW BSD-1609203L15.A7 1609203L15	£1.32	£1.58
227 - GUARD PLATE BSD-1609203L16.A1 1609203L16	-
228 - SCREW BSD-1609902044.A1 1609902044	£1.75	£2.10
229 - PUSHER BSD-1609203L18.A7 1609203L18	£11.30	£13.56
230 - NUT BSD-1609203L19.A1 1609203L19	£2.16	£2.59
231 - STICKER BSD-1609203L20.A7 1609203L20	£2.33	£2.80
232 - RIVING KNIFE BSD-1609902027.A1 1609902027	-
233 - FLAP GUARD BSD-1609902025.A1 1609902025	£16.74	£20.09
234 - FLAP GUARD BSD-1609902026.A7 1609902026	£16.74	£20.09
235 - COVER PLATE BSD-1609902045.A7 1609902045	-
236 - SCREW BSD-1609902040.A1 1609902040	£1.75	£2.10
237 - GUARD HOLDER BSD-1609902030.A7 1609902030	£5.30	£6.36
238 - SPACER BSD-1609902029.A1 1609902029	£1.32	£1.58
239 - SCREW BSD-1609902028.A7 1609902028	£1.66	£1.99
241 - CONTAINER BSD-1609203L30.A1 1609203L30	-
243 - SCREW BSD-1609902033.A1 1609902033	£1.75	£2.10
244 - PIN BSD-1609902023.A1 1609902023	£2.16	£2.59
245 - NUT BSD-1609902024.A3 1609902024	£1.66	£1.99
246 - ROUND NUT BSD-1609902047.A7 1609902047	£2.61	£3.13
247 - PLAIN WASHER BSD-2610993221.A12 2610993221	£1.75	£2.10
248 - COIL BSD-1609902049.A1 1609902049	£13.12	£15.75
249 - CABLE STRAP BSD-1609902050.A0 1609902050	£1.75	£2.10
250 - CUPPED WASHER BSD-1609902051.A8 1609902051	£5.87	£7.04
251 - SPRING WASHER BSD-1609902052.A0 1609902052	£1.75	£2.10
252 - PLAIN WASHER BSD-1609902053.A18 1609902053	£1.75	£2.10
253 - CUPPED WASHER BSD-1609902032.A6 1609902032	£1.75	£2.10
254 - EXTENSION SPRING BSD-1609902031.A1 1609902031	£1.75	£2.10
255 - SPACER BSD-1609902041.A7 1609902041	£1.75	£2.10
256 - SCREW BSD-1609902046.A1 1609902046	£1.75	£2.10
257 - WASHER BSD-1609902043.A6 1609902043	£1.75	£2.10
258 - WASHER BSD-1609902042.A1 1609902042	£1.75	£2.10
260 - SET SCREW BSD-1609902054.A0 1609902054	£1.75	£2.10
261 - SCREW BSD-1609902055.A18 1609902055	£1.75	£2.10
262 - SCREW BSD-1609902056.A0 1609902056	£1.75	£2.10
263 - SCREW BSD-1609902057.A8 1609902057	£1.75	£2.10
264 - SCREW BSD-2610355278.A8 2610355278	£5.30	£6.36
265 - ROUND NUT BSD-1609902022.A3 1609902022	£1.75	£2.10
266 - NUT BSD-2610911896.A12 2610911896	-
267 - NUT BSD-1609902058.A0 1609902058	£1.75	£2.10
268 - LINKAGE PART BSD-1609902039.A6 1609902039	£2.16	£2.59
269 - SCREW BSD-1609902059.A8 1609902059	£1.75	£2.10
270 - LABEL BSD-1609902060.A0 1609902060	£1.75	£2.10
271 - SCREW BSD-2610997296.A1 2610997296	£1.75	£2.10
272 - WASHER BSD-2610358936.A0 2610358936	£1.75	£2.10
273 - LENS BSD-1609902063.A8 1609902063	£1.32	£1.58
283 - GUIDE PIN BSD-2610937292.A4 2610937292	£1.75	£2.10
285 - ROTARY HANDLE BSD-2610937289.A1 2610937289	-
286 - AXLE BSD-2610937290.A2 2610937290	£13.12	£15.75
287 - MOUNTING BRACKET BSD-2610937291.A1 2610937291	£2.80	£3.36
288 - WASHER BSD-1619P03473.A1 1619P03473	£1.75	£2.10
289 - RETAINING RING BSD-2610937293.A1 2610937293	£1.75	£2.10
801 - PROTECTIVE COVER BSD-1609203L41.A1 1609203L41	-
802 - EDGE GUIDE BSD-1609203L42.A7 1609203L42	-
803 - MITRE FENCE BSD-1609203L43.A1 1609203L43	-
810 - CARBON-BRUSH SET BSD-2610997207.A2 2610997207	£14.91	£17.89
810 - CARBON-BRUSH SET BSD-2610018332.A3 2610018332	£21.68	£26.01
820 - CLAMP HANDLE BSD-1609902076.A0 1609902076	£51.22	£61.47
821 - ROD BSD-1609902077.A8 1609902077	£7.78	£9.33
822 - LOCKING CLAMPS BSD-1609902078.A0 1609902078	£27.23	£32.68

Attribute Name	Value
Brand	Bosch

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Bosch GTS 10 / 3601L30260 / GB 110 Volt Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Bosch GTS 10 / 3601L30260 / GB 110 Volt Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
