Bosch GCO 14-2 / 0601B11050 / I 230 Volt Spare Parts

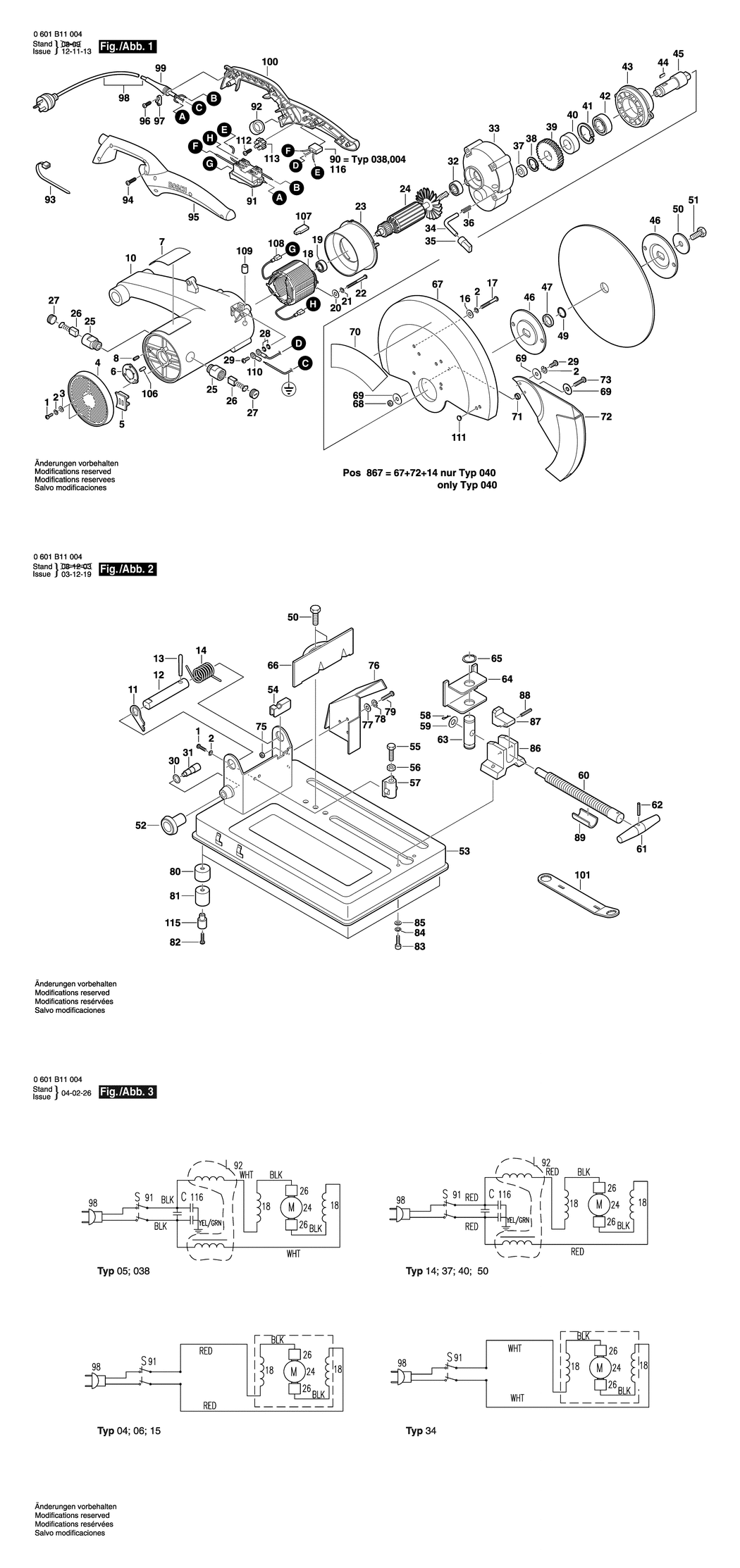

An exploded drawing and listing for the Bosch GCO 14-2 / 0601B11050 / I 230 Volt

	Ex VAT	Inc VAT
1 - SCREW BSD-1609203E42.A0 1609203E42	-
2 - SPRING WASHER BSD-1609203E43.A0 1609203E43	-
3 - PLAIN WASHER BSD-1609203E44.A0 1609203E44	-
4 - HOUSING COVER BSD-1609203E45.A0 1609203E45	-
5 - COVER BSD-1609203E46.A0 1609203E46	-
6 - BEARING COVER BSD-1609203E47.A0 1609203E47	-
7 - NAMEPLATE BSD-1609203F68.A0 1609203F68	-
8 - SCREW BSD-1609902179.A0 1609902179	£1.32	£1.58
10 - MOTOR HOUSING BSD-1609902414.A0 1609902414	£80.61	£96.73
11 - LOCKING LEVER BSD-1609203E52.A0 1609203E52	-
12 - GUIDING BOLT BSD-1609203E53.A0 1609203E53	-
13 - TAPER PIN BSD-1609203E54.A0 1609203E54	-
14 - TORSION SPRING BSD-1609203E55.A0 1609203E55	-
16 - PLAIN WASHER BSD-1609203E57.A0 1609203E57	-
17 - SCREW BSD-1609203E58.A0 1609203E58	-
18 - STATOR BSD-1609902404.A0 1609902404	-
19 - BALL BEARING BSD-1609203E60.A0 1609203E60	-
20 - PLAIN WASHER BSD-1609203E61.A0 1609203E61	-
21 - SPRING WASHER BSD-1609203E62.A0 1609203E62	-
22 - SCREW BSD-1609203E63.A0 1609203E63	-
23 - AIR-DEFLECTOR RING BSD-1609203E64.A0 1609203E64	-
24 - ROTOR BSD-1609902411.A0 1609902411	-
25 - CARBON BRUSH HOLDER BSD-1609203E66.A0 1609203E66	-
26 - CARBON-BRUSH SET BSD-1609902320.A0 1609902320	-
27 - BRUSH-COVER BSD-1609203E68.A0 1609203E68	-
28 - TOOTHED LOCK WASHER BSD-1609203E69.A0 1609203E69	-
29 - SCREW BSD-1609203E70.A0 1609203E70	-
30 - O-RING 4.8x1.8 MM BSD-1609203E71.A0 1609203E71	-
31 - LOCKING BOLT BSD-1609203E72.A0 1609203E72	-
32 - BALL BEARING BSD-1609203E73.A0 1609203E73	-
33 - GEAR HOUSING BSD-1609203E74.A0 1609203E74	-
34 - LOCKING PIN BSD-1609203E75.A0 1609203E75	-
35 - HANDLE BSD-1609203E76.A0 1609203E76	-
36 - SPRING BSD-1609203E77.A0 1609203E77	-
37 - PLAIN BEARING BSD-1609203E78.A0 1609203E78	-
38 - SPRING RETAINING RING BSD-1609203E79.A0 1609203E79	-
39 - TOOTHED GEAR BSD-1609902181.A0 1609902181	-
40 - SPACER TUBE BSD-1609203E81.A0 1609203E81	-
41 - SPRING RETAINING RING BSD-1609203E82.A0 1609203E82	-
42 - BALL BEARING BSD-1609203E83.A0 1609203E83	-
43 - BEARING COVER BSD-1609203E84.A0 1609203E84	-
44 - PARALLEL KEY BSD-1609203E85.A0 1609203E85	-
45 - GRINDING SPINDLE BSD-1609902183.A0 1609902183	-
46 - CLAMPING FLANGE BSD-1609203E87.A0 1609203E87	-
47 - SLEEVE BSD-1609203E88.A0 1609203E88	-
49 - O-RING BSD-1609902193.A0 1609902193	£7.78	£9.33
50 - PLAIN WASHER BSD-1609203E91.A0 1609203E91	-
51 - HEX SCREW BSD-1609203E92.A0 1609203E92	-
52 - LOCKING BOLT BSD-1609203E93.A0 1609203E93	-
53 - BASE PLATE BSD-1609902419.A0 1609902419	£81.81	£98.17
54 - SPRING HOLDER BSD-1609203E95.A0 1609203E95	-
55 - HEX SCREW BSD-1609203E96.A0 1609203E96	-
56 - HEX NUT BSD-1609203E97.A0 1609203E97	-
57 - HOLDING FIXTURE BSD-1609203E98.A0 1609203E98	-
58 - SPLIT PIN BSD-1609203E99.A0 1609203E99	-
59 - PLAIN WASHER BSD-1609203F00.A0 1609203F00	£1.75	£2.10
60 - CLAMP SCREW BSD-1609203F01.A0 1609203F01	£14.91	£17.89
61 - HANDLE BSD-1609203F02.A0 1609203F02	£6.61	£7.93
62 - STRAIGHT PIN BSD-1609203F03.A0 1609203F03	£1.32	£1.58
63 - BOLT BSD-1609203F04.A0 1609203F04	-
64 - CLAMPING JAWS BSD-1609203F05.A0 1609203F05	£4.26	£5.11
65 - SPRING RETAINING RING BSD-1609203F06.A0 1609203F06	£1.75	£2.10
66 - STOP BRACKET BSD-1609203F43.A0 1609203F43	£9.49	£11.39
67 - PROTECTIVE COVER BSD-1609203F07.A0 1609203F07	£45.67	£54.80
68 - HEX NUT BSD-1609203F08.A0 1609203F08	£1.75	£2.10
69 - PLAIN WASHER BSD-1609203F09.A0 1609203F09	£1.75	£2.10
70 - REFERENCE PLATE BSD-1609203F10.A0 1609203F10	-
71 - COVER BSD-1609203F11.A0 1609203F11	£1.95	£2.34
72 - FLAP GUARD BSD-1609203F12.A0 1609203F12	£33.74	£40.49
73 - SCREW BSD-1609203F13.A0 1609203F13	£1.75	£2.10
75 - HEX NUT BSD-1609203F15.A0 1609203F15	-
76 - BUMPER BSD-1609203F16.A0 1609203F16	£4.75	£5.70
77 - PLAIN WASHER BSD-1609203F17.A0 1609203F17	-
78 - SPRING WASHER BSD-1609203F18.A0 1609203F18	-
79 - SCREW BSD-1609203F19.A0 1609203F19	-
80 - SPACER BOLT BSD-1609203F20.A0 1609203F20	£2.61	£3.13
81 - RUBBER BUFFER BSD-1609902187.A0 1609902187	£2.52	£3.02
82 - SCREW BSD-1609902188.A0 1609902188	£1.32	£1.58
83 - SCREW BSD-1609203F23.A0 1609203F23	-
84 - SPRING WASHER BSD-1609203F24.A0 1609203F24	-
85 - PLAIN WASHER BSD-1609203F25.A0 1609203F25	-
86 - SUPPORTING BLOCK BSD-1609203F26.A0 1609203F26	£13.41	£16.09
87 - CATCH LEVER BSD-1609203F27.A0 1609203F27	£4.26	£5.11
88 - BOLT BSD-1609203F28.A0 1609203F28	-
89 - SWING-PLATE BSD-1609203F29.A0 1609203F29	-
91 - ON-OFF SWITCH BSD-1609203F31.A0 1609203F31	-
92 - INDUCTOR BSD-1609203F32.A0 1609203F32	£3.80	£4.56
93 - TAPE BSD-1609203F33.A0 1609203F33	£1.32	£1.58
94 - SCREW BSD-1609203F34.A0 1609203F34	£1.75	£2.10
95 - HANDLE BSD-1609203F35.A0 1609203F35	-
96 - SCREW BSD-1609203F36.A0 1609203F36	-
97 - FASTENING CLAMP BSD-1609203F37.A0 1609203F37	-
98 - POWER SUPPLY CORD BSD-1609203F69.A0 1609203F69	-
99 - CORD GUARD BSD-1609203F39.A0 1609203F39	£2.33	£2.80
100 - HANDLE BSD-1609203F40.A0 1609203F40	£12.04	£14.45
101 - HANDLE BSD-1609203F41.A0 1609203F41	£5.58	£6.70
106 - RUBBER PLUG BSD-1609203G33.A0 1609203G33	£1.95	£2.34
107 - SHRINKABLE TUBE BSD-1609203G34.A0 1609203G34	-
108 - CONNECTING TERMINAL BSD-1609203G35.A0 1609203G35	£1.75	£2.10
109 - PROTECTION SLEEVE BSD-1609203G36.A0 1609203G36	-
110 - CONNECTING TERMINAL BSD-1609203G37.A0 1609203G37	-
111 - RUBBER PLUG BSD-1609203G38.A0 1609203G38	£1.75	£2.10
112 - SCREW BSD-1609203G39.A0 1609203G39	-
113 - TERMINAL-PARTS SET BSD-1609203G40.A0 1609203G40	-
115 - SPACER BSD-1609902294.A0 1609902294	£11.30	£13.56
116 - SUPPRESSION FILTER BSD-1609902326.A0 1609902326	£8.49	£10.19
